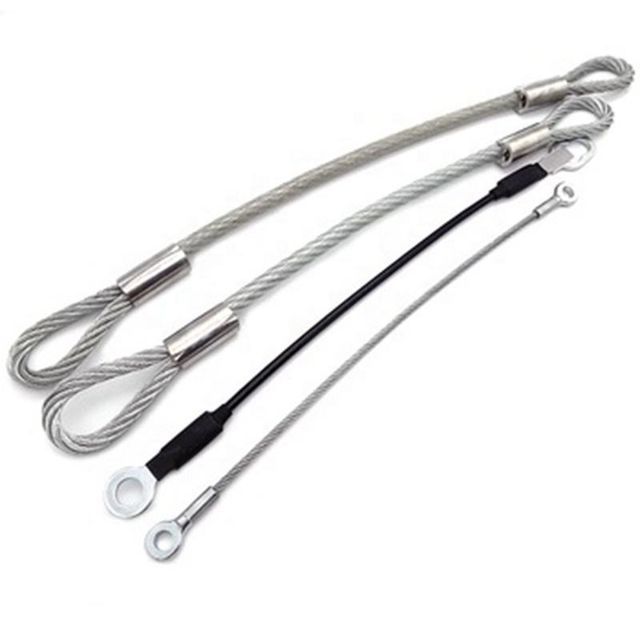

Vinyl Coated Stainless Steel Wire Rope Cable Assembly Wire Rope Sling Safety Cable with Eyelet Terminals

1. Diameter

1.2mm-10.0mm

customizable

2.Construction

7X7,7*19, etc.

3.Material

Stainless steel or galvanized steel or other

4.Minimum order quantity

500 pieces

PVC, PU, ​​PE, nylon, etc.

8. Pipe fitting end parts

A wide selection of end accessories including eyebolts, connecting rods, springs, hooks, ejector pins, clamps, blocks, balls, ball shanks, sleeves, punched holes, handles and more

9. Delivery time

7 days if there are enough materials in stock

10.Samples

Free samples are provided if all sizes are the same as our existing ones, if not please contact me for a cost effective solution.

application

Lighting, Machinery, Medical, Security, Sporting Goods, Toys, Windows, Lawn & Garden

etc. When designing cable assemblies, there are many factors to consider such as workload, wear, cycle life as well as flexibility, environment, cost, safety, etc. The larger the diameter, the greater the workload capacity, but the less flexibility.

WARNING: Breaking strength should never take into account the working load of the rope, safety factor 5:1, coating must be removed from mounting area when attaching accessories

Specification

Refer to the picture below:

All specifications can be customized. The tighter the tolerance, the higher the cost.

diameter

put up

Weight(100m)

Minimum breaking load (N)

1.0mm

1*19

0.495

950(95kg)

7*7

0.393

650 (65kg)

1.2 mm

1*19

0.713

1440(144kg)

7*7

0.566

950(95kg)

1.5 mm

1*19

1.114

2200(220kg)

7*7

0.884

1500(150kg)

1.8 mm

1*19

1.604

3200(320kg)

7*7

1.273

2100(210kg)

2.0mm

1*19

1.98

3900(390kg)

7*7

1.527

2650(265kg)

2.4mm

1*19

2.851

5650(565kg)

7*7

2.264

3800(380)kg

2.5 mm

1*19

3.094

6100(610kg)

7*7

2.381

4100(410kg)

3.2 mm

7*7

4.024

6850(685kg)

7*19

3.901

6800(680kg)

3.8mm

7*19

5.675

9650(965kg)

7*7

5.502

9600(960kg)

4.0mm

7*19

6.609

12500(1250kg)

4.2 mm

7*7

6.933

13000(1300kg)

4.5mm

7*7

7.958

13500(1350kg)

4.8mm

7*19

8.778

15300(1530kg)

6.0mm

7*19

8.716

23900(2390kg)
