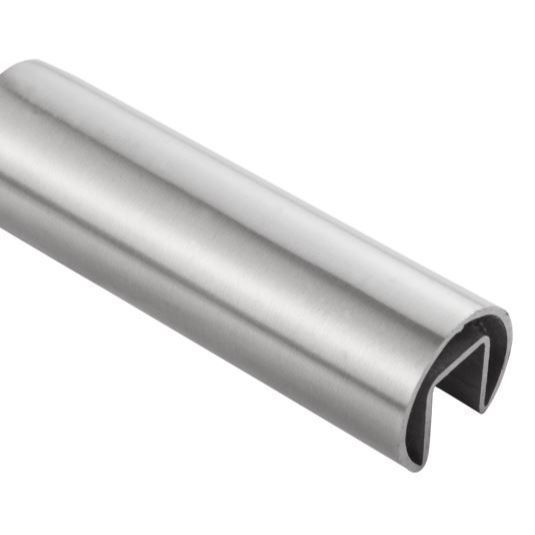

Decorative Stainless Steel Slot U Tube/U Slot Glass Railing Tube

feature:

A) Accept OEM, ODM orders;

B) the best price;

C) high quality;

D) timely delivery;

e) Manufactured according to customer's size and design;

F) the best service;

G) Certification: ISO9001-2008

Our stainless steel tubes can be bent into different shapes to suit different designs and shapes in construction work

Material:

Grades: 201, 202, 304, 316, 430

Different grades can meet the requirements of different customers

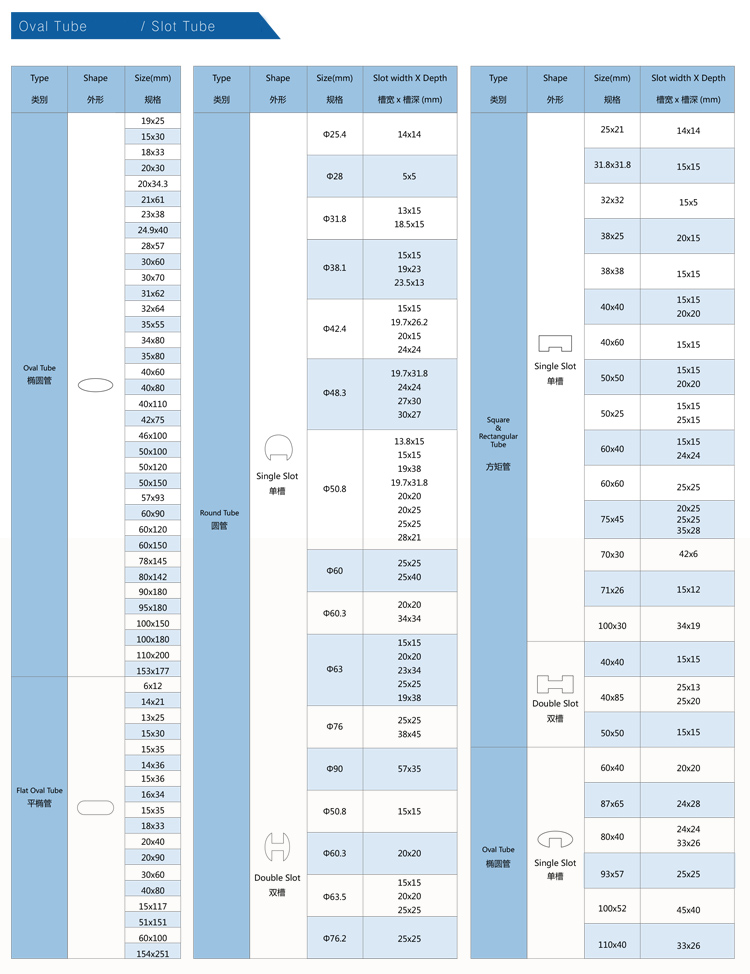

Product Specifications:

A: Round tube

12,13,14,16,19,25.4,31.8,44.5,50.8,63.5,76.2

B: Rectangular tube10x30, 10x40, 10x50, 10x75, 10x80, 10x90, 10x100, 20x40, 20x80, 20x100,

25x38, 25x50, 25x75 etc.

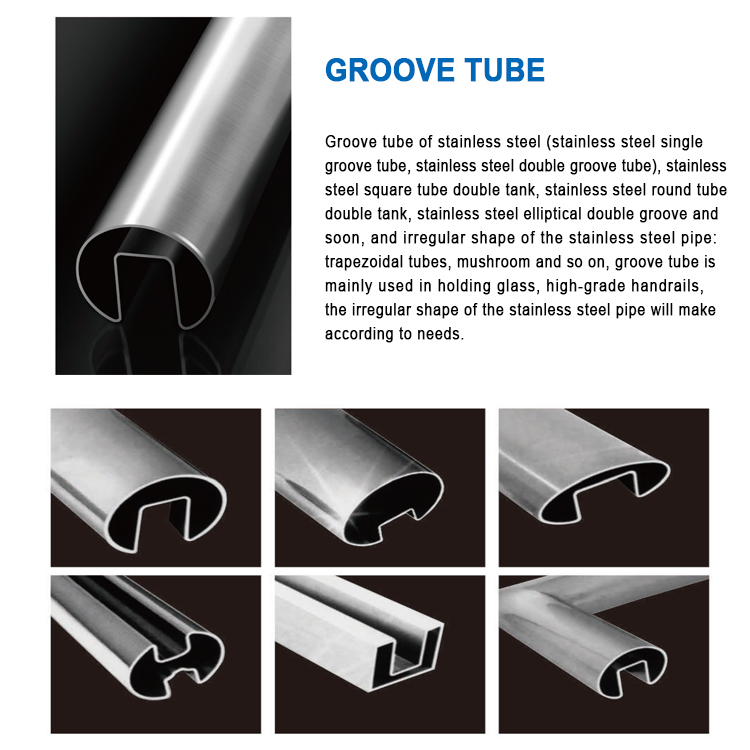

C: Single grooved pipe [outer diameter X (groove depth X width)]

25.4x(12x12), 38.1x(15x15), 42.4x(24x24), 48.3x(27x30), 50.8x(15x15)

50.8x(32x19), 50.8x(38x19), 60.3x(34x34), 63.5x(20x20), 76.2x(25x25)

D: Double tube [outer diameter X (groove depth X width)]

50.8x(15x15), 63.5x(20x20), 76.2x(25x25)

E: Oval single slotted tube [outline dimension X (slot depth X width)]

40x80x(26x33), 40x110x(26x33)

F: Oval tube

20x38, 23x38, 20x40, 28x46, 38x62, 42x75, 40x80, 40x110, 50x100, 60x120

size:

9.6mm-217mm

thickness:

0.5mm-2.0mm

length:

Standard is 6M, special length can be customized

chemical composition

work

201

202

304

316

430

C

≤0.15

≤0.15

≤0.08

≤0.08

≤0.12

silicon

≤1.00

≤1.00

≤1.00

≤1.00

≤1.00

manganese

5.5-7.5

7.5-10

≤2.00

≤2.00

≤1.00

phosphorus

≤0.06

≤0.06

≤0.045

≤0.045

≤0.040

small

≤0.03

≤0.03

≤0.030

≤0.030

≤0.030

you

0.8-1.0

4-6

8-10.5

10-14

chromium

16-18

17-19

18-20

16-18

16-18

Finish:

1. Satin

2.400#

3.600~1000#mirrorx

4.HL wire drawing

5. Brushed mirror surface (two surface treatments for one tube)

production capacity

500 tons/month

application

Decorative/Industrial/Building Materials

Minimum bending radius:

A:38.1~50.8=RX1M

B:63.5~76.2=RX1.5-2.5M

C:88.9~101.6=RX3-4.5M

Production Process:

Uncoiling--weld edge forming--weld seam--weld inside and outside--polishing & fixed melting--fixed diameter & straightening--eddy current test--sawing--pressure test--final test--packaging

delivery time

7-15 days after placing the order, according to the customer's order quantity.

Package:

Each tube is individually wrapped in a plastic bag, then 10/bundle or 50/bundle. We can pack according to customer's requirements.

payment terms:

T/T 30% deposit, 70% balance should be paid before shipment; L/C, D/P available

Validity:

Prices are usually valid for 3 days.
