Factory OEM high strength resistive custom O-rings for gas applications.

Factory OEM high strength resistive custom O-rings for gas applications.

Material properties:

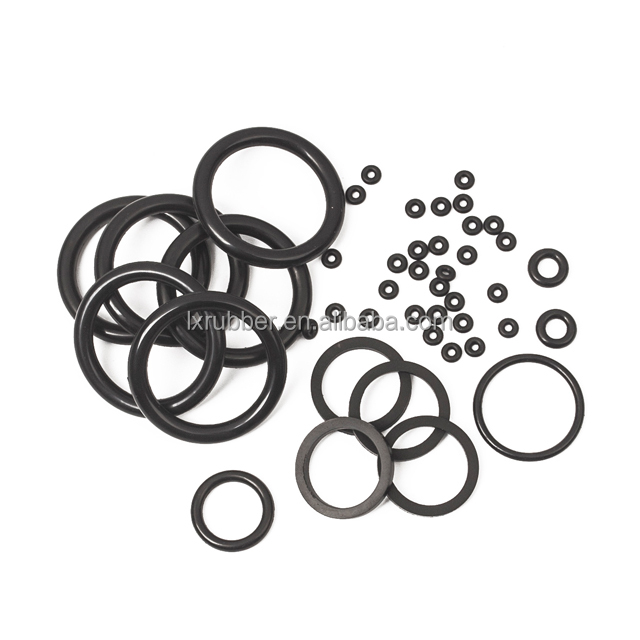

(1)Nitrile rubber O-ringAlso known as NBR O-rings and nitrile O-rings, it is the most widely used O-ring material in the world because of its low cost, good mechanical properties, resistance to water, most base oils, lubricants and some fuels, and many pneumatic, hydraulic systems, and the default choice for basic applications.Buna-N O-rings offer good wear resistance, tensile strength and resistance to compression set.

Due to its excellent resistance to petroleum products and its ability to be compounded over a temperature range of -35°C to +120°C (-30°F to +250°F), nitrile rubber/NBR is the most Widely used rubber. Today's seal industry uses elastomers. Additionally, many military rubber specifications for fuel- and oil-resistant O-rings require nitrile compounds.

temperature range:NBR/Nitrile O-rings are resistant to oil-based hydraulic fluids, fats and oils. Temperature range -30°C to +120°C, durometer/hardness 70.

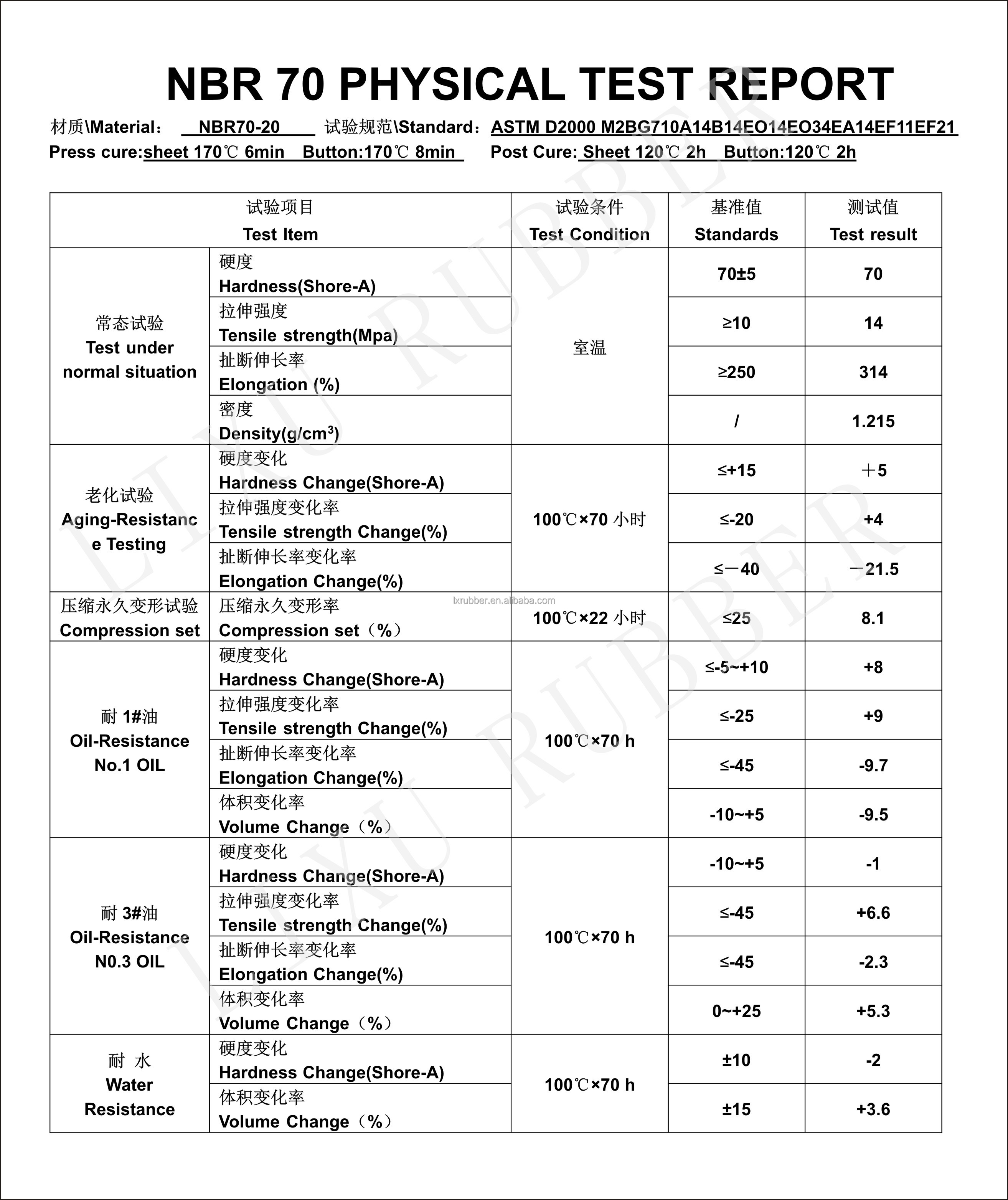

Test data sheetNBR 70 O-ring

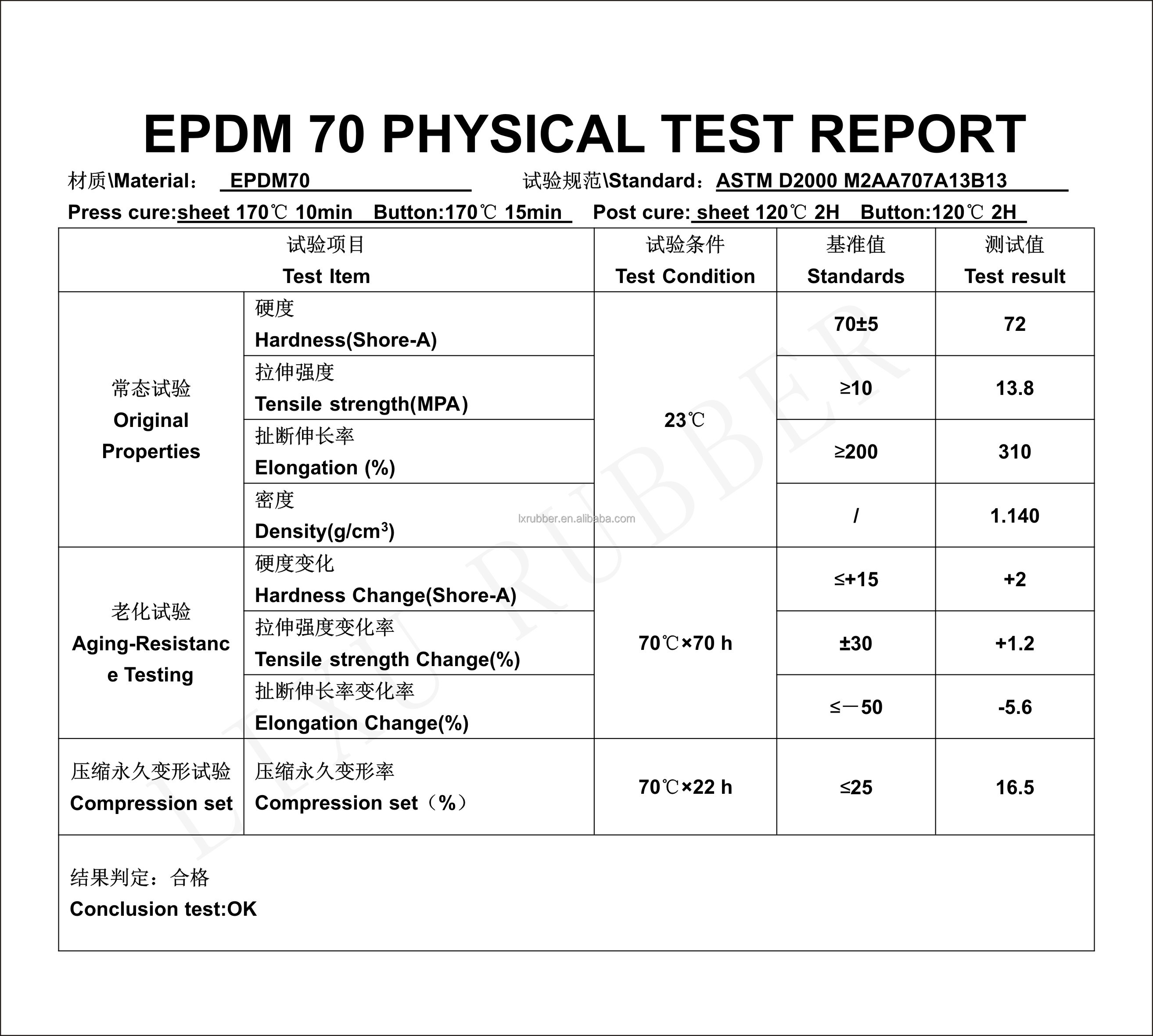

(2)EPDM rubber O-ringis also calledEthylene-propylene O-ringBecause of the chemical composition of the same name. EPDM O-rings and seals are commonly found in the automotive manufacturing industry where sealing of brake systems is required. EPDM material is also compatible with heat sources such as steam and water vapor.EPDM O-rings have good flexibility and chemical resistance at low temperatures. Resistant to ozone, sunlight and weathering, with good flexibility and chemical resistance at low temperatures.

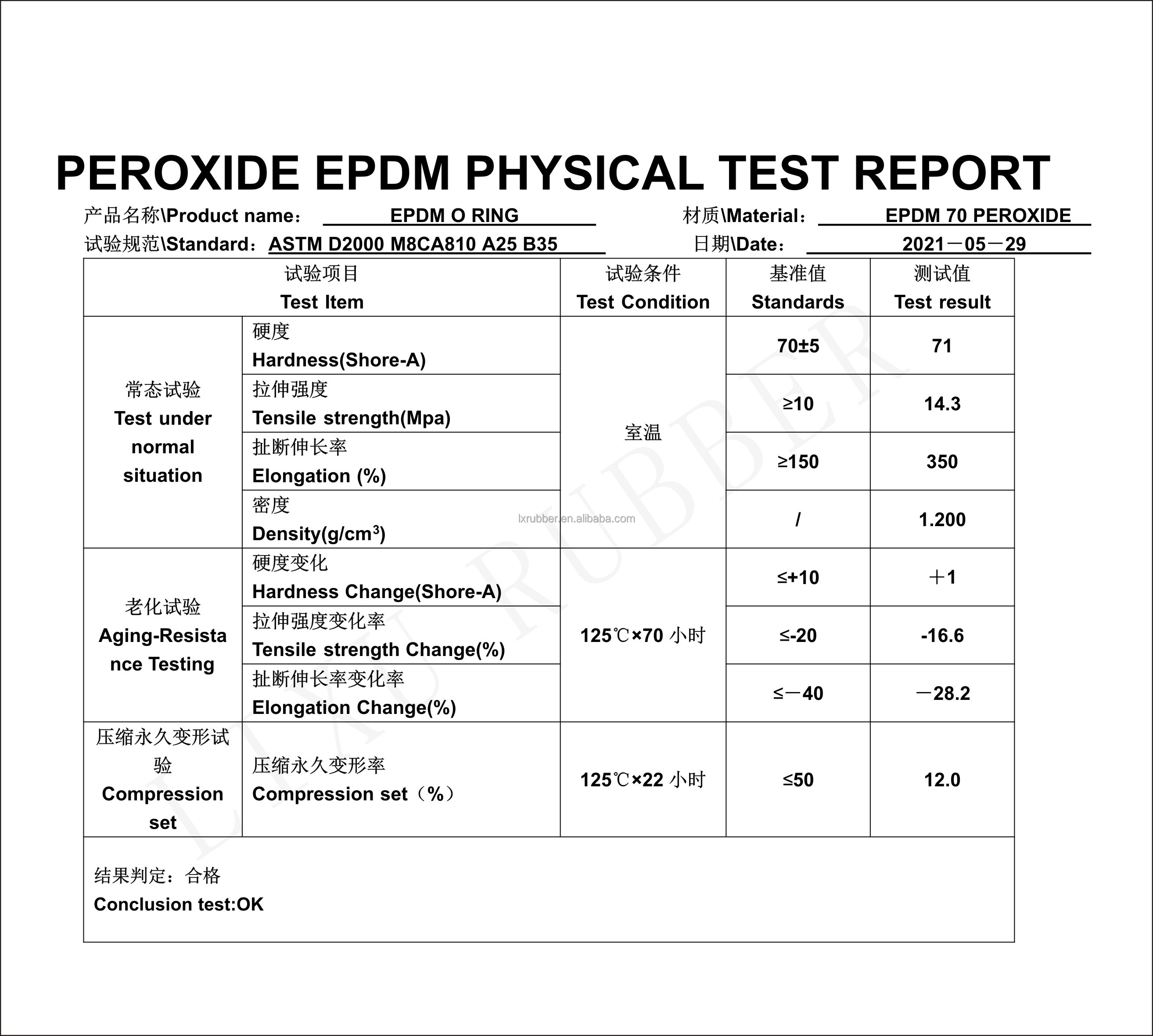

temperature range:For EPDM, operating temperatures can be designed from -55°C to 125°C or up to 150°C (for peroxide curing systems).

(3)Silicone O-ringDepend on. . . madeSilicon atoms and corresponding oxygen atoms.Silicon O-rings have higher heat resistance than other elastomers due to the strong covalent bonds between silicon and oxygen atoms,yesPremium sealing material for static, high temperature applications. Silicone O-rings have excellent flex life and fatigue life, resistance to ozone and UV radiation, physiological neutrality and insulating properties, making them effective in a wide range of applications.

temperatureRange: Standard low temperature: -60°C (-76°F) to standard high temperature: 225°C (437°F)

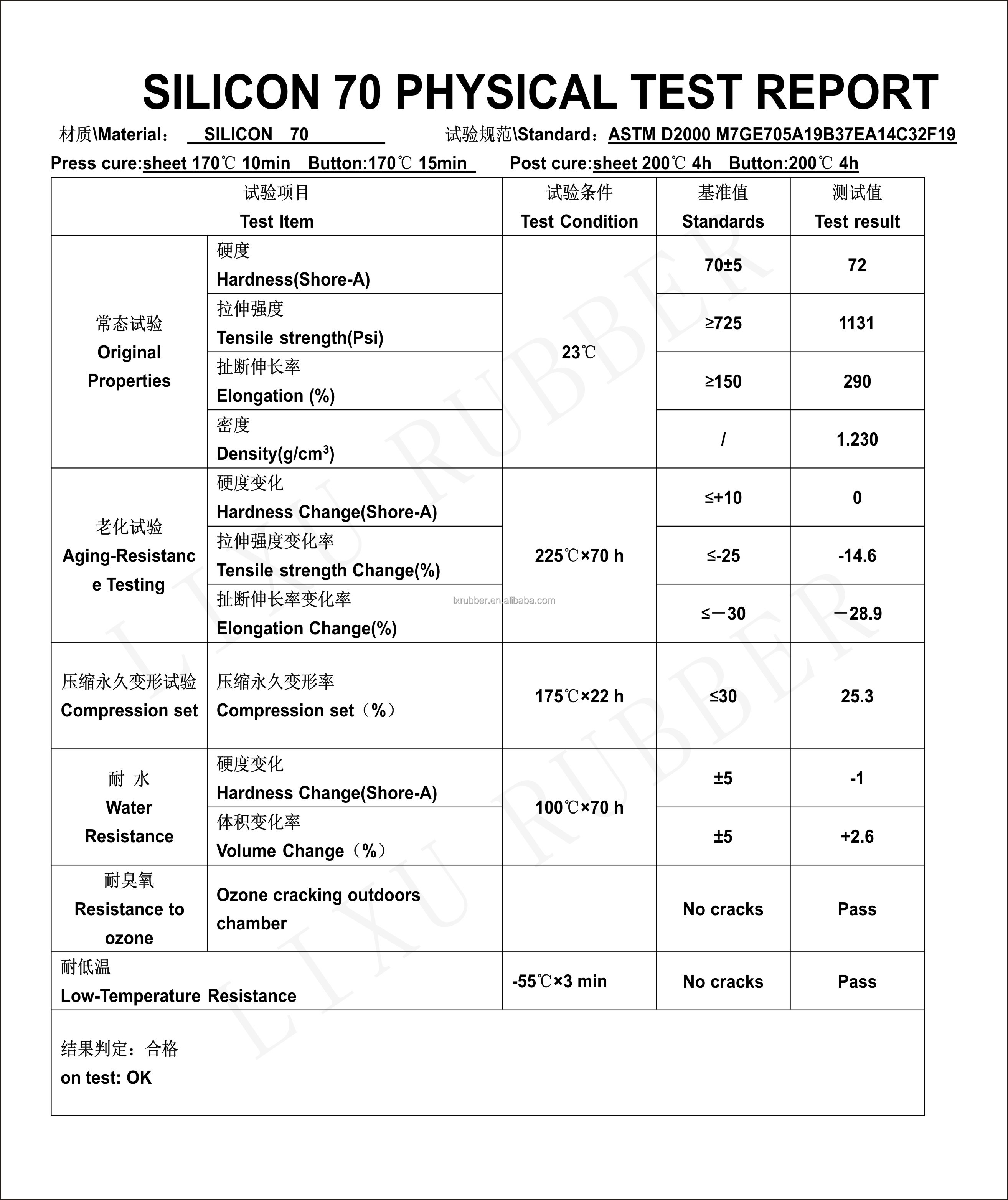

Test data sheetSilicon 70 O-ring

(4)Viton O-ringand the gasket isMade of fluorocarbon elastomerAnd widely used in various industries. The properties of FKM O-rings and seals make them very popular in many applications.FKM O-ring material offers excellent resistance to aging, ozone resistance, very low air permeability (ideal for vacuum applications), and self-extinguishing properties. FKM materials are also resistant to oils, acids and silicone oils. Other key benefits include a temperature range of -20°C to +205°C (or intermittent between -45°C and +230°C). This makes it ideal for applicationsInsideagriculture,car,aerospace and defense,Petrochemical,offshore drilling, andrailindustry.

temperature range:-20°C and +205°CDepends on grade level. It can withstand higher or lower temperatures, such as -30°C / -45°C and +230°C, but the working time is short.

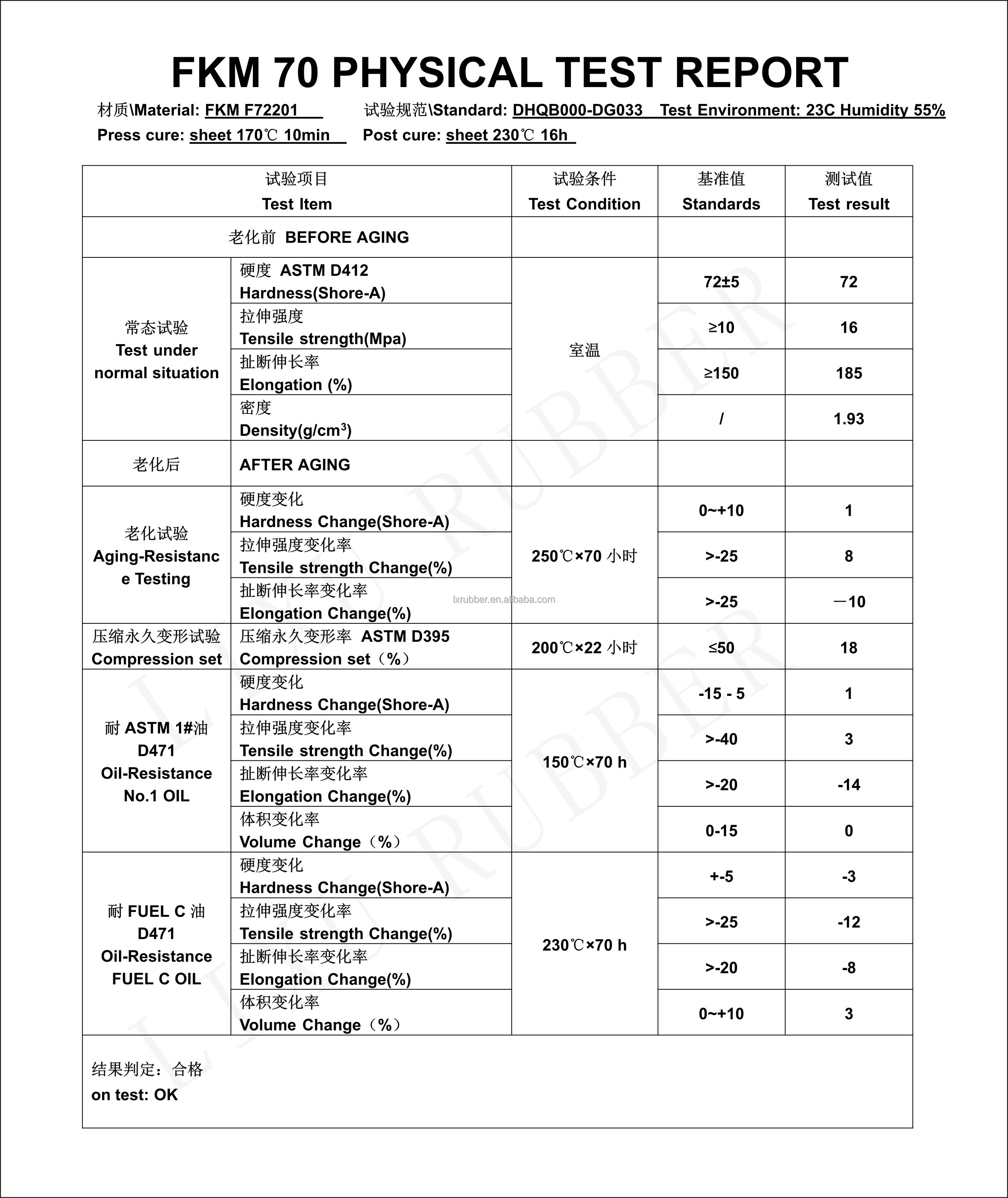

FKM test data sheet70 O-rings

(5)Hydrogenated nitrile(HNBR) O-ring, also known asHighly saturated nitrile rubber(HSN), made from a synthetic polymer obtained by saturating the double bonds in the nitrile=butadiene segment with hydrogen. This special hydrogenation process reduces many double bonds in the NBR polymer backbone.

HNBR O-rings and seals offer comparable resistance to aggressive chemical media as NBR seals, but with the added benefit of enhanced stability when exposed to heat and oxidation. It is also very durable and has higher wear resistance.HNBR seals are widely used in applications with continuous exposure to fuels, oils and corrosive chemicals at high temperatures. The advantage of HNBR seals is their elasticity and ability to maintain their physical and mechanical properties throughout their service life.

Temperature range from-30°C to +150°C (-20°F to +302°F).

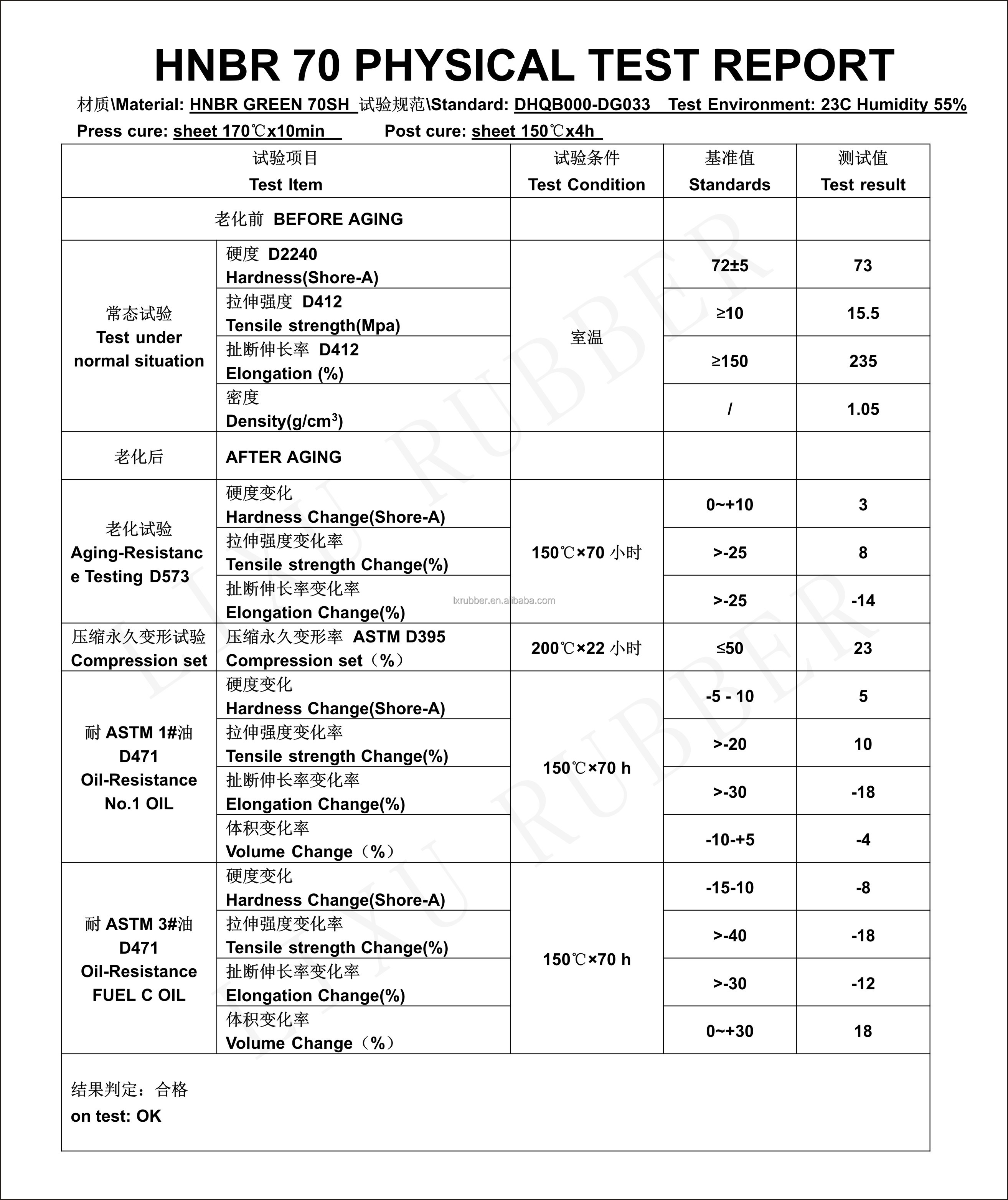

HNBR test data sheet70 O-ring
