Tungsten sintering crucible for growing sapphire crystals

Product Detail

surface:brightMinimum order quantity:1
model:Tungsten crucibleMaterial:99.95% tungsten
Place of origin:Henan, Chinapayment terms:L/C, Western Union, T/T
port:Qingdao, Shanghaichemical composition:W1 99.95% or above
application:vacuum furnaceName:Sintered tungsten crucible
brand:AkhmetarPackage preview:
Packaging details:Standard wooden boxes for export.purity:99.95% minimum
Supply capacity:5000 kg tungsten crucible per monthshape:round
Package:wooden boxdensity:19.2 g/cm3

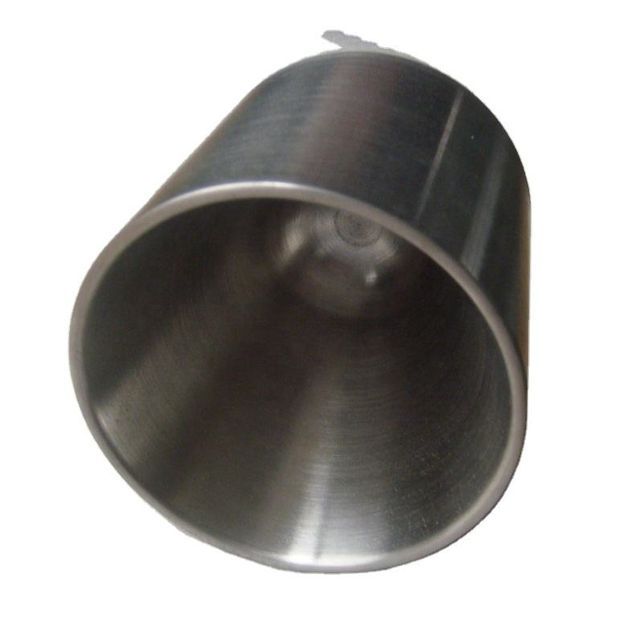

Sintered tungsten crucible for sapphire crystal growth

Advantages of tungsten-molybdenum crucible (W crucible, Mo crucible)



1) We can provide all common sizes, even very large crucibles are no problem.



2) High quality crucible, ex-factory price



3) Provide precise tolerances according to your requirements.



Characteristics of Achemetal tungsten crucible and molybdenum crucible (W crucible, Mo crucible)

1) Purity ≥99.95%

2) The density of tungsten crucible is 18.6g/cm3, and the density of molybdenum crucible is 10.1g/cm3.

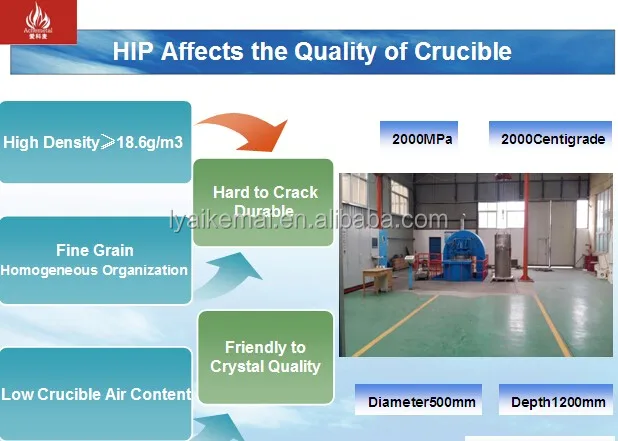

3) Microstructural uniformity - HIP.

4) Inner surface roughness - Ra 1.



Properties of Tungsten and Molybdenum





molybdenum

Tungsten

density

g/cm3

10.22

19.3

melting point

 ohC

2620

3410

Thermal Conductivity

Watt/MK

98.8(1400ohC)

174 (10--100ohC)

Resistivity

Ω.CM

53.1 (1730ohC)

35(1000)ohC)

steam pressure

Pa

7.09×10-6(1600ohC)

low

Modulus

/MPa

343 350

35 316

Thermal expansion coefficient

K-1

6.2×10-6(700ohC)

4.5×10-6(0--100ohC)

hardness

HB

35--125

290--350

tensile strength

MPa

Chapter 687

981-1472





more products



main products



1. Tungsten and molybdenum profiles (tungsten, molybdenum and their alloy rods, rods, tubes, plates and sheets).

2. Tungsten alloy balance weight (used in motors, watches, golf clubs, propellers).

3. Electric vehicle industry (tungsten-copper switches, contactors, tungsten contactors)

4. Magnetron sputtering target (flat panel display, photovoltaic).

5. Vacuum coating industry (evaporation boat, cathode, evaporation coil, crucible)

6. Quartz, glass, rare earth smelting industry (electrodes, spinnerets, crucibles)

7. Medical equipment parts (CT machine collimation device, X-ray machine mammography target).

8. Electronics industry (ion implantation components, MOCVD machine components, electron gun components)

9. Nuclear aerospace and military industry (carrier boats, radiation shielding, tungsten crucibles for renewable nuclear fuel, rocket nozzles, throats, armor-piercing bombs).

10. Vacuum or gas-protected high-temperature furnace materials (sintering furnace, single crystal furnace, annealing furnace)

(1) Tungsten-molybdenum crucible (spinning, forging, sintering, welding), heating elements.

(2) Heat shield, shelf, tray, hook, seed rack, cylinder, tray, screw, nut.

(3) A complete set of hot zones for sapphire crystal growth furnace (KY, ESG, CZ, HEM)
