Urea molding compound A110 molding powder is used for plastic electrical switch sockets and bowl plate materials

Product Detail

Place of origin:Shandong Province, Chinapressure:25-40Mpa
Supply capacity:1000 tons of urea molding compound per monthPackage:25kg kraft paper bag
brand:Mount Taipayment terms:L/C, Western Union, T/T
port:QingdaoCuring time:0.30-0.35 min/mm
Customs code:3909.10.00Packaging details:25 kg kraft paper bag + moisture-proof plastic woven bag 20 tons per 20 tons full box
model:A110 A105CAS number:9011-05-6
standard:GB13454-92color:White, Cream, Winner, etc., as samples for confirmation
Name:Urea molding compoundPackage preview:





Product Description

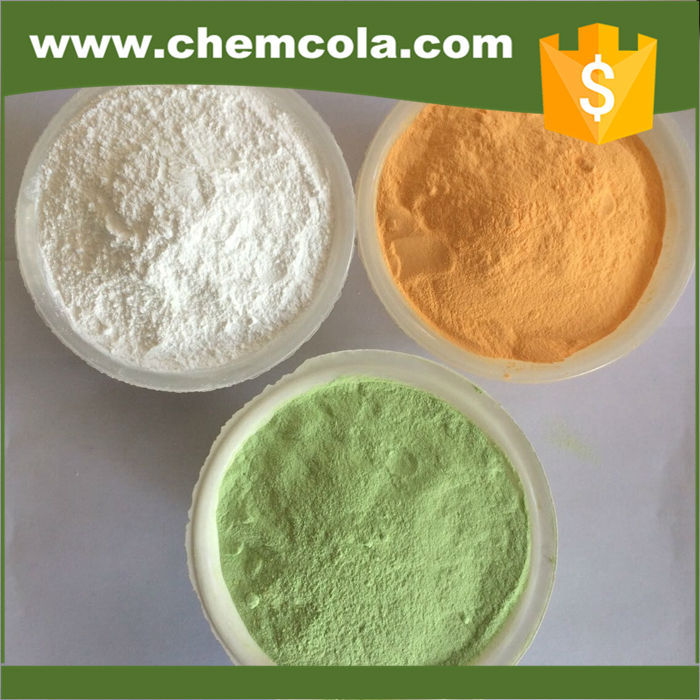

1. Picture of urea molding compound for power sockets

2. Description of urea molding compound for power sockets

1. Physical properties:

Urea-formaldehyde powder, also known as urea-formaldehyde molding compound (UMC) and amino molding compound, is a thermosetting material made by adding curing agent, colorant, and lubricant to urea-formaldehyde resin.

Color: white, beige, winning color, watercolor, green, ivory, purple, orange, green, etc. According to your requests.

It has the characteristics of high strength, scratch resistance, pH resistance, heat resistance, non-toxic, good gloss, no discoloration after long-term use, and easy molding.

2. How to use:

Urea-formaldehyde molding compound powder is widely used in the production of various melamine tableware such as plates, bowls, and chopsticks;

Mahjong, dominoes, chess, dice and other entertainment products;

Sockets, switches, plugs, electrical casings and other daily necessities.

3.Technical indicators:

No. index unit type Test Methods
      A-
1 appearance   After molding, the surface should be flat, bright, smooth, free of bubbles, cracks, color, and foreign matter and meet the standards.
2 Boiling water resistance   No mushy, allows for minimal fading and wallet GB13454
3 Volatile % ≤4.00 GB13455
4 Absorb water (cold) milligrams ≤100 GB1034
5 Shrinkage % 0.60~1.00 GB13454
6 Deformation temperature ≥115 GB1634
7 fluidity mm 140~200 GB13454
8 Impact strength (notched) Kilojoules/square meter ≥1.8 GB1043
9 Bending strength MPa ≥80 GB9341
10 Insulation resistance after 24 hours in water Megohm ≥104 GB1410
11 Dielectric strength MV/meter ≥9.0 GB1408
12 Bake resistance grade 1 GB2407
Molding conditions: (for reference only)
temperature 150~180
pressure 25~40Mpa
Curing time 0.24~0.3min/mm

4.Storage:

Store in a ventilated, dry and cool room.

Storage period: six months from the date of production.

It should be tested upon expiry. Eligible products can still be used.

5. Packaging:

25kg kraft paper bag or plastic woven bag, lined with moisture-proof plastic bag, 20 tons per 20ft box.

In order to further cooperate with your company, we can provide free samples for you to test.

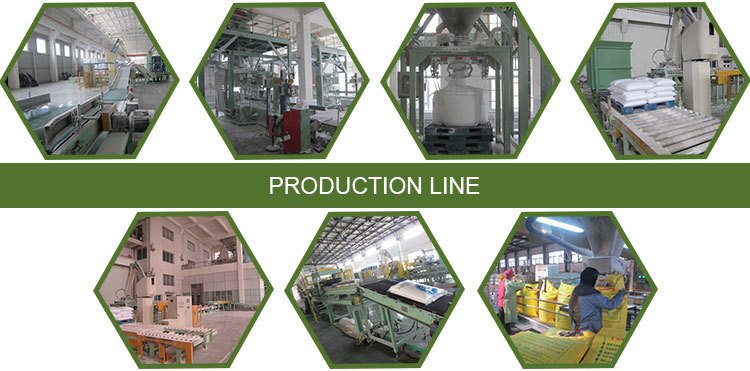

3. Product production line



4. Product application

Packaging and shipping



5. Product packaging

6. More products from Chooselenium

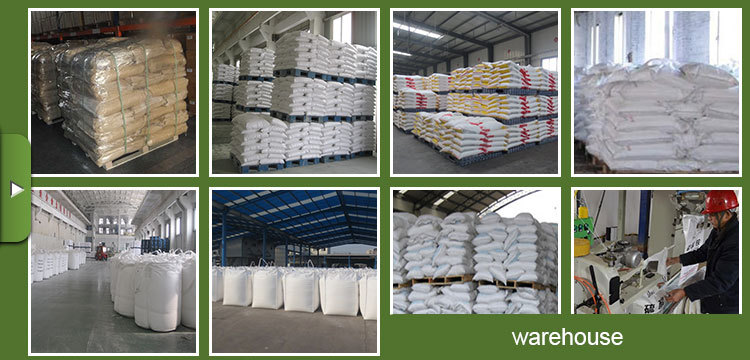

7. Product warehouse
