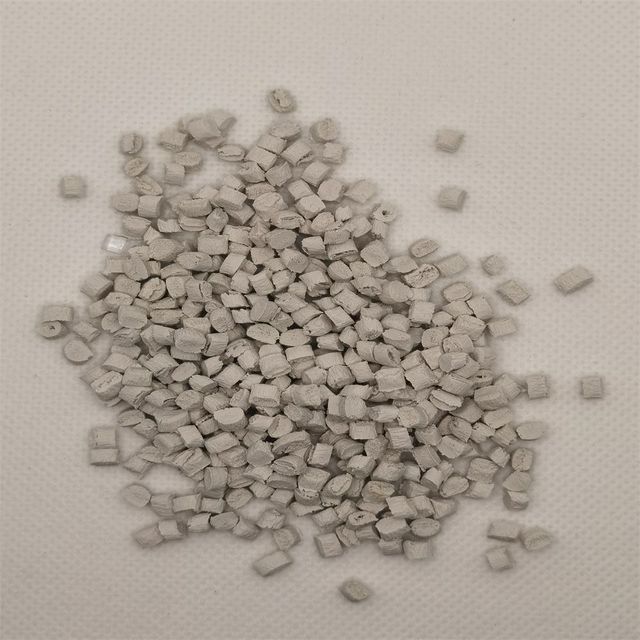

Noryl Resin GFN1 PPE PS Blend 10% Glass Reinforced Low Water Absorbency PPO Granules
-
$6.50 / 25 - 499 kilograms
$6.10 / 500 - 999 kilograms
$5.60 / 1000 - 9999 kilograms
$5.30 / >=10000 kilograms - 25 kilograms
- Shenzhen Samtion Chemical Co., Ltd.
- Guangdong, China
- Mr C
Product Detail
brand: | Noelle | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
94HB Flame Level(3): | 1.47 | Place of origin: | Guangdong, China |
port: | Guangzhou | UV, water exposure: | F1 |
Packaging details: | 25kg/bag | model: | GFN1 |
Melt volume rate, MVR (300°C/5.0 kg): | 16 | Supply capacity: | 1,000,000 bags per year |
application: | For use in water filters and water meter components |
Product Description
Norrie L.GFN1
NoryL GFN1 PPE+PS blend. 10% glass reinforced. NSF 61 listings are available in multiple colors (restrictions apply). FDA Compliance
(limited). Low water absorption. Hydrolytic stability. Dimensional stability. Suitable for fluid engineering
Applications include water filters and water meter components.
(limited). Low water absorption. Hydrolytic stability. Dimensional stability. Suitable for fluid engineering
Applications include water filters and water meter components.
"NORYL" is an oxidized xylene resin innovatively developed by Queen Mary. It is based on PPO, one of the aromatic polyethers, and an excellent material. Through a combination of 17 properties, it is more conducive to injection molding, blow molding, extrusion, and vacuum forming to meet the needs of The industry requires lightweight, high safety and more durable product requirements. Due to its excellent fire resistance, heat resistance, mechanical strength, electrical properties and dimensional stability, coupled with low water absorption and easy processing, it is widely used in water treatment equipment, computers, trading machines, electronic parts, household appliances, and communication equipment , water transport accessories and automobile industries.
Product parameters
Mechanical | value | unit | standard |
Tensile stress, brk, type I, 5 mm/min | 63 | MPa | ASTM D 638 |
Tensile strain, fracture | 3 | % | ASTM D 638 |
Tensile modulus, 5 mm/min | 4350 | MPa | ASTM D 638 |
Bending stress, yld, 1.3 mm/min, 50 mm span | 116 | MPa | ASTM D 790 |
Bending stress, yld, 2.6 mm/min, 100 mm span | 107 | MPa | ASTM D 790 |
Flexural modulus, 1.3 mm/min, 50 mm span | 3840 | MPa | ASTM D 790 |
Flexural modulus, 2.6 mm/min, 100 mm span | 3580 | MPa | ASTM D 790 |
Hardness, Rockwell L | 104 | - | ASTM D 785 |
Tensile stress, fracture | 64 | MPa | ISO 527 |
Tensile strain, fracture | 3 | % | ISO 527 |
Tensile modulus, 1 mm/min | 4400 | MPa | ISO 527 |
bending stress | 122 | MPa | ISO 178 |
Flexural modulus | 4160 | MPa | ISO 178 |
Influence | value | unit | standard |
Izod impact, unnotched, 23°C | Chapter 449 | Joules/meter | ASTM D 4812 |
Izod impact, notched, 23°C | 118 | Joules/meter | ASTM D 256 |
Izod impact, notched, -30°C | 103 | Joules/meter | ASTM D 256 |
Instrumented total impact energy, 23°C | twenty one | J | ASTM D 3763 |
Izod impact, unnotched 80*10*4 +23°C | No. 27 | Kilojoules/square meter | ISO 180/1U |
Izod impact, no notch 80*10*4 -30°C | 25 | Kilojoules/square meter | ISO 180/1U |
Izod impact, notch 80*10*4 +23°C | 10 | Kilojoules/square meter | ISO 180/1A |
Izod impact, notch 80*10*4 -30°C | 9 | Kilojoules/square meter | ISO 180/1A |
Charpy Impact, Notched, 23°C | 11 | Kilojoules/square meter | ISO 179/2C |
Charpy Impact, Notched, -30°C | 9 | Kilojoules/square meter | ISO 179/2C |
Charpy 23°C, unnotched edge 80*10*4 sp=62mm | 34 | Kilojoules/square meter | ISO 179/1eU |
Charpy -30°C, unnotched edge 80*10*4 sp=62mm | 33 | Kilojoules/square meter | ISO 179/1eU |
hot | value | unit | standard |
HDT, 0.45 MPa, 3.2 mm, unannealed | 131 | ℃ | ASTM D 648 |
HDT, 1.82 MPa, 3.2mm, not annealed | 122 | ℃ | ASTM D 648 |
HDT, 1.82 MPa, 6.4 mm, unannealed | 125 | ℃ | ASTM D 648 |
CTE, -40°C to 40°C, flow | 5.12E-05 | 1/℃ | ASTM E 831 |
CTE, -40°C to 40°C, xflow | 7.14E-05 | 1/℃ | ASTM E 831 |
Vicat softening temperature, rate B/50 | 131 | ℃ | ISO 306 |
Vicat softening temperature, rate B/120 | 134 | ℃ | ISO 306 |
HDT/Be, 0.45MPa Edgew 120*10*4 sp=100mm | 132 | ℃ | ISO 75/Be |
HDT/Ae, 1.8 MPa Edgew 120*10*4 sp=100mm | 124 | ℃ | ISO 75/Ae |
relative temperature index, electrical | 90 | ℃ | UL746B |
Relative temperature index, mechanical shock | 90 | ℃ | UL746B |
Relative temperature index, no mechanical impact | 90 | ℃ | UL746B |
physical | value | unit | standard |
proportion | 1.13 | - | ASTM D 792 |
Water absorption, 24 hours | 0.06 | % | ASTM D 570 |
Mold Shrinkage, Flow, 3.2 mm | 0.2-0.5 | % | |
Melt flow rate, 300°C/5.0 kgf | 16.6 | g/10 minutes | ASTM D 1238 |
Melt volume rate, MVR, 300°C/5.0 kg | 16 | cubic centimeters/10 minutes | ISO 1133 |
electric | value | unit | standard |
Relative permittivity, 1 MHz | 2.9 | - | ASTM D 150 |
Loss factor, 1 MHz | 0.0014 | - | ASTM D 150 |
Arc Resistance, Tungsten {PLC} | 7 | PLC code | ASTM D 495 |
Hot wire ignition {PLC) | 5 | PLC code | UL746A |
High voltage arc track rate {PLC} | 4 | PLC code | UL746A |
High Amp Arc Ign, Surface {PLC} | 4 | PLC code | UL746A |
flame characteristics | value | unit | standard |
UL certified, 94HB flame retardant rating(3) | 1.47 | mm | UL 94 |
UV, water exposure/immersion | F1 | - | UL746C |
polyphenylene ether All kinds of brands and all kinds of grades Contact us for a free quote | Foaming process |
Improve flexibility | |
Extrusion blow molding process | |
Glass fiber reinforced | |
transparent | |
Flame retardant reinforced materials | |
Flame retardant non-reinforced | |
Non-glass fiber reinforced | |
food and drinking water | |
High heat resistance | |
