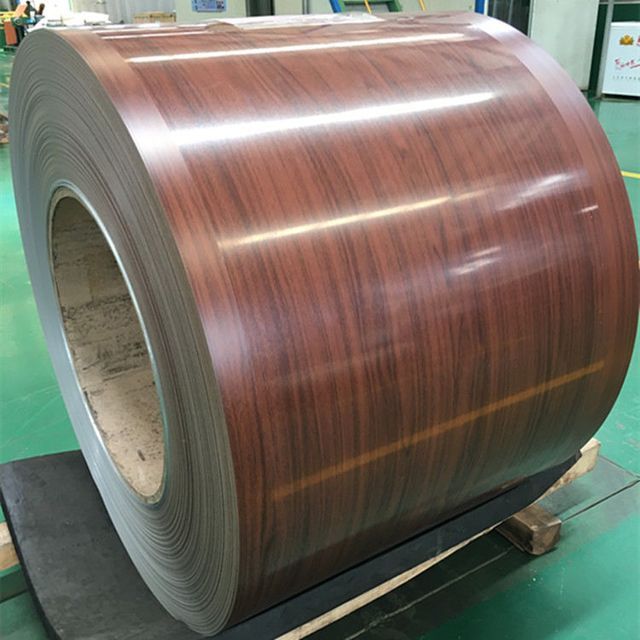

PVC/PET/VCM color laminated steel coils for decorative panels
-
$30.00 / 3000 - 4999 square meters
$4.50 / >=5000 square meters - 3000 square meters
- Jiangyin Himei Metal New Materials Co., Ltd.
- Jiangsu, China
- Ms summer zhao
Product Detail
| product name: | HM | surface: | Covered with color film |
| payment terms: | wire transfer | application: | Home Appliances/Construction |
| delivery time: | 22-30 days | grade: | SGCC/SPCC/SUS/SECC |
| thickness: | 0.3-1.0mm | Package preview: | |
| type: | steel coil | color: | Various color film patterns |
| expiration of pay: | L/CT/T (30% deposit) | length: | customizable |
| Packaging details: | Standard export packaging: 1. Sheet packaging 2. Coil packaging 3. Customer requirements | Place of origin: | Jiangsu, China (Mainland), Jiangsu, China |
| coating: | laminated | standard: | American Society for Testing and Materials |
| tolerant: | ±1% | size: | customs requirements |
| brand: | Jimei | PVC/PET/VCM color laminated steel coil: | steel plate |
| Advantage: | The beauty lies in anti-corrosion and pollution-free | Sequin type: | zero flash |
| port: | Shanghai or Zhangjiagang | Certificate: | ISO9001/ISO14000, CE, RoHS, KS, JIS, GS, ISO9001 |
| Processing services: | cutting | width: | 480-1260mm |
| Coil weight: | 3-8 tons | Supply capacity: | 10,000 square meters per day |
PVC/PET/VCM color laminated steel coils for decorative panels
| The main technical parameters | |
| Key words | PVC/PET/VCM color laminated steel coil |

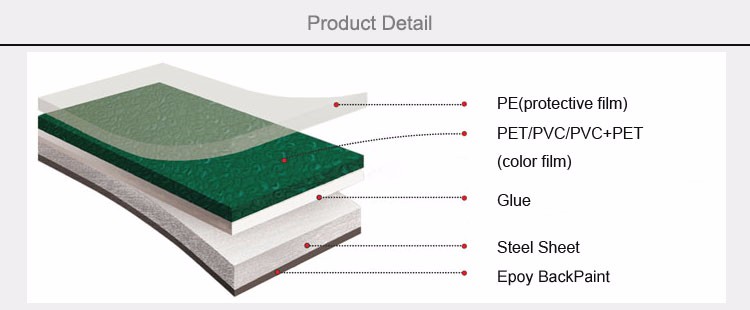

| Basic metal | Metal plates such as cold-rolled steel plates, galvanized steel plates, or aluminum alloy plates can be used. |
| Base material thickness | 0.3mm~1.5mm |
| color film | PVC/PVC+PET film coated metal plate |
| Color film thickness | 0.04mm~0.19mm |
| Back paint | Polyester paint, epoxy paint, conductive paint, transparent paint, etc. can be used. |
| Use of back paint |
The thickness of the base material is less than 1.0mm, and you can choose to back paint or not; The thickness of the base material is between 1.0mm-2.0mm without back paint. |
| protective film | Choose between self-adhesive protective film or adhesive-free protective film. |
| Availability status |
Plate packaging: width ≤ 1360mm, length ≤ 5000mm; Coiled material packaging: width ≤ 1360 mm, net weight ≤ 5 tons, inner diameter: 510 mm. |

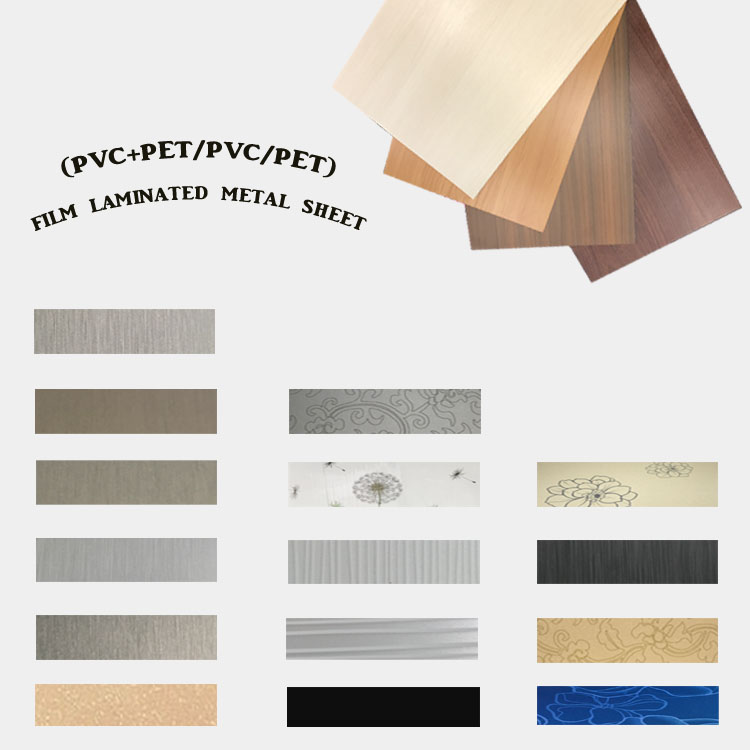

PVC/PET film laminated steel plateIt is a new type of color-coated metal sheet that is firmly laminated with PVC film and other polymer films. Not only is it metalGood strengthandProcessing performance, also has the excellence of moviesDecoration properties,Corrosion resistance, weatherResistance characteristics,Easy to clean featuresetc. Therefore it has become one of the most sought-after household appliances and interior building materials.
Jiangyin Jimei Metal New Materials Co., Ltd. was established in 2009. It has introduced a full set of production lines and shearing lines imported from South Korea and Japan. It has a modern clean production workshop and a series of advanced experimental testing equipment. The company has always adhered to the corporate management philosophy and market product positioning of "high starting point, high standards, and high quality," and has formed strategic partners with world-renowned companies.

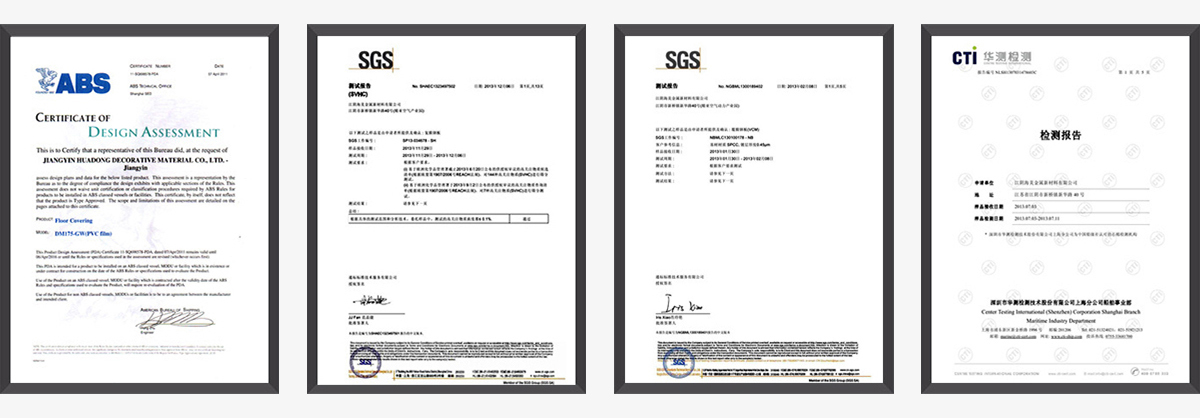

The company continuously develops and launches new products and improves the sales concept of serving customers, and operates strictly ISO quality and environmental management systems. The products are approved by the classification society and the Far East Low Flame Spread Fire Protection Testing Center, and are low smoke and low fire. Toxicity and asbestos-free product testing shows that the products comply with EU ROSH, REACH and other product environmental requirements standards, and meet the most stringent product environmental requirements of various customers.
Through strict operation of ISO quality and environmental dual management systems, Jimei continuously develops and launches new products and improves the sales concept of customer service. Our products have been approved by the Far East Fire Test Center for low combustion, low smoke and low toxicity, and have been tested and identified as asbestos-free products. Our products comply with EU ROSH, REACH and other environmental product requirements and standards, and meet the most stringent requirements of various customers. Product environmental requirements.
