Ultra Thin Electronic Fiberglass Fabric 11gsm Electronic Fiberglass Fabric Surfboard 0.012mm Thickness High Heat Resistance
-
$4.59 / 1000 - 2999 square meters
$1.59 / >=3000 square meters - 1000 square meters
- Jiujiang Beihai Fiberglass Co., Ltd.
- Jiangxi, China
- Mr Tony Guo
Product Detail
application: | Electronic cloth/net, glass fiber mesh cloth | color: | White |
Payment Terms: | Letter of Credit, Telegraphic Transfer | Processing services: | Cutting |
Brand Name: | China North Sea | Surface treatment: | Silicon coating |
Roll length: | 2800m | Product Name: | Electronic fiberglass cloth |
Size Type: | Starch/Silane | Feature 1: | High density, good finish, good resin bonding |
weight: | 11gsm,12.5gsm,16.5gsm,28gsm... | Weave Type: | Plain weave |
Origin: | Jiangxi, China | Feature 3: | High tensile strength and dimensional stability |
Alkali content: | Alkali-free | width: | 1275 mm |
Feature 2: | High tensile strength, high heat resistance | Standing temperature: | 550℃ |
Minimum Order Quantity: | 1 Volume | style: | 2116,7628,7638,1037,1067,1032, etc. |
model: | Cytokines | Yarn Type: | Alkali-free glass |
Product Description

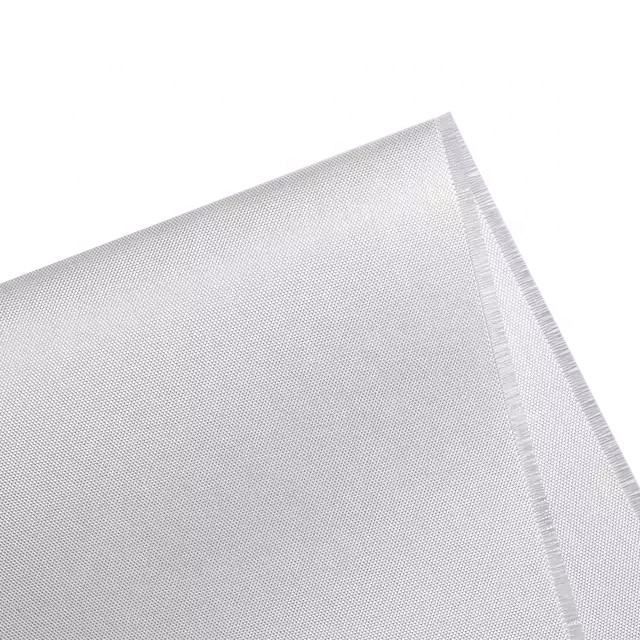

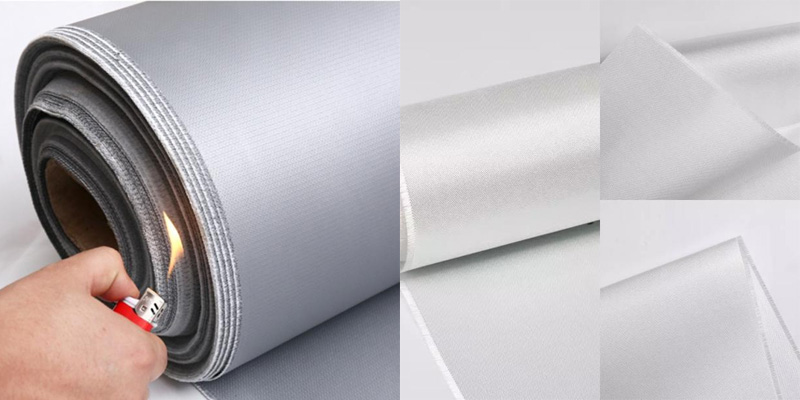

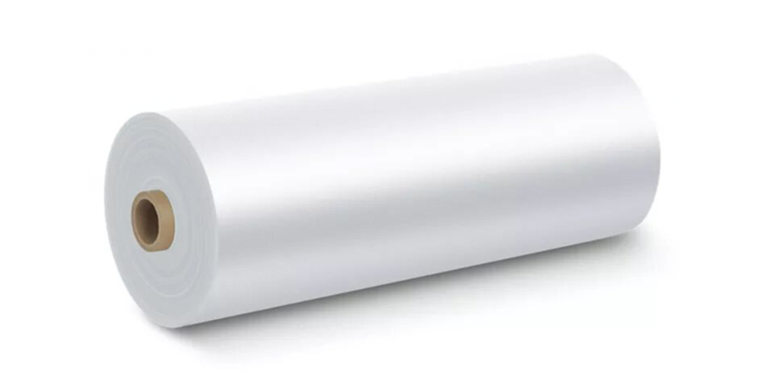

Fiberglass Ultra Thin Electronic Fabric is electrical grade fiberglass fabric, it is a fiberglass PCB material made from high quality electrical grade E-glass fiber yarn. It is then finished with a resin compatible sizing. In addition to PCB applications, this electrical grade fiberglass fabric also has excellent dimensional stability, electrical insulation, high temperature resistance, and is also widely used in PTFE coated fabrics, black fiberglass cloth finishes, and other further finishes. Fiberglass fabric is a woven material that is available in a variety of sizes to customize strength, thickness, and weight in your project. Fiberglass cloth has high strength and durability when layered with resin to form a hardened composite material.
Product Parameters
Fabric Code | Yarn | Warp*Weft (Fabric Count) (tex/inch) | Basic Weight (g/m2) | Thickness (mm) | lossIgnition rate (%) | width(mm) |
7638 | G75 * G37 | (44±2)*(26±2) | 255 ± 3 | 0.240 ±0.01 | 0.080±0.05 | 1275±5 |
7667 | G67 * G67 | (44±2)*(36±2) | 234±3 | 0.190 ±0.01 | 0.080±0.05 | 1275±5 |
7630 | G67 * G68 | (44±2)*(32±2) | 220±3 | 0.175 ±0.01 | 0.080±0.05 | 1275±5 |
7628M | G75 * G75 | (44±2)*(34±2) | 210±3 | 0.170 ±0.01 | 0.080±0.05 | 1275±5 |
7628L | G75 * G76 | (44±2)*(32±2) | 203±3 | 0.165 ±0.01 | 0.080±0.05 | 1275±5 |
1506 | E110*E110 | (47±2)*(46±2) | 165±3 | 0.140 ±0.01 | 0.080±0.05 | 1275±5 |
1500 | E110*E110 | (49±2)*(42±2) | 164±3 | 149 ±0.01 | 0.080±0.05 | 1275±5 |
1504 | DE150*DE150 | (60±2)*(49±2) | 148±3 | 0.125 ±0.01 | 0.080±0.05 | 1275±5 |
1652 | G150*G150 Yes | (52±2)*(52±2) | 136±3 | 0.114 ±0.01 | 0.080±0.05 | 1275±5 |
2165 | E225*G150 | (60±2)*(52±2) | 123±3 | 0.100 ±0.01 | 0.080±0.05 | 1275±5 |
2116 | E225 * E225 | (60±2)*(59±2) | 104.5±2 | 0.090 ±0.01 | 0.090±0.05 | 1275±5 |
2313 | E225*D450 | (60±2)*(62±2) | 81±2 | 0.070 ±0.01 | 0.090±0.05 | 1275±5 |
3313 | DE300 * DE300 | (60±2)*(62±2) | 81±2 | 0.070 ±0.01 | 0.090±0.05 | 1275±5 |
2113 | E225*D450 | (60±2)*(56±2) | 79±2 | 0.070 ±0.01 | 0.090±0.05 | 1275±5 |
2112 | E225 * E225 | (40±2)*(40±2) | 70±2 | 0.070 ±0.01 | 0.100±0.05 | 1275±5 |
1086 | D450 * D450 | (60±2)*(62±2) | 52.5±2 | 0.050 ±0.01 | 0.100±0.05 | 1275±5 |
1080 | D450 * D450 | (60±2)*(49±2) | 48±2 | 0.047 ±0.01 | 0.100±0.05 | 1275±5 |
1078 | D450 * D450 | (54±2)*(54±2) | 47.5±2 | 0.045 ±0.01 | 0.100±0.05 | 1275±5 |
1067 | D900 * D900 | (70±2)*(69±2) | 30±2 | 0.032 ±0.01 | 0.120±0.05 | 1275±5 |
1035 | D900 * D900 | (66±2)*(67±2) | 30±2 | 0.028 ±0.01 | 0.120±0.05 | 1275±5 |
106 | D900 * D900 | (56±2)*(56±2) | 24.5±1.5 | 0.029 ±0.01 | 0.120±0.05 | 1275±5 |
1037 | C1200*C1200 | (70±2)*(72±2) | 23±1.5 | 0.027 ±0.01 | 0.120±0.05 | 1275±5 |
1027 | 1500 BC*1500 BC | (75±2)*(75±2) | 19.5±1 | 0.020 ±0.01 | 0.120±0.05 | 1275±5 |
1015 | BC2250 * BC2250 | (96±2)*(96±2) | 16.5±1 | 0.015 ±0.01 | 0.120±0.05 | 1275±5 |
101 | D1800 * D1800 | (75±2)*(75±2) | 16.5±1 | 0.024 ±0.01 | 0.120±0.05 | 1275±5 |
1017 | BC3000 * BC3000 | (95±2)*(95±2) | 12.5±1 | 0.016 ±0.01 | 0.120±0.05 | 1275±5 |
1000 | BC3000 * BC3000 | (85±2)*(85±2) | 11±1 | 0.012 ±0.01 | 0.120±0.05 | 1275±5 |
application
It is widely used in printed circuit boards, fireproof boards, insulation boards, wind power generation, aerospace, protection and other industries that have high requirements for reinforced materials.
Product Features
1. High strength, heat resistance, flame retardant and insulation.
2. High wire laying pressure, easy for resin impregnation.
3. Treated with silane coupling agent, it has excellent compatibility with resin.
4. The operating temperature range is -70℃ to 550℃.
5. Resistant to ozone, oxygen, sunlight and aging.
6.E-grade fabric (E glass fiber textile cloth) has excellent electrical insulation properties.
7. Good chemical corrosion resistance.
2. High wire laying pressure, easy for resin impregnation.
3. Treated with silane coupling agent, it has excellent compatibility with resin.
4. The operating temperature range is -70℃ to 550℃.
5. Resistant to ozone, oxygen, sunlight and aging.
6.E-grade fabric (E glass fiber textile cloth) has excellent electrical insulation properties.
7. Good chemical corrosion resistance.
Product List

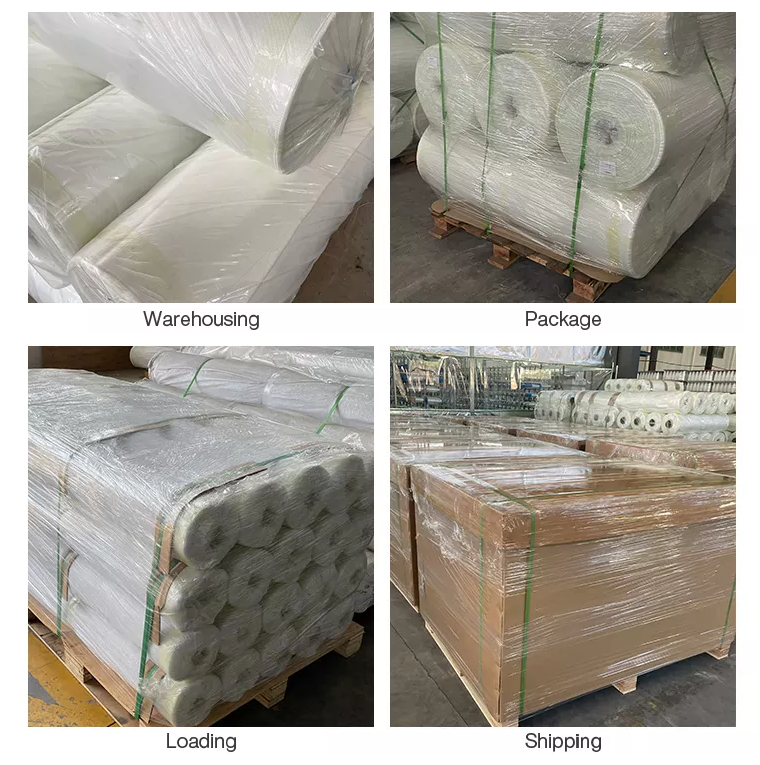

Product Packaging
