1.2mm guide rail CNC belt with ab glue

Product Detail

sample:Available samplesOrigin:Hebei, China
Material:PTFEshape:flat
brand:Hongwoapplication:fill level
color:greencustom made:Yes
Brand name:HongwoMinimum order quantity:1kg
feature:Wear resistancecolor:green
pack:cartonDelivery time:5 days
grade:extrusion grade
Product Description

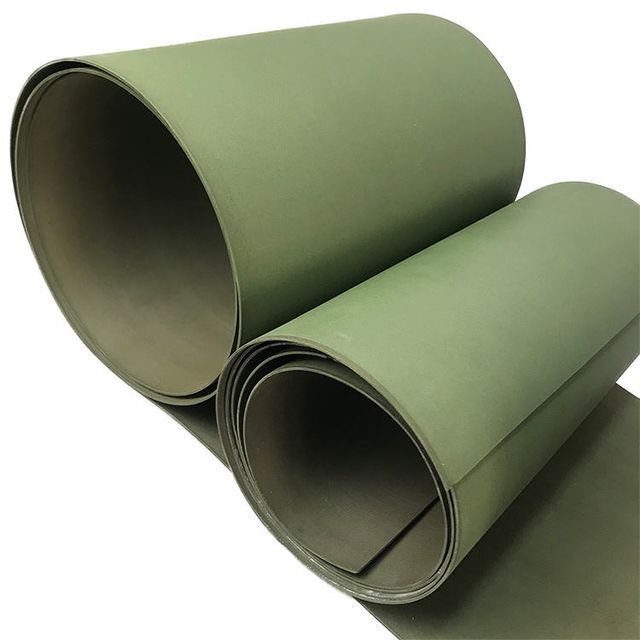

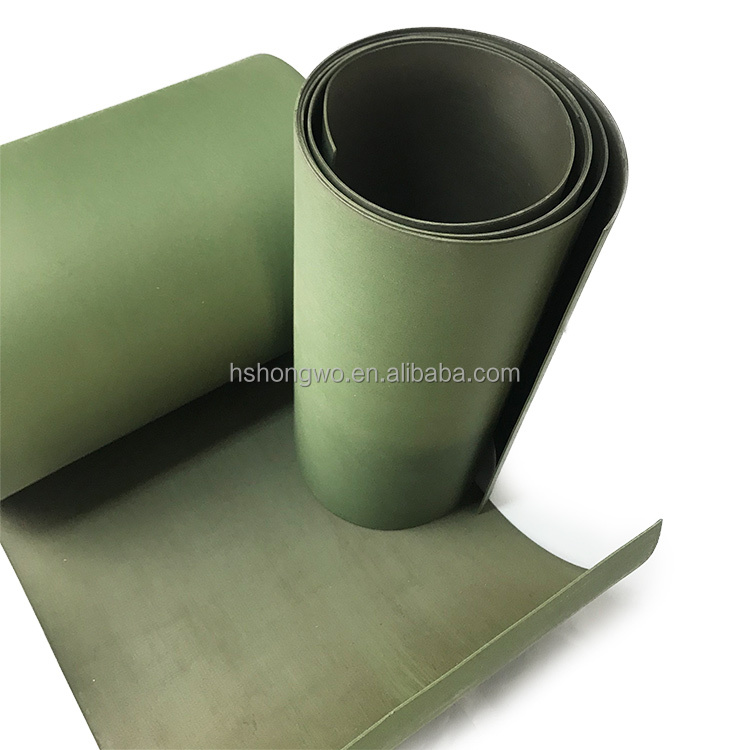

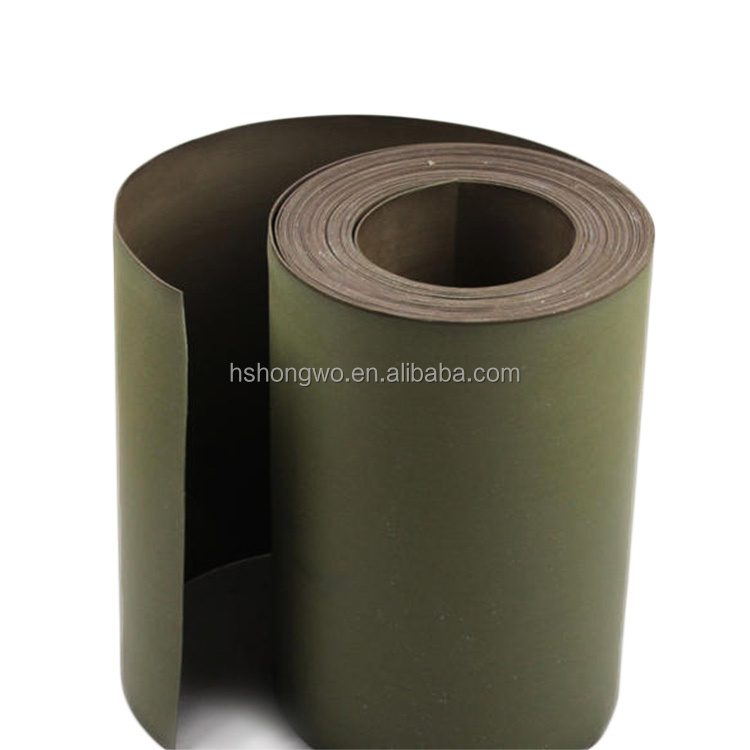

CNC belt
PTFE resin with added fillers such as bronze is extruded into a solid blank rather than compression molded. The blank is then cut to a nominal thickness of 24" wide rolls, with lengths varying based on thickness. One or both sides are etched to accept the adhesive depending on the application. It is used on machine tool rails, transfer lines, or any linear bearing movement.
AB glue
The glue is made of imported environmentally friendly materials and has almost no smell. The glue weight ratio is 1:1, making it easy to operate. Using nano-filling technology, the glue will not settle when stored for a long time. Bonding strength and oil resistance are better than before.
Product data sheet
width
thickness
color
length
Other services
100-300mm
0.3-5mm
red, green, blue
custom made
AB glue
Material
PTFE+Bronze
color
blue
red
green
Density (g/cm3)
3.4
3.3
3.2
Linear expansion coefficient (40-120°C)
7.7
7.62
7.5
Tensile strength (Mpa)
No. 17
16
14
Elongation (%)
180
170
150
Compressive strength (Mpa)
33--42
30--40
28---38
Bending strength (Mpa)
25-30 days
25-30 days
23--29
Unnotched impact strength (KJ/m2)
>16
>15
>14
Wear (PV=0.7N/mm2.m/s)
0.010-0.020
0.010-0.020
0.010-0.020
Friction loss performance (dry friction) Friction coefficient (μ)
0.13--0.20
0.15-0.21
0.16-0.23
