Factory sale OD6.35*ID1.02*76.2mm abrasive water jet cutting head water jet nozzle

Product Detail

After-sales service provided:Online supportHardness (HRA):95.6
Packaging Preview:payment terms:L/C,Western Union,D/P,D/A,T/T
TRS (megapascals):2000brand:zzzg
place of origin; place of origin:China, Chaizhoumodel:6.35*1.02*76.2
type:CNCparticle:0.4
Alloy Specifications:zzzgdensity:15.7g/cm3
pack:Wooden box/carton packagingusage:As a water jet to cut various metals or boards
Material:Tungsten CarbidePackaging Details:Carton
Length tolerance:0~+1.0surface:gold or grey
Product Description

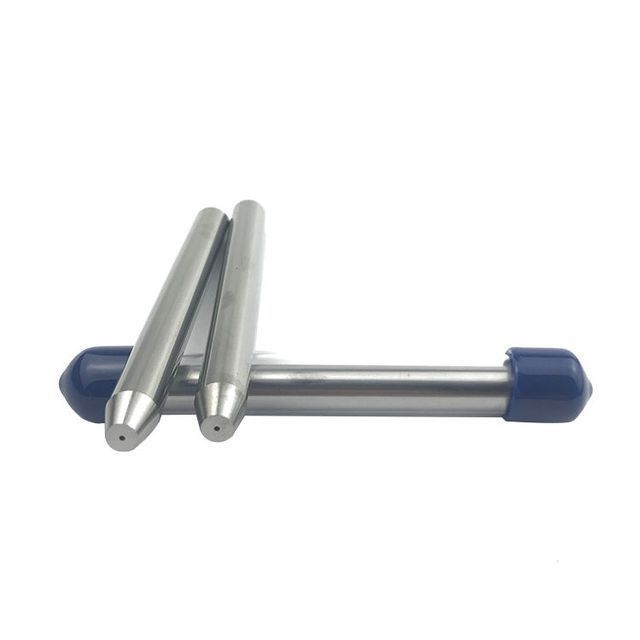

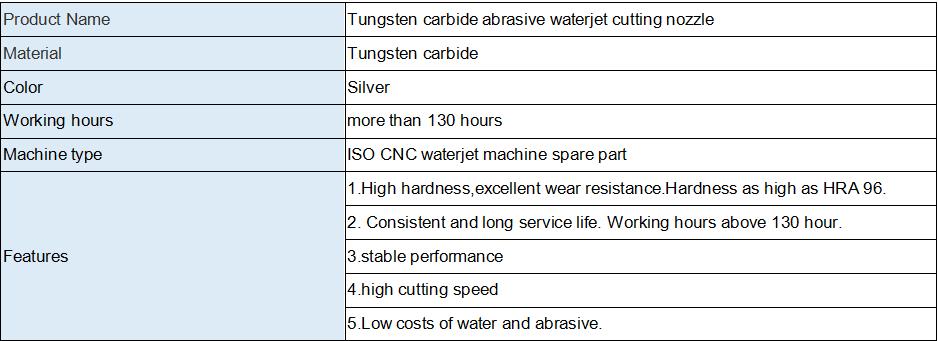

Tungsten carbide abrasive water jet cutting nozzle:

1. Carbide material of the tool;

2. We accept customization as below as your drawings and requirements;

3. The quality is stable and trustworthy;

4. Made from 100% pure raw materials;

5. All products have undergone intermediate and final inspections;

6. Free online technical services.

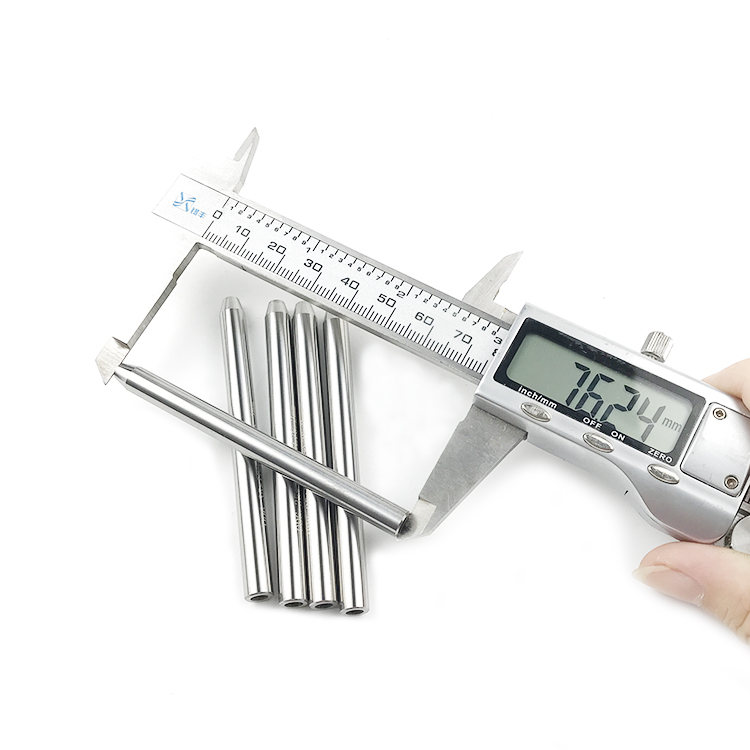

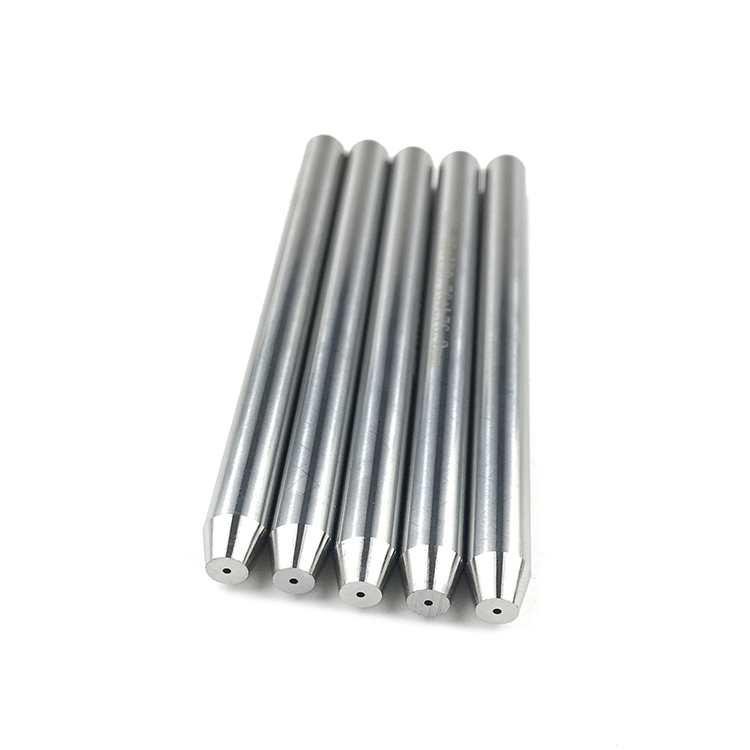

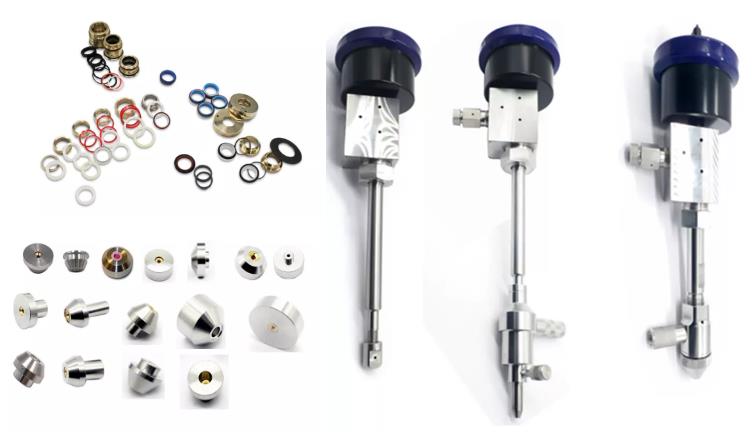

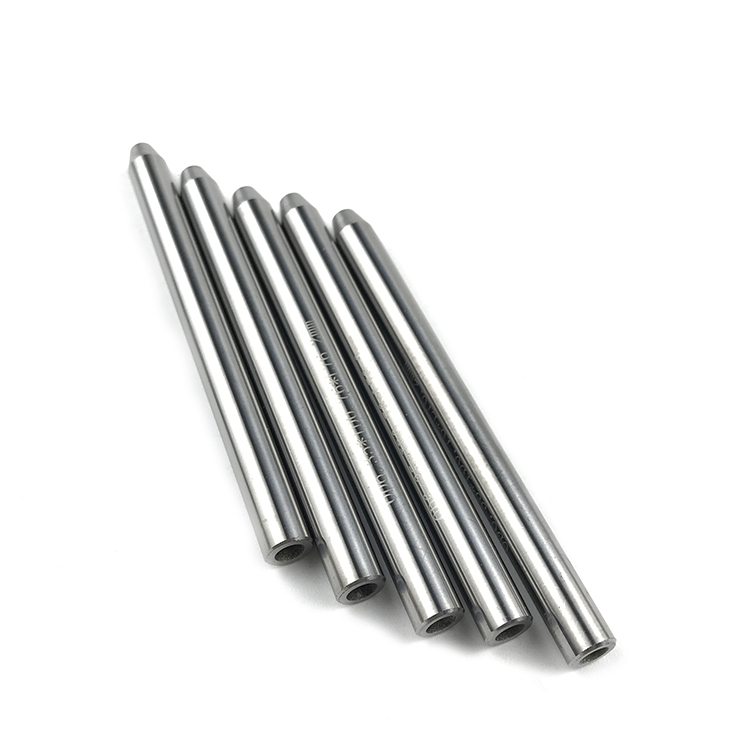

Product display

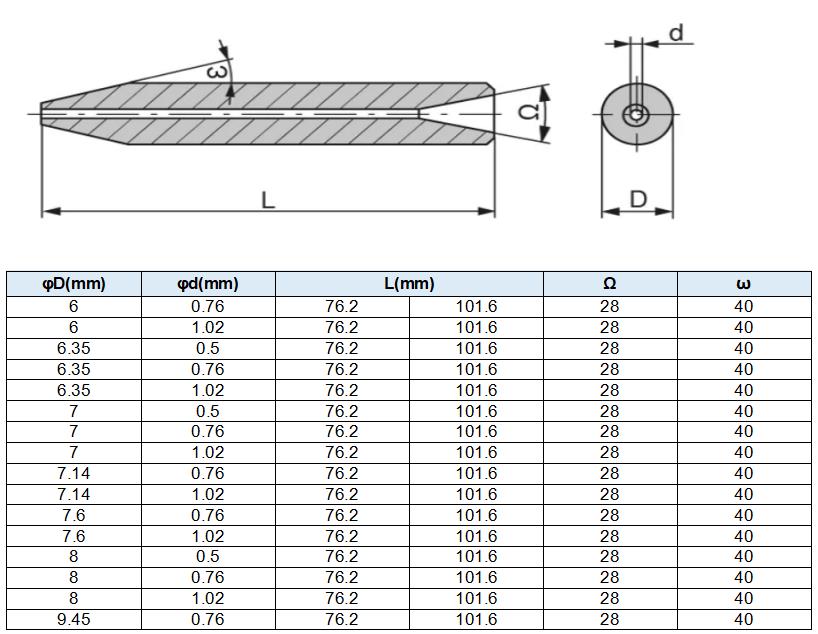

Dimensions





1. Refers to the jet outlet of the high-pressure abrasive water jet machine used as an abrasive nozzle mixed with water. Due to the harsh conditions of its internal jet, the abrasive wear is accelerated after the large grit in the tube, so it is necessary to use a very wear-resistant material. The material of manufacture, the sand pipe structure is very simple and basically consists of two sections, a conical inlet and a columnar outlet. There are slight differences in size due to different uses.

2. Using ultra-high pressure technology, the pressure of ordinary tap water can be converted to 250~400mpa pressure, and then a high-speed jet with a molding speed of about 800~1000m/s is injected through a ruby ​​nozzle with an inner hole diameter of 0.15~0.35mm, commonly known as water arrow, If the energy of the arrow is high, it can be used to cut soft materials. If the right amount of grinding powder is added to the water arrow, the material can cut almost all hard and soft materials. To adjust the pressure and flow of the water jet, we can use its various cleaning objects, such as glue, paint, rust removal, etc. We can also use it in many aspects that are very beneficial to human work, such as high pressure sterilization of ultra-high pressure technology and food preservation.

3. The sprinkler head and sand pipe should not cause premature wear of the pipe. In order to prolong the service life of the sand pipe, add water to the sand pipe before use to ensure that the water is in the center. Rotating the sand tube will increase wear to 120 degrees. The following three issues should be noted:
(1) Gems (diamonds) have tubes from sand to nozzles.
(2) Check for new gem (diamond) nozzle holes.
(3) There is mixed sand wear in the room.
If there is no jet, the jet will directly impact the tube wall, resulting in a decrease in cutting speed, and at the same time, the service life of the sand tube will be greatly reduced. Centripetal wear and continuous wave wear marks of ordinary sand pipe from inlet to outlet.
