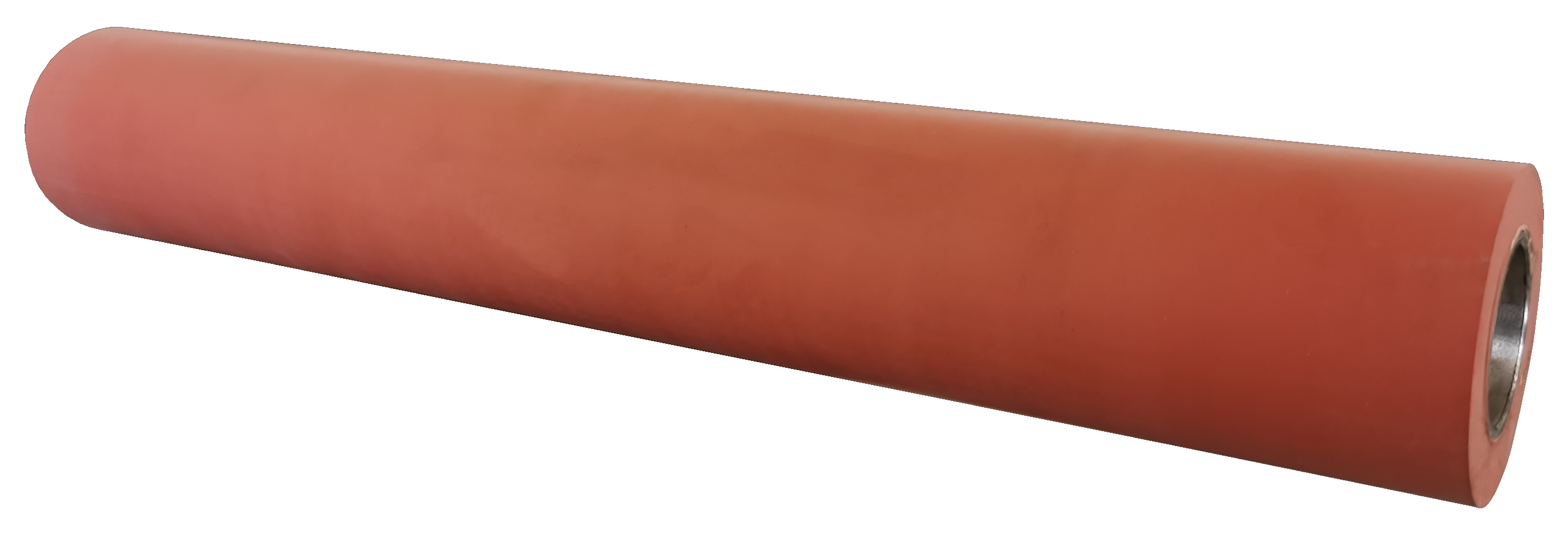

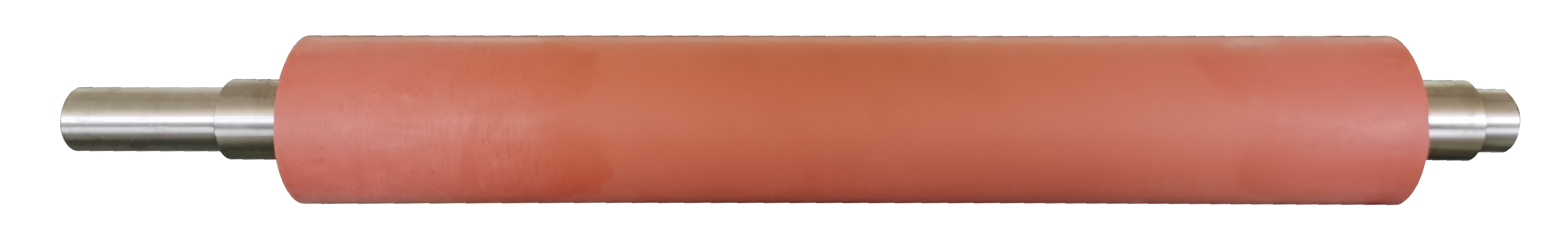

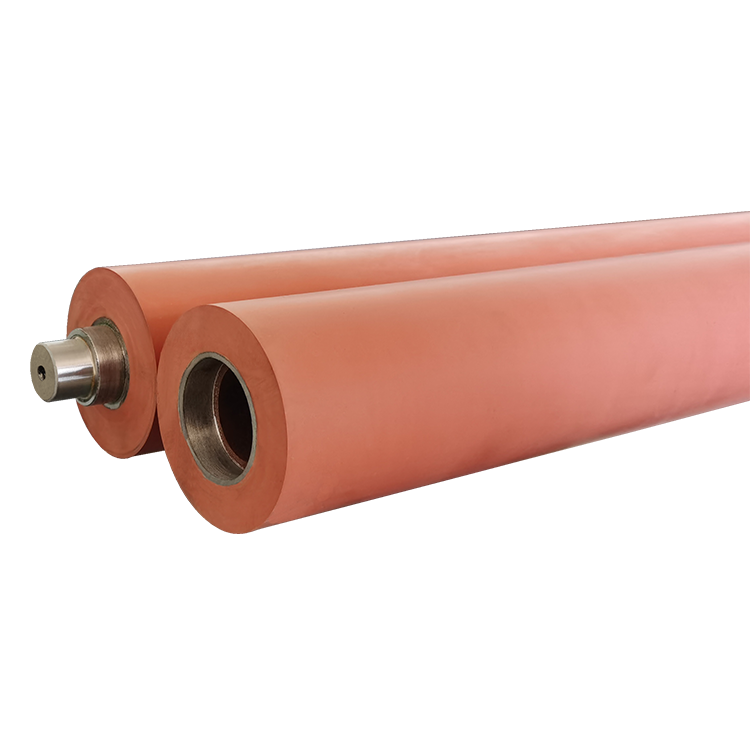

Support customized services Printing and dyeing textile industry PU polyurethane rubber roller

Product Detail

Rubber material:polyurethane, nitrile rubber, siliconeweight:According to different rubber rollers
Processing capacity:10m lathePackage preview:
Rubber Hardness:45-100 Sh-ADrawing format:CAD,JPG,PDF
port:Shanghaibrand:Cade
delivery time:8 daysProcessing services:cut, formed, chromed, galvanized, polished
Supply capacity:2000 pieces per monthpack:wooden box
Material:steel, aluminum, stainless steelcolor:black, yellow, red or customized
model:polyurethane rollerplace of origin; place of origin:Jiangsu, China
payment terms:L/C, D/A, T/T, MoneyGramsize:custom made
Packaging Details:wooden box
size
According to customer drawings
(offset printing cylinder, please tell us the model, we can check if there is a drawing)
aspect
10MM-1500MM, Length: 50MM-8200MM
Material
NBR, silicone, rubber, polyurethane, EPDM, Hypalon, etc.
hardness
18A-100
tolerant
0.05mm
temperature
According to customer requirements
color
Red, black, white, transparent, etc. can be made according to your pantone NO color.
Core
Stainless steel, 45# steel or 20# steel or 5# aluminum seamless pipe
Processing grade
normal grade
Accuracy class
high precision grade
Ultra high precision level
Roll surface aspect ratio
Aspect ratio=15+4i
aspect ratio<15
Aspect ratio=15+4i
aspect ratio<15
Aspect ratio=15+4i
aspect ratio<15
Aspect ratio=12+4i
aspect ratio<12
Outer diameter deviation D(mm)
<0.030+0.015
<0.030
<0.020+0.010
<0.020
<0.010+0.006
<0.010
<0.006+0.003
<0.005
Radial runout C(mm)
<0.030+0.015
<0.030
<0.020+0.010
<0.020
<0.010+0.006
<0.010
<0.006+0.003
<0.005
Radial runout A/B(mm)
<0.025
<0.020
<0.010
<0.005
Roller surface finish
Radium 1.6
Radium 1.2
Radium 0.8
Ra0.4
Roll surface hardness value
HV300/HV700
HV300/HV700
HV300/HV700
HV700
Concentricity of shaft hole(mm)
<0.020
<0.020
<0.010
<0.005
homeostasis deviation
S4g
S2g
S2g
Q
Roll surface speed
<200M/min
<250M/min
<300M/min
<350M/min
Shaft bore diameter and depth
According to customer requirements
