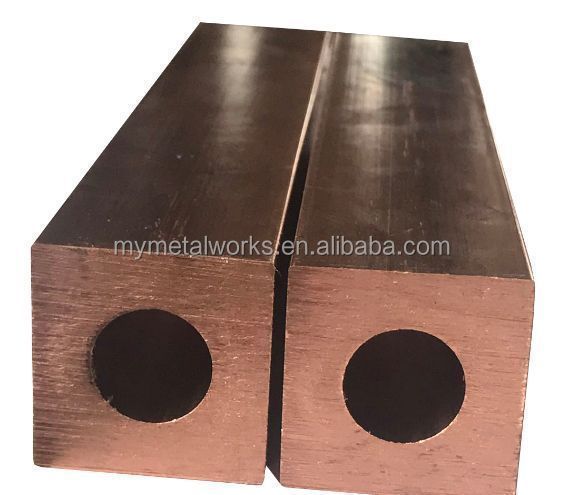

Hollow copper conductor without oxygen

  • $15.50 / 500 - 999 kilograms
    $14.50 / 1000 - 1999 kilograms
    $13.50 / >=2000 kilograms
  • 500 kilograms
  • Ke Yi Industrial (Shanghai) CO., LTD
  • Shanghai, China
  • Mr Samuel C

Product Detail

weight:1-30kgMOQ:500 kg
model:custom madeCopper content (%):>99.95%
aspect:Diameter 4-20mmproduct name:Copper Profile
port:ShanghaiProcessing services:extrusion, cold drawing
Alloy or not:is an alloygrade:C1100, C10100, C10300
Supply capacity:5000 pieces per dayPackage preview:
Powder or not:not powderMinimum thickness:0.8mm
Straightness:1mm/mMaterial:C1100, C10100, C10300
brand:Farbmanpayment terms:L/C, Western Union, D/P, D/A, T/T
place of origin; place of origin:Jiangsu, ChinaWarranty:1 year
Twist:1°/mapplication:electrical industry, electrical industry
Diameter range:4.3-150mmPackaging Details:1000kg/pallet
Surface roughness:< Radium 0.4

Copper Profile



The copper profile sections are manufactured by Fabmann in China according to the prescribed standards, we use pure copper high conductivity and crack free extrusion and drawing produced "A" grade cathodes.





Copper section specification:
1. Material: oxygen-free refined copper, phosphorus deoxidized copper, electrolytic tough copper
2. Copper standard: C10100/CW009A, C10200/CW008A, C12000/CW023A, C12200/CW024A, C11000/CW003A
3. Fabricaiton solution: Extrusion & drawing

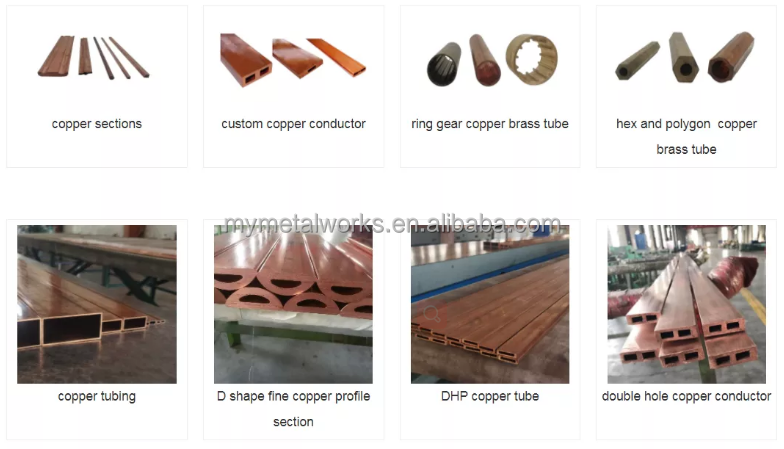

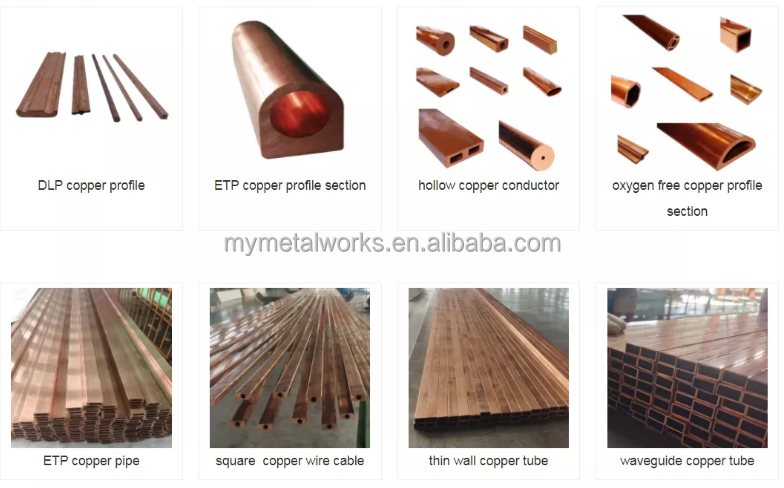

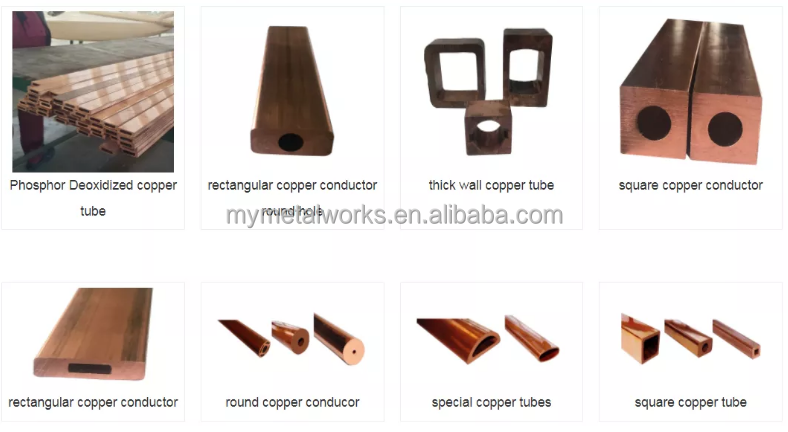

4. Products: hollow conductors, hollow profiles, profiles, thick and thin-walled tubes

5. Wall thickness tolerance from 0.01mm to 0.1mm



Fabmann supplies copper profiles, copper profiles, copper conductors for substations, vacuum tubes, electronic and electrical conductors, microwaves and waveguides.



Standards for Copper and Copper Alloys

Material specification China U.S. U.K. Germany Japan International Organization for Standardization CN
Oxygen-free refined copper TU0 C10100 C103 OFE-Copper C1011 CU-OFE CW009A
TU1 C10200 C110 OF-copper C1020 CU-OF CW008A
Phosphorus deoxidized copper TP1 C12000   SW-copper C1201 Copper DLP CW023A
TP2 C12200 C106 SF-copper C1220 Copper-DHP CW024A
Electrolytic ductile copper T1   C100 OF-copper C1020 Cu-ETP1 CW003A
T2 C11000 C101 Electronic Cu58 C1100 Copper ETP CW003A



Copper and Copper Alloy Profile Specifications
outline shape Section size wall thickness straight line length Wall Thickness Tolerance EU standard german standard production solutions
Round tube (thin wall) 4mm-50mm 0.15-2mm 7 meters 0.01mm EN 12167:2016; EN 13600:2016; EN 13605:2016 Standard 40500 Standard 17672 extrusion drawing
Round tube (thick wall) 50mm-150mm 2-7.5mm 7 meters 0.1 mm
Rectangular tube 4mm-150mm 0.15-7.5mm 7 meters 0.01mm
Profiles and Sections 4mm-120mm 0.15-7.5mm 7 meters 0.1mm

Outer square

inner circle

4mm-150mm 0.15-7.5mm 7 meters or custom length round package 0.1mm

Oval, polygonal, hexagonal, twisted

shape, L shape,

Y type, H type,

Type I, Type V,

U-shaped, D-shaped,

Type C

4mm-150mm 0.15mm-7.5mm 7 meters 0.1 mm











Popular keywords: Refined copper profiles, refined copper tubes, copper conductors, copper tubes, copper rectangular tubes, copper conductor tubes, ETP copper profiles, ETP copper tubes, ETP copper tubular conductors, DHP copper profiles, DHP copper tubes, DHP copper tubular cable, DLP copper profile section, DLP copper tubular cable, Oxygen free copper profile section, Oxygen free copper tube, Copper wire cable, copper conductor
