Degradable adhesive for sol packer for shale well completion and fracturing

Biodegradable/Degradable Rubber for Fracturing Production Completion Tools

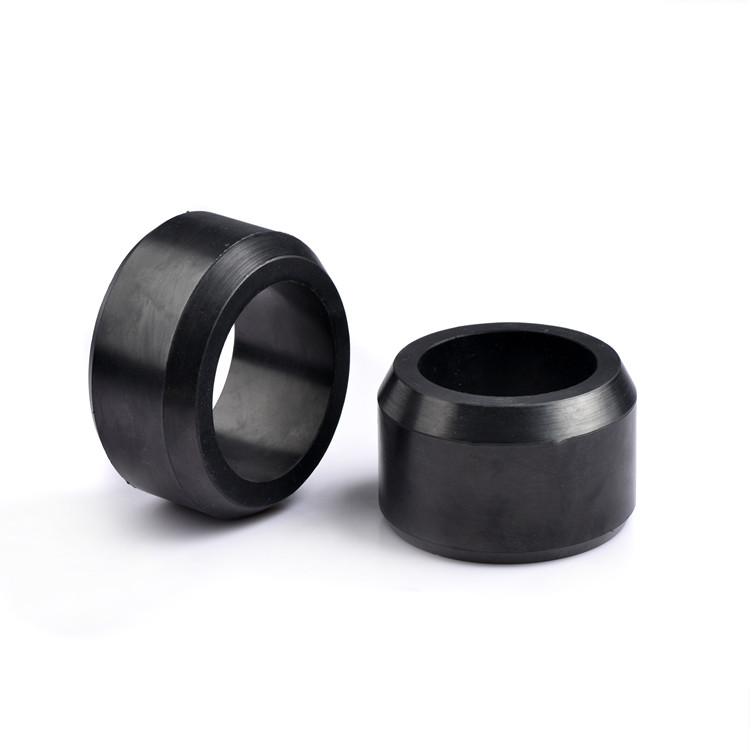

Soluble rubber sealing material

Applications and Features:: Soluble cartridges are divided into compression type and expansion type, suitable for unconventional oil and gas fields, multi-stage perforated bridge plug joint completion wells, ultra-deep wells, remote development wells and depleted oil reservoirs. The rubber cartridge is soluble in water at a certain temperature. The higher the temperature, the faster the dissolution rate. It fills the blank of the domestic hydrosol cartridge and reduces the production cost. This material has been used normally in Xinjiang and South Sichuan oil fields, and the usage is close to 2,000 units.

Advantages:

1. Independent research and development, filling the blank of domestic hydrosol cartridges, with low cost and stable product performance.

2. The rubber cartridge is soluble and completely soluble in the reverse liquid without residue;

3. After dissolution, the wellbore forms a full diameter. Production logging can be carried out in the later stage of production.

4. The compressive strength of high-strength soluble metal reaches 70Mpa, meeting the sealing requirements of fracturing construction.

5. It can completely eliminate the risks brought by coiled tubing drilling and grinding operations, saving construction time and costs.

6. It is not limited by the length of coiled tubing, and can input unlimited quantities (according to customer needs).

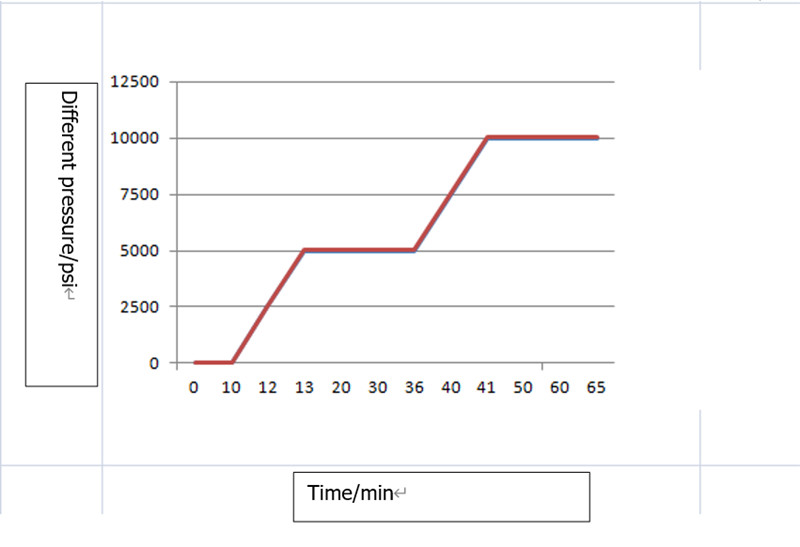

Pressure characteristics:

     The entire kit is tested at 90 degrees Celsius.

Typical Data Sheet:

Laboratory dissolution test situation:

   Put the rubber cartridge into a high-temperature-resistant container and fill it with tap water, and put it into a water bath with a constant temperature of 90°C. After three days, the surface of the rubber cartridge becomes rough and soft, and it begins to dissolve after 5-7 days, and the glue cartridge dissolves into a paste after 10-15 days. .

Application situation:

As of May 2018, the materials developed by our company have been used normally in Xinjiang, southern Sichuan and other oil fields, with nearly 2,000 units used. The soluble gel cartridge and soluble bridge plug were successfully lowered into the target layer, and the fracturing effect was good. The dissolution of the rubber cartridge has been verified by the operator, and it is completely dissolved without residue.
