EMF radio frequency shielding 120 micron copper mesh
-
$12.80 / 1 - 9 square meters
$1.60 / >=10 square meters - 1 square meter
- Anping County Comesh Filter Co., Ltd.
- Hebei, China
- Ms Helen Hou
Product Detail
| width: | 1m, 1.2m, 1.5m, 1.8m, 2m or customized | Key words: | 120 micron copper wire mesh, copper wire mesh |
| length: | 30m, 50m, 100mm or customized | product name: | EMF radio frequency shielding 120 micron copper mesh |
| Wire diameter: | 0.05-1.2mm | Packaging Details: | EMF RF Shielding 120 Micron Copper Wire Mesh: Wrapped with waterproof paper and put into wooden box. or according to your request |
| Grid size: | 4-200 mesh | Supply capacity: | 10000 square meters per month EMF RF shielding 120 micron copper wire mesh |
| aperture: | 0.077-5.15mm | Types of: | to weave |
| place of origin; place of origin: | Hebei china | Hole shape: | square |
| model: | CM-CM002 | port: | Tianjin |
| payment terms: | L/C, T/T, Western Union, MoneyGram, PayPal | Material: | copper wire |
| feature: | Non-magnetic, wear-resistant | brand: | COMESH |
| application: | filter | sample: | usable |
| Braid Type: | Plain weave, twill weave, Dutch weave |

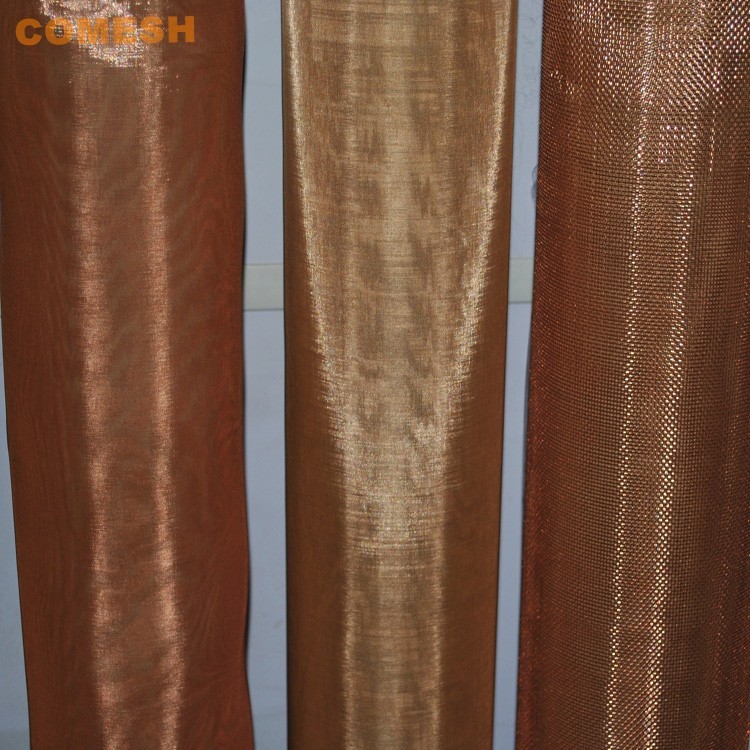

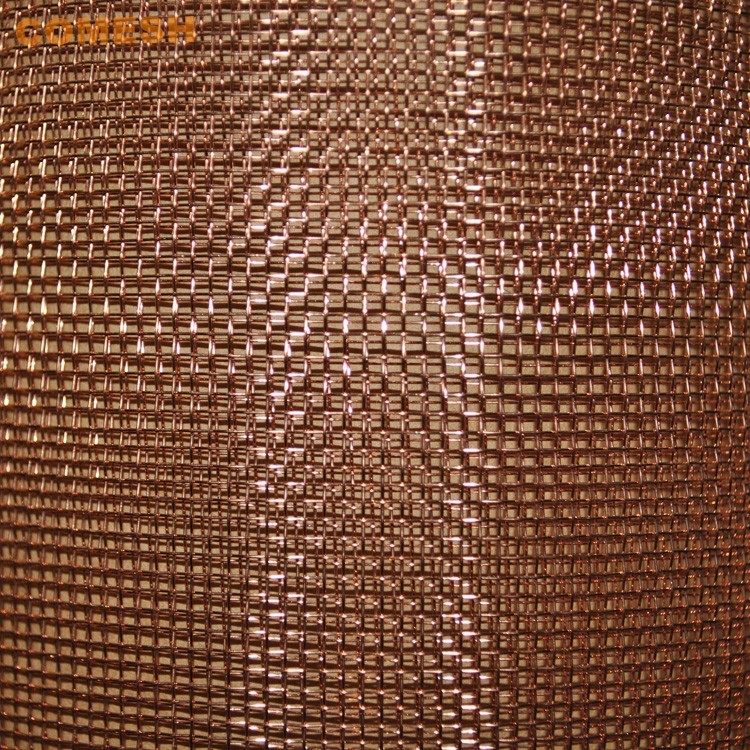

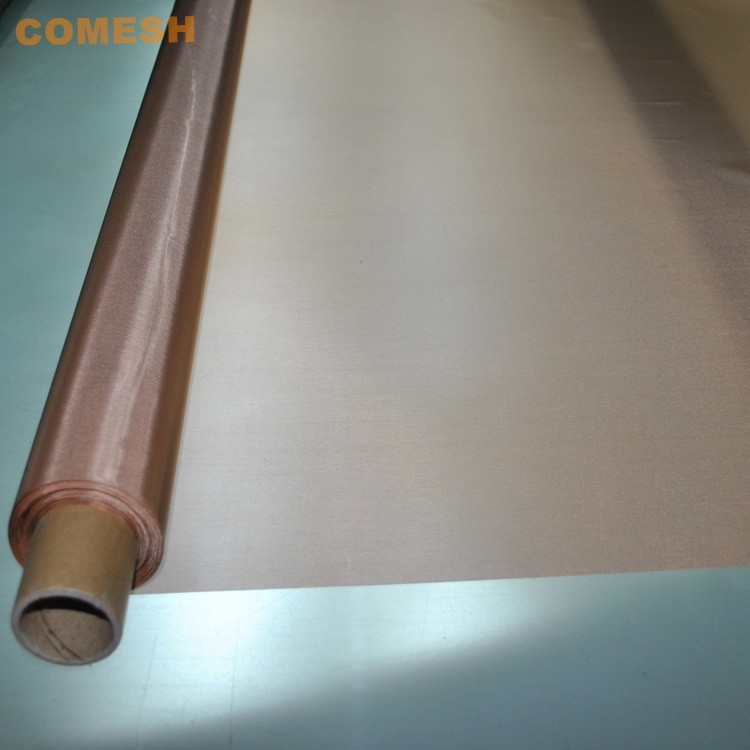

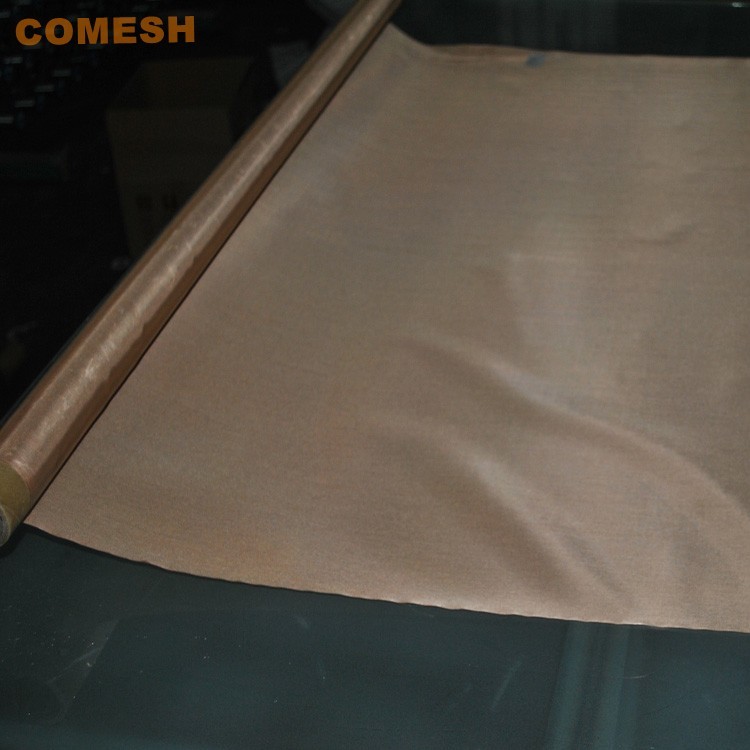

EMF radio frequency shielding 120 micron copper mesh
120 micron copper wire mesh/copper shielding wire mesh/EMF RF shielding copper wire mesh
feature:
Good electrical conductivity, heat transfer performance, non-magnetic, corrosion resistance, low ductility, wear resistance

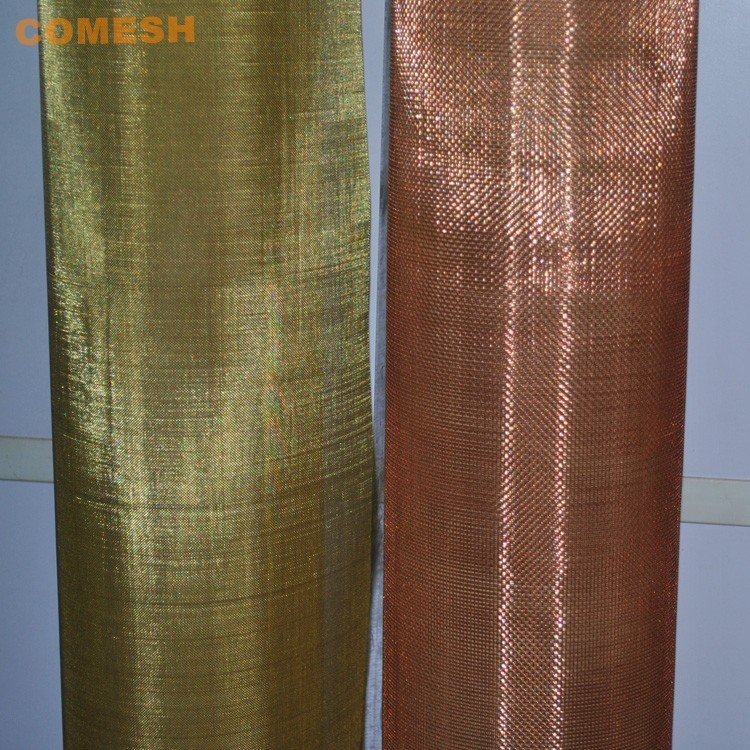

1. Material120 micron copper wire mesh:
Brass wire--Purity--Cu:65% , Zn:35%
Copper Wire--Purity--Cu:99.8%
Phosphor bronze wire--purity--Cu:85%-90% , Sn:5%-15%
2. Weaving typeCopper wire mesh:
Plain weave, twill weave, Dutch weave
3. Production scopeEMF radio frequency shielding copper wire mesh:
Wire diameter: 0.05-1.2mm
Mesh: 4-200 mesh
Common roll width: 1m, 1.2m, 1.5m, 1.8m, 2m, others can be customized
Common roll length: 30m, 50m, 100m
application:
- Used as shielding screens for cable lines, laboratories and computer rooms.
- Widely used for RFI and EMI shielding in power sector, aerospace, information industry and military.
- Used as a Faraday cage.
- Mounted on buildings for noise isolation.
- Filter discs for liquid, gas and solid filtration.
| mesh/inch | Wire diameter (mm) | Aperture(mm) | public % |
| 4 | 1.2 | 5.15 | 65.8 |
| 5 | 1 | 4.08 | 64.5 |
| 6 | 0.71 | 3.52 | 69.2 |
| 8 | 0.5 | 2.67 | 70.7 |
| 10 | 0.5 | 2.04 | 64.5 |
| 12 | 0.45 | 1.66 | 61.5 |
| 14 | 0.4 | 1.41 | 60.4 |
| 16 | 0.3 | 1.28 | 65 |
| 18 | 0.25 | 1.16 | 67.6 |
| 20 | 0.25 | 1.02 | 64.5 |
| 30 | 0.21 | 0.64 | 57.1 |
| 40 | 0.19 | 0.45 | 50.2 |
| 50 | 0.15 | 0.36 | 50.1 |
| 60 | 0.15 | 0.27 | 40.7 |
| 70 | 0.13 | 0.232 | 40.8 |
| 80 | 0.12 | 0.197 | 39 |
| Post-90s | 0.11 | 0.172 | 37.2 |
| 100 | 0.1 | 0.154 | 37 |
| 110 | 0.09 | 0.141 | 37.2 |
| 120 | 0.09 | 0.122 | 33.2 |
| 130 | 0.07 | 0.125 | 41 |
| 140 | 0.07 | 0.111 | 37.6 |
| 150 | 0.06 | 0.109 | 41.5 |
| 160 | 0.06 | 0.098 | 38.1 |
| 180 | 0.053 | 0.088 | 41.6 |
| 200 | 0.05 | 0.077 | 36.7 |
1. Product model: EMF RF Shielding 120 Micron Copper Screen Wire Mesh

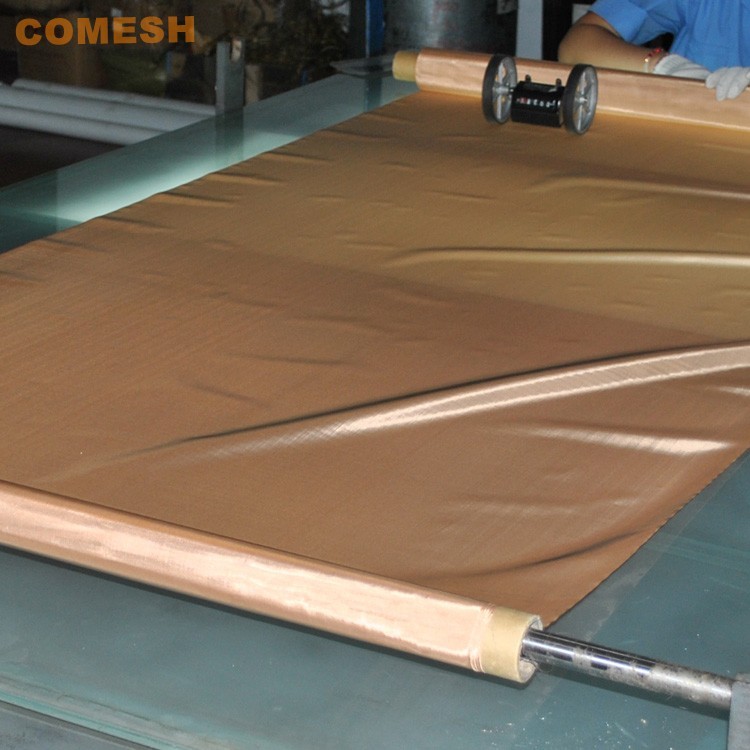

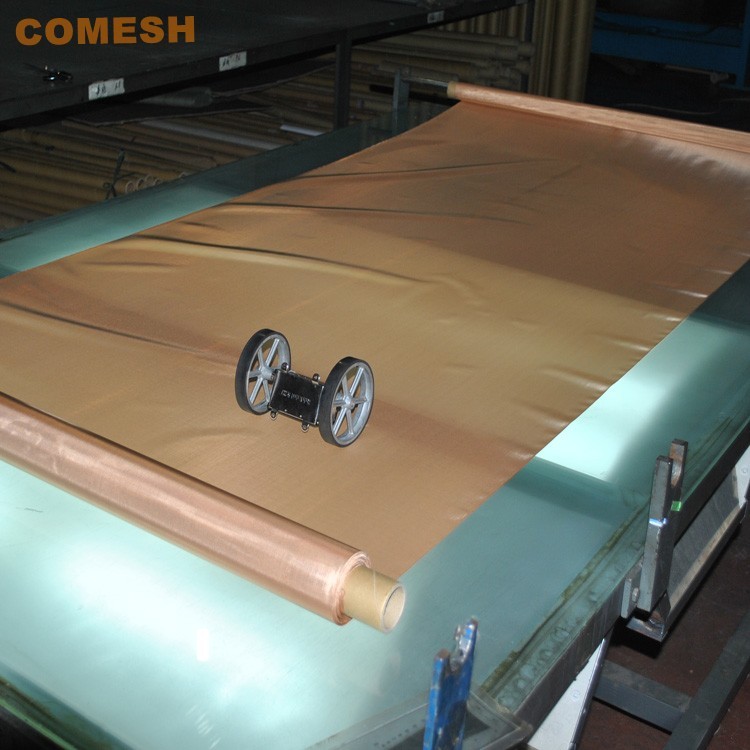

2. Quality: All items will be tested by our professional QC team before balance payment and shipment.
3. Payment method: T/T, L/C, D/P, Western Union, PayPal, Escrow, Cash.
4. Samples: Provide samples for quality testing, about the sample fee and freight, hope we can understand each other, sometimes samples are free, but we ask you to pay the freight.
5. Packaging: Inner packaging of kraft paper or plastic blister film, outer packaging in carton or wooden box, try to save space and make the packaging compact.
6. Shipping: Air Express, Sea and TNT, DHL, FEDEX, UPS, EMS
7. Warranty: 6 months quality warranty
8. Service: We have an experienced and best sales service team that will solve all your problems now and in the future.
Q1: Can I order EMF RF Shielding 120 Micron Copper Wire Mesh from you?
A1: Yes! you can! Welcome to order EMF RF Shielding 120 Micron Copper Wire Mesh to see our excellent quality and service!
Q2: Do you have after-sales service?
A2: Yes! We have a professional after-sales service project, if you have any technical problems or questions about the goods, please contact our technical support department or contact our sales directly, we will solve it as soon as possible.
Q3: Are you just a trading company? Or a factory?

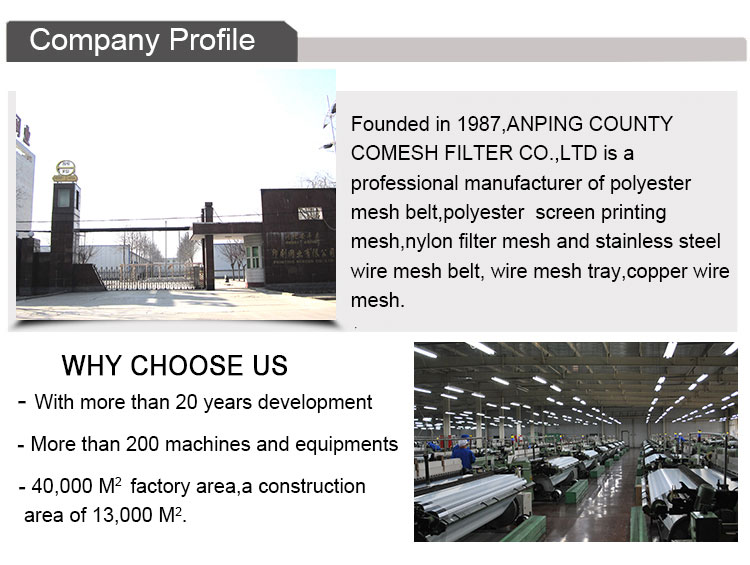

A3: We are a professional manufacturer of filtration, we can provide you with the most competitive price, unbeatable quality and service.
Q4: Where is your factory located? how can i visit you
A4: Our factory is located in Anping County, Hebei Province, China. You can fly directly to Beijing City Airport and we will pick you up. Welcome to visit our factory.
