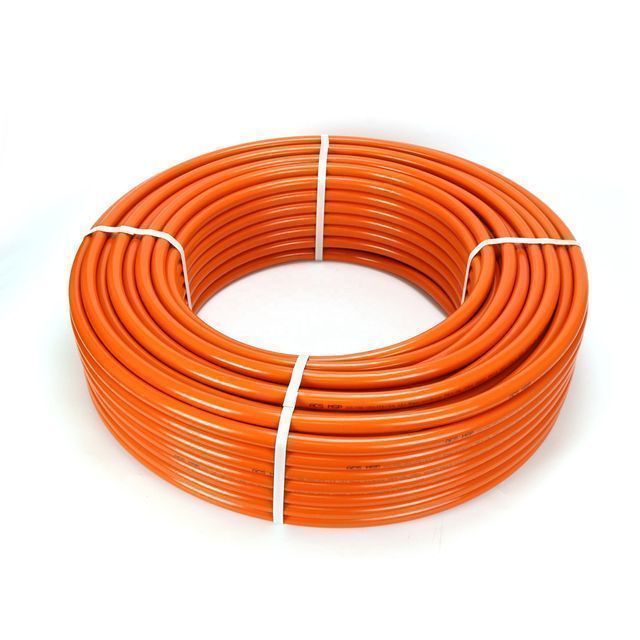

CSTB AENOR WRAS SKZ certified 5-layer PEX Al PEX multi-layer pipe aluminum-plastic composite pipe
-
$0.30 / 10000 - 49999 meters
$0.29 / 50000 - 99999 meters
$0.28 / >=100000 meters - 10000 meters
- Zhejiang Mingshi Xingxin Hvac Technology Co., Ltd.
- Zhejiang, China
- Mr Michael Liu
Product Detail
| model: | S-1 | Operating temperature: | up to 95°C |
| Supply capacity: | 3,000,000 meters per month | Work pressure: | 10bar max |
| Material: | PEX-Aluminum-PEX | payment terms: | L/C, D/P, T/T |
| Outer diameter: | 12/14/15/16/18/20/22/25/26/32/40/50/63 | standard: | ISO21003 |
| place of origin; place of origin: | Zhejiang, China | application: | Gas/water/UFH floor heating |
| color: | white/black/yellow/red/blue/orange | brand: | Mingshi, OEM |
| Package preview: | Specification: | 12/14/15/16/18/20/22/25/26/32/40/50/63 | |
| Processing services: | forming | length: | 4/5/6/10/25/50/100/200m |
| color: | white/black/orange/blue/red | Coil Length: | 25m-500m |
| Linear Expansion Coefficient: | 0.025 | MOQ: | 10,000 metric tons |
| Certification: | AENOR, WRAS, CSTB, SKZ, Watermark, ACS | thickness: | 2.0-6.0mm |
| Thermal conductivity: | 0.43 | port: | Ningbo, Shanghai |
| Degree of crosslinking: | ≥65% | Packaging Details: | Plastic bag/box/kraft paper. |
| diameter: | 9-63mm | welding: | Butt Weld/Overlap |
Multilayer PEX-AL-PEX/ PERT-AL-PERT pipe | ||
Warranty | more than 10 years | |
certified | AENOR, WRAS, CSTB, ACS, Watermark, SKZ | |
application | Water/Gas/Underfloor Heating (UFH) | |
Custom support | OEM, design and manufacture | |
place of origin; place of origin | Zhejiang, China | |
brand | OEM/Baume & Mercier/MSP | |
model | S-1 | |
standard | ISO 21003/Other | |
Type of welding | Butt Weld/Overlap | |
Outer diameter (mm) | 15/ 16/ 18/ 20/ 22/ 25/ 26/ 28/ 32/ 40/50/63 | |
color | white/black/red/blue/yellow/orange | |
work pressure | maximum. 10 grids | |
Operating temperature | maximum. 95°C | |
Degree of cross-linking | ≥65 | |
1. For piped water (hot and cold)/gas/floor heating systems, consisting of 5 layers:
-external plastic/external glue/aluminum/inner glue/inner plastic
2. The certificates we have: AENOR, CSTB, SKZ, ACS, WATERMARK, JASWIC, ISO9001
3. Material: CONSTAB/other PEX
4. QC: including material inspection and testing, production line sampling, and all tests required by each standard on finished products in our laboratory room
5. Lap/Butt Weld
-Specification. (mm)
16*2.0
18*2.0
20*2.0
20*2.25
25*2.5
26*3.0
32*3.0
40*4.0
50*4.5
63*6.0
6. Delivery time: 15-30 days
7. Main market: Europe, South Africa, South America, Asia, Australia
8. Application:
- hot and cold water piping system
-house gas piping system
-floor heating system
-Pipeline system for solar energy and air conditioning
-Medical, food and chemical piping systems
Nine. Features and advantages:
-Wide operating temperature range (-10C~95C), high pressure resistance
-30% higher flow rate than metal pipe
-50 years working life
-Non-corrosive, no scale
-Hygienic, impermeable to oxygen, does not breed microorganisms
- Non-flammable, non-static
- Bends but never springs back
-Light weight, easy to carry and store
- Fewer pipe fitting applications and less leakage
- Economical price.
-external plastic/external glue/aluminum/inner glue/inner plastic
2. The certificates we have: AENOR, CSTB, SKZ, ACS, WATERMARK, JASWIC, ISO9001
3. Material: CONSTAB/other PEX
4. QC: including material inspection and testing, production line sampling, and all tests required by each standard on finished products in our laboratory room
5. Lap/Butt Weld
-Specification. (mm)
16*2.0
18*2.0
20*2.0
20*2.25
25*2.5
26*3.0
32*3.0
40*4.0
50*4.5
63*6.0
6. Delivery time: 15-30 days
7. Main market: Europe, South Africa, South America, Asia, Australia
8. Application:
- hot and cold water piping system
-house gas piping system
-floor heating system
-Pipeline system for solar energy and air conditioning
-Medical, food and chemical piping systems
Nine. Features and advantages:
-Wide operating temperature range (-10C~95C), high pressure resistance
-30% higher flow rate than metal pipe
-50 years working life
-Non-corrosive, no scale
-Hygienic, impermeable to oxygen, does not breed microorganisms
- Non-flammable, non-static
- Bends but never springs back
-Light weight, easy to carry and store
- Fewer pipe fitting applications and less leakage
- Economical price.
