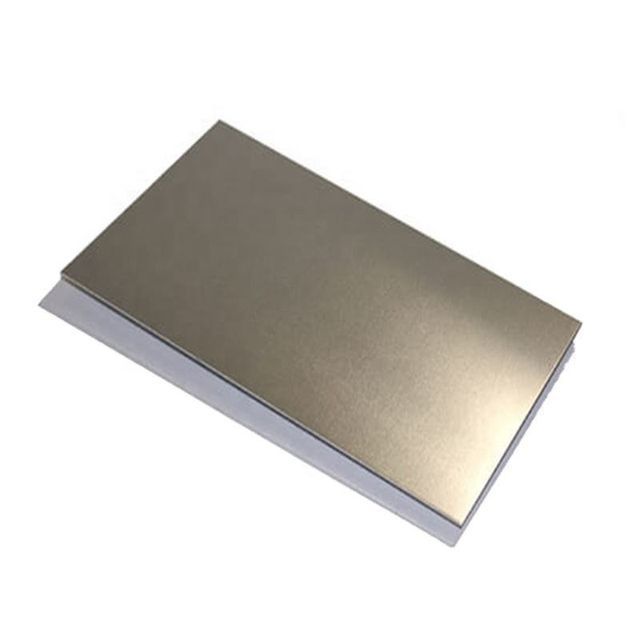

SML High Purity 99.95% 1mm-10mm Tungsten Plate with Tungsten Alloy Plate

  • $99.00 / 1 - 99 pieces
    $89.00 / 100 - 999 pieces
    $79.00 / >=1000 pieces
  • 1 piece
  • Wuhan SML Tools Limited
  • Hubei, China
  • Ms Helen SML Drilling

Product Detail

width:600 maxPackaging Details:Strong plastic/carton/wooden case
port:any port in Chinamodel:Plate/sheet/strip
Supply capacity:5000 pieces per monthdensity:19.1 g/cm3
brand:SMLplace of origin; place of origin:Hubei, China
purity:99.97%-99.99%shape:Strip
product name:Pure tungsten platesurface:polishing
State of health:stress relief annealingMaterial:99.95% Tungsten
application:industrypayment terms:Western Union, Wire Transfer, MoneyGram, Credit Card
size:Original 1MM 5MM 10MM
Product Description

 Tungsten High Density Alloy (Tungsten Heavy Alloy)Is a material with a high tungsten content and a small amount of nickel-iron or nickel-copper. Some tungsten alloys are added with Co, Mo, Cr, etc., and the density can reach 16.8-18.8g/cm³.

1. Composition: WNiFe, WNiCu, WCu, WC-Co

2. Surface: polished, polished

3. Standard: AMS-T-21014

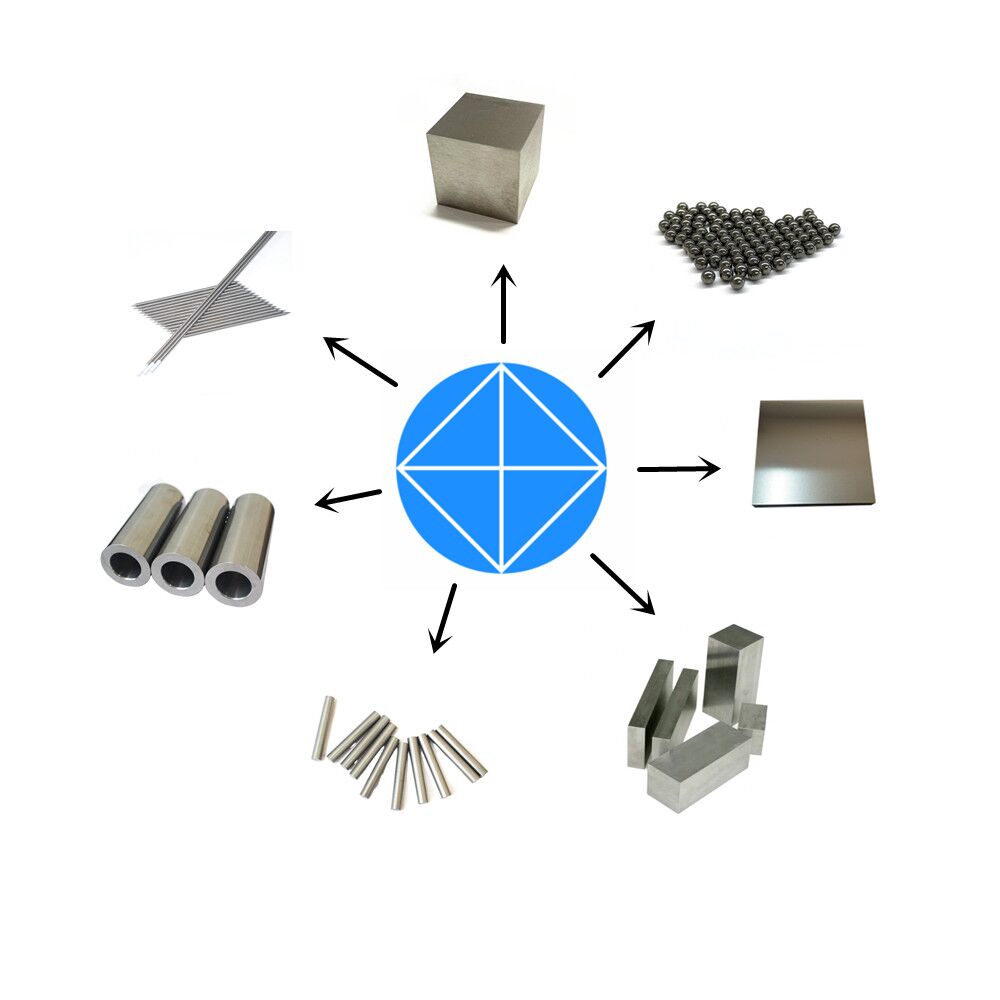

4. Shape: sheet, plate, bar, special shape according to the drawing

5. Application: aircraft, shield



application

Tungsten alloy metal mainly includesTungsten nickel ironandTungsten Nickel Copper, Widely used in military equipment, machinery manufacturing, aircraft parts, medical protective shields and sports equipment.

WNiFe Specifications
Types of density tensile strength elongation(%) Human Resources Committee
g/cubic centimeter MPa
90-W-nickel-iron 16.9-17 700-1000 20-33 24-32
93-W-nickel-iron 17.5-17.6 100-1000 15-25 26-30
95-W-nickel-iron 18-18.1 700-900 8-15 25-35
97-W-nickel-iron 18.4-18.5 600-800 8-14 30-35



WNiCu specification
Types of density tensile strength elongation(%) Human Resources Committee
g/cubic centimeter MPa
90W-6Ni-4Cu 16.9-17.2 550-750 8-15 18-25
90W-7Ni-3Cu 17.0-17.2 550-800 8-12 20-26
93W-4Ni-3Cu 17.5-17.7 550-700 5-10 18-24
95W-3Ni-2Cu 17.8-18.0 500-700 4-7 25-30
95W-3.5Ni-1.5Cu 17.7-17.9 500-700 3-5 25-32
96W-nickel copper 1.9-18.1 500-600 2-4 25-33



Copper Tungsten Alloy (CuW)Mainly used for arc extinguishing contacts and vacuum contacts in high and medium voltage circuit breakers or vacuum interrupters; electrodes in electric spark erosion cutting machines; radiators as passive cooling elements for electronic equipment; electrodes for resistance welding.

benefit

Tungsten copper alloy is composed of tungsten and copper.
Tungsten-copper alloy combines the advantages of tungsten-copper alloy: high temperature resistance, arc corrosion resistance, high strength, significant ratio, good thermal conductivity, easy cutting, sweat cooling and other characteristics.

Tungsten-copper alloy rod application: 1. EDM electrode 2. Vacuum contact material.
