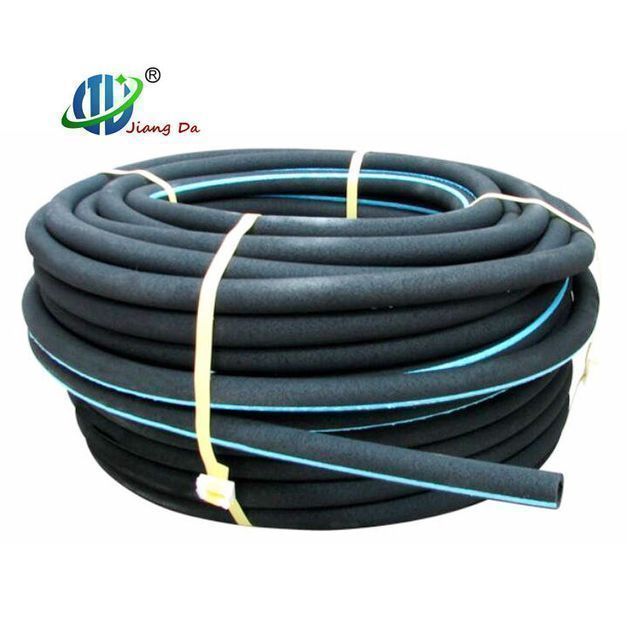

Nanobubble Generator Aeration Hose / Pop Diffusion Tube

How do aeration hoses achieve their high energy efficiency?

Due to the many holes created in our manufacturing process, there is a little resistance when pushing the air through the tubes. Resistance equals energy demand. through withAeration hose, you can use less horsepower than traditional aeration methods. (paddle wheel, aspirator, low efficiency tube)

Aeration hoseThe tiny pore size produces air bubbles of extremely small diameter. The smaller the bubble, the more efficient it is at transferring oxygen into the water (larger surface area). Once the small air bubbles are introduced into the water, they also take longer to rise. Slow rising small diameter bubbles mean more contact with water and higher oxygen transfer rate.

By producing smaller air bubbles and greater efficiency, the aeration tubes provide high rates of oxygen transfer and energy efficiency.

What can you benefit from an aeration hose?

The aeration tube can solve these problems with these obvious advantages.
1. Suitable for all types of ponds
2. Easy to clean and maintain.

3. No moving parts, low depreciation rate

4. Low initial investment cost

5. More efficient

6. Eat more

7. Simple installation and low maintenance cost

8. Effective energy saving of 75%

9. Improve the growth rate of fish and shrimp

10. Maintains Oxygen Levels in Water

11. Reduce harmful gases in water

The characteristics of the aeration tube

1. Outer diameter: 10-28mm

2. Wall thickness: 2mm or more

3. Bubble size 1-3mm

4. Air volume 0.008-0.032m3/min per meter (0.5-2.2m3/h per meter)

5. Working pressure: 20kpa-50kpa

6. Dynamic power: 0.03kw/m

7. Applicable water depth: 0-6 meters

8. Easy to install

9.Side Channel Blower: The effective water depth is about 1 meter, and the packing density is increased by 1-2 times.

10. Centrifugal pump: The effective water depth is about 2-3 meters, and the stocking density is increased by 3-4 times.

11. Roots blower: the effective water depth is 3-10 meters, and the effective length can reach 300m.

The stocking density can reach 3-6 times.

Note: No matter which type of air pump you use, the sum of its pipe sections is not

greater than the total area of ​​the main section. If there are any questions,

Please feel free to contact us.
