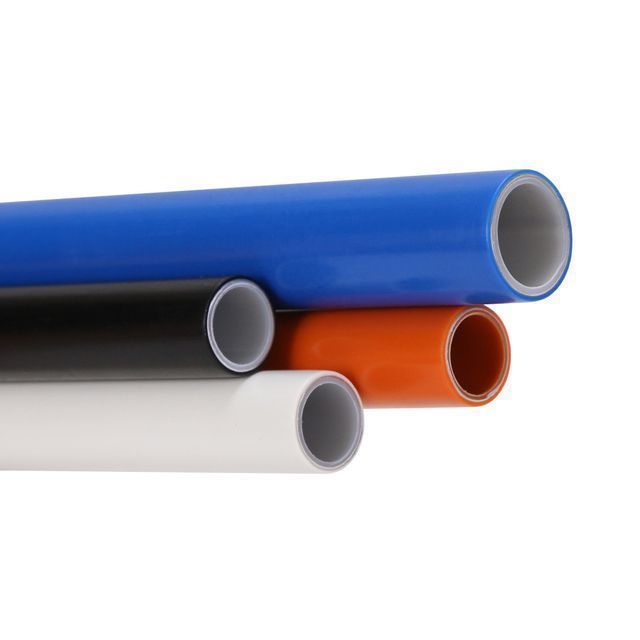

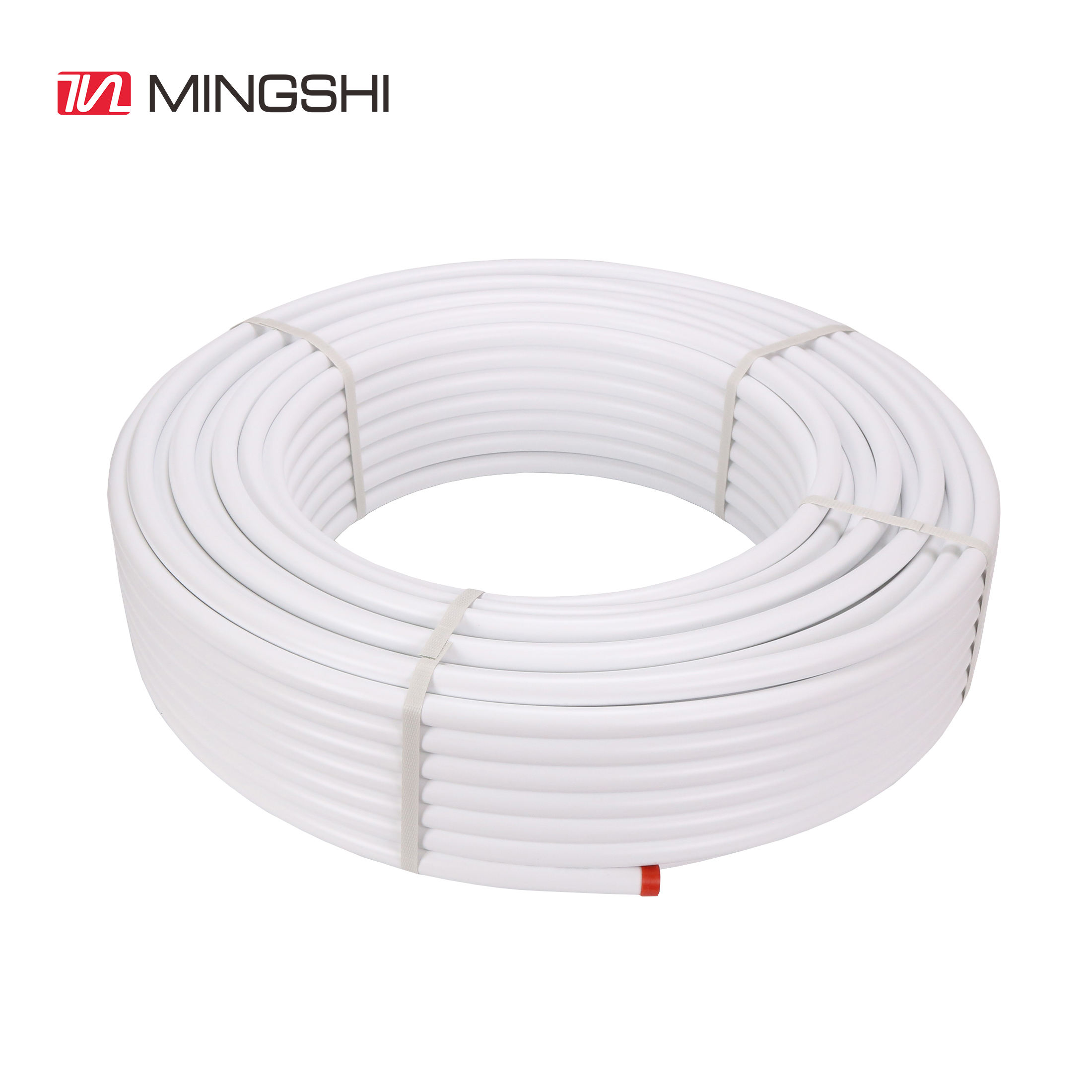

Multi-layer PE-AL-PE PEX-AL-PEX pipe cold and hot water pipe butt welding lap type plastic plumbing pipe

Product Detail

thickness:2.0-3.0mmpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Supply capacity:100,000,000 meters per yearPackage preview:
Specification:16-32mmThermal conductivity:0.45W/(megacard)
Packaging Details:Comes with plastic bag/box/kraft paper.Outer diameter:16-32mm
Linear Expansion Coefficient:0.025mm/(MK)Certification:ISO CE AENOR WRASS watermark
MOQ:8000~25000 metersbrand:OEM/ODM/Mingshi/MSP
Coil length:25/50/100/120/200/250/300/500model:16-32mm
Material:Polyetheretherketoneproduct name:PEX plumbing pipe
length:25/50/100/120/250/300/500mmport:Ningbo
standard:CE, AENOR, CSTB, ISO. watermarkcolor:white/blue/red/yellow/OEM
size:16-32mmplace of origin; place of origin:Zhejiang, China
Product Details
basic details
place of origin; place of origin:
Zhejiang, China
Material:
Polyetheretherketone
Specification:
16-63MM
length:
25/50/ 100/200/300/500 or OEM
thickness:
2.0, 2.5, 3.0, 4.0, 4.5, 6.0
standard:
AENOR, SKZ, WRAS, watermark
Processing services:
to cut
product name:
Pex-Al-Pex tube
application:
gas system, water system,
Underfloor heating.
Types of:
plastic building materials
raw material:
Pex, aluminum
color:
white, red, blue, orange, red or OEM
trademark:
Support custom logo
feature:
Corrosion resistance, fire prevention, high pressure resistance
MOQ:
10000 meters
shape:
round
Advantage:
flexible and easy to install
Supply capacity
Supply capacity:
3,000,000 meters per month
3,000,000 meters per month
Packaging & Shipping
Packaging Details:
Use kraft paper, then plastic film/bag on the outside
Use kraft paper, then plastic film/bag on the outside
port:
Ningbo or Shanghai
Ningbo or Shanghai
international standard
1
EN ISO 21003
Multilayer piping system for hot and cold water installations in buildings
2
AS 4176.2 & 3
Multilayer Piping Systems for Hot and Cold Water Piping Applications - Pipes and Fittings
3
ISO17484-2:2009
Multilayer plastic piping systems for indoor gas installations
International Certificate
1
Aino
Reference EN ISO 21003, UNE-EN ISO 53007
2
QB
Reference EN ISO 21003
3
Automatic Control System
Refers to XP P41-250
4
watermark
Refers to AS 4176.2 & 3
5
WRAS
refer to the regulatory body's specification
6
ISO 9001:2015
Quality Management System
Dimensional tolerance
Nominal size (D xe)
14×2.0
16×2.0
18×2.0
20×2.0
25×2.5
32×3.0
40x4.0
50x4.5
63x6.0
Outer diameter (mm)
14
16
18
20
25
32
40
50
63
Outer diameter tolerance (mm)
14-14.3
16-16.3
18-18.3
20-20.3
25-25.3
32-32.3
40-40.4
50-50.5
60.6-63
inner diameter(mm)
10
12
14
16
20
26
32
41
51
Inner diameter tolerance (mm)
9.9-10.2
11.9-12.2
13.9-14.2
15.9-16.2
19.9-20.2
25.9-26.2
30.9-31.9
39.4-40.8
49.3-50.8
Pipe thickness (mm)
2
2
2
2
2.5
3
4
4.5
6
Pipe thickness tolerance(mm)
2-2.25
2-2.25
2-2.25
2-2.25
2-2.25
2.4-2.7
2.9-3.2
4-4.6
4.5-5.2
