ul certified steel manufacturer EMT duct conduit

Product Detail

Outer diameter:0.706 - 4.5 inchesdelivery time:61-90 days
payment terms:L/C, T/TAlloy or not:Unalloyed
Invoicing:by theoretical weightCertification:UL
tolerant:±1%Origin:Shandong China
Supply capacity:3000 metric tons per monthapplication:Structural tube
To oil or not to oil:no fuelMiddle school or not:non-secondary school
thickness:0.042 - 0.083 inchesgrade:Q195-Q345, steel
type:Welded steel pipebrand:East Pipeline, East
Processing services:weldingstandard:ur
Surface treatment:galvanizedCertificate:ur
length:3050mmPackaging Details:The pipes are covered with PVC paper and then tied up with steel straps
Special tube:First aid tubeSection shape:round
technology:explosive remnants of war
product information
product name: Steel pipe manufacturer with ul certified EMT;
standard: UL797 & ANSI C80.3 File No.: E340594;
size: Available from 1/2” to 4”;
length: 3050mm or according to customer requirements;

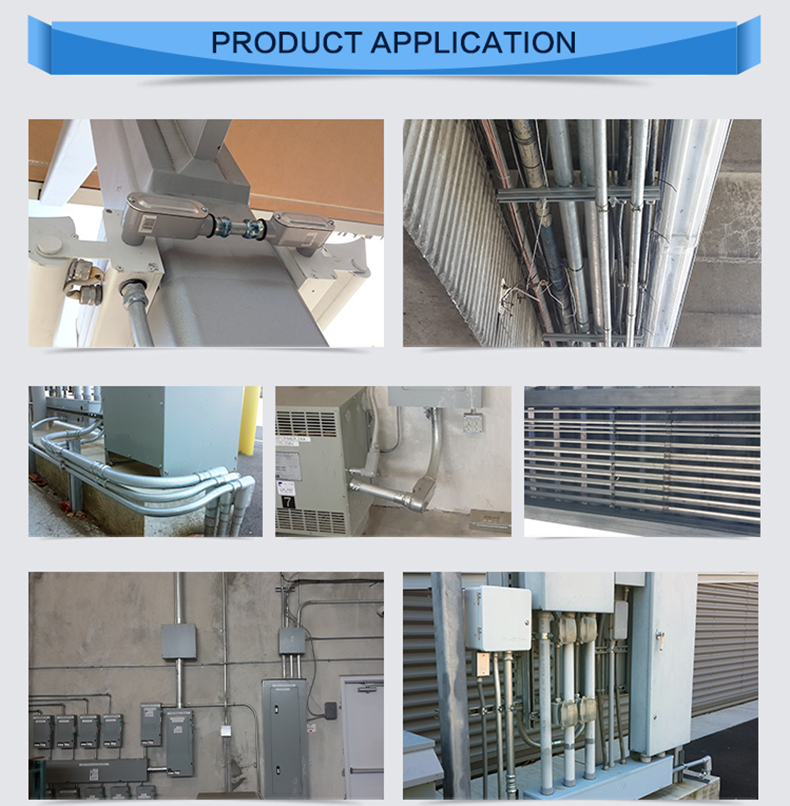

usage: Passing wires to protect electrical piping systems;
Surface treatment: hot-dip galvanized (HDG);
Material: carbon steel coil;
pack: The pipes are covered with pvc paper and then tied with steel straps;
delivery time: 20 to 30 days after we receive your advance payment or L/C copy;
expiration of pay: L/C or T/T at sight;



Dimensions Weight Table

transaction size Nominal weight per 100 feet (30.5M) Nominal outer diameter Nominal wall thickness
us Metric system pound Kilogram exist. mm exist. mm
1/2" 16 30 13.5 0.706 17.93 0.042 1.07
3/4" twenty one 46 20.7 0.922 23.42 0.049 1.24
1" 27 67 30.6 1.163 29.54 0.057 1.45
1-1/4" 35 101 45.6 1.51 38.35 0.065 1.65
1-1/2" 41 116 52.8 1.74 44.2 0.065 1.65
2" 53 148 67.2 2.197 55.8 0.065 1.65
2-1/2" 63 216 97.9 2.875 73.03 0.072 1.83
3" 78 265 120 3.5 88.9 0.072 1.83
3-1/2" 91 348 158 4 101.6 0.083 2.11
4" 103 392 178 4.5 114.3 0.083 2.11

Applicable tolerances:

Length: 10ft (3.05m) ± ¼” (±6.35mm).

Outside Diameter: ½”-2” ±0.005” (±0.13mm); 2½” ±0.010” (±0.25mm); 3” ±0.015” (±0.38mm); 3½”-4” ±0.020” (±0.51 mm)
