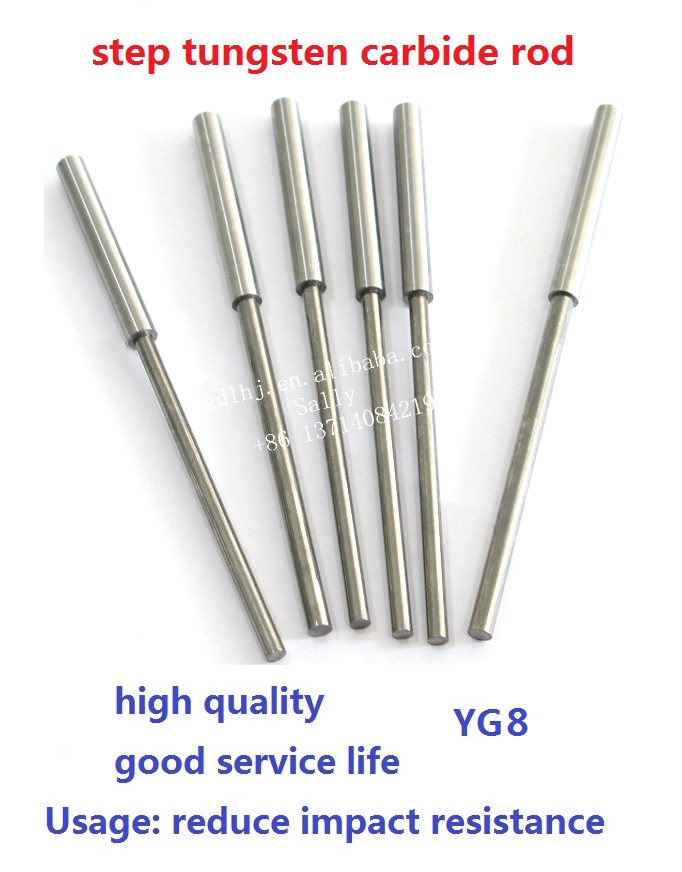

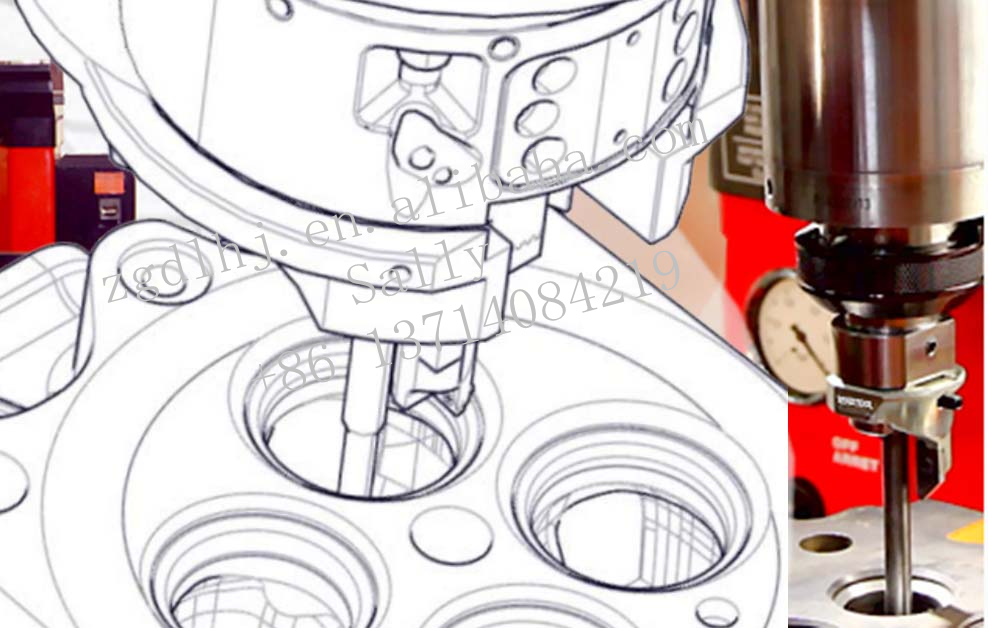

End sunnen high precision, new carbide pilot for guide cutting machine

Product Detail

Outer diameter 1:3.96~16mmOrigin:Sichuan, China
brand:DingliISO code:K20~K40
grade:DP13X (YG8)density:14.15~14.7 g/cm^3

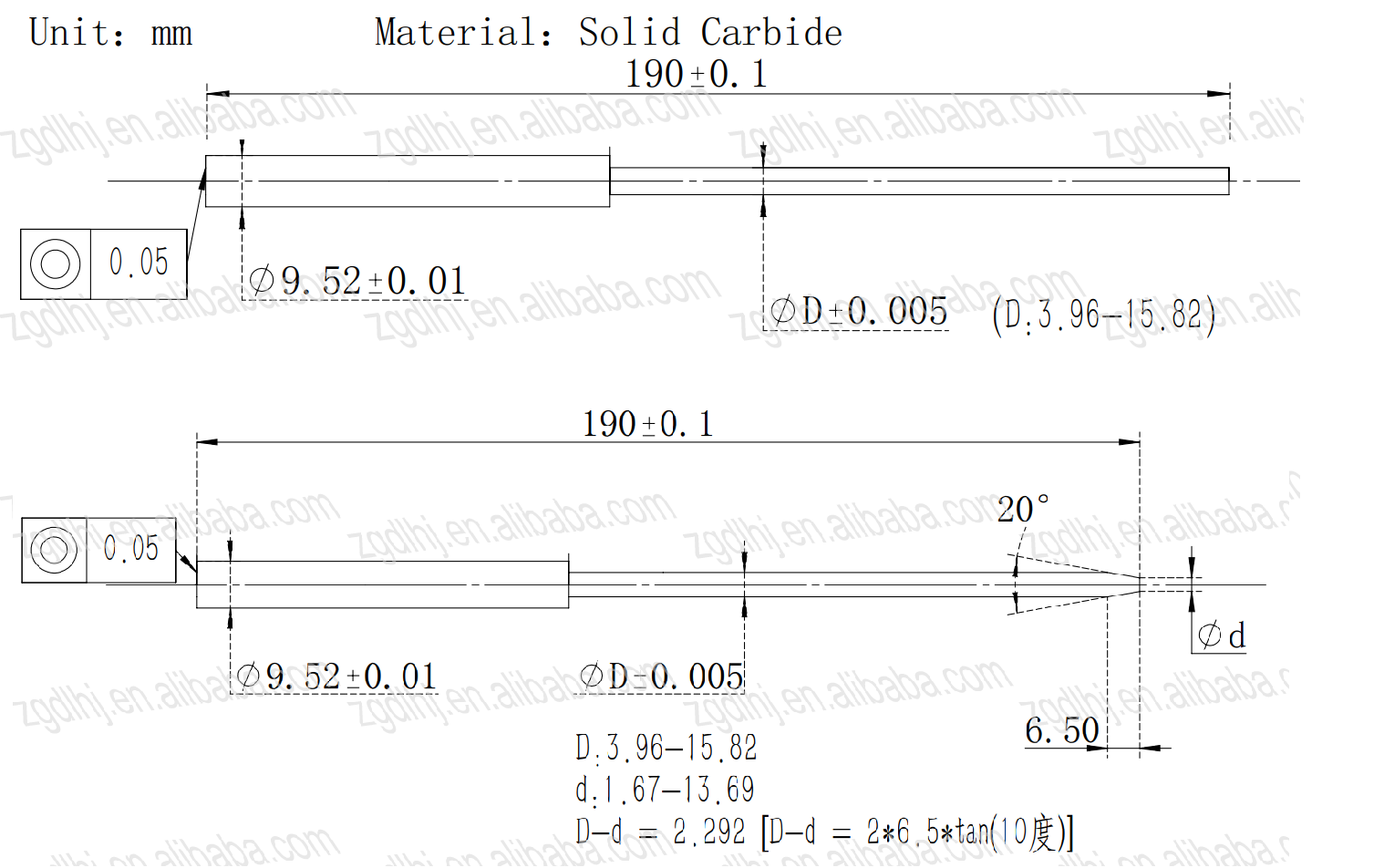

OD2:9.52 ± 0.01mmSupply capacity:1000 pieces per month
TRS:2800~3800 N/mm²Packaging Details:Wooden case/carton/iron case and other plastic bags or boxes.
hardness:High Intensity Radiation 90Grain Size:1.0~1.2 microns
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Visamodel:3.96~16mm
length:190 mmport:any port in china

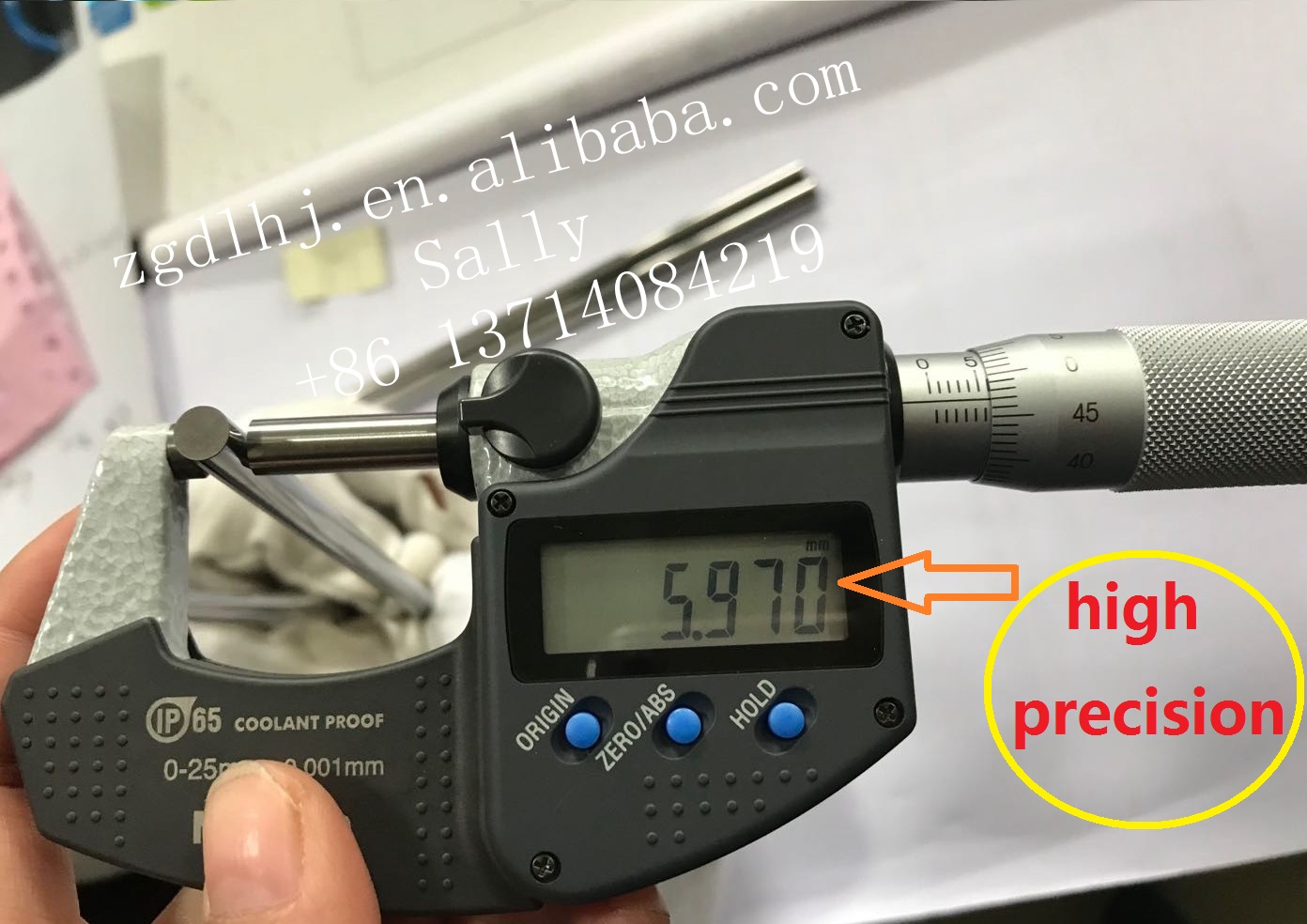

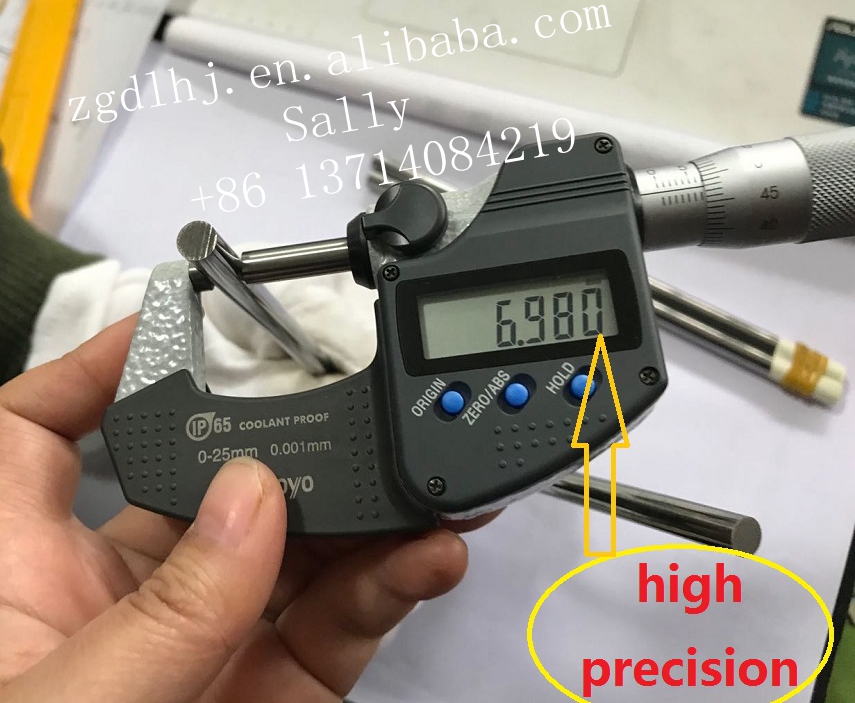

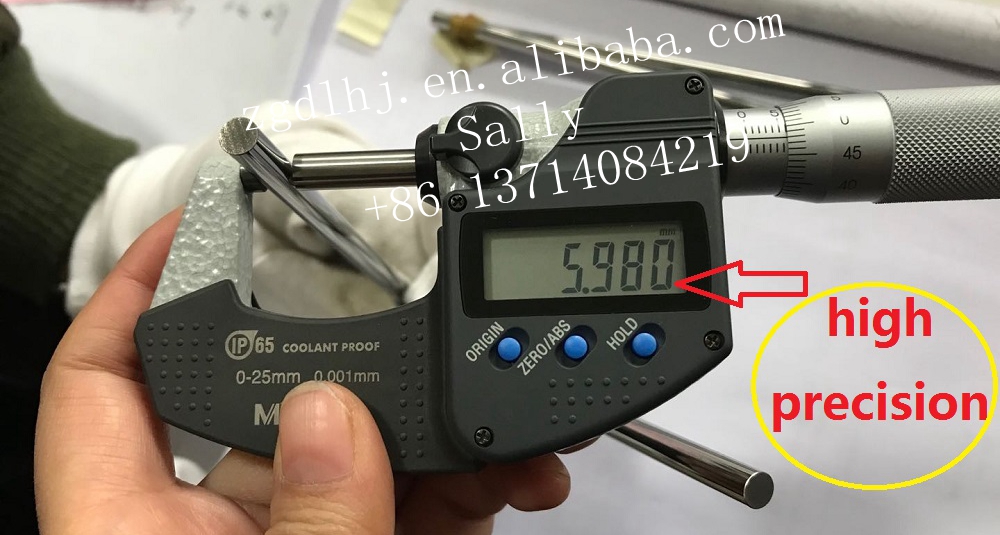

OD1 Tolerance:±0.005 mmPackage preview:
Product Description

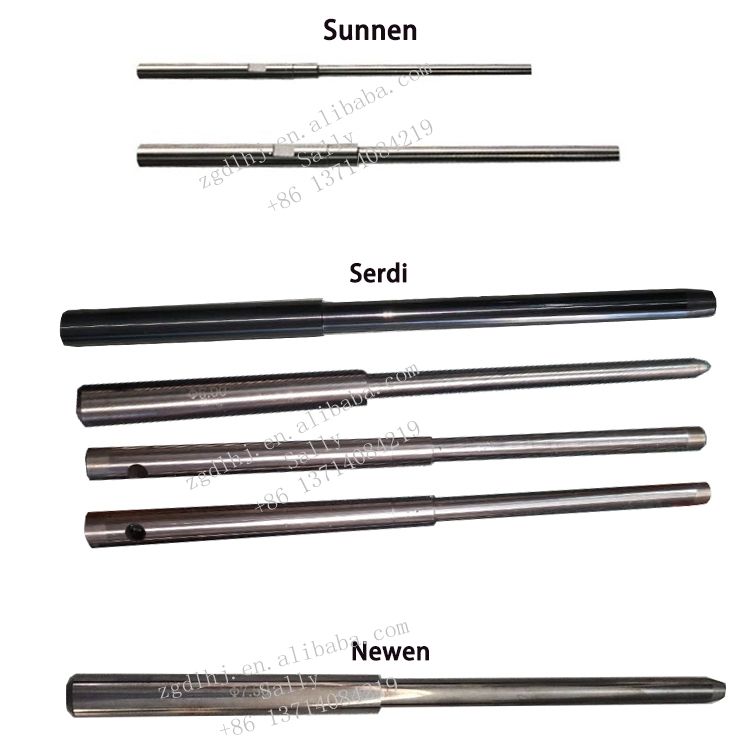

-Other types:
Material
Tungsten carbide
chemical composition
WC≥85.0%
Hardness (high pressure)
1475~1675
Compressive strength (N/mm2)
5200
Transverse breaking strength (N/mm2)
3300
Fracture toughness
10.0
-Tungsten carbide grade:
grade
ISO code
chemical composition
(%)
grain size
Micron
physical and mechanical properties
(≥)
bathroom
limited company
others
Density g/cm3
Hardness (HRA)
TRS Newton/mm2
D10UF
K05-K15
93
6
1
0.6
14.80
93.0
2600
D30UF
K20-K30
89
10
1
0.6
14.50
92.0
3800
D30SF
K20-K30
89
10
1
0.5
14.40
92.5
4000
D40SF
K40
87
12
1
0.4
14.15
92.5
4200
DB10X
K20-K30
89
10
1
0.6
14.50
91.5
3800
DP12X
K30-K40
87
12
1
0.6
14.15
91.0
3300
DP13X
K40
87
12
1
1.0
14.10
90.0
3800
YG6
K05-K10
94
6
0
1.2
14.80
91.0
2600
YG6X
K10
94
6
0
1.0
14.80
92.0
2500
YG8
K20-K30
92
8
0
1.2
14.70
90.0
2800
YG10X
K30-K40
89
10
1
0.8
14.50
91.0
3500
YG15
K40
85
15
0
1.2
13.95
87.5
4500
D20UF
K20-K30
91
8
1
0.6
14.6
92.5
3000
YG25
--
75
25
0
1.2
13.15
82.5
4800
