2 inch 3 inch 12mm 25mm 32mm 63mm 100mm 110mm polype pipe roll LDPE drip irrigation pipe price list for farm agriculture irrigation
- $0.28 / >=1000 meters
- 1000 meters
- Henan Exlon Environmental Protection Technology Co., Ltd.
- Henan, China
- Mr pipe industry
Product Detail
type: | round tube | Material: | PE80 |
feature: | preservative | Processing: | accept |
Key words: | pe material hdpe roll farm poly pipe price | Packaging Details: | On request/export standard volume |
thickness: | 4mm-20mm or customized | Certification: | ISO9001:2000/ISO14001:2004 |
model: | ldpe drip pipe | usage: | watering irrigation |
brand: | Exon | length: | 100-200m/roll or customized |
color: | Black | Specification: | 12-110mm or customized |
MOQ: | 1000 meters | Package preview: | |
standard: | ISO4427/IPS/DIPS | Processing services: | Forming, cutting |
product name: | ldpe drip pipe | port: | Tianjian Port, Shanghai Port, Qingdao Port |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | application: | agricultural irrigation |
Origin: | Henan, China | Supply capacity: | 100000 meters per day |
IPS/DIPS 2 Inch 3 Inch 12Mm 32Mm 63Mm 100Mm 110Mm Black Poly Plastic LDPE Tube Reel Dropper Farm Agriculture Price List
supply | LDPE Drip Tubes and Fittings |
standard | ISO4427/IPS/DIPS |
size | DN12-DN110 or customized |
Product Description
Material | PE80 |
application | ldpe irrigation drip irrigation pipe |
Specification | DN12~DN110mm or As required |
OEM production | accept |
type | round tube |
standard | ISO4427/IPS/DIPS |
processing services | Forming, cutting |
Product parameters
Agricultural irrigation pipe specifications
(DN) | PN0.25Mpa | PN0.4Mpa | PN0.6Mpa | ||||||
DN wall thickness | Weight/m | DN wall thickness | Weight/m | DN wall thickness | Weight/m | ||||
mm | kg/m | mm | kg/m | mm | kg/m | ||||
12 | 0.6 | 0.029 | 0.9 | 0.035 | / | ||||
16 | 0.8 | 0.038 | 1.2 | 0.062 | / | ||||
1 | 0.047 | 1.2 | 0.062 | / | |||||
20 | 1 | 0.059 | 1.5 | 0.097 | 2 | 0.119 | |||
1.2 | 0.070 | 1.5 | 0.097 | 2 | 0.119 | ||||
25 | 1.5 | 0.110 | 1.9 | 0.153 | 2.3 | 0.172 | |||
32 | 1.6 | 0.152 | 2 | 0.210 | 2.9 | 0.278 | |||
40 | 1.9 | 0.226 | 2.4 | 0.316 | 3.7 | 0.425 | |||
50 | 2.4 | 0.357 | 3 | 0.493 | 4.6 | 0.652 | |||
63 | 3 | 0.562 | 3.8 | 0.787 | 5.8 | 1.035 | |||
75 | 3.5 | 0.781 | 4.5 | 1.109 | 6.9 | 1.467 | |||
Post-90s | 4 | 1.074 | 5.1 | 1.514 | 8.2 | 2.093 | |||
110 | 4.5 | 1.482 | 6.3 | 2.285 | 10 | 3.121 |

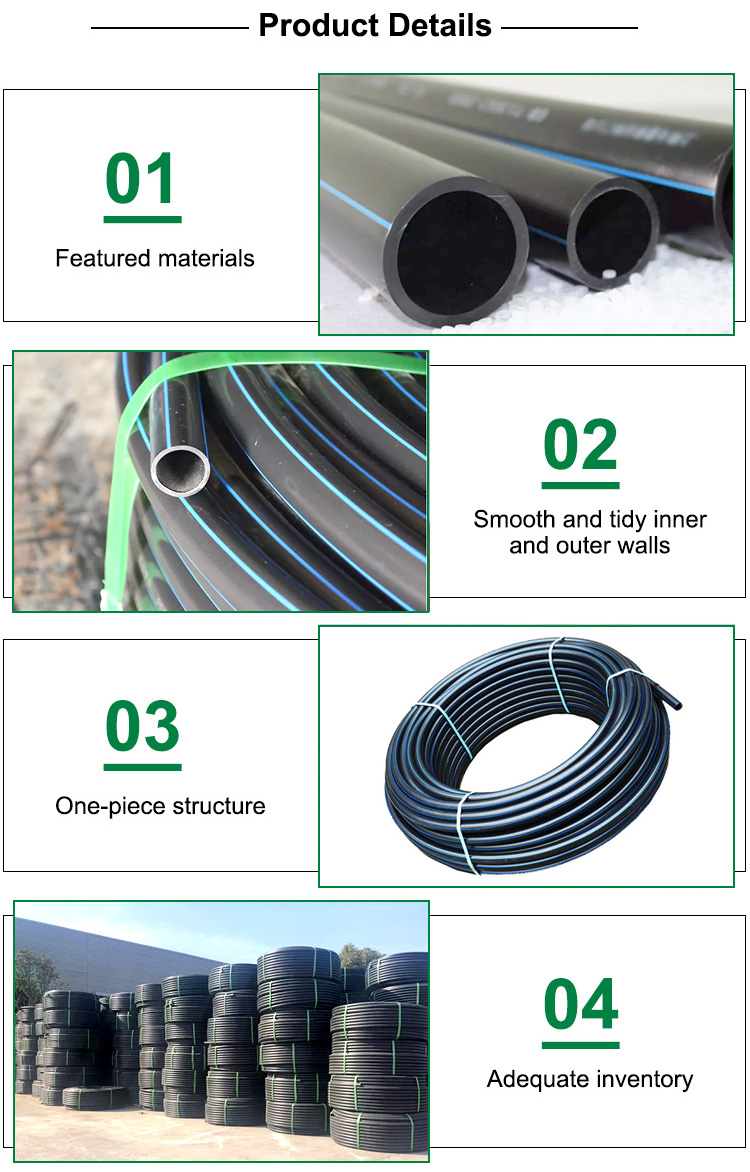

detailed drawing
deal with
Do
Store pipes on a firm, flat surface. Keep pipes and fittings away from sharp objects, heat sources, and toxic and corrosive materials. Take care not to cut, kink, fray, or otherwise damage the tubing during handling. Keep the protective packaging intact until you need to use the pipe and fittings. Carefully release the coils, remembering that they may coil under tension. Be careful when handling pipes in wet or frosty conditions, as pipes can become slippery. Temporarily cap the cut pipe end to prevent dust or other matter from entering the pipe.Unroll the pipe and let it warm in the sun before burying to facilitate installation.
No
Throw the pipe from the delivery truck. · Drag the pipe or wind up the coil. Exposing pipes and fittings to lubricating oil, gasoline, solvents, or other corrosive materials. Heat the pipes with an open flame.
