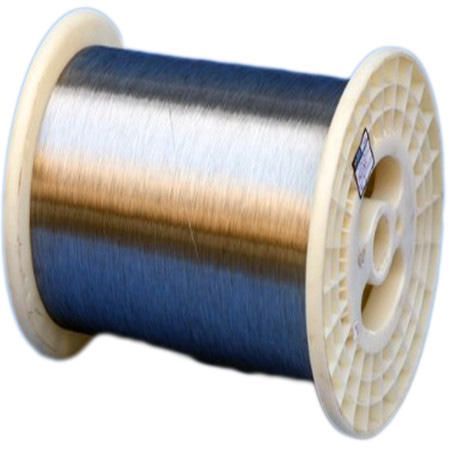

High Quality Cold Drawn Steel Wire Piano Music
- $800.00 /piece
- 1 piece
- Hunan Fushun Metal Co., Ltd.
- Hunan, China
- Ms Florence Tang
Product Detail
| surface: | bright | Supply capacity: | 50,000 tons/year |
| aspect: | 0.1-10mm | deliver goods: | stretching/soft annealing |
| model: | spring steel wire | tolerant: | ±1% |
| type: | spring steel wire | standard: | AiSi, ASTM, bs, DIN, GB, JIS |
| Processing services: | to cut | payment terms: | L/C, D/P, D/P, T/T |
| brand: | Fushun | grade: | carbon/alloy/stainless steel |
| Origin: | China | port: | Shanghai |
| application: | music line |
product information
Fushun Metal is a professional piano steel wire manufacturer and supplier with high quality and reasonable price. Piano wire, or "music wire," is a special type of wire that is used for piano strings but also for other applications such as springs. It is made of tempered high carbon steel, also known as spring steel. Piano wire is hard drawn wire for various purposes such as bed and blind springs, home appliance and car seat springs.
If you want to know more about music piano wire products or music piano wire prices, please feel free to contact us, we will reply you within 24 hours.
If you want to know more about music piano wire products or music piano wire prices, please feel free to contact us, we will reply you within 24 hours.
JIS G 3522 | SWP-A (0.08-10.0mm) | stationary |
GB4358 | SWP-B (0.08-7.00mm) | power spring |
ASTM A228 | SWP-V (1.00-6.00mm) | valve spring |
standard diameter | Tensile strength, N/mm2 | ||||
mm | SWP A | SWP B | SWP V | ||
0.1 | 2790-3090 | 3090-3380 | - | ||
0.12 | 2750-3040 | 3040-3330 | - | ||
0.14 | 2700-2990 | 2990-3290 | - | ||
0.16 | 2650-2940 | 2940-3240 | - | ||
0.18 | 2600-2890 | 2890-3190 | - | ||
0.2 | 2600-2840 | 2840-3090 | - | ||
0.23 | 2550-2790 | 2790-3040 | - | ||
0.26 | 2500-2750 | 2750-2990 | - | ||
0.29 | 2450-2700 | 2700-2940 | - | ||
0.32 | 2400-2650 | 2650-2890 | - | ||
0.35 | 2400-2650 | 2650-2890 | - | ||
0.4 | 2350-2600 | 2600-2840 | - | ||
0.45 | 2300-2550 | 2550-2790 | - | ||
0.5 | 2300-2550 | 2550-2790 | - | ||
0.55 | 2260-2500 | 2500-2750 | - | ||
0.6 | 2210-2450 | 2450-2700 | - | ||
0.65 | 2210-2450 | 2450-2700 | - | ||
0.7 | 2160-2400 | 2400-2650 | - | ||
0.8 | 2110-2350 | 2350-2600 | - | ||
0.9 | 2110-2300 | 2300-2500 | - | ||
1 | 2060-2260 | 2260-2450 | 2010-2210 | ||
1.2 | 2010-2210 | 2210-2400 | 1960-2160 | ||
1.4 | 1960-2160 | 2160-2350 | 1910-2110 | ||
1.6 | 1910-2110 | 2110-2300 | 1860-2060 | ||
1.8 | 1860-2060 | 2060-2260 | 1810-2010 | ||
2 | 1810-2010 | 2010-2210 | 1770-1910 | ||
2.3 | 1770-1960 | 1960-2160 | 1720-1860 | ||
2.6 | 1770-1960 | 1960-2160 | 1720-1860 | ||
2.9 | 1720-1910 | 1910-2110 | 1720-1860 | ||
3.2 | 1670-1860 | 1860-2060 | 1670-1810 | ||
3.5 | 1670-1810 | 1810-1960 | 1670-1810 | ||
4 | 1670-1810 | 1810-1960 | 1670-1810 | ||
4.5 | 1620-1770 | 1770-1910 | 1620-1770 | ||
5 | 1620-1770 | 1770-1910 | 1620-1770 | ||
5.5 | 1570-1710 | 1710-1860 | 1570-1720 | ||
6 | 1520-1670 | 1670-1810 | 1520-1670 | ||
6.5 | 1520-1670 | 1670-1810 | - | ||
7 | 1470-1620 | 1620-1770 | - | ||
8 | 1470-1620 | - | - | ||
9 | 1420-1570 | - | - | ||
10 | 1420-1570 | - | - | ||
In order to meet the needs of a wide range of customers, we also provide oil-cured wires, hard wires, bearing wires, and plating wires with excellent processability, corrosion resistance, solderability, and electrical conductivity.

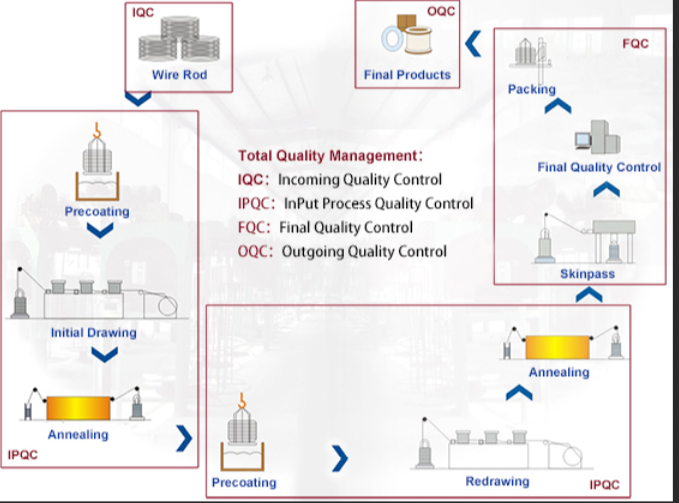

production process
