High quality foundry chrome sand free sample for sale

Product Detail

Package preview:Moisture (%):0.2% MAX, 0.1% max
Iron oxide:Maximum 26.5%Supply capacity:1000 tons per month
type:my minechemical composition:Cr2O3 46% minimum
Packaging Details:25kg per barrel, 500kg per palletCr2O3 (minimum):46%min
brand:stocksize:According to customer's request
pH:7-9payment terms:L/C, Western Union, D/P, D/A, T/T
Origin:HenanCr2O3%:Minimum 46.0%
Bulk density:2.5-3 g/cm3model:CS45 CS35
color:Blackport:Shanghai/Tianjin/Qingdao
chemical composition:Cr2O3 46% minimumConcentrated or not:Whether to concentrate
Product Description

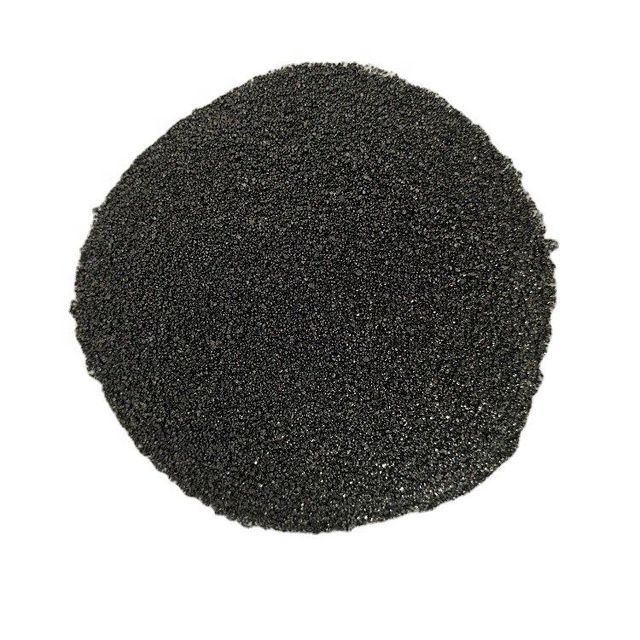

Chrome ore

Chromite sand is a special sand for foundry. It is a natural spinel mainly composed of chromite. After crushing, grinding, and screening, it is divided into specified particle sizes, which is suitable for molding (core making) sand. Chromium ore can be divided into primary Cr2O3 (>45%) and secondary Cr2O3 (>35%) according to chemical composition.



feature:



1. Heating volume stability

2. High thermal conductivity

3. Strong alkali resistance

4. Solid phase sintering, non-sticky sand



Advantages of chromite sand

Compared with silica sand, chromite sand can avoid most of the sand sticking to the casting, so it can also save the cost of surface treatment. Additionally, chromite can be recycled multiple times for use in different technologies.

Among all the chromite ore in the world, the chromite ore produced in South Africa is of the best quality. Therefore, Haixu Abrasives imports raw chromite ore from there and refines it to a higher purity, reaching 46% Cr2O3.



Technical data sheet:

chemical composition
Chromium trioxide ≥46.0%
silica ≤1.0%
iron oxide ≤26.5%
Calcium Oxide ≤0.3%
magnesium oxide ≤10%
Aluminum oxide ≤15.5%
P ≤0.003%
small ≤0.003%
Chromium/Fe 1.55:1
Typical Physical Properties
hardness: Mohs: 5.5-6
Melting point: Sublimation at 2180℃
Sintering point: >1800℃
Sintered 1600℃
proportion: 4.0-4.8 g/cm3
Bulk Density (LPD): 2.5-3 g/cm3
color: Black
pH 7-9
Percentage of free acid in sand 0%
amount of acid ≤2ML
soil percentage ≤0.1
Moisture percentage ≤0.1
available size





How does a foundry choose a grain size?
Generally speaking, the smaller the casting that needs to be made, the finer the grain size that the foundry will use. The image below is shown for reference:



Less than 500KGS



500-1000KGS

1-10 tons

10-30 tons

30-100 tons

40-70

45-50

45-50

40-45 years old

35-40
