1/4 3/8 double copper tube coil with white PE insulation pre-insulated copper tube for AC and plumbing

Product Detail

Used for:air conditioner or other insulating materialEnvironmental protection:RoHS
temperature. scope:-40°C - 120°CSuitable:Refrigeration and Piping
type:Pancake Coil Copper TubeInsulation Color:white
standard:GuiseCopper material:C12200
Ultimate Strength (≥MPa):240Specification:1/4"-3/8"
Insulation Materials:polyethyleneport:Shanghai/Ningbo
Packaging Details:Nylon bag + carton + traygrade:copper and PE foam
Alloy or not:UnalloyedCopper (minimum):99.9%
application:air conditioner or refrigeratorSupply capacity:1,000,000 meters per month
Origin:Chongqing, ChinaAdvantage:Easy to install and cost saving
payment terms:L/C, T/TOuter diameter:1/4"-3/8"
Elongation (≥ %):50Wall thickness:0.5-1mm
length:2-50mName:Double copper pipe with white PE insulation insulated copper pipe
Product Description
The PE insulation is polyethylene water bridge foam, the middle layer is electronic bridge foam, and the other layer is polyethylene anti-aging and anti-ultraviolet composite film, which can withstand high temperature of 120°C. Thermal insulation pipe material and characteristics JIS A9511: PE-C-P2 standard, use: 1. Water, liquid, powder, particle transportation 2. Wire protection pipe 3. Building drainage pipe, etc. 4. Especially suitable for air-conditioning drainage (air-conditioning insulation drainage pipe, central air-conditioning drainage pipe). 5. Size range accept customized size 6. Material: PVC TPU TPE optional 7. Spiral hose with unbreakable inner core 8. RoHs certification
advantage1- Fully complies with the latest EU environmental protection standard SVHC.
2- High thermal stability, suitable for wide processing temperature (-40~120°C).
3-Has good mechanical properties. All aspects of performance are almost equal to pure resin.
4-It has good colorability and can be configured into various colors.

5. Long life. The aging resistance time of the insulation pipe is about 8-10 years.

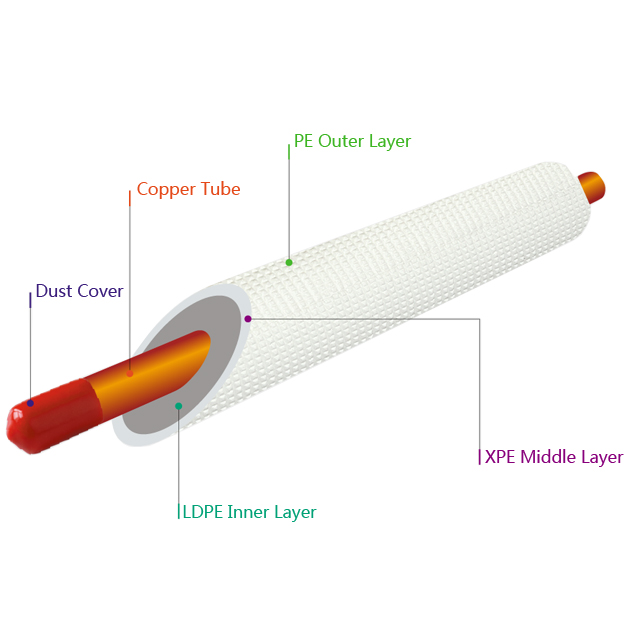

material and ability
high-grade material
thisPE outer layerHas high strength and toughness. Never damaged, not aged, not cracked, not porous, environmentally friendly and flame retardant.
thisXPE middle layerThe foam is dense. It can tolerate both heat and cold. It is made of electronically cross-linked polyethylene. It has the characteristics of environmental protection, flame retardant, heat preservation and wear resistance.
thisLDPE inner layerThe foam is dense. Can withstand temperatures from -40°C to 120°C. It is made of electronically cross-linked polyethylene with thirty independent closed cells. Has excellent air tightness and thermal insulation.

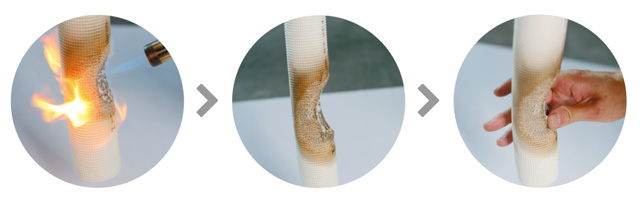

flame test
A small amount of white smoke comes out during the flame retardant process, and there is no residue after burning. No smelly smoke, meet environmental protection requirements, meet RoHS and SVHC standards.
Size range
Double tube
thing
Outside Diameter (inches)
Outer diameter (mm)
Weight (mm)
Length (m)
double coil
1/4''
6.350
0.8 or as required
3-50
3/8''
9.530
0.8 or as required
3-50
double coil
1/4''
6.350
0.8 or as required
3-50
1/2"
12.7
0.8 or as required
3-50
double coil
1/4''
6.350
0.8 or as required
3-50
5/8"
15.88
1 or as required
3-50
double coil
3/8''
9.530
0.8 or as required
3-50
5/8''
15.880
0.8 or as required
3-50
double coil
3/8''
9.530
0.8 or as required
3-50
3/4''
19.050
1 or as required
3-50
double coil
1/2''
12.700
0.8 or as required
3-50
3/4''
19.050
0.8 or as required
3-50
Single-tube
thing
Outside Diameter (inches)
Outer diameter (mm)
Weight (mm)
Length (m)
single coil
1/4''
6.350
0.8 or as required
3-50
single coil
3/8''
9.530
0.8 or as required
3-50
single coil
1/2"
12.7
0.8 or as required
3-50
single coil
5/8"
15.88
1 or as required
3-50
single coil
3/4''
19.050
1 or as required
3-50
Straight tubes also available
