Ceiling expanded metal

Product Detail

Packaging Details:Wrap the mesh with air bubble wrap or plastic film to relieve the stress during loading, then put into a strong wooden case or on a pallet.width:600-2000mm
delivery time:22-30 dayscolor:custom made
product name:Steel netSurface treatment:Polishing, anodizing, spraying, PVC coating
Supply capacity:1000 square meters / day aluminum expanded metal meshusage:protection, decoration
type:Expansion netMaterial:Aluminum plate, aluminum, stainless steel, etc.
length:600-4000mmOrigin:Hebei china
model:Steel netapplication:Decorative mesh, industry, filtration
Long open:12.5-200mmtechnology:perforation
payment terms:L/C, Western Union, T/T, MoneyGramfeature:Easy to use, durable mesh
Processing services:Uncoiling, cutting, punchingShort way to open:5-80mm
port:Tianjinbrand:Qun Kun

 Ceiling expanded metal



product display

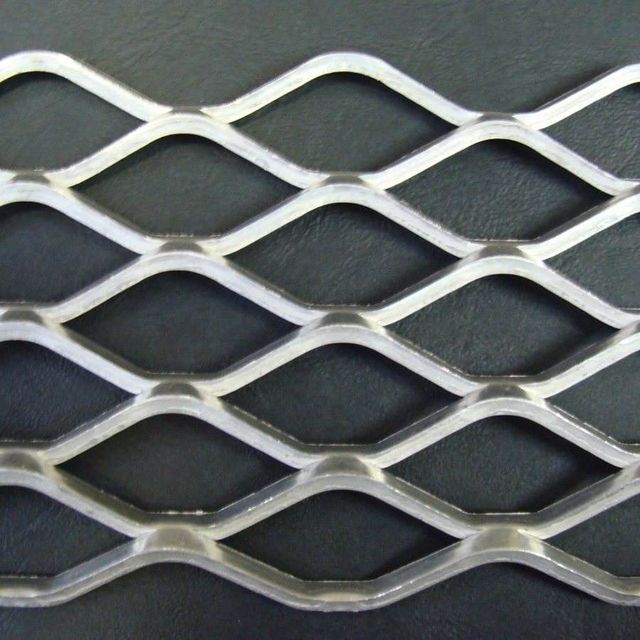

Aluminum Expanded Meshis a rigid piece of metal that is cut and drawn into an open mesh pattern in one operation. It is made of solid aluminum sheet/coil. Traditional grids are formed in a diamond pattern. There are hexagonal, circular, triangular, scaly openings and other patterns.



Specification design size open shares Strand size overall thickness in public
(inch) (inch) (inch) (inch) (%)
  SWD logging while drilling SWO LWO width thickness
1/2" .051 0.5 1.2 0.375 0.937 0.093 0.051 0.158 65
1/2" .081 0.5 1.2 0.375 0.937 0.093 0.081 0.186 60
3/4" .051 0.923 2 0.813 1.175 0.109 0.051 0.2 78
3/4".081 0.923 2 0.75 1.68 0.129 0.081 0.22 76
3/4".081 0.923 2 0.75 1.68 0.165 0.081 0.3 69
3/4".125 0.923 2 0.688 1.68 0.169 0.125 0.305 68
1-1/2".081 1.333 3 1.188 2.5 0.128 0.081 0.24 85
1-1/2".125 1.333 3 1.188 2.5 0.162 0.125 0.3 79
Note: special size specifications can be customized.
