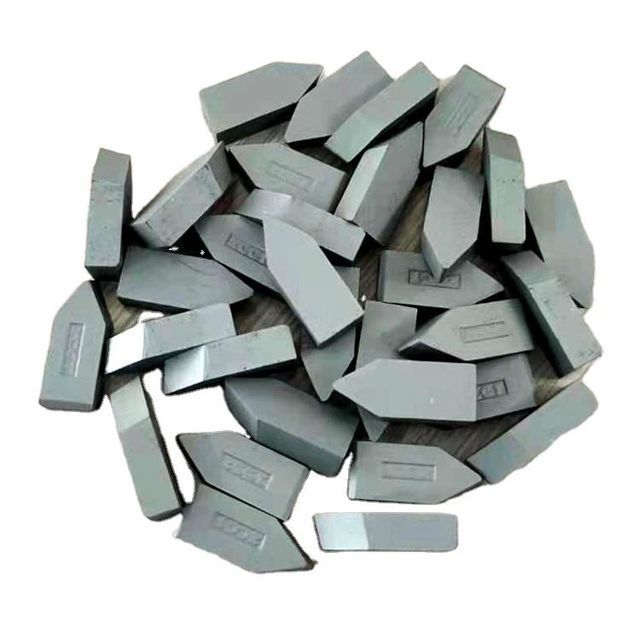

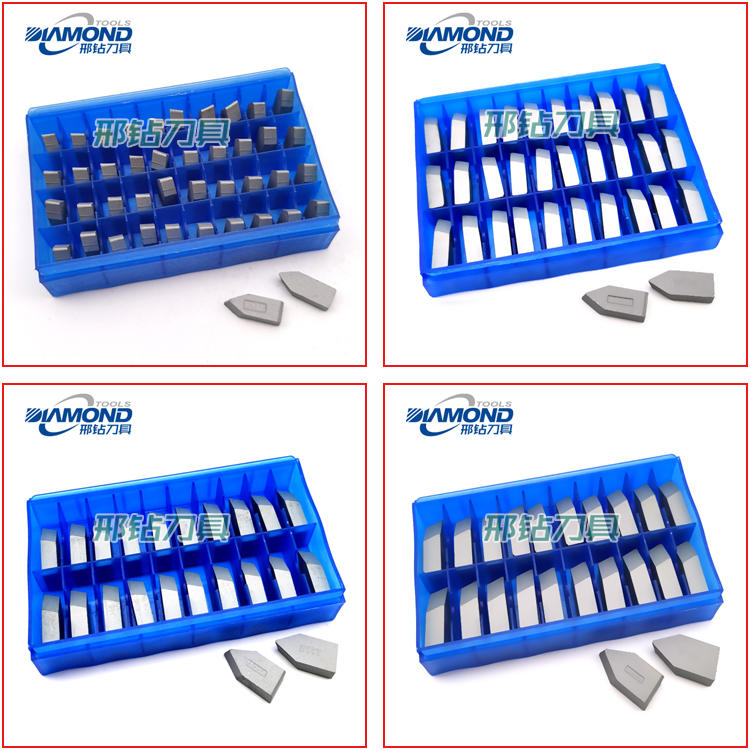

V Shape Manufacturing Carbide Tungsten Carbide Tip Cutting Inserts For Lathe M30 C105 BK8 C120

Product Detail

payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramsize:20*8*5mm
Alloy specification:C110 C116 C120 C122 C125port:any port in china
particle:differentshape:Thread type E20 E25 E32
application:Thread Turning Insertsmodel:YT14.YT15.YT5.YW1.YW2.
brand:star toolMOQ:1kg E4 E5 E6 C103 C105 C107 C109
Origin:ChinaSupply capacity:20000 pieces per day
Advantage:Cheap price E8 E10 E12 E16Package preview:

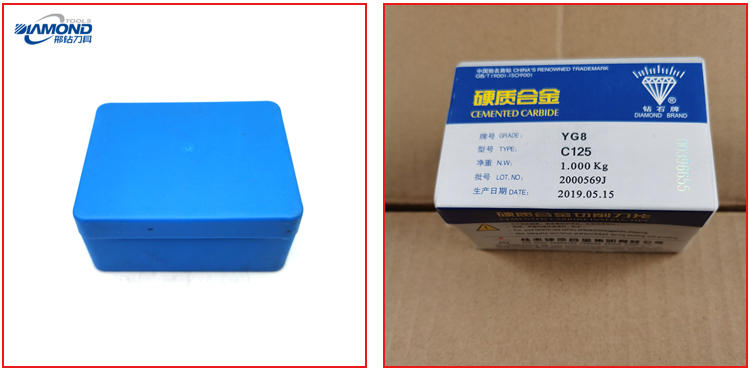

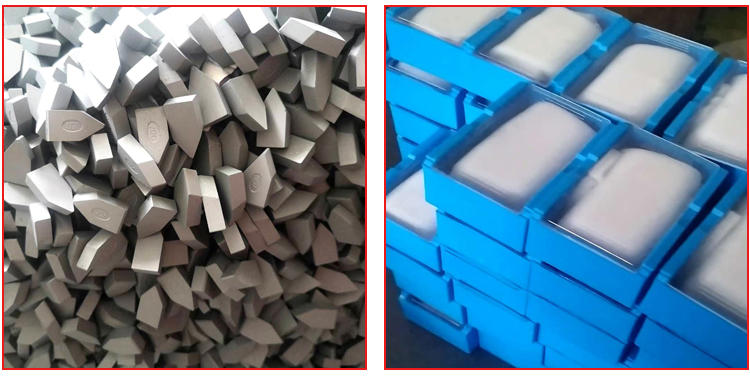

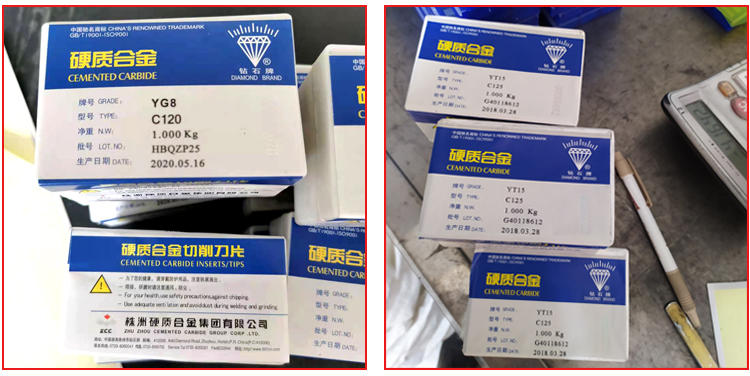

Packaging Details:plastic box carton wooden box
Manufacture of Carbide Tungsten Carbide Tip Cutting Inserts M30 C105 BK8 C120 for lathes
If you are buying in large quantities, please contact us to discuss wholesale pricing
Our customer service is always online, if you have any questions, you can consult

Product Description
Carbide inserts and their application recommendations
ISO code
grade
App recommendation
P10
YT15
Suitable for semi-finishing of steel and castings, high cutting speed and moderate feed are recommended.
P20
YT14
Suitable for semi-finishing of steel and cast steel.

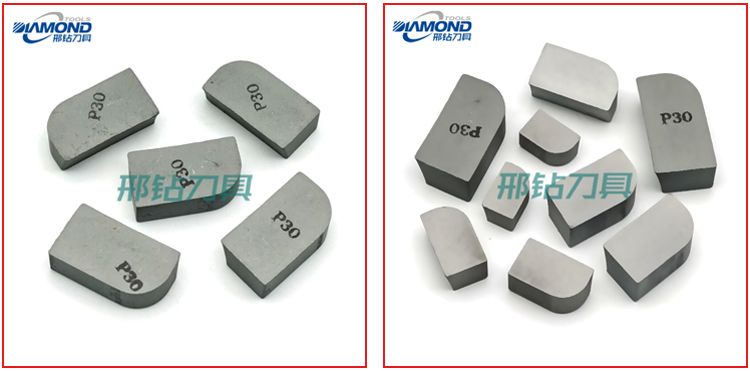

P30
YT5
It is suitable for heavy-duty rough turning of steel and castings at medium and low speeds and large feed rates under adverse working conditions.
M10
YW1
Suitable for semi-finishing of stainless steel and general alloy steel.
M20
YW2
Suitable for semi-finishing and light roughing of stainless steel and alloy steel.
M30
YS25
For milling of stainless steel, steel and cast steel.
M30
YS30
It is suitable for semi-finishing and light roughing of stainless steel and alloy steel.

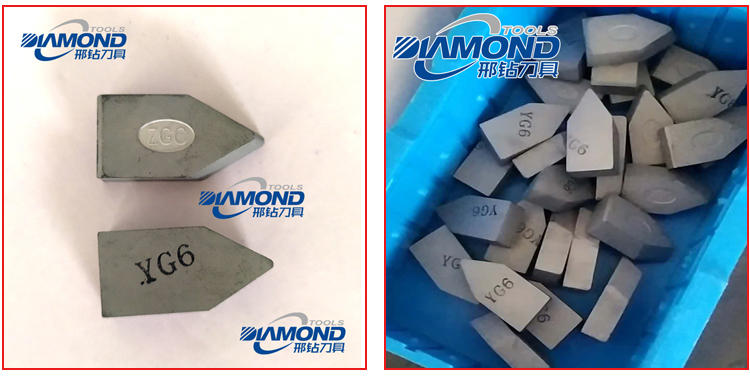

K20
YG6
It is suitable for light roughing and semi-finishing of cast iron, non-ferrous metals, heat-resistant alloys, and titanium alloys.
K20
YG8
It is suitable for semi-finishing and roughing machining of cast iron, non-ferrous metals, heat-resistant alloys, and titanium alloys under continuous and intermittent machining conditions.
Brazed tip up to ISO/
(International standard hard alloy brazing head)

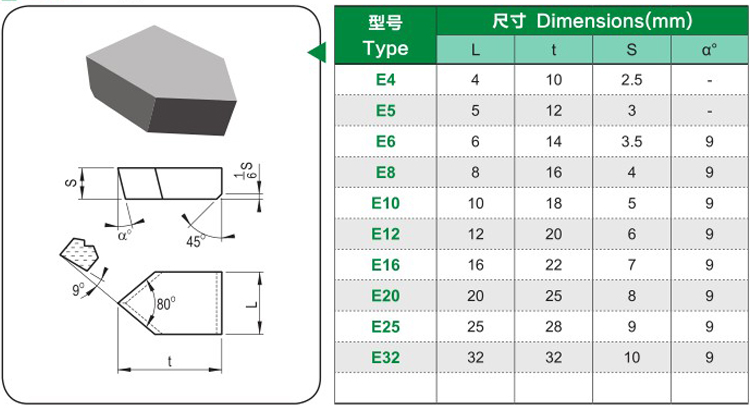

Type E: E12 E16 E20 E25 E32
Brazing tips up to GB/
(National standard cemented carbide brazing head)

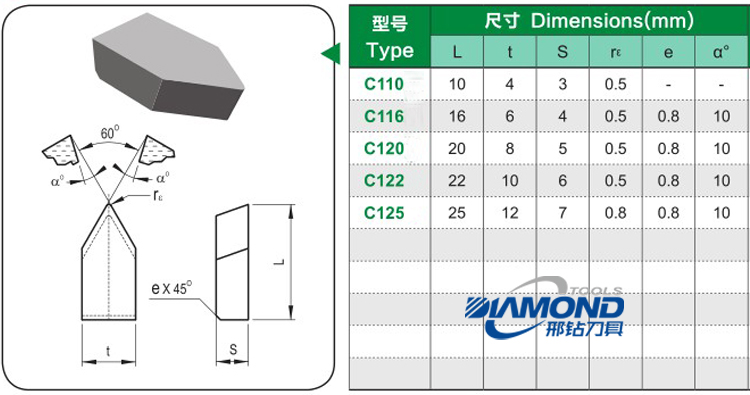

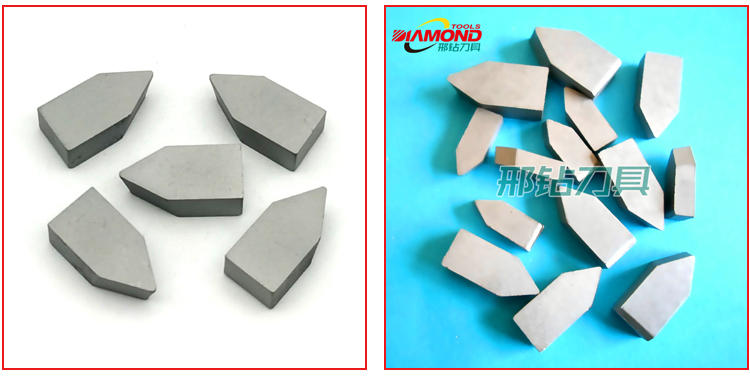

Type CI is used to manufacture thread turning tools and peripheral finishing turning tools.
Brazing tips up to GB/
(National standard cemented carbide brazing head)

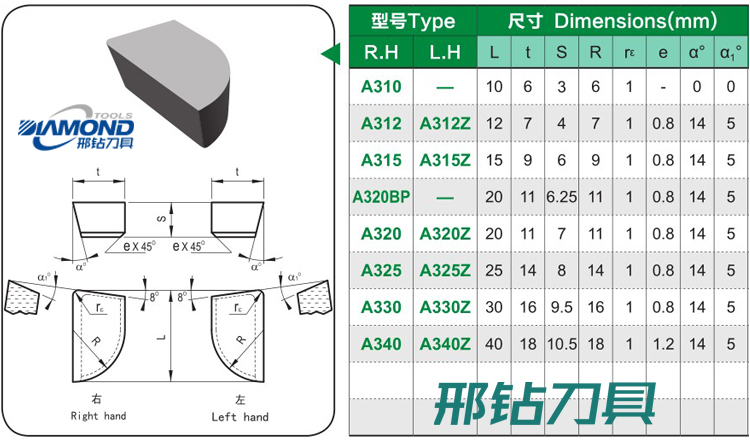

Type A3 is used for the manufacture of face and peripheral turning tools.
Brazing tips up to GB/
(National standard cemented carbide brazing head)

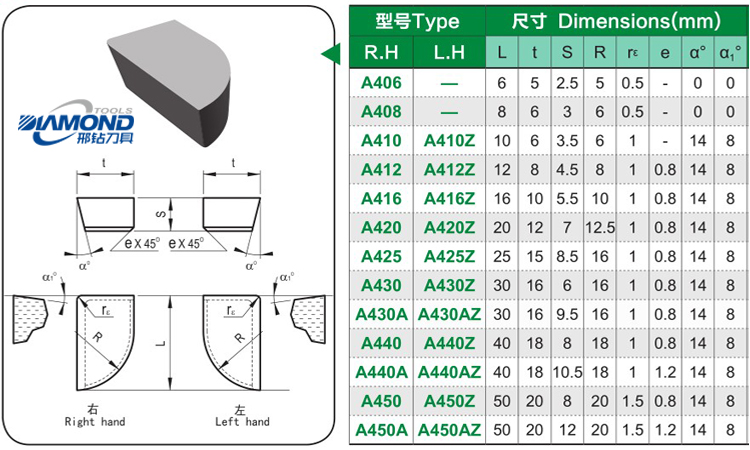

A4 type is used to make peripheral turning tools and boring toolsand end turning tools.

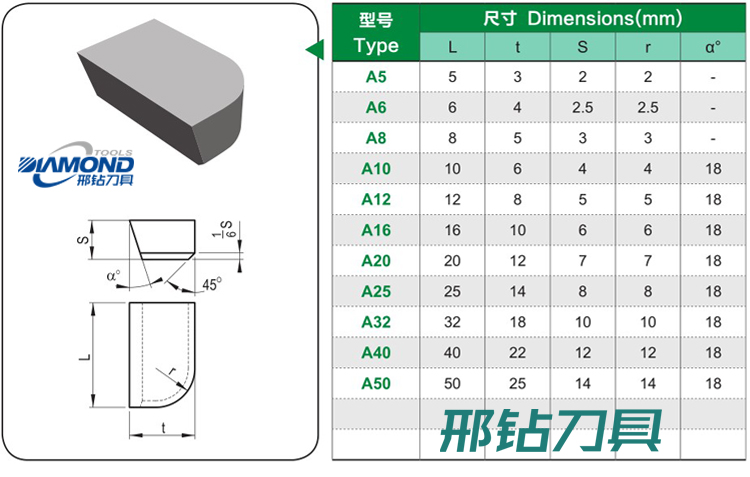

Brazed tip up to ISO/
(International standard hard alloy brazing head)
Type A: A12 A16 A20 A25 A32 A40 A50

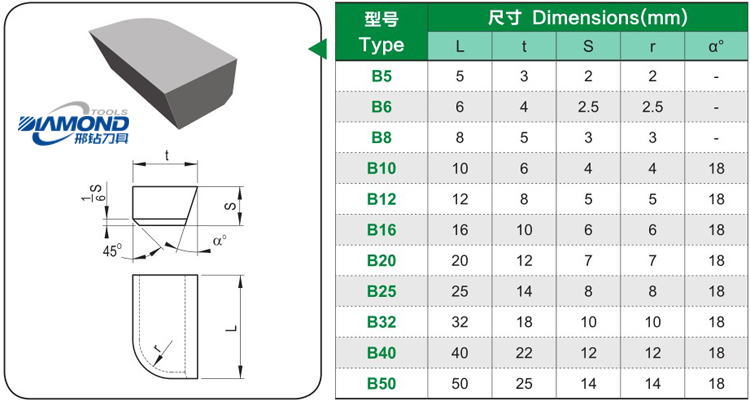

Brazed tip up to ISO/
(International standard hard alloy brazing head)
Type B: B12 B16 B20 B25 B32 B40 B50
Brazed tip up to ISO/
(International standard hard alloy brazing head)
Type C: C12 C16 C20 C25 C32 C40 C50

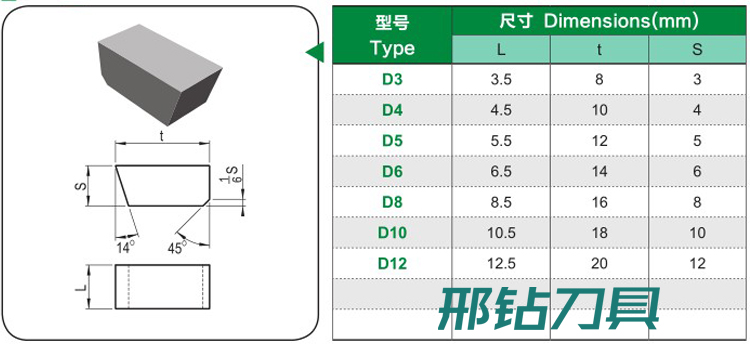

Brazed tip up to ISO/
(International standard hard alloy brazing head)
Type D: D5 D6 D8 D10 D12
