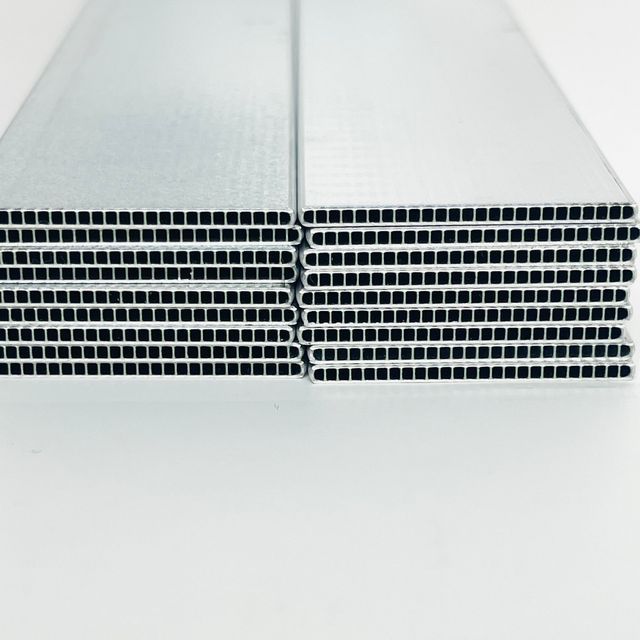

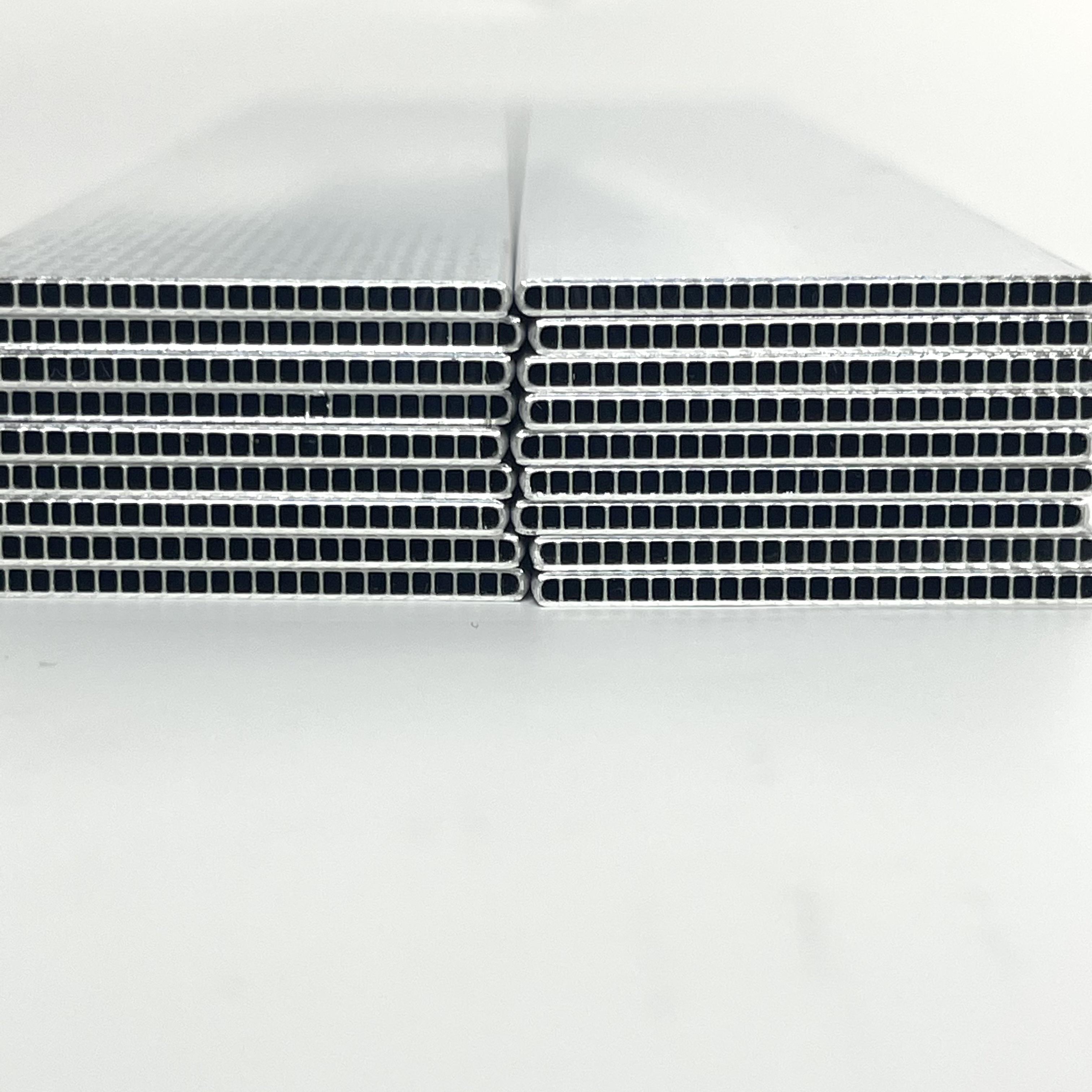

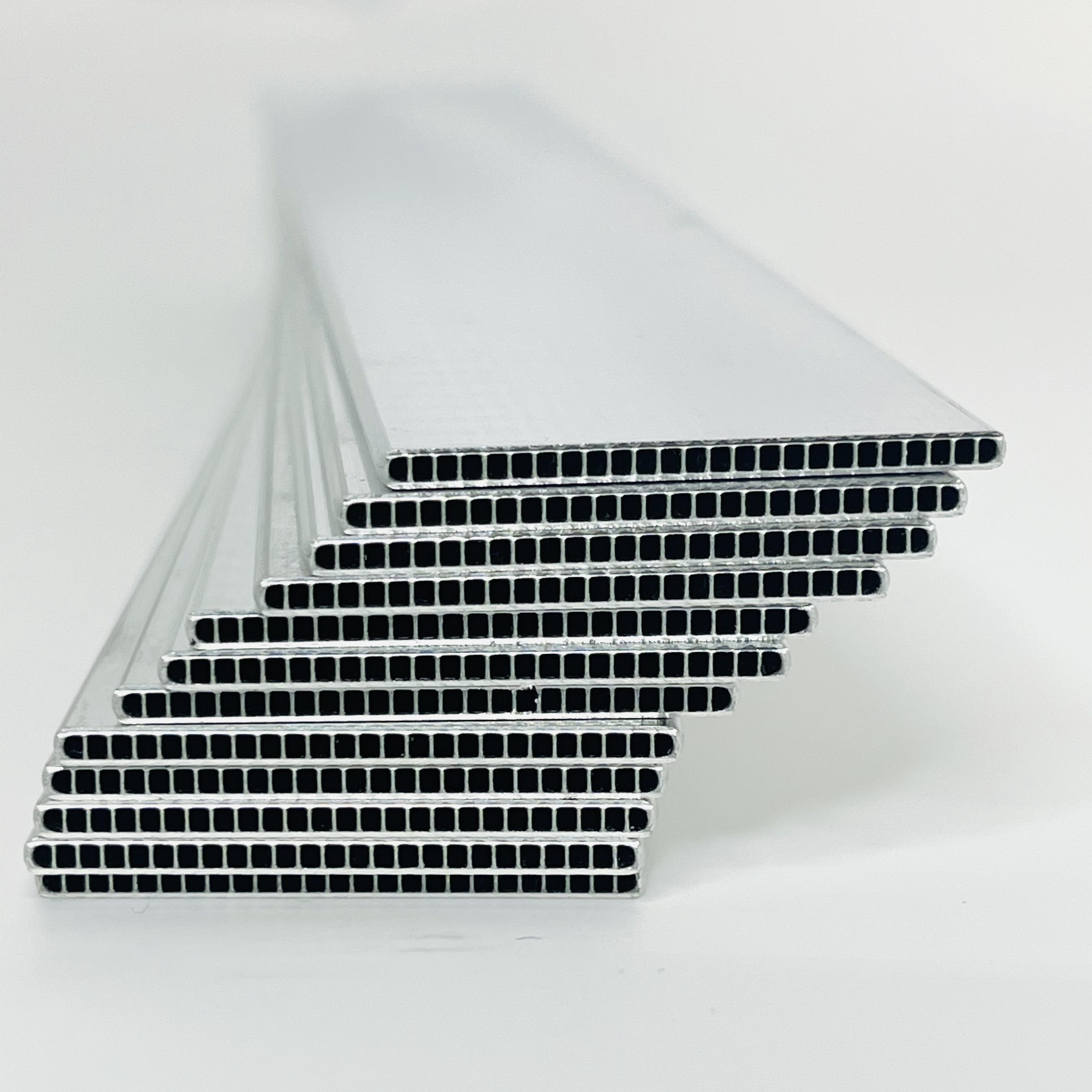

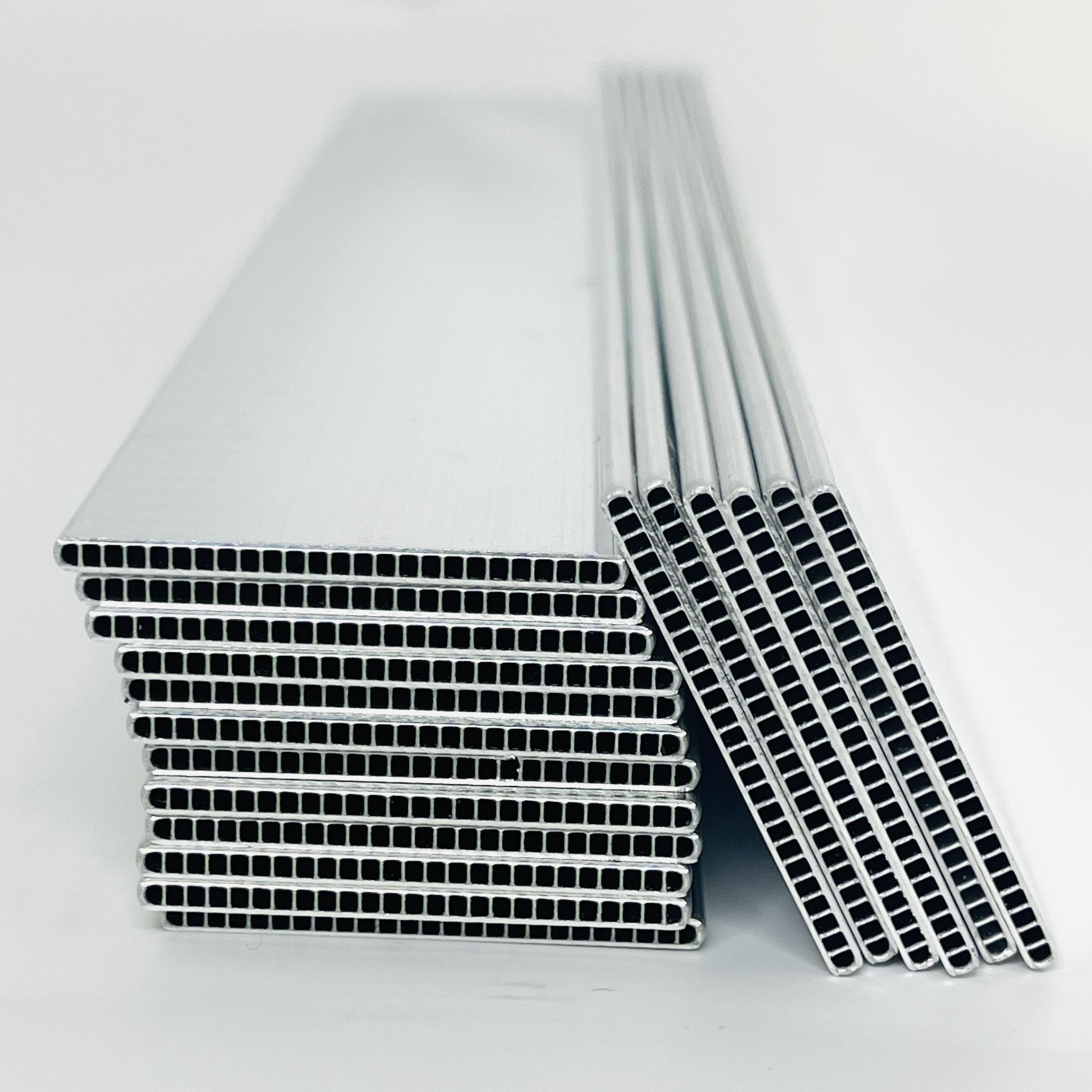

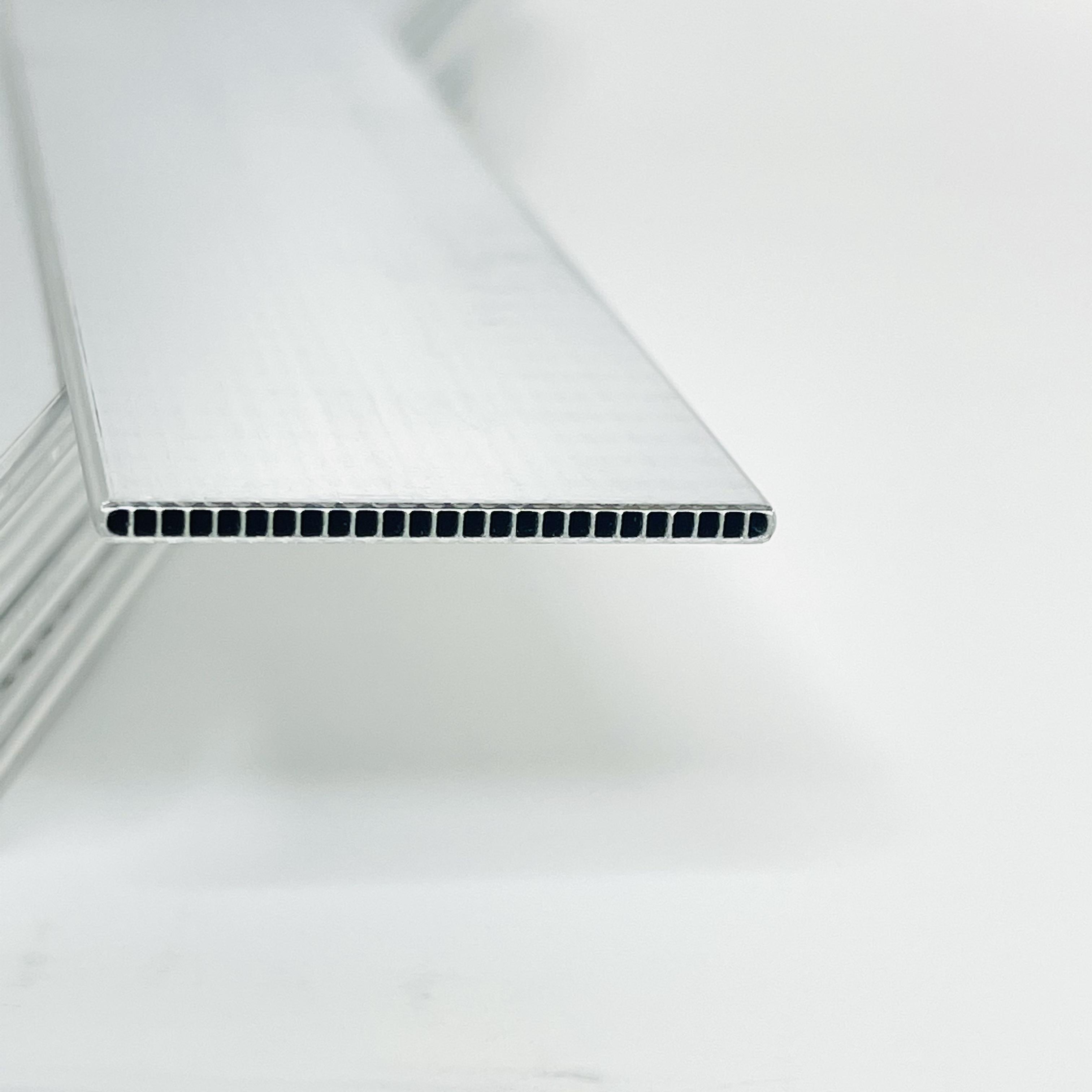

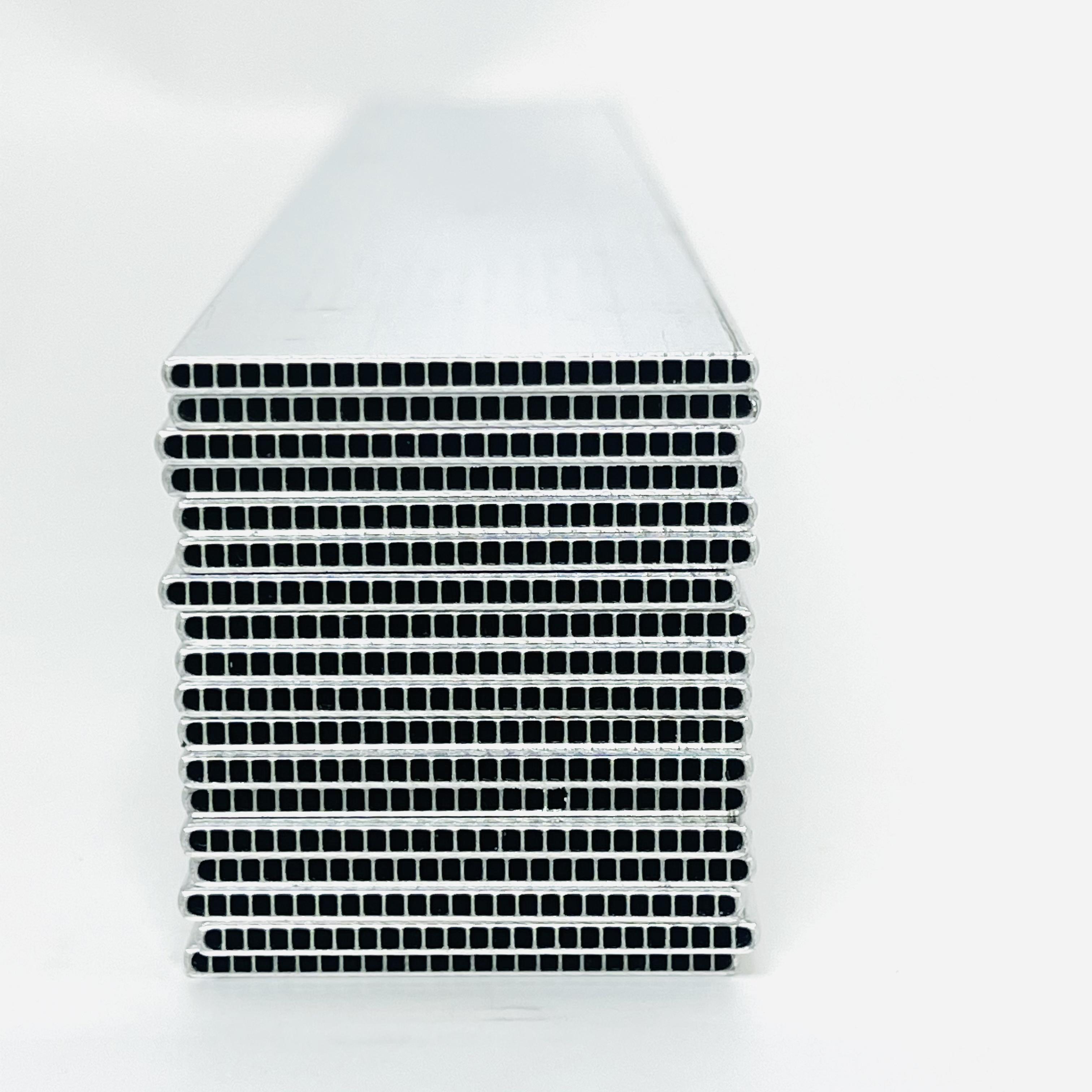

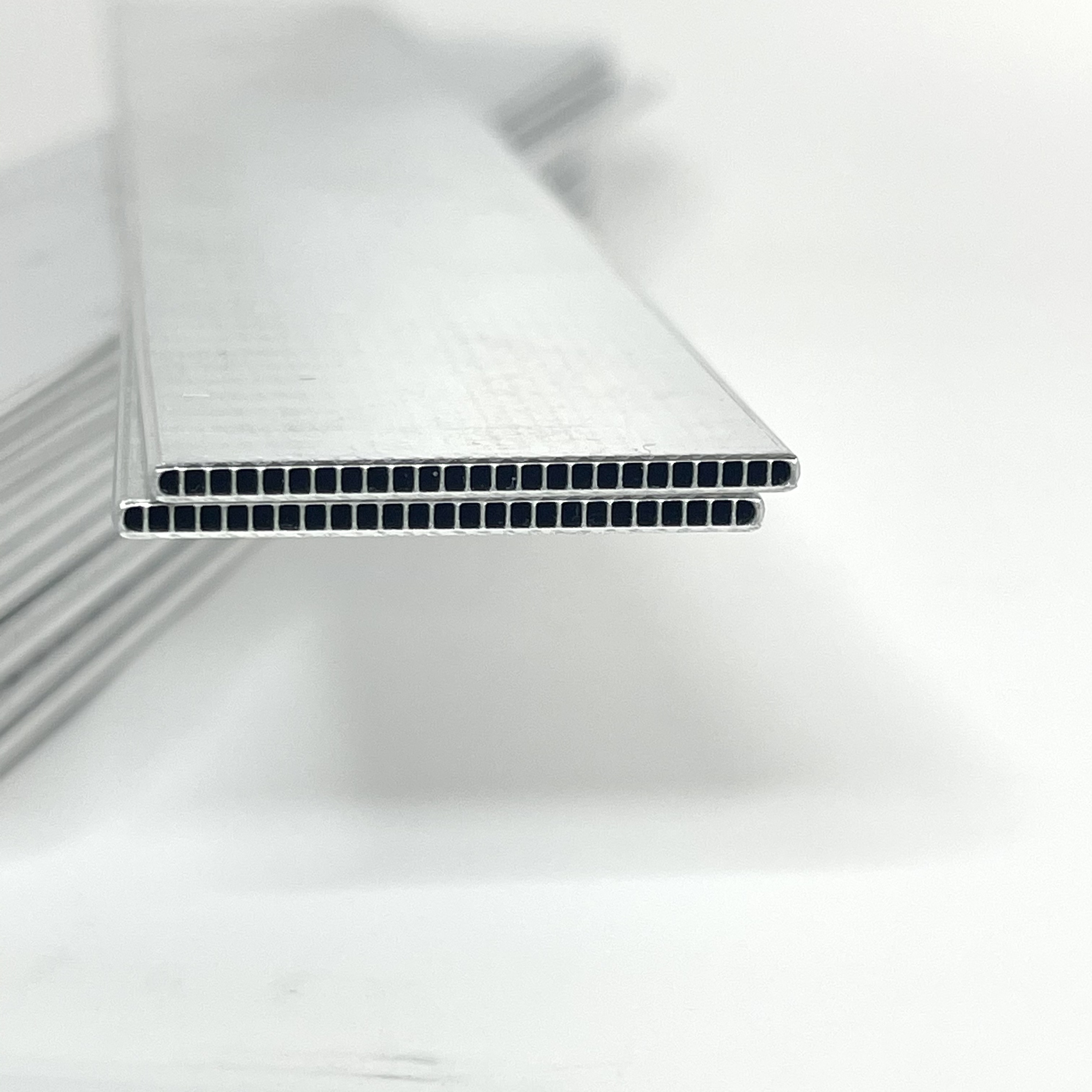

Aluminum tube Flat aluminum tube with parallel flow microchannel

Product Detail

Processing services:Hot extrusion, extruding, zinc spraying on the surface, winding, uncoiling, painting, length correctionhardness:HB30-45
Wall thickness:Width ±0.05, thickness ±0.02, wall thickness ±0.03grade:1000--6000 series
Surface treatment:Light Pipe/Surface Spray Zinc/Surface Precoat Pre Flux etc,Light pipe/surface spray zinc etc.product name:Porous Microchannel Flat Tubes for Heat Exchangers
Origin:Shandong Chinausage:Wide range of applications, condenser
R Thickness at both ends (mm):0.22-1.2state:H112/O
shape:custom madesurface color:silver white, silver gray, white, brown
Packaging Details:Packaging as requiredlength:custom made
Approach:Hot extrusion/extrusion molding/zinc spraying on the surface, etc.Package preview:
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGrambrand:Heller
Alloy or not:is an alloyTolerance (mm):Width ±0.05; Thickness ±0.02; Wall thickness ±0.03, etc.
Wall Thickness (mm):0.2-0.5Specification:32*2--25
model:32*2--25Material Alloy Grade:Mainly divided into 1 series and 3 series 1050/1060/1100/1197/3102
temper:O-H112delivery time:15-21 days
Aluminum (minimum):95port:all ports
tolerant:±1%Supply capacity:1000 pieces per month
Product Description
product name
Porous microchannel flat tubes for automotive air conditioners, residential air conditioners, commercial air conditioners and water heater heat exchangers
32 gauge
32*2--25 (width x thickness - number of holes)
Wall thickness (mm)
0.2-0.5
Inner rib thickness (mm)
0.18-0.6
R Thickness at both ends (mm)
0.22-1.2
Tolerance (mm)
Width ±0.05; Thickness ±0.02; Wall thickness ±0.03; Internal rib thickness ±0.03; R both ends thickness ±0.05;
Material Alloy Grade
Mainly divided into 1 series and 3 series 1050/1060/1100/1197/3102/3103/3003/9153/31104
state
H112/O
surface treatment
Light guide pipe/surface zinc spray/surface pre-coated pre-coated flux/surface pre-coated silicon flux/surface pre-coated zinc flux/surface pre-coated zinc-silicon flux/surface pre-coated lithium flux
Processing methods
Hot extrusion/extrusion molding/galvanized surface/winding/unwinding/pre-coating/correction and cutting
surface color
silver white, silver gray, white, brown
