1200C 1500C 1800C muffle furnace with refractory heat insulation ceramic fiber box furnace
- $100.00 /piece
- 1 piece
- Henan Synthe Corporation
- Henan, China
- Ms Jane Chen
Product Detail
| application: | Heat treatment, box muffle chamber | Material: | Alumina Ceramic Fiber |
| type: | Chamber Furnace Ceramic Fiber Chamber | grade: | HP (high purity) |
| Package preview: | Heating element: | Heat-resistant wire/Sic/Mosi2 | |
| Supply capacity: | 600 pieces per month | Features: | low thermal conductivity |
| Certificate: | ROHS Directive | Thermal Conductivity: | 10°C/min |
| Operating temperature: | 1100°C-1600°C, 1000-1700°C | Maximum temperature: | 1200℃-1700℃ |
| brand: | synchronization number | Origin: | Henan, China |
| Packaging Details: | foam filled wooden box | model: | SYN-HN1500BFC |
| Grading temperature: | 1200°C 1500°C 1800°C | payment terms: | L/C, Western Union, D/A, T/T |
| Ultimate Strength (≥MPa): | 0.2 | Fiber Diameter: | 0.2 microns |
| aspect: | customizable | Density (kg/m3): | 160 |
| port: | any port in china | usage: | muffle chamber |
Product Description

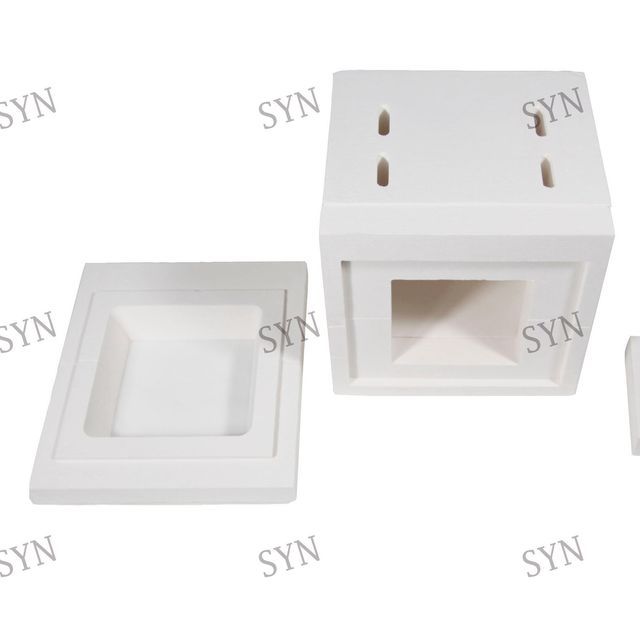

The ceramic fiber box-type furnace is made of high-quality ceramic fiber blocks according to the corresponding formula. The resistance wire and the furnace body are integrally formed by vacuum filtration, and then made by drying, engraving, polishing and other processes. Products can be customized according to customer requirements for shape, size, temperature, etc. Welcome to consult for more details.
Specification
type | HN- 1500 | HN- 1800 | ||
Classification temperature (℃) | 1500 | 1800 | ||
Working temperature (℃) | 1350 | 1700 | ||
color | white | white | ||
Density(kg/m³) | 300-400 | 400-500 | ||
Thermal Conductivity (w/mk) | 1000℃ | 0.23 | 0.24 | |
1200℃ | 0.25 | 0.28 | ||
Shrinkage(%) | 1400℃* 24 hours -1.5 | 1500℃* 24 hours -0.20 | ||
notes:We can manufacture according to your requirements and drawings, we can also provide design and production.
feature:
1.exact size
2.Low thermal conductivity, low heat capacity
3.Excellent thermal stability and thermal shock resistance
4.High strength and excellent processability
5.Excellent sound absorption
6.Good fire resistance, high heat insulation
7.Excellent wind erosion resistance, long service life
8.Production according to the individual needs of customers
9.Easy to cut and install
