Price pure TI Grade 2 titanium wire

Product Detail

Packaging Details:The packaging of 0.3mm/0.35mm grade 2 fine titanium wire for outdoor fishing is divided into four steps: 1. Pack it with moisture-proof paper. 2. Packed in kraft paper. 3. The wooden box is packed with foam plastic around. 4. Wooden box packaging products.density:4.51 g/cm3
Supply capacity:5 tons per month of grade 2 fine 0.3mm/0.35mm titanium line for outdoor fishingport:Shanghai, Tianjin
tolerant:customerstandard:ASTMB863
Health status:softapplication:Welding, Industrial, Medical, Aerospace, Electronics
grade:Gr1/ Gr2 /Gr3/ Gr4/ Gr5/Gr7/Gr9/Gr12, pure titanium, titanium alloyProcessing services:to cut
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, paypalWire Gauge:0.1-7.0mm
Material:Pure Titanium Titanium AlloyTi (min):90%
surface:Black polished picklingshape:Spool Coil Straight
Origin:Shaanxi, Chinabrand:Baoji Chinese Characters
product name:0.3mm/0.35mm grade 2 fine titanium wire for outdoor fishingstrength:850
model:Titanium wire

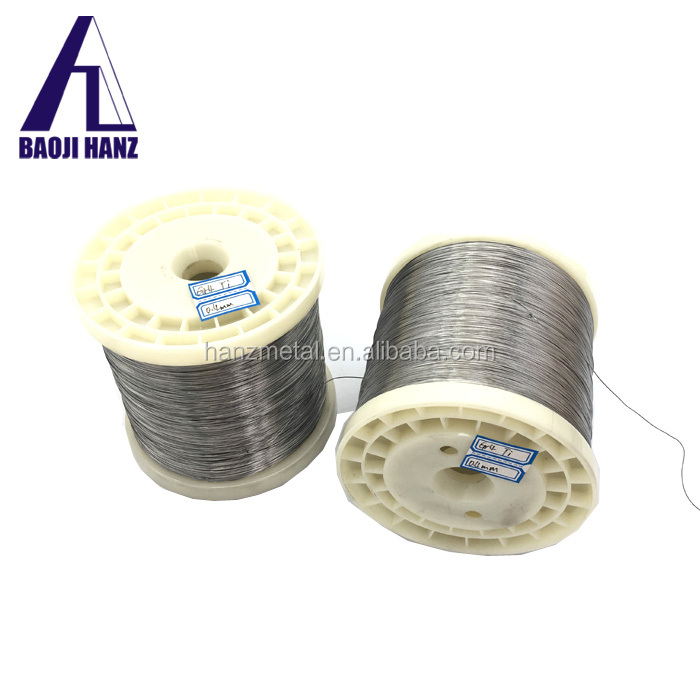

Pure TI grade 2 titanium wire

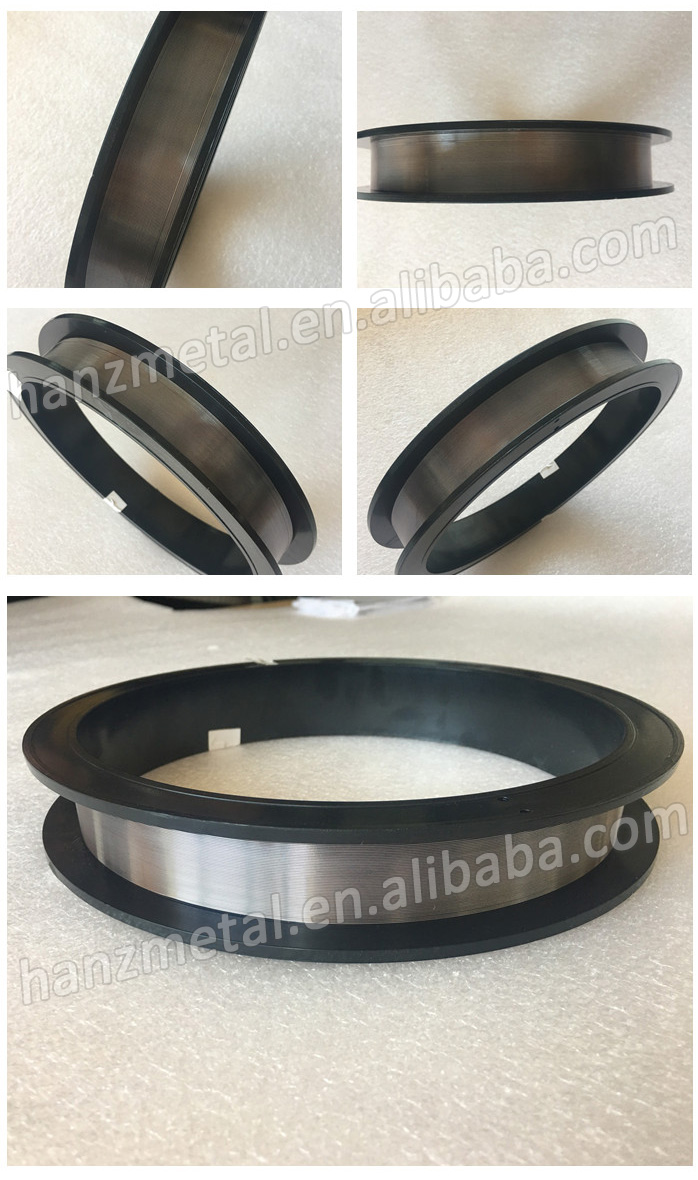

detailed image

Pure TI grade 2 titanium wire

Product Description



Titanium wire size tolerance

Specified diameter, inches

(dimensions of the shape line)

change, in.

Wire as a coil or spool

Cutting straight length A

0.020 to 0.045 inclusive

±0.001

±0.0015

over 0.045 to 0.062, including

±0.0015

±0.002

over 0.062 to 0.060, including

±0.002

±0.0025

over 0.090 to 0.187, including

±0.003

±0.003

Over 0.187 to 0.250

±0.004

±0.004

ACut lengths have a length tolerance of ±0.25 inches for lengths under 36 inches.



mechanical requirements



grade

tensile strength

Yield Strength

Elongation A

at the lowest limit

at the lowest limit

Minimum value, %

ksi

MPa

ksi

MPa

1

35

(240)

20

(138)

20

2

50

(345)

40

(275)

18

2HB.C

58

(400)

40

(275)

18

3

65

(450)

55

(380)

18

4

80

(550)

70

(483)

15

5

130

(895)

120

(828)

10

6

120

(828)

115

(793)

10

7

50

(345)

40

(275)

18

7HB.C

58

(400)

40

(275)

18

9

Post-90s

(620)

70

(483)

15

11

35

(240)

20

(138)

20

12

70

(483)

50

(345)

18

13

40

(275)

25

(170)

18

14

50

(410)

40

(275)

20

15

70

(483)

50

(345)

15



chemical requirements Pure TI grade 2 titanium wire

element

work, %

Nitrogen max

0.05

max carbon

0.08

Hydrogen, max.

0.012A

iron max

0.25

Oxygen, max.

0.13

aluminum

5.5-6.50

vanadium

3.5-4.5

Titanium B

balance



featurePure TI grade 2 titanium wire

  1. low density
  2. Excellent corrosion resistance in acid, alkali and salt
  3. high heat transfer capacity
  4. good biocompatibility
  5. low coefficient of thermal expansion
  6. Excellent strength to density ratio
  7. Good low and high temperature strength.

Pure TI grade 2 titanium wire

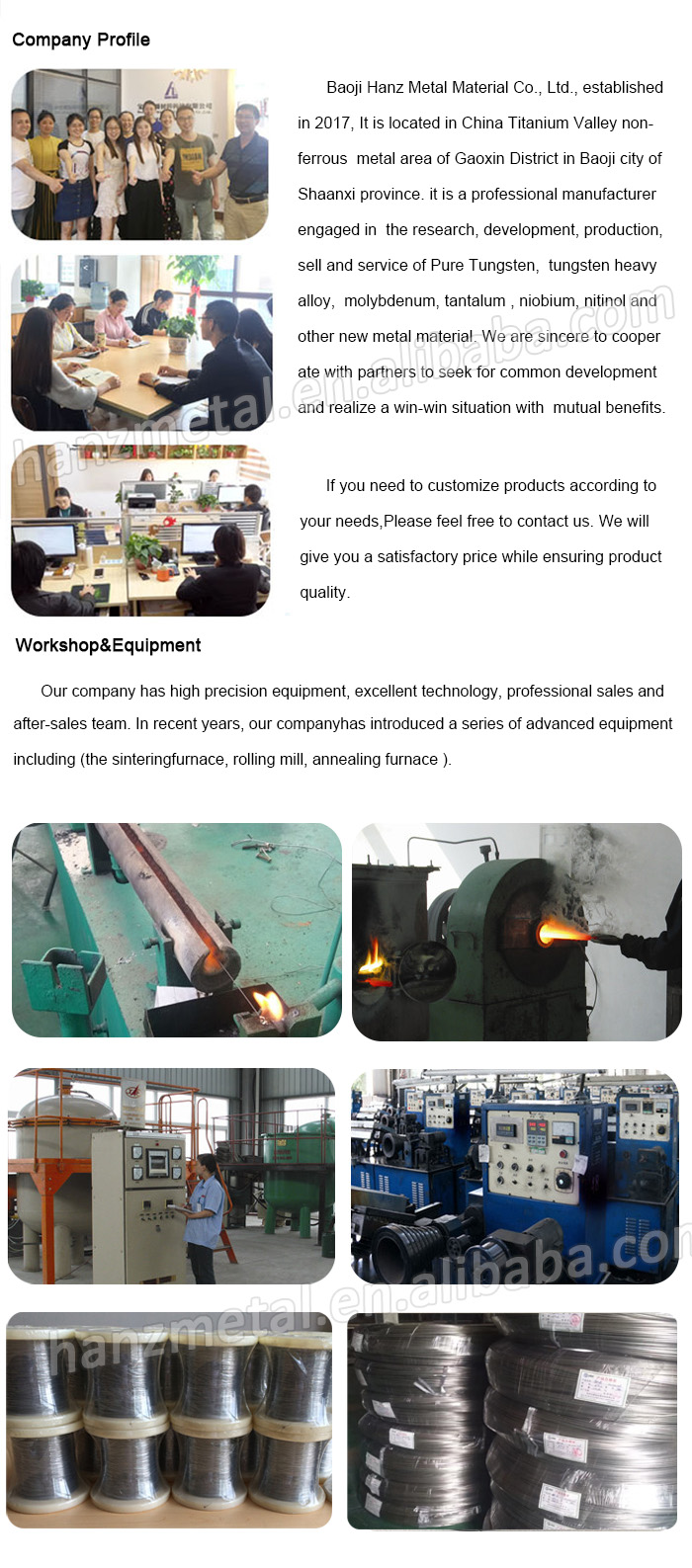

company information

 Pure TI grade 2 titanium wire

Pure TI grade 2 titanium wire

Advantages of Baoji Hanz

  • 1. Customization capability;
  • 2. In stock;
  • 3. Short delivery time;
  • 4. Exported to many countries;
  • 5. Has a factory

Baoji Handz Material Technology Co., Ltd. is located in Baoji, China. Our company has noble equipment and rich experience, specializing in the production of various shapes of tungsten, molybdenum, tantalum, niobium, titanium, nickel products and other alloys.

Pure TI grade 2 titanium wire

Packaging and Shipping

Titanium wire transportation

There are various modes of transportation for you to choose from:

  • 1. Air freight
  • 2. Shipping by sea
  • 3. Express: DHL, FedEx, EMS, UPS, SF-Express, etc.

Pure TI grade 2 titanium wire

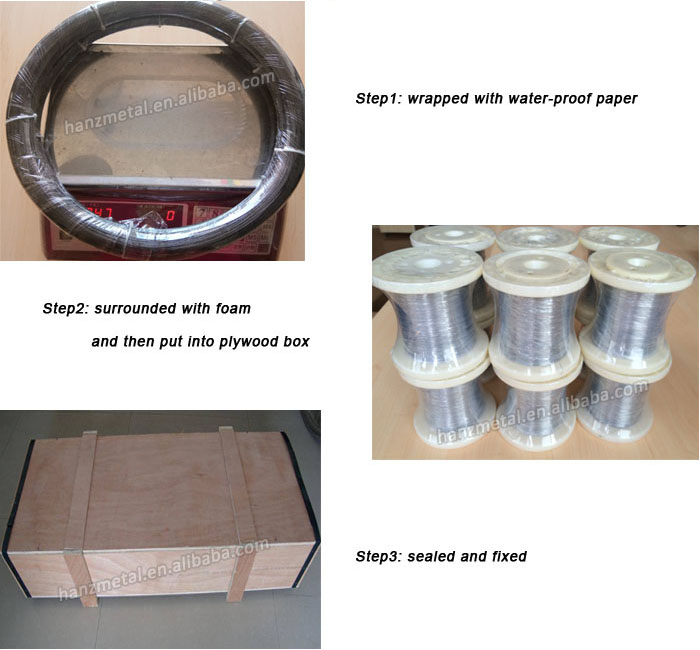

Gr5 titanium wire packaging

  • 1. Packed with moisture-proof paper.
  • 2. Packed in kraft paper.
  • 3. The wooden box is packed with foam plastic around.
  • 4. Wooden box packaging products.

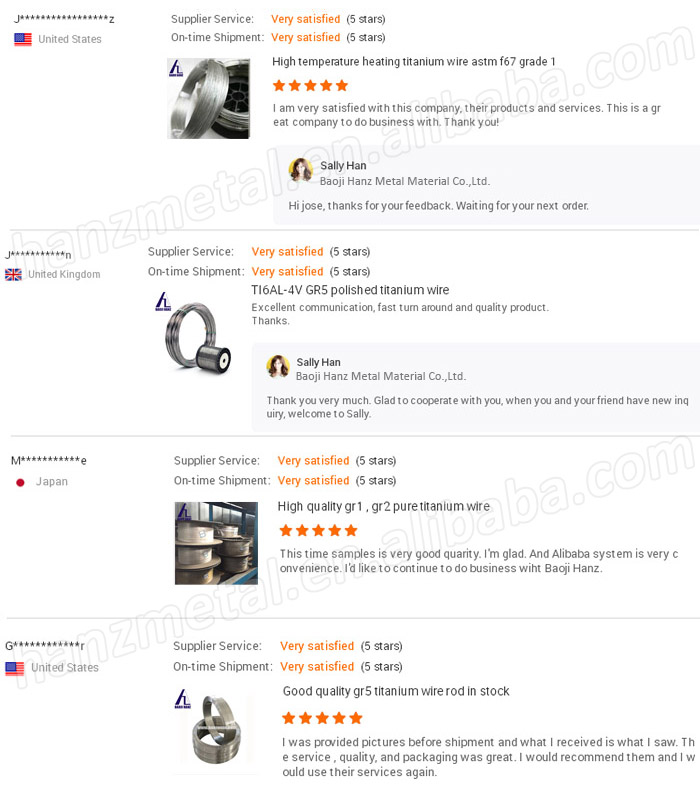

buyer feedback

  Pure TI grade 2 titanium wire

Related Products

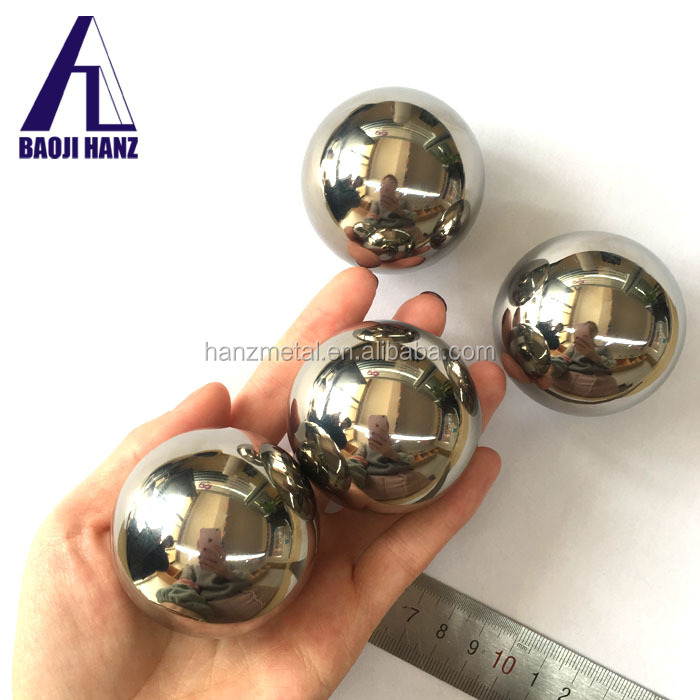

Titanium ball

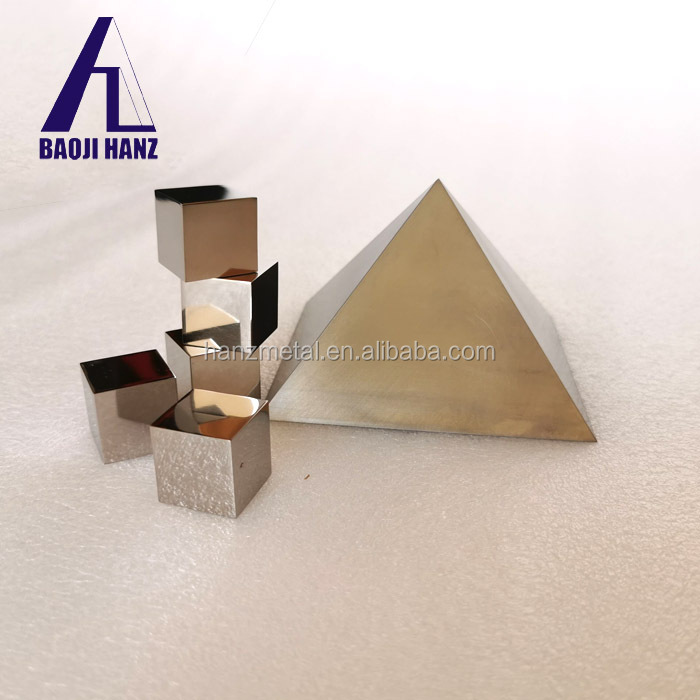

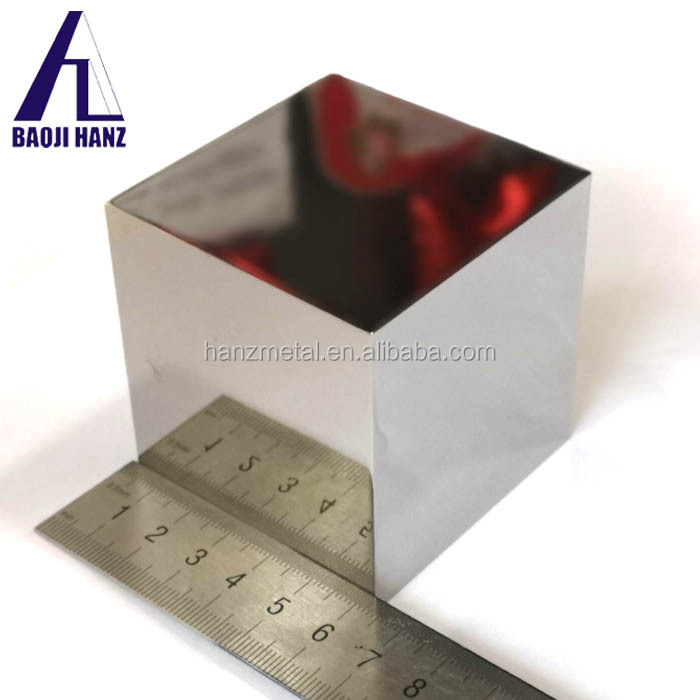

titanium cube

Titanium Pyramid

Titanium wire

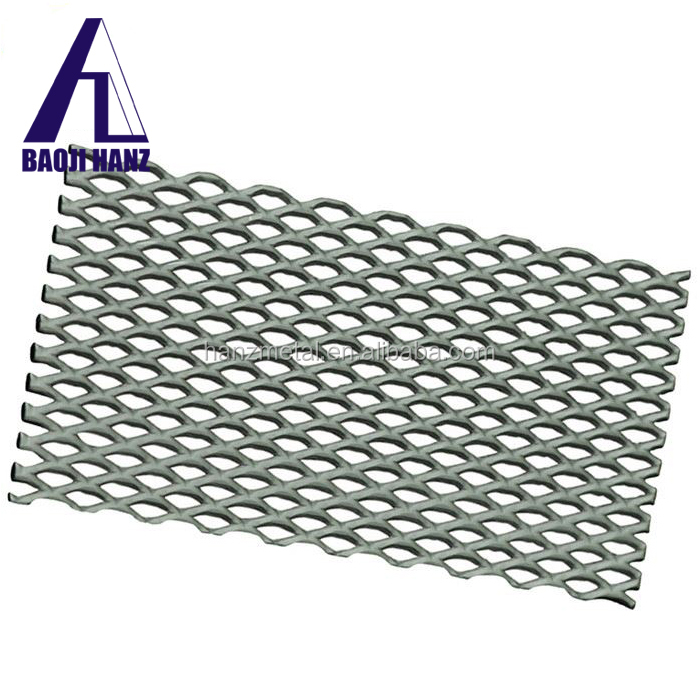

Titanium mesh

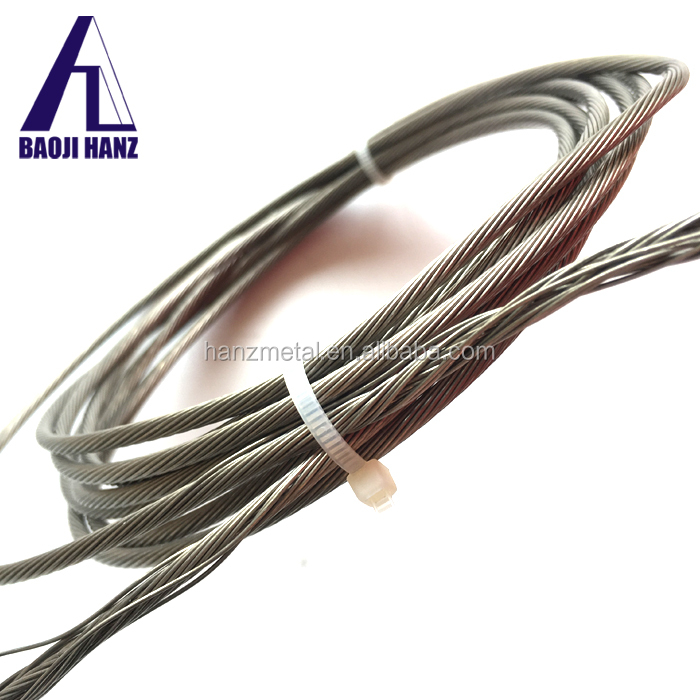

Titanium cable wire rope

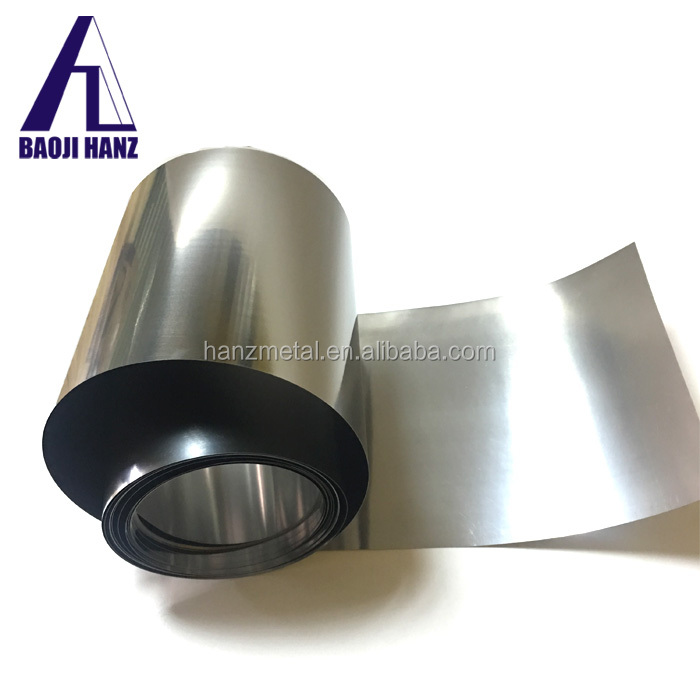

Titanium Foil Titanium Sputtering Target

Baoji's ASTM steel wire titanium cable, the price is so favorable

  • 1. Q: Are you a factory or a trading company?
    A: We are a factory.
  • 2. Q: Where is your factory located? How can I get there?
    A: Our factory is located in Baoji City, Shaanxi Province, China, about 2 hours by train from Xi'an. We warmly welcome all customers at home and abroad to visit us!
  • 3. Q: How can I get some samples?
    A: We are honored to offer you samples.
  • 4. Q: How does your factory do regarding quality control?
    A: Quality is priority. Hanz people attach great importance to quality control from the very beginning to the very end.

Payment terms ASTM steel wire titanium cable rope in Baoji, the price is so favorable

  • 1. Sample order: Accept Western Union, Paypal, Escrow and T/T100%.
  • 2. Large order: T/T100%, full payment in advance, letter of credit is accepted.

our service

  • 1. Competitive price.
  • 2. Our advantage over other suppliers.
  • 3. The same price and reliable quality.
  • 4. 100% timely delivery according to your requirements.
  • 5. Professional services greatly reduce procurement costs.
  • 6. We offer discounts for regular customers
  • 7. We try our best to meet customers' requirements.
  • 8. Faced with product-related issues, please feel free to contact us.



We will do our best to help you.

contact us

 Pure TI grade 2 titanium wire

Li Qianqian

=================================

Baoji Hanz Metal Material Co., Ltd.

hztech05(@)hanztech.cn

+86 17391515682

If you are interested in our products, please click the bottom of the bottom to contact us for free,

Main products: tungsten, molybdenum, tantalum, niobium.

Shape form: wire, bar, plate, sheet, cube, bead, parts, etc.

Send us your dimensions, requirements, quantities, applications and drawings and we will send a quotation accordingly



Thank you!



If you can't find the product you need, please look here!

Please fill in the following information and we will send you product details and a quotation.



1. Material: tungsten, molybdenum, etc.

2. Form: plate, sheet, rod, rod, tube, wire, etc.

3. Dimensions: thickness, width, length or diameter.

4. If you can provide the quantity and usage, it is best to provide a quotation



Thanks. High quality astm standard wire titanium wire
