7-9um high silica fiber yarn

Product Detail

brand:Ohm alloyapplication:Aerospace, Furnaces, Trunks & Engines
Material:Reinforcement materialOrigin:China Shanghai
payment terms:L/C, Western Union, T/T, MoneyGram, PayPalPackaging Details:Wooden box with plastic inside and outside, choose suitable packaging, and can also be customized according to customer requirements.
Supply capacity:30 tons per monthYarn construction:single yarn
product name:Silicon fiber yarndiameter:7-9um
Line Shrinkage:≤4color:white
type:Alkali free glassport:Shanghai

The main purpose of the product

High silica fiber yarn has the characteristics of heat resistance, ablation resistance, and reinforcing materials. After knitting, twisting, twisting and other processes, it can be used as high temperature resistance, anticorrosion, and heat preservation for aerospace, kilns, luggage, engines, etc. Material. processing etc.
High silica glass fiber continuous yarn products can be used for a long time at a high temperature of 1000 ℃, and have a wide range of applications.

High silica glass fiber continuous yarn performance index

Type: high silica fiber yarn

single fiber

diameter
(microns)

Linear Density(Tex)

Breaking strength

(N)

Twist(T/m)

Silica content2(%)

Heat loss (%)

High temperature linear shrinkage (%)

appearance

BCT8-220S120

8±15%

220±18

≥30

120±18%

≥96



≤4

uniform

BCT8-440S120

8±15%

440±35

≥70

120±18%

≥96



≤4

BST7-85S120

7±15%

85±15

≥4

120±10%

≥95

≤3

≤4


*B: high silica fiber C: continuous yarn T: treated

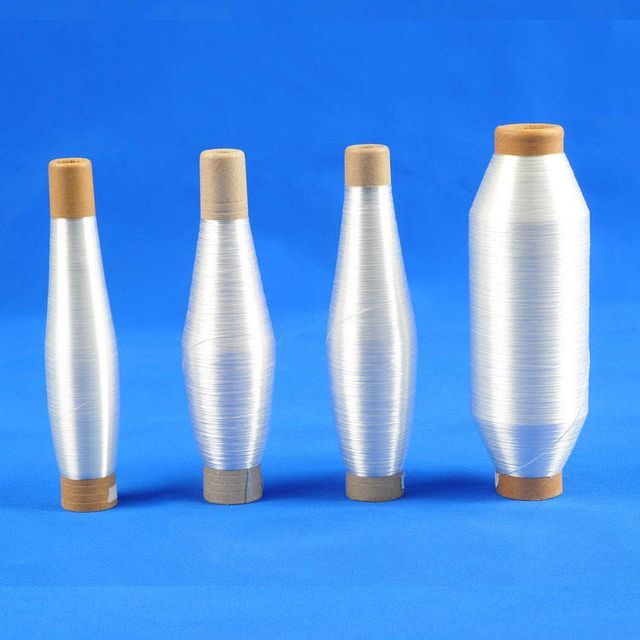

product display



Quartz glass fiber yarn is a yarn made by twisting continuous quartz glass fiber with a silica content of ≥99.95% and a diameter of 7 to 9 microns. It has high temperature resistance, low thermal conductivity, high strength, high elastic modulus, and medium Advantages such as excellent electrical properties and stable chemical properties. Widely used in aerospace, optical fiber manufacturing, semiconductor manufacturing, special cable manufacturing, electrical and electronic and other fields.



product

Linear density

ROI (%)

Twist(T/M)

Fiber diameter

XYT/QC12

12

1.0+/-0.2

70/140

7.5+/-1.0

XYT/QC28

28

XYT/QC51

51

XYT/QC67

67

XYT/QC95

95

XYT/QC133

133

XYT/QC190

190

XYT/QC220

220

XYT/QC440

440

XYT/QC670

670



FAQ

1. What is the minimum quantity a customer can order?

We can supply any quantity you want if we have your size in stock.

If we don't have, for spools, we can produce 1 spool, about 2-3 kg. For coiled wire, 25kg.



2. How can you pay for small sample quantity?

We have Western Union account, T/T for sample amount is also ok.



3. The customer does not have an express account. How will we arrange the delivery of sample order?

Just provide your address information, we will check the courier cost, you can arrange the courier cost together with the sample value.



4. What is our payment terms?

We can accept LC T/T payment terms, it also depends on the delivery and total amount. After getting your detailed requirements, we will talk in detail.



5. Do you provide free samples?

If you want a few meters, we have stock in your size, we can provide it, customers need to bear the international express cost.



6. What are our working hours?

We will get back to you within 24 hours via email/phone online contact tool. Regardless of working days or holidays.
