Small Tungsten Carbide Rod D0.7mm/1.0mm/1.2mm/1.5mm/1.8mm/2.0mm/2.3mm/2.5mm/2.8mm

Product Detail

hardness:91.8HRAmodel:2*330mm
particle:0.7umsize:2mm*330mm/305mm
Material:Tungsten carbide WC+Cobrand:Kun Rui
Origin:Hunan, ChinaISO code class:k20-k30
payment terms:L/C, Western Union, T/T, MoneyGramAlloy specification:Cool 20
Packaging Details:Inner packing: bubble bag, bubble wrap. Outer packing: standard export cartonSupply capacity:20000 kg per month
port:ShanghaiSurface treatment:Blank
product name:Tungsten carbide roddensity:14.45 g/cm
Technical standard (ISO3327):3800 N/mm3shape:round
application:Drills, end mills, taps
Product Details
ISO code
grade
grain size
Cobalt content
Density: ≥
Hardness: ≥
TRS (ISO3327): ≥
K20-K30
Cool 20
0.7um
10%
14.4 g/cm3
91.5 (Health Risk Assessment)
3800 N/mm3
Diameter: 1.8mm (+0.40mm-+0.3mm)
Length: 330mm/305mm(0-5mm) or other lengths according to customer requirements

product description

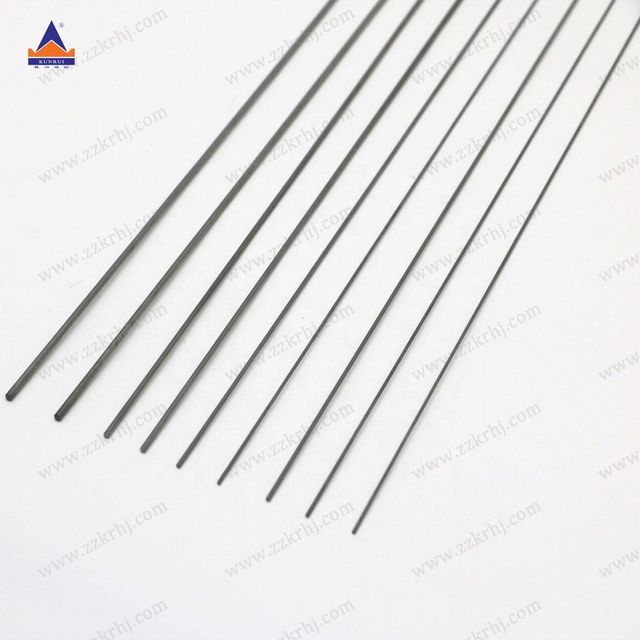

Tungsten carbide rod

1.100% virgin material
2. Various sizes and all types of stock available
3. Products can be customized as required

Features of tungsten carbide rods:

As for carbide rods, the following are the general characteristics for your reference
For more specific model details, please inform:
1. Better wear resistance, higher toughness, better resistance to deformation and fracture, long life and good dimensional accuracy
2. Adopt advanced automatic extrusion equipment
3.HIP sintering and precision grinding ensure good performance
4. Rough and finished tungsten carbide rods are available
5. After precision grinding and polishing, the mirror effect can be achieved

application:

Used in the manufacture of drills, end mills, reamers

QC:
1. Each rod is dropped from a height of 1.2m
2. All raw materials are tested for density, hardness and TRS before use
3. Each product is inspected in-process and final
4. Each batch of products can be traced



Product parameters
grade
grain size
(Um)
Cobalt content
(weight percent)
density
(g/cubic centimeter)
hardness
(Human Resources Administration)
TRS
(Newton/mm2)
Creative Academy
(MPa.m1/2)
Cool 20
0.7
10
14.45
91.8
3800
10.5
KR10Z
0.6
10
14.45
92.2
4000
10.7
KU25
0.4
12
14.12
92.5
4200
10.2
KU409
0.4
9
14.45
93.2
4000
9.6
KU10
0.4
6
14.8
94
3800
8.7
KU209
0.2
9
14.45
94
4200
9.2
Cool 30
0.7
15
13.98
89.6
4500
13.8
KU20: sub-fine grain, medium-speed processing, good overall performance, recommended to use drills and end mills, suitable for cutting common alloy steel, aluminum alloy, heat-resistant alloy, cast iron, etc.

KR10Z: ultra-fine grain, excellent heat resistance, suitable for high-speed milling and drilling, especially suitable for making solid drills. It is suitable for processing alloy steel, heat-resistant alloy, cast iron, non-ferrous metal, stainless steel and other materials.

KU25: ultra-fine grain size, good wear resistance and toughness, especially suitable for finishing of alloy steel, aluminum alloy, titanium alloy, etc. Suitable for making end mills and reamers

KU409: ultra-fine grain, suitable for processing hardened hard steel, aluminum alloy, carbon fiber composite material, high wear-resistant material stainless steel, composite graphite, PCB, plastic

KU10: ultra-fine grain size, good wear resistance, it is recommended to use more wear-resistant end mills, engraving tools and high mirror polishing tools, suitable for processing aluminum-magnesium alloys, composite boards, PCBs, plastics, CFRP, etc.

KU209: Nano grain size, high wear resistance and toughness, suitable for finishing of hardened steel, high precision and high mirror surface processing of graphite, plastic, CFRP, stainless steel, aluminum alloy. Suitable for making 0.3-0.5mm drill bits

KU30: sub-fine grain, good wear resistance and toughness, suitable for die punching, anti-vibration boring bars and deep cutting tools for processing low hardness materials.
