5x5mm 100g Waterproof Fiberglass Heat Resistant Reinforced Fiberglass Mesh Mesh
-
$0.19 / 5000 - 9999 square meters
$0.17 / 10000 - 199999 square meters
$0.16 / >=200000 square meters - 5000 square meters
- Ganzhou Yuanfeng Compound Material Co., Ltd.
- Jiangxi, China
- Ms Sandy wang
Product Detail
Packaging Details: | 1. Shrink only. 2. Shrink and woven bags, 4 rolls/bag. 3. Shrink and carton packing, 4 rolls/carton. | color: | White, blue, orange, red, green, etc... |
brand: | far peak | Yarn type: | C-glass |
coating: | Coat with acrylic emulsion (not urea-formaldehyde latex). | port: | Shenzhen/Shanghai/Ningbo |
application: | Strengthen cement, stone, wall materials, roof materials, asphalt, plaster,, wall materials | payment terms: | L/C, Western Union, D/A, T/T |
model: | YF55100 | Braid Type: | plain weave |
product name: | Fiberglass Mesh | Package preview: | |
sample: | usable | Room temperature: | 550°C |
Alkali content: | Moderate | weight: | 100g/㎡ |
Supply capacity: | 2,500,000 square meters per month | Origin: | Jiangxi, China |
Material: | Fiberglass yarns are made from platinum crucibles. | Braid Type: | Leno |
Certificate: | CE,BV,SGS,ISO,CNAS.ITB,RoHS | feature: | High tensile strength, good fixation, strong alkali resistance. |
Grid size: | 5x5mm | width: | 1-2 meters |

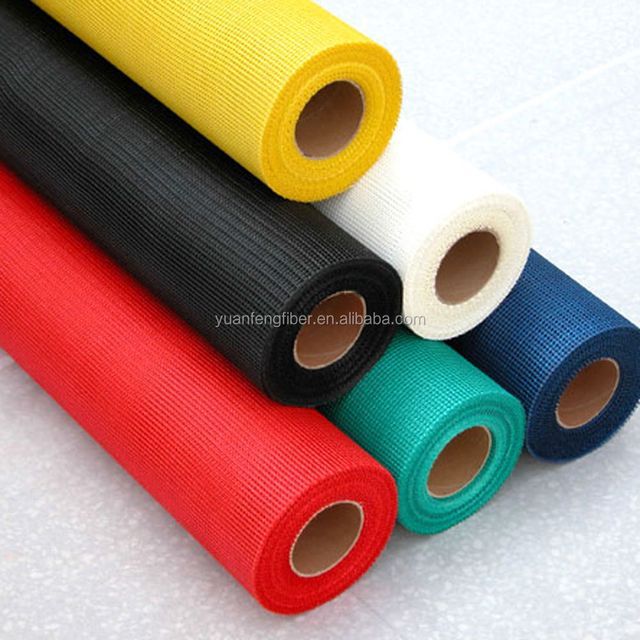

Alkali-resistant fiberglass mesh
Glass fiber mesh cloth is mainly alkali-resistant glass fiber fabric, which is made of C glass fiber yarn (the main component is
ASilicate, good chemical stability) through a special weaving process, then coated with Antalkali and reinforcing agent, and treated with high temperature heat treatment. It is an ideal engineering material in construction and decoration.
After surface treatment, this alkali-resistant fiberglass mesh has excellent properties, including waterproofing
Resistance, alkali resistance, flexibility, softness and aging resistance. Widely used to strengthen walls, natural
Marble, gypsum board, engineered stone materials and exterior wall insulation finish systems. It is also widely used in decoration
building surface..
Fiberglass Mesh Specifications:
Alkali-resistant glass fiber mesh is widely used in four types: interior wall insulation finishing, exterior wall insulation, GRC reinforced mesh, and glass fiber tape.
1. Main mesh size: 2.5×2.5mm, 3×3mm, 4×4mm, 4×5mm, 5×5mm, 6×6mm, 8×8mm, 9×9mm, 10×10mm, etc...
2. Weight: 80-500gr/square meter
3. Roll length: 20-200m/roll
4. Width: 1m, 2m
5. Color: white, yellow, blue, green
We can produce any acrylic emulsion coated alkali-resistant fiberglass mesh cloth according to customers' requirements of different mesh size and weight per square meter.
Main features:
1. High tensile strength
2. Good chemical stability: alkali resistance, acid resistance, water resistance, cement erosion resistance, and other chemical corrosion resistance; strong binding force with resin, easily soluble in styrene.
3. Excellent alkali resistance and excellent crack resistance.
4. Good impact resistance, not easy to tear.
5. Fire prevention, heat insulation, sound insulation, insulation, etc.
6. Good dimensional stability, good stiffness, good smoothness, not easy to shrink and deform, good positioning
Special Meshsupply,as follows:
Why choose us as your supplier
1. A leading manufacturer of fiberglass mesh in China. It has 20 platinum crucibles, 13 largest twisting machines, 150 looms, and 4 high-speed coating machines.
2. Quality assurance: The raw material is C-glass spheres/E-glass spheres (not recycled glass and mixed glass), and the glass fiber yarns of all fiberglass meshes are made of platinum crucibles. (not a ceramic crucible) and coat with acrylic emulsion. (not urea formaldehyde latex). The covering rate is 13-20%.
3. High strength, good chemical corrosion resistance; good coagulation ability and fixing performance.
4. 100% QC inspection before shipment, best quality and best service with competitive price.
5. Passed certificates: CE, BV, SGS, ISO, CNAS. ITB, RoHS, third party testing.
6. Alibaba evaluates the gold medal supplier.
7. Fast delivery: normal type 10x40HQ will be completed within 10 days.
Quality test video:
https://youtu.be/y6sVcLtlQ0U
https://youtu.be/dJd0sANgVp4
https://youtu.be/m3tdnLJAhtU
Our fiberglass yarn is made of platinum crucible, fiberglass yarn has high tensile strength and is the best building material for wall reinforcement.
The ceramic crucible has to be replaced every 2-3 hours, the fiberglass yarn is very rough and breaks easily without sufficient tensile strength. low quality!
Coated with acrylic emulsion (resin), good fixation: after rubbing with fingers, the mesh keeps fixity,
Does not hold well, moves easily after rubbing with fingers. Coated with urine formaldehyde latex. Mesh has a pungent smell.
The grid is uniform, the appearance is good, and the alkali resistance is strong. and resistance to large cracks.
The mesh is uneven, the appearance is not good, the weaving technology is immature, and there is no QC control.
High strength, no breaking when folded many times.
It is easy to break after folding, and the strength is not enough.
QCAcrylic Emulsion Coating Alkali Resistant Fiberglass Mesh
Quality must be controlled from the source! Inspection of each production line!
C-glass ball/E-glass ball
The glass bulb must be inspected and the supplier must provide a test report.
Glass Fiber Yarn Testing
Quality Assurer (QA) for each production line.
Glass fiber mesh detection/
Quality Assurer (QA) for each production line.
fixed check
rub with finger
Spread Rate Check
Get all the data after burning
Testing Equipment
Muffle furnace, fabric strength tester, oven, constant temperature water tank, alkali resistance retention rate, tensile strength test, etc.
Inspection before packing
Packing after inspection
container loading
