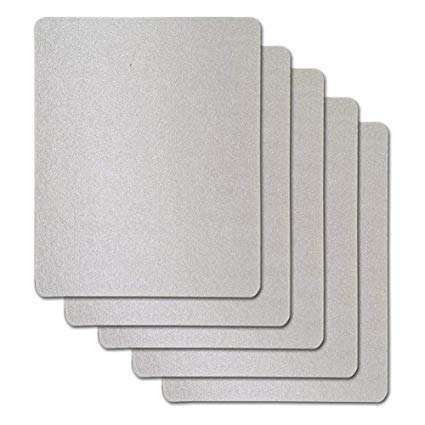

High temperature resistant hard muscovite mica sheet insulation mica board
-
$10.00 / 10 - 24 kilograms
$8.00 / 25 - 99 kilograms
$2.00 / >=100 kilograms - 10 kilograms
- Shanghai Gongtao Ceramics Co., Ltd.
- Shanghai, China
- Mr guoping hu
Product Detail
| payment terms: | wire transfer | model: | GT-28474 |
| brand: | GT | Shipping: | 1-30 days |
| Package preview: | Key words: | insulation sheet | |
| weight: | 1 | MOQ: | 10 |
| Voltage: | 600 volts | color: | Gray-black |
| type: | Mica board, muscovite | Material: | Mica |
| Packaging Details: | Put the spiral ball mill in a wooden box with a foam board | shape: | pointed cone |
| Origin: | China Shanghai | application: | heat, decorations |
| size: | custom size |
Product overviewThe soft natural mica board is a plate-shaped insulating material made by bonding mica sheets with adhesive paint, peeling them off, and drying and pressing them. The edges of the product are neat and the adhesive is evenly distributed. Insulation and turn-to-turn insulation, and other electrical insulation of electric machines.
Product information
Physical properties of natural mica flakes | ||||||
Model | HP5M | HP5P | HP5S | |||
Nominal thickness (mm) | 0.1-100 | 0.1-100 | 0.1-100 | |||
Mica content%(≥) | Post-90s | Post-90s | Post-90s | |||
Bond content%(≥) | 10 | 10 | 10 | |||
Density (g/cm3) | 1.8-2.38 | 1.9-2.40 | 1.9-2.40 | |||
Bending strength (N/mm2) | >160 | >150 | >160 | |||
Water absorption 24H/23℃%(<) | 0.5 | 0.5 | 0.5 | |||
Dielectric strength KV/mm(≥) | 20 | 19 | 20 | |||
500℃ heat loss%(≤) | 0.5 | 0.5 | 0.5 | |||
product display
product specification
