China factory sale w80 cu20 tungsten copper plate

Product Detail

port:Changsha, Hong Kong, Shenzhen, Guangzhou, Shanghai or according to your needsstandard:ASTM-B-777-07. Factory price
product name:w80 cu20 tungsten copper sheetSupply capacity:15 tons of copper and tungsten plates per week
payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram, Copper Tungstensurface:grinding polishing, grinding
model:w80 cu20appearance:copper metal, tungsten metal, gold metal
Packaging Details:Copper tungsten sheet packaging: wooden case, carton/wooden case/iron drumfeature:High temperature resistance
Copper content:10%-50% copperMaterial:wcu alloy, 90/10 wcu alloy, 80/20 cuw alloy
Origin:Hunan, Chinashape:Sheet, Plate, Block, Electrode, Rod, Rod
brand:mgdensity:16.5-18.5 wcu table
width:custom madeCertificate:ISO9001:2008 ISO14001CE
Product Description

China w80 cu20 tungsten copper plate


Tungsten copper plate

★ Material: Tungsten Copper
★ Size: according to user needs
★ Certification: GB/T 19001-2008, GJB 9001B-2009
★ Model: class1, class2, class3, class4
★ Delivery time: within 10-15 days according to the order

Tungsten copper plate: produced by isostatic pressing, high temperature sintering and copper infiltration. They can be made into thermally conductive plates for frames, chip carriers and high-energy electronic devices. They have good thermal conductivity and low expansion. Its expansion is comparable to that of silicon carbide, aluminum oxide, and beryllium oxide. The good properties of tungsten copper block make it the best material for integrated circuits and are widely used in various fields. We can produce tungsten copper blocks in different shapes according to customers' requirements.

Chemical Composition of Our Copper Tungsten Sheets

class
Chemical Composition (Wt%)
density
hardness
Resistivity
International Institute of Aeronautics and Astronautics
Bending strength
copper
Total additives≤
W
g/cm3≥
kgf/mm4≥
um.cm≤
%≥
MPa≥
W93Cu07
7±1.0
0.5
balance
17.5
270
7.2
26
1190
W90Cu10
10±2.0
0.5
balance
16.75
260
6.5
27
1160
W85Cu15
15±2.0
0.5
balance
15.90
240
5.7
30
1080
W80Cu20
20±2.0
0.5
balance
15.15
220
5.0
34
980
W75Cu25
25±2.0
0.5
balance
14.50
195
4.5
38
885
W70Cu30
30±2.0
0.5
balance
13.80
175
4.1
42
790
W65Cu45
0.545±2.0
0.5
balance
13.30
155
3.9
44
650
W60Cu40
40±2.0
0.5
balance
12.75
140
3.7
47
600
W55Cu45
45±2.0
0.5
balance
12.30
125
3.5
49
565
W50Cu50
50±2.0
0.5
balance
11.85
115
3.2
54
534

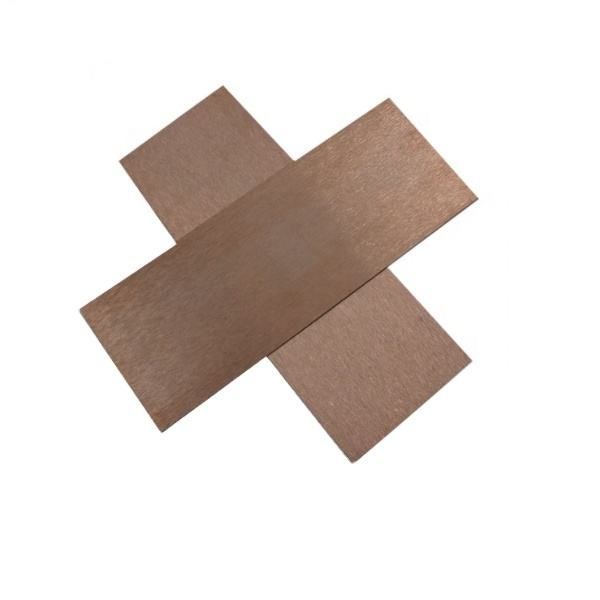

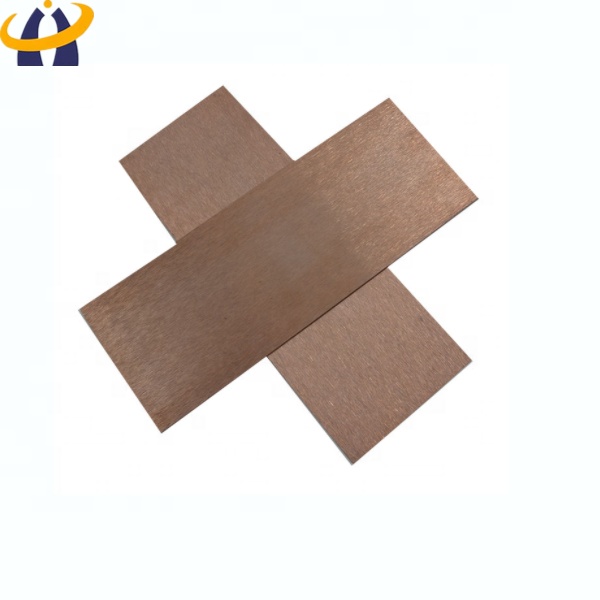

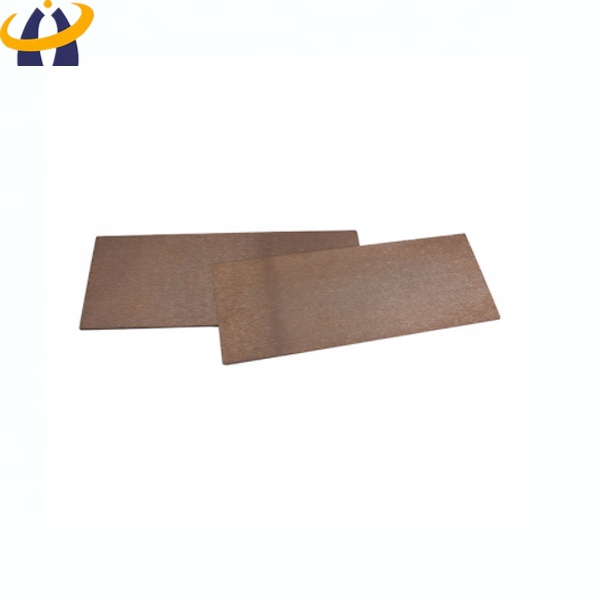

Pictures of our tungsten copper plates

Tungsten Copper Products

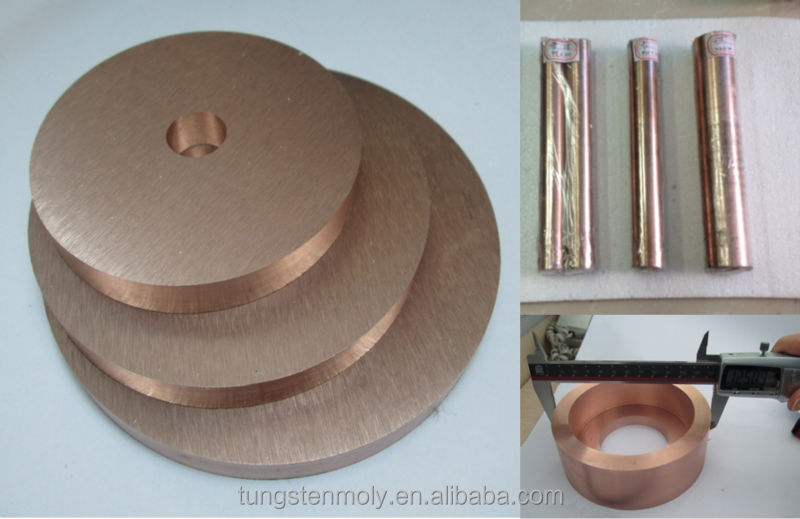

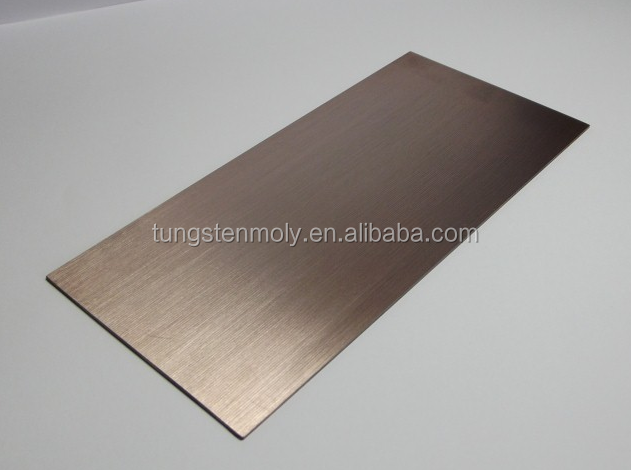

wcu sheet/plate/rod

Specifications: Thickness>1mm; Width<200mm; Length<300mm; Tungsten-copper alloy rod has the advantages of high conductivity and low consumption, and is widely used in the production of grid side rods, lead, brackets, and electrodes of gas discharge lamps

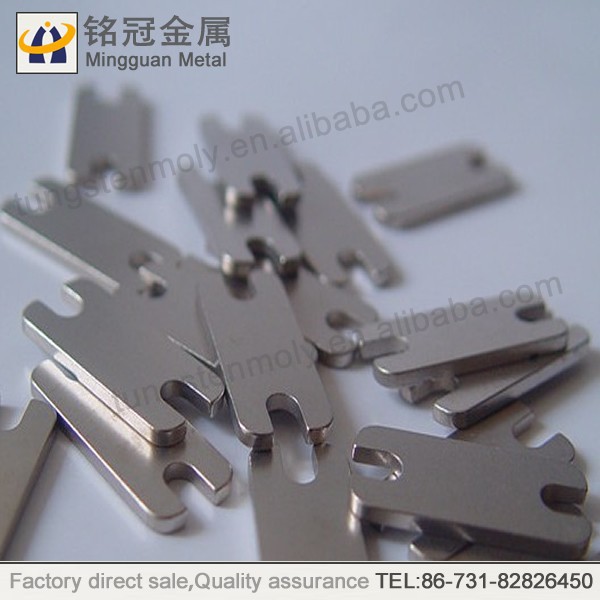

wcu radiator

Tungsten-copper alloys are widely used as radiators for automobiles, refrigeration and air-conditioning systems due to their low thermal expansion, heat resistance, ablation resistance, and excellent thermal and electrical conductivity. WCu radiator Ni or NiAu plated or electroless Ni plated semi-finished products: max 100x100mm, thickness 0.5 to 50mm.

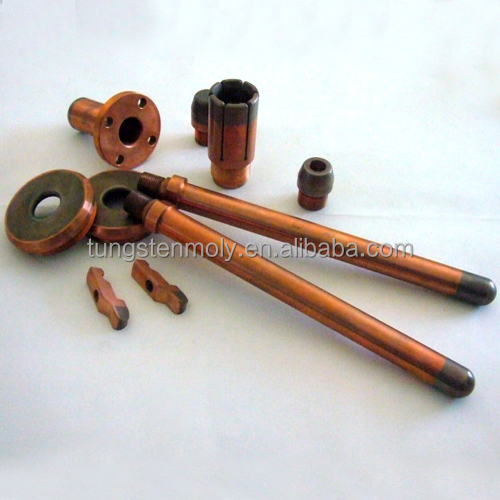

wcu electrical contacts

Electrical contacts are subjected to extreme mechanical and thermal stress during operation. In a fraction of a second, the temperature rises to several thousand degrees due to the arc. Our copper tungsten alloy material is used for its unique physical properties.
