Aluminum-copper bimetal plate copper plating for batteries

Product Detail

payment terms:wire transferSurface treatment:Prepainted
Certificate:GSlength:≤1200mm
Package preview:delivery time:31-45 days
brand:NansenPackaging Details:wooden box
thickness:3-18mmport:Shanghai
Back steel thickness:2.0-9.0mmAlloy grade:CuPb30
width:≤230mm,100mmSupply capacity:30000 kg per month
product name:Hot rolled steel stripProcessing services:Bending, cutting, punching
tolerant:±1%standard:National standard
Origin:China ShanghaiAlloy Thickness:1.0/1.2/1.5mm
Total thickness:3-18mmgrade:copper aluminum
Steel grade:SPHCapplication:Bearings, bushings, CNC

Aluminum-copper bimetal plate copper plating for batteries



Product Description

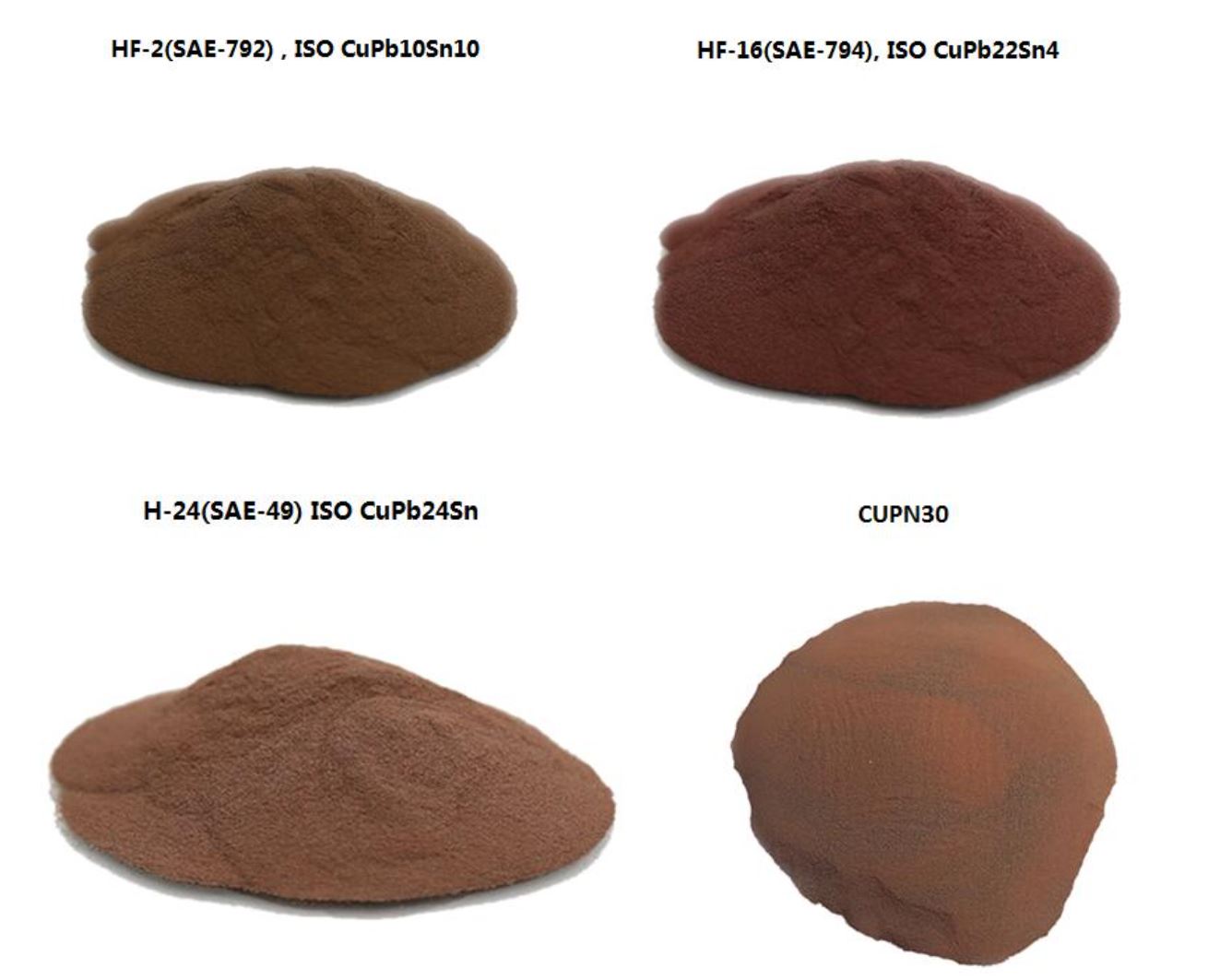

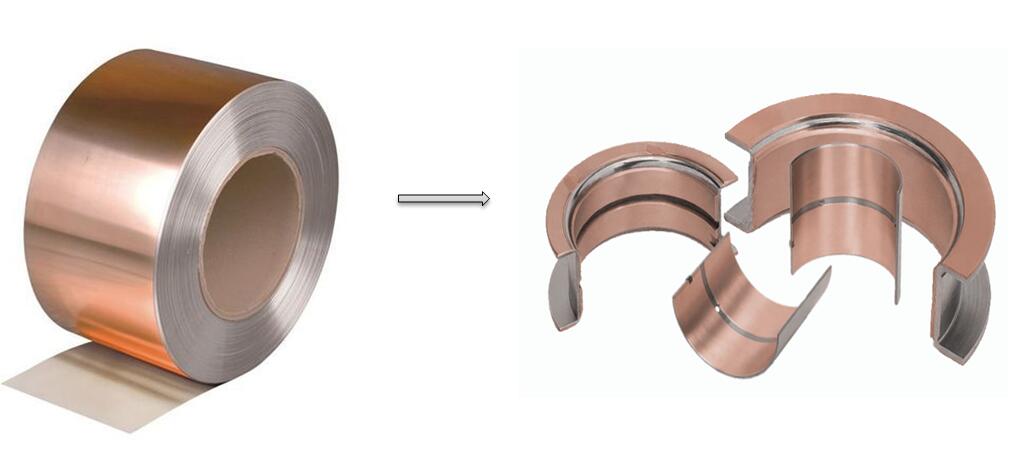

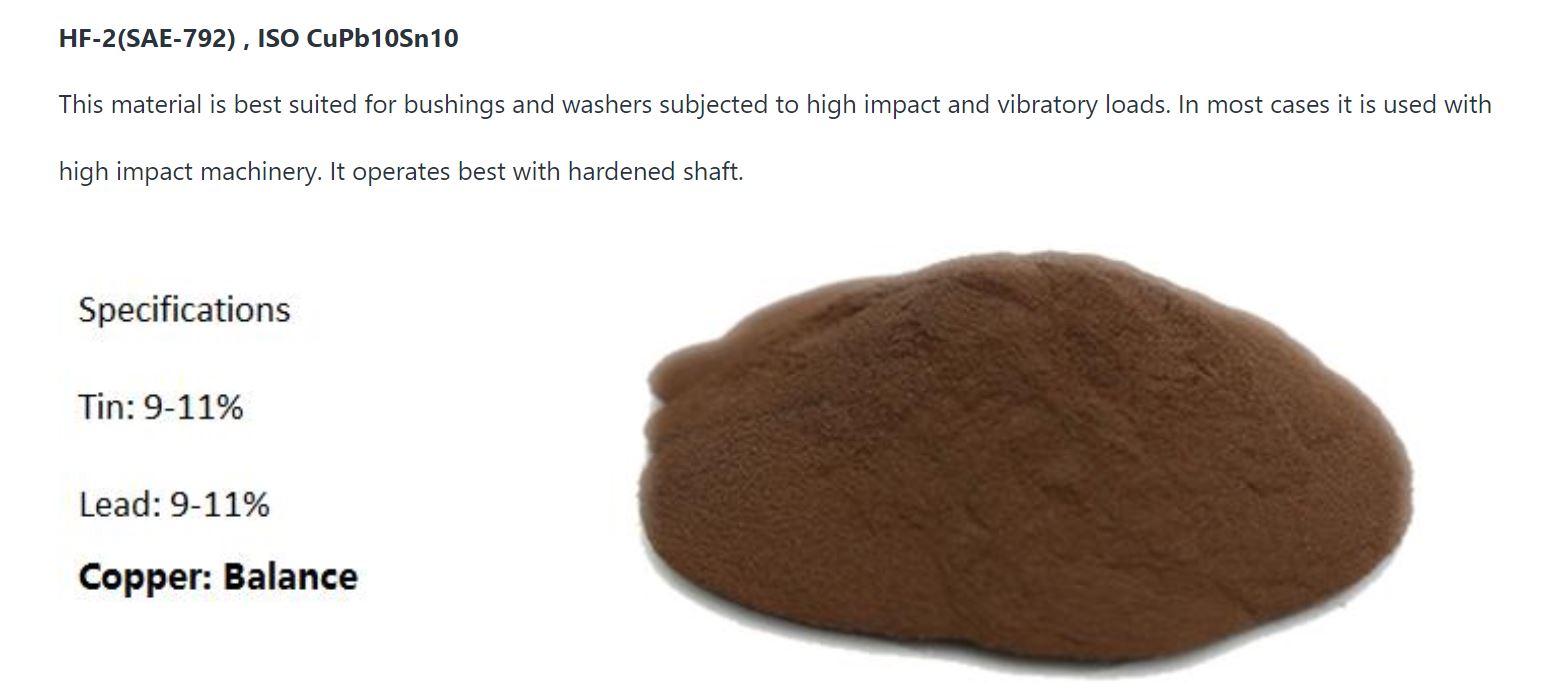

1. Bimetal plate cup alloy:











2. Double metal aluminum plate: ALSN20CU

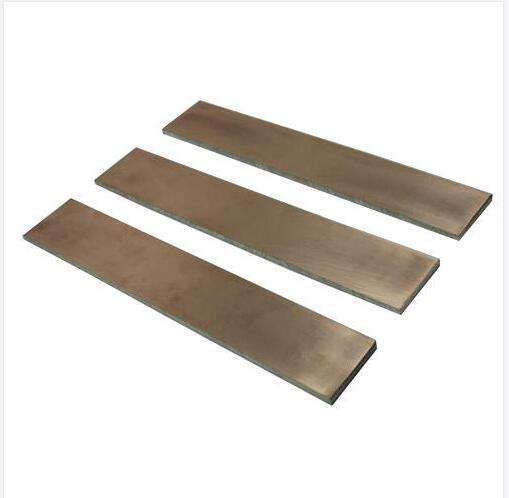

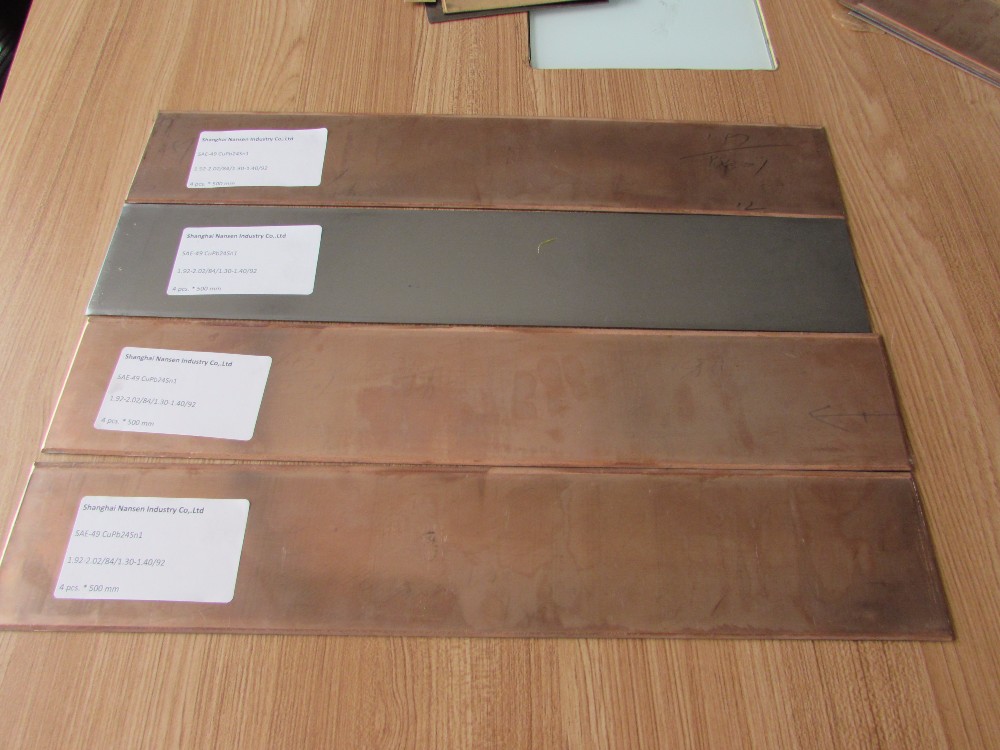

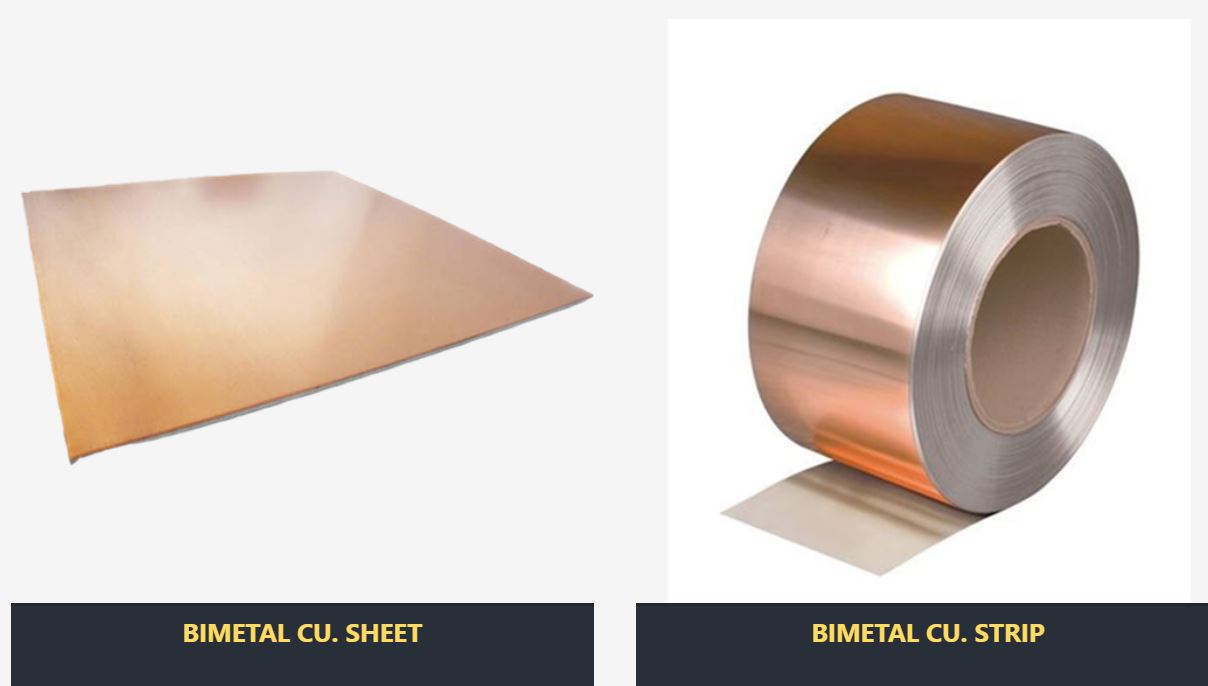

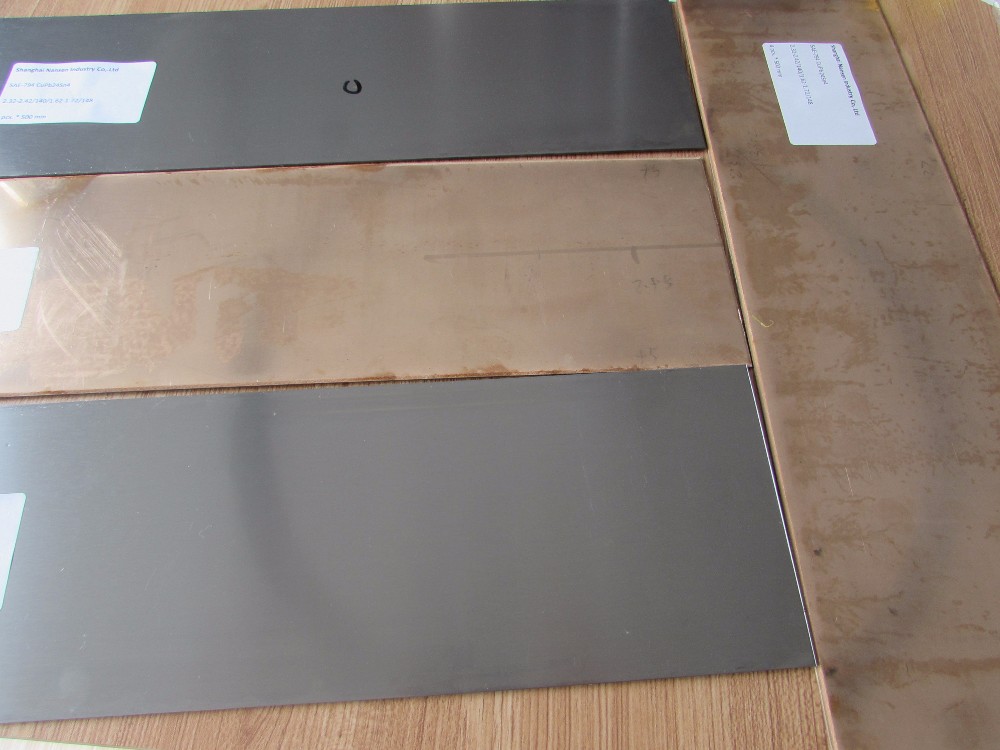

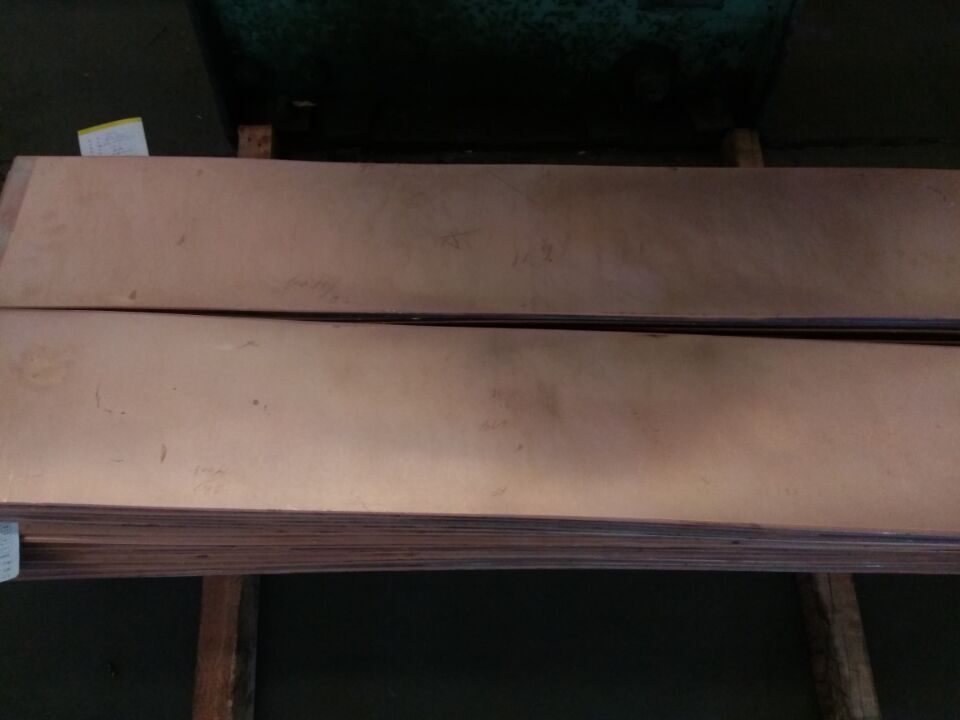

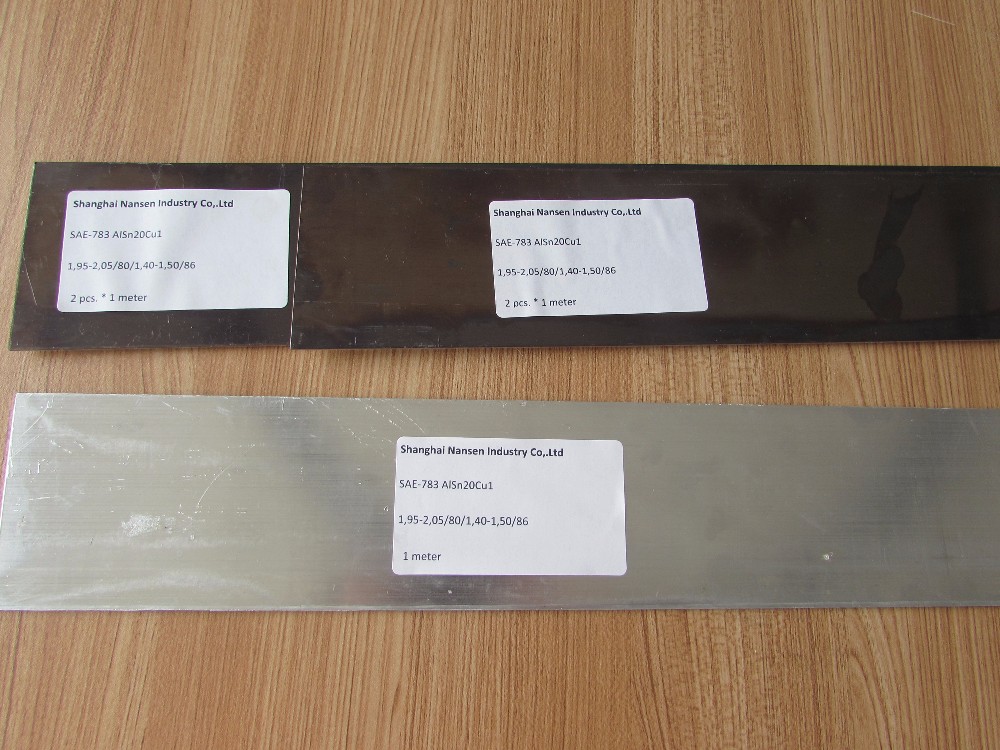

Product Image

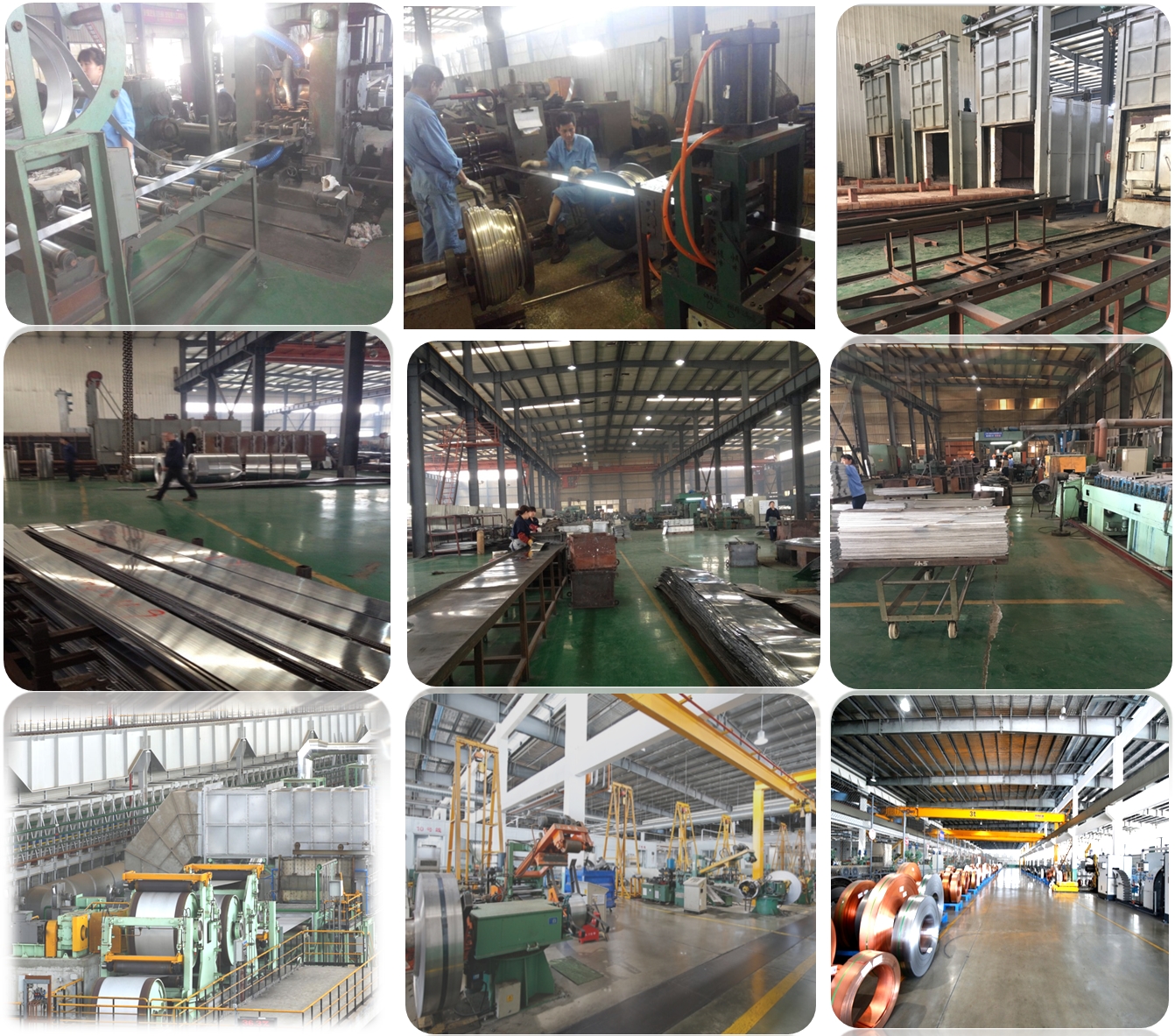

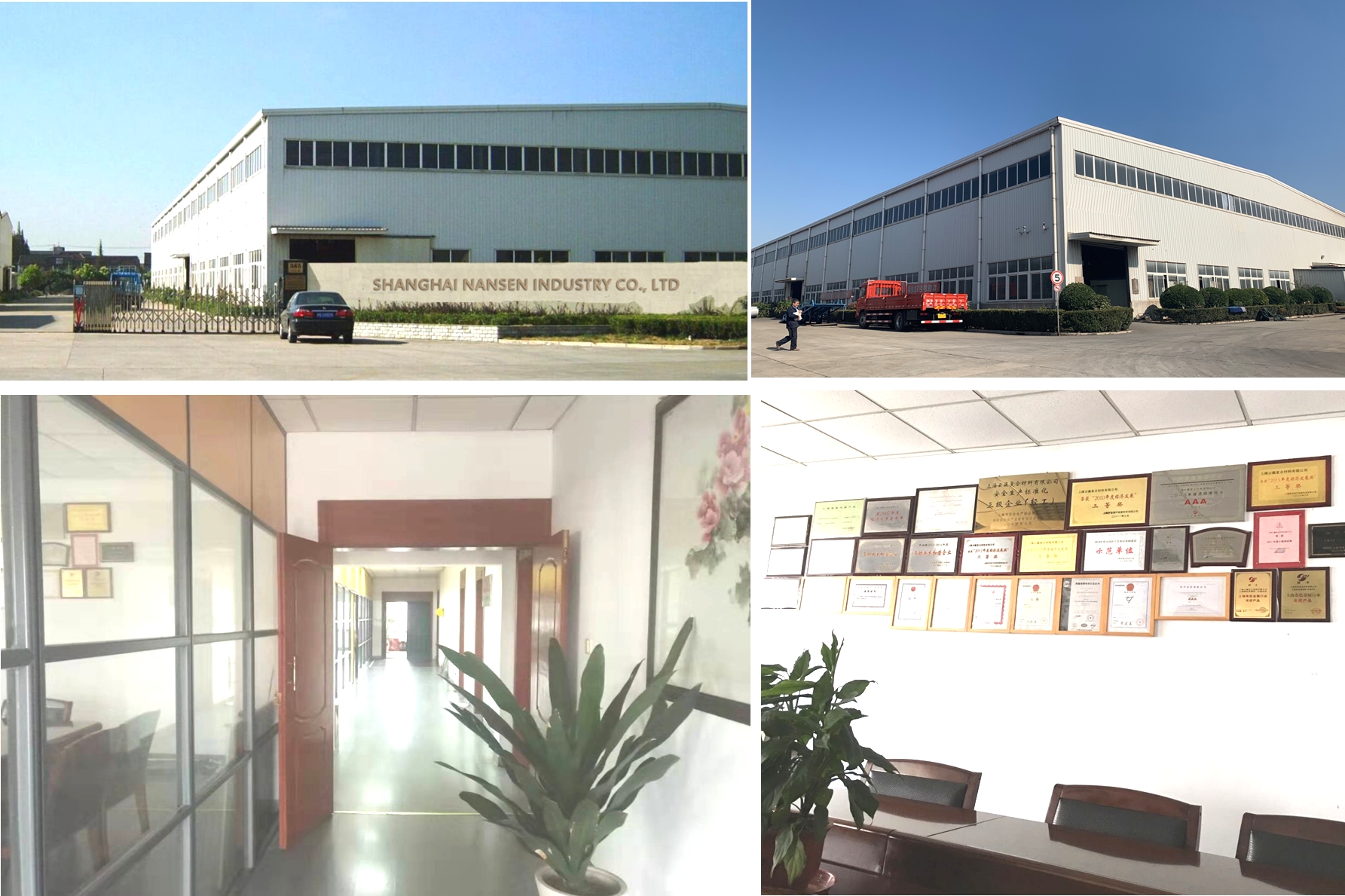

company information

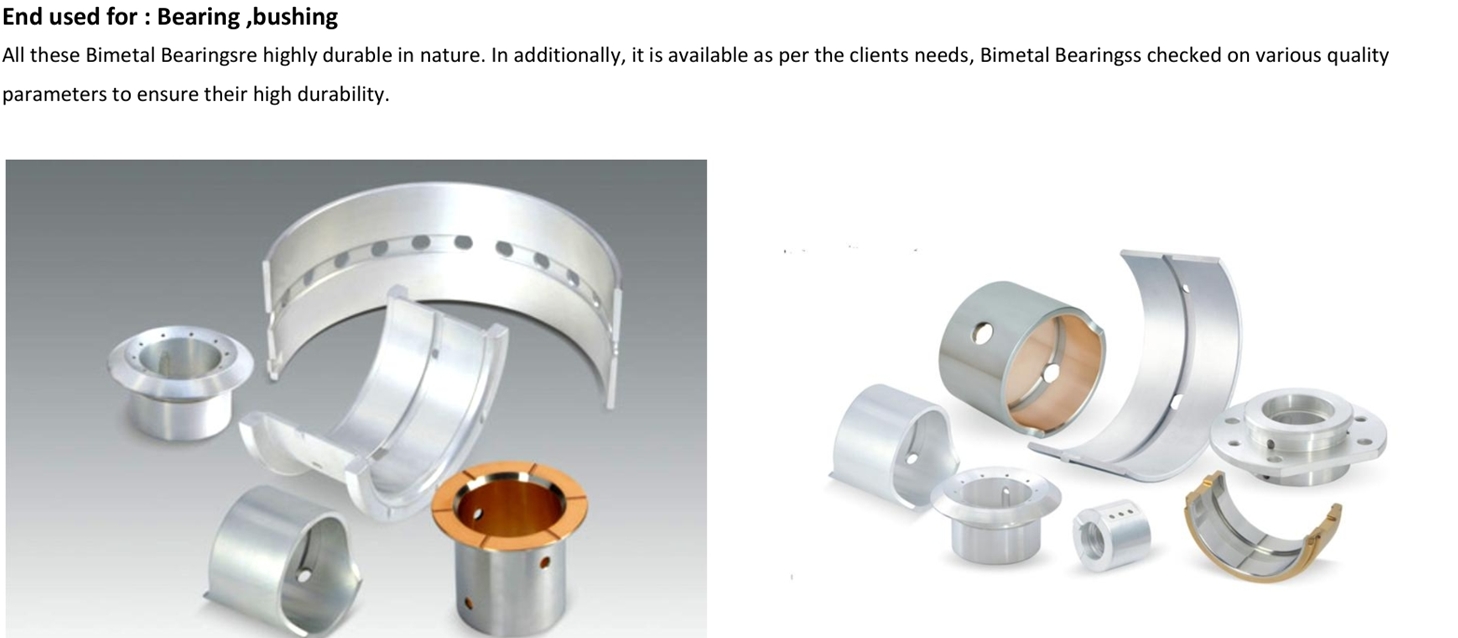

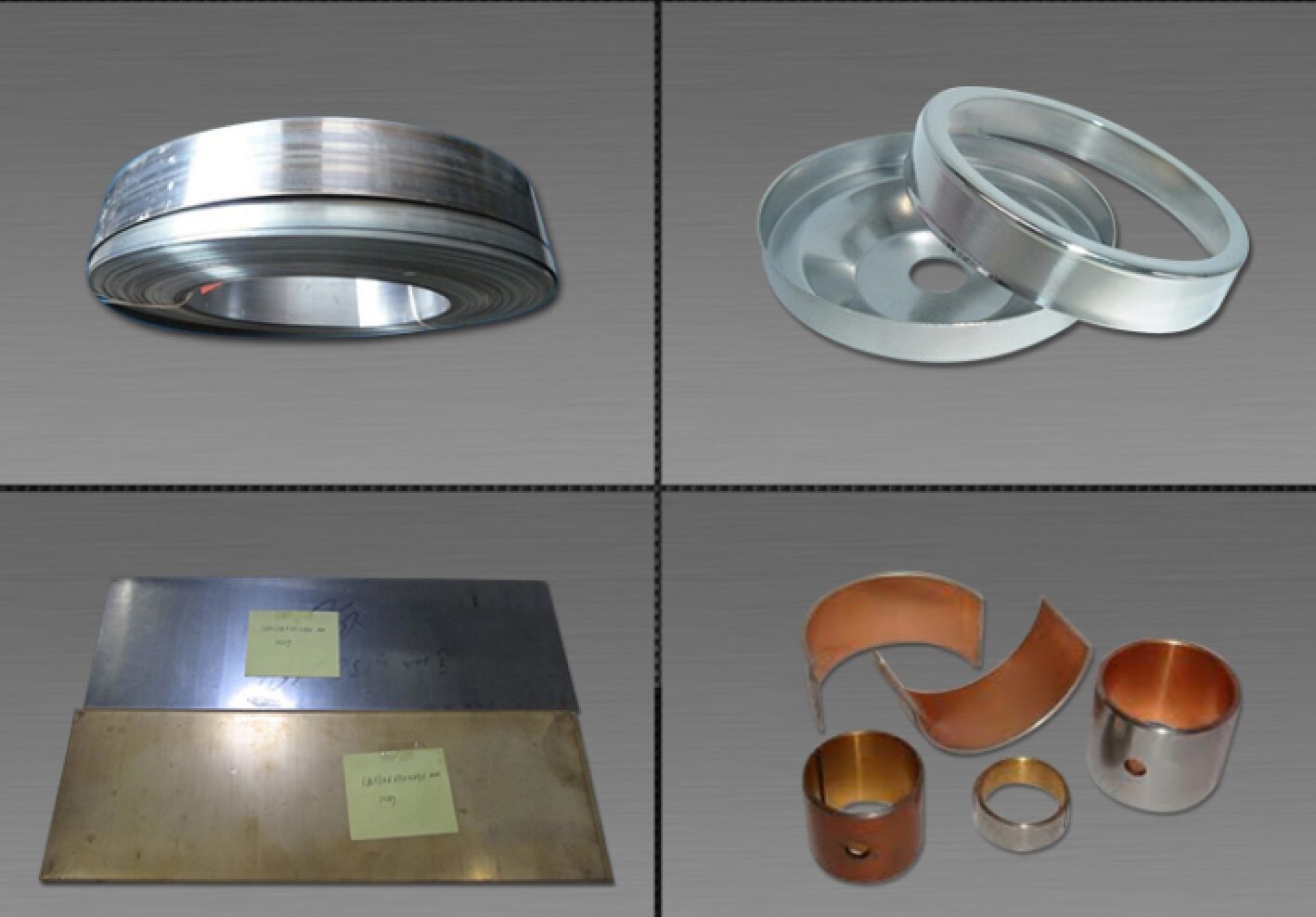

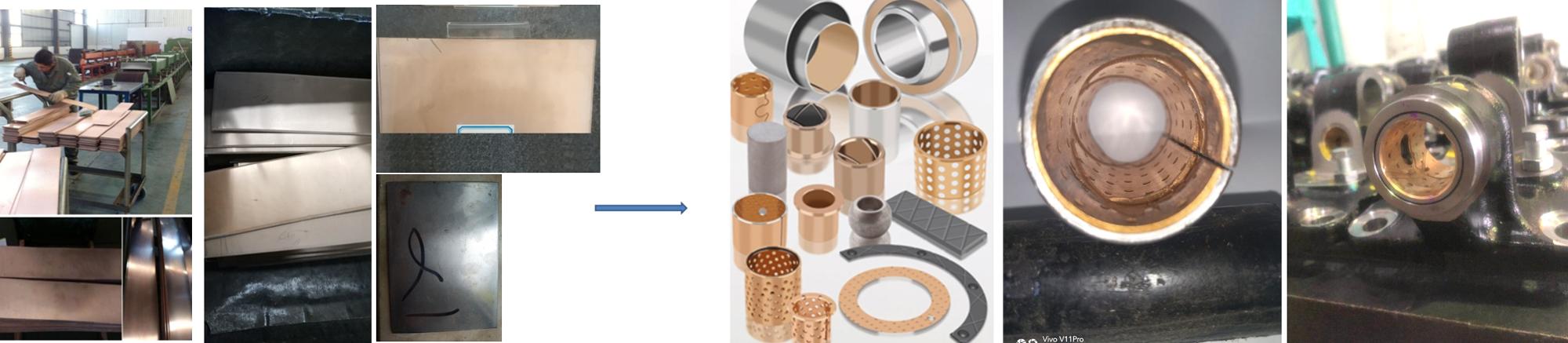

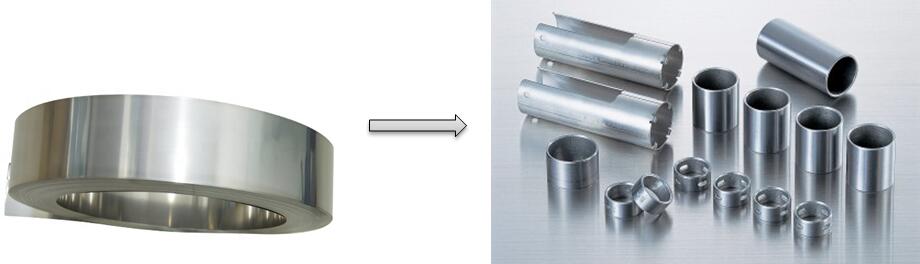

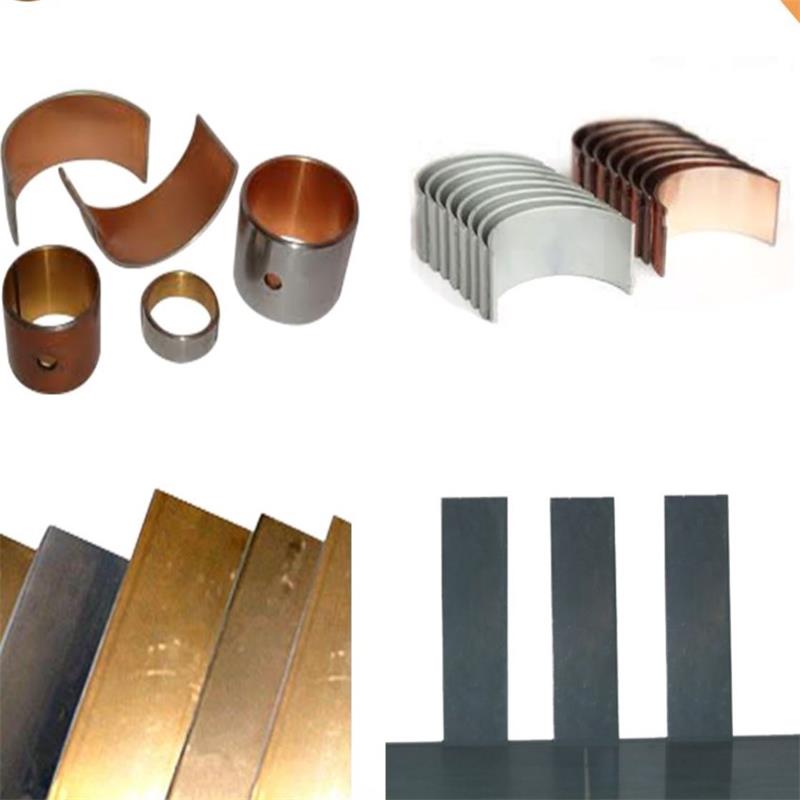

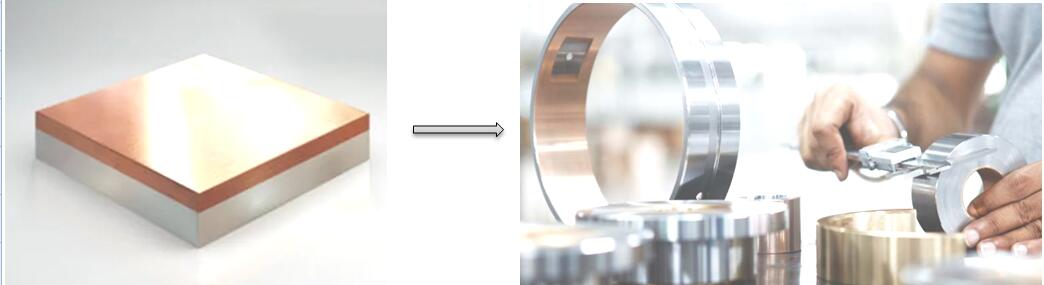

Product Usage

Mainly used in the manufacture of bearing bridges, ships, vehicles, boilers, pressure vessels, oil pipelines, large steel structures, etc.

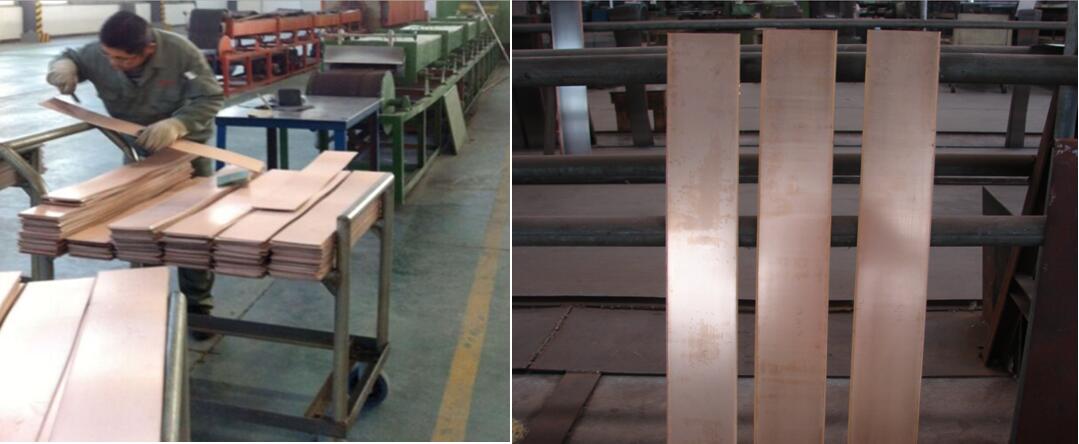

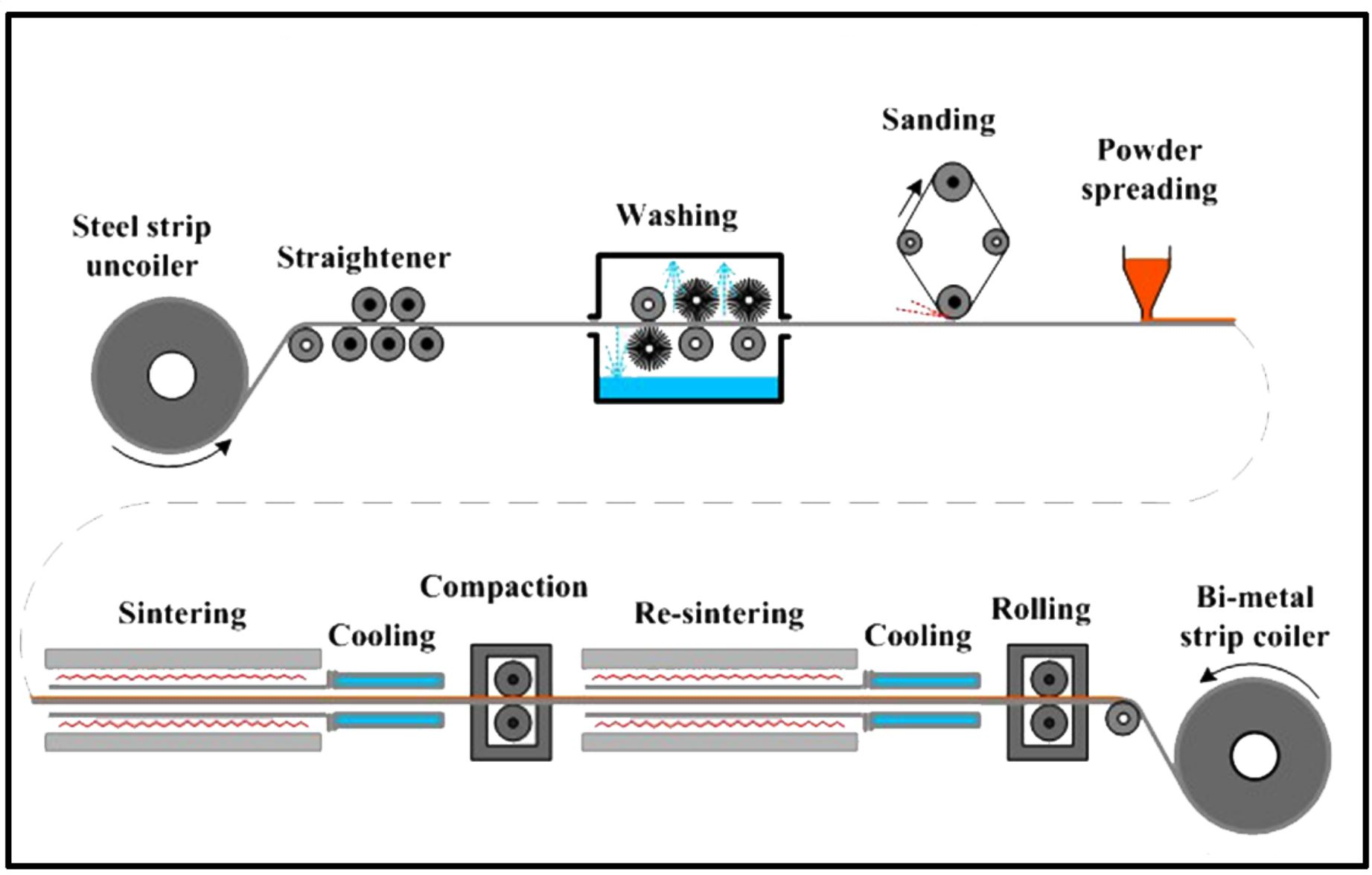

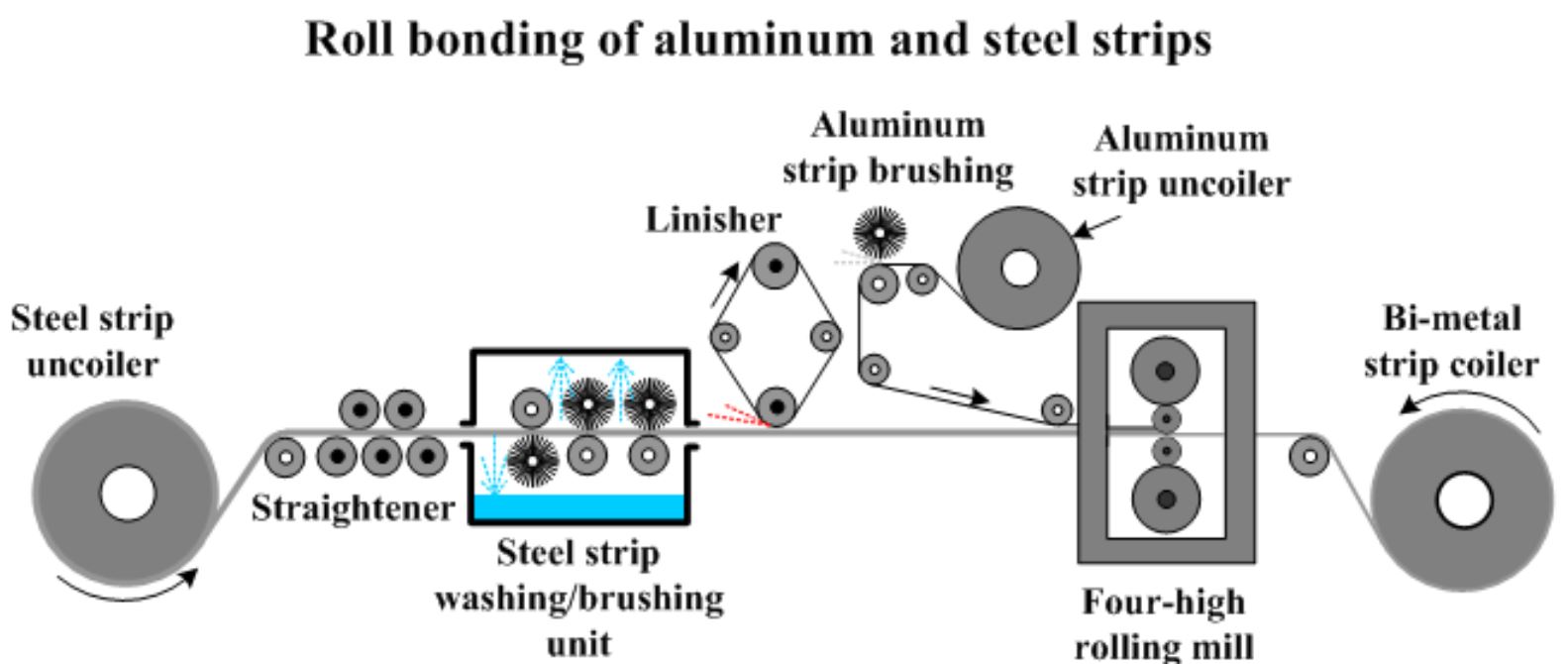

Production Process

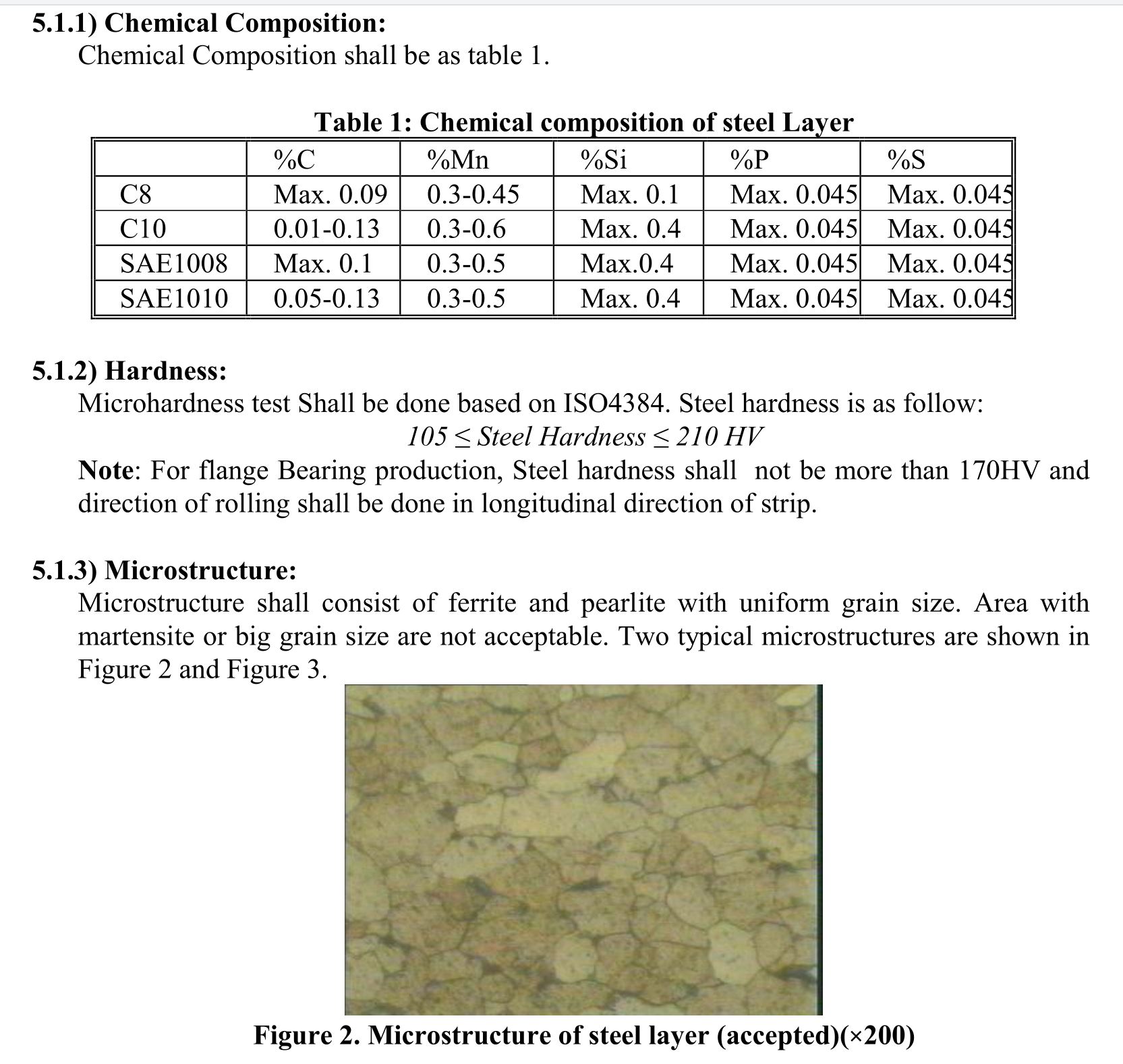

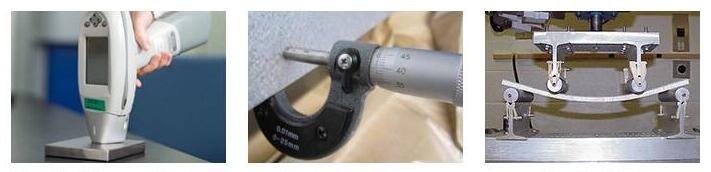

1. Experimental method



1.1. Chemical Analysis

First remove about 0.1mm of the sample from the surface layer, and then scrape off the wear-resistant layer, but the scraping depth should not exceed 60% of the thickness of the aluminum alloy. Chemical analysis of scraped alloys where steel, iron and

Manganese element is carried out according to GB6987-86. The "Chemical Analysis Methods of Aluminum and Aluminum Alloys" stipulates that other elements shall be stipulated by agreement between the supplier and the buyer.

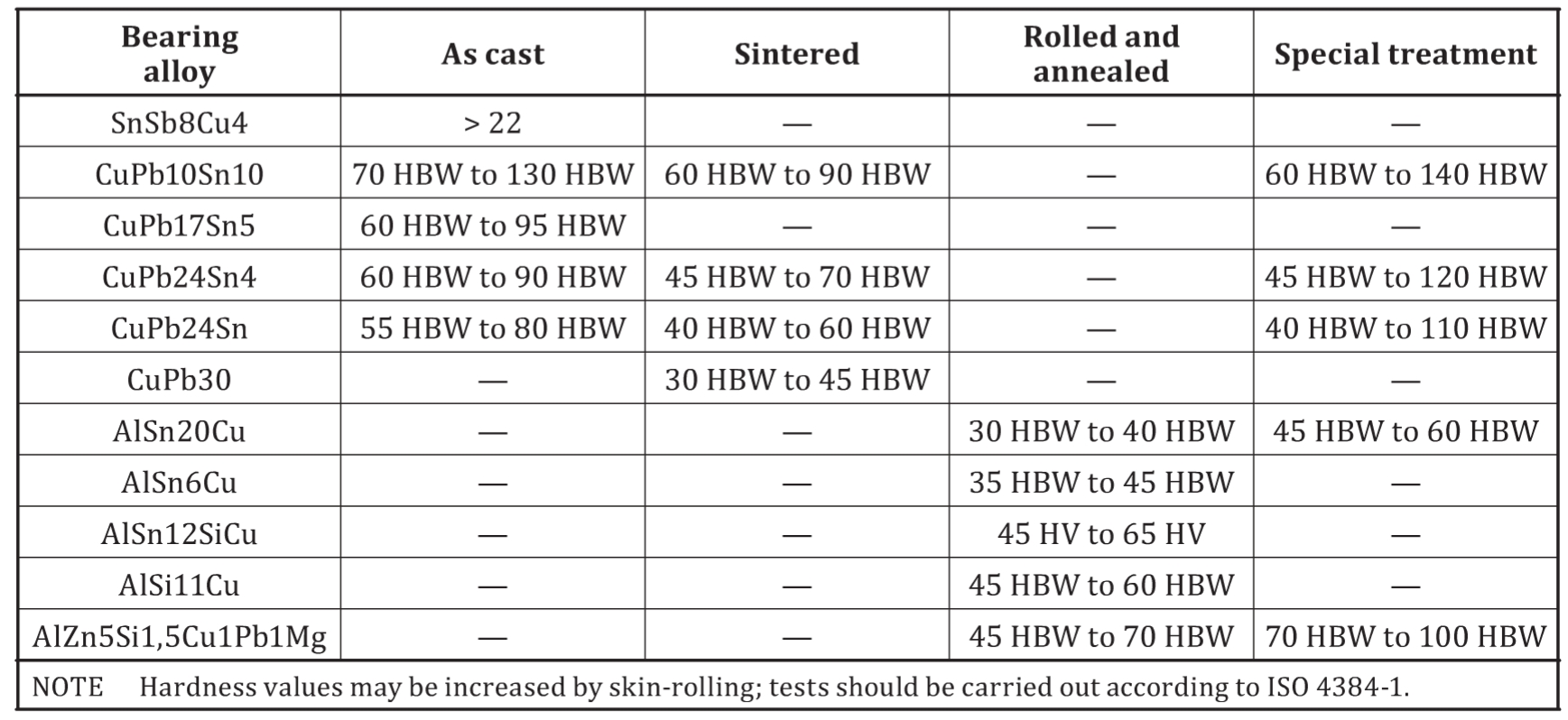

1.2. Hardness test method

First remove the sample about 0.1mm from the surface layer, and then measure the hardness of the wear-resistant layer. Three-point measurement per piece (the distance between any two points is greater than 20mm), arithmetic

The average value of the three-point hardness is the hardness value of the test piece, and the test conditions are shown in Table 6.





table 6

Material

material thickness

mm

Test Conditions

test temperature

AlSn20Cu

alloy

0.4-1.0

HBI/5/30

18-24°C

>1.0

HB2.5/31.25/30

steel back



HBI/30/10





1.3. Bending test method

Cut the sheet into 15 mm wide test pieces in the direction of rolling. The specimen is first bent to 180° (bending radius equal to the total thickness), and then bent back. During the test, the aluminum alloy and the steel back were bent as an inner layer respectively,

The specimen is allowed to break, but the steel back and aluminum alloy must not be delaminated.
