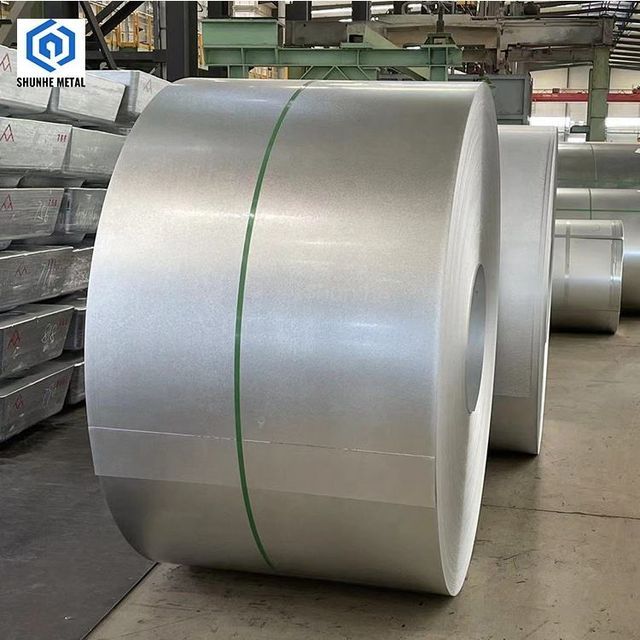

Coil Full Hard Zinc Coating GI Galvanized Steel GL Aluzinc Galvalume Steel Coil

Product Detail

grade:DX51D+AZ, DX52D+AZ, S250GD+AZ, S280GD+AZ, etc,aluzink/zincalumehardness:full hard
price:Please talk to our sales to get the latest costusage:Water heaters, home appliances, agriculture, construction
payment terms:L/C, Western Union, D/P, D/A, T/Ttolerant:±5%
width:900-2000mm (customized)length:According to customer requirements
Spangle type:minimal sequinsport:Qingdao, Tianjin, Guangzhou, Shanghai
brand:ShunheAdvantage:Stable supply, good reputation, fast delivery
delivery time:within 7 daysOrigin:Shandong China
pricing term:FOB CIF EXW CFR etc.Aluminum content:55%
Gold Zinc Coating:AZ30-275G/M2Certificate:CE, ISO9001
Supply capacity:15000 tons per monthProcessing services:Welding, punching, cutting, bending, decoiling
Packaging Details:3 layers, inner layer of kraft paper, middle waterproof plastic film, outer layer of steel plate clad with steel belt lock, inner roll sleeve.coating:AZ121-Z150
To oil or not to oil:lightly oiledCoil weight:3-5 tons
examine:third party testingtechnology:cold rolled or hot rolled
type:steel coilapplication:Make pipes, cut sheets, make gadgets, make corrugated sheets, make containers, make fences
standard:JIS ASTM GB DIN EN bsthickness:0.14-5.0mm etc.
surface:chromate

Recommended Products

Popular Picks

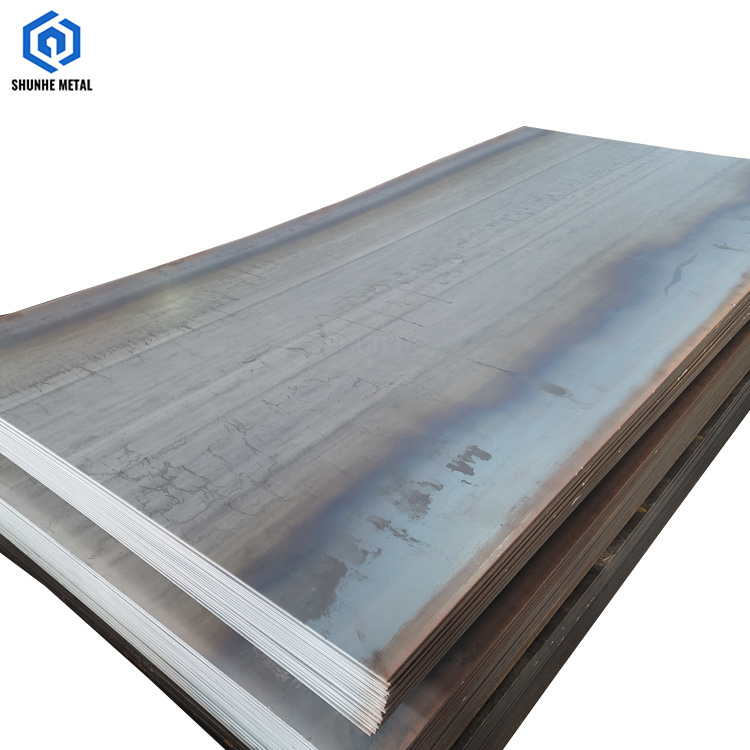

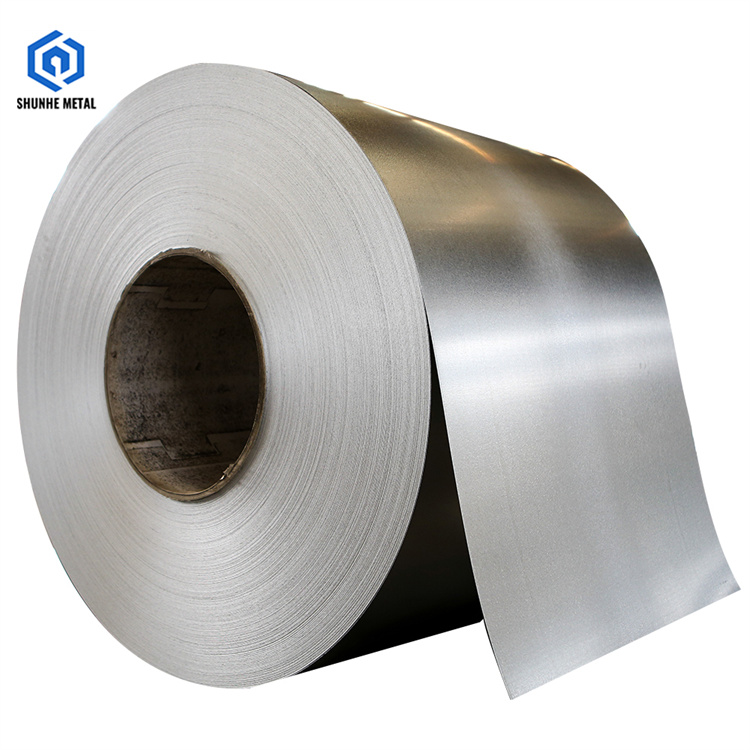

Sequinless galvanized steel coil Galvanized steel coil with sequins Carbon hot rolled steel plate

NOTE: If you are looking forGalvanized/carbon steel series products, Welcome toClick on the picture aboveMore information.The following content is the product introduction of galvanized sheet/sheet/coil.

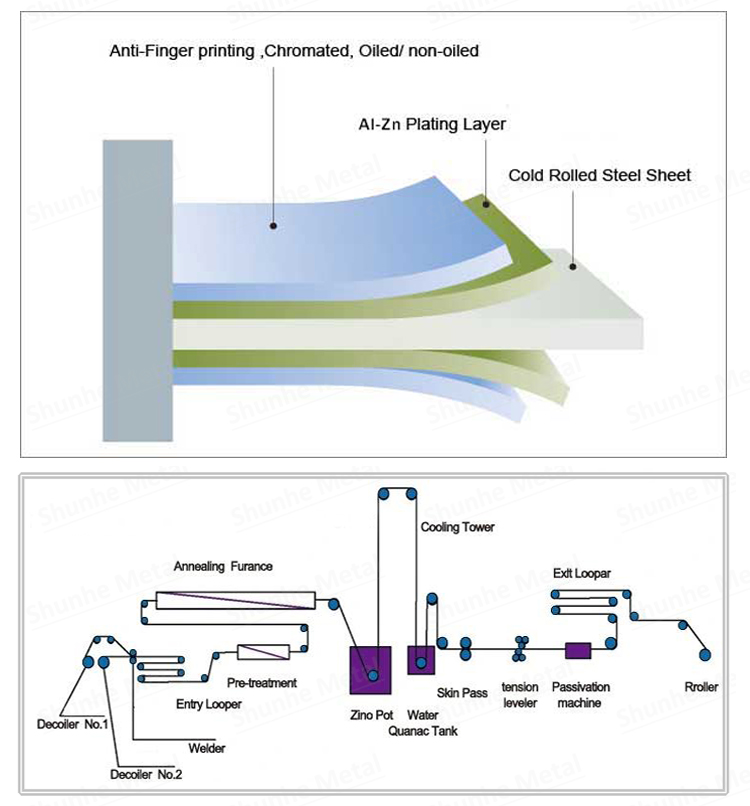

Hot-dip Galvalume steel is carbon steel coated with an aluminum-zinc alloy using a continuous hot-dip process, combining the corrosion and high temperature resistance of aluminum with the formability and protection of zinc. The coating composition consisted of 55% aluminum, 43.4% zinc and 1.6% silicon, respectively, by weight.



standard astm a526 a528 a444, a653, jis g3302, en10142 en1012, etc.
grade DX51D+AZ,DX52D+AZ, S250GD+AZ, S280GD+AZ, S320GD+AZ, etc.
thickness 0.14-2.0mm (customized)
width 900-1250mm (customized)
length According to customer requirements
Coil inner diameter 508mm/610mm (customized)
Galvanized layer 30-275 g/m²
raw material Cold rolled base. (Hot rolled base also available)
technology hot soak. (electricity is also available)
Coil weight 3-8 tons
tolerant Thickness +- 0.02 or +- 0.04, width +- 5mm
surface treatment Chromate/Non-Chromate, Oiled/Unoiled, Fingerprint Resistant
certified CE, ISO9001-2008, SGS
monthly output 17000 tons
Package 3 floors. Outer kraft paper + middle waterproof plastic film + outer steel plate
port of landing Qingdao/Shanghai/Tianjin Port
payment terms T/T, L/C, Western Union, etc.
delivery time It takes about 10 days for stock items, and it takes 15-25 days if the items need to be customized
MOQ as customer demand. Reminder: More quantity can greatly reduce your purchasing cost
examine third party testing
Cooperation brand Angang, Baotou, Jiangsu Shagang, etc.



grade Yield strength (MPA) Tensile strength (MPA) Elongation%
DX51D+AZ ~ 270-500 >=22
DX52D+AZ 140-300 270-420 >=26
DX53D+AZ 140-260 270-380 >=30
DX54D+AZ 140-220 270-350 >=36
S250GD+AZ >=250 >=330 >=19
S280GD+AZ >=280 >=360 >=18
S320GD+AZ >=320 >=390 >=17
S350GD+AZ >=350 >=420 >=16
S550GD+AZ >=550 ~ ~









Galvalume steel coils are used in a wide variety of industries.

* Construction: roofs, walls, garages, soundproof walls, pipes and modular houses, etc.
* Automobile: mufflers, exhaust pipes, wiper accessories, fuel tanks, truck boxes, etc.
*Household appliances: refrigerator back panel, gas stove, air conditioner, electronic microwave oven, LCD display frame, CRT explosion-proof belt, LED backlight, electrical cabinet, etc.

Agricultural use: pig house, chicken house, granary, greenhouse pipe, etc.
*Others: insulation cover, heat exchanger, dryer, water heater, etc.

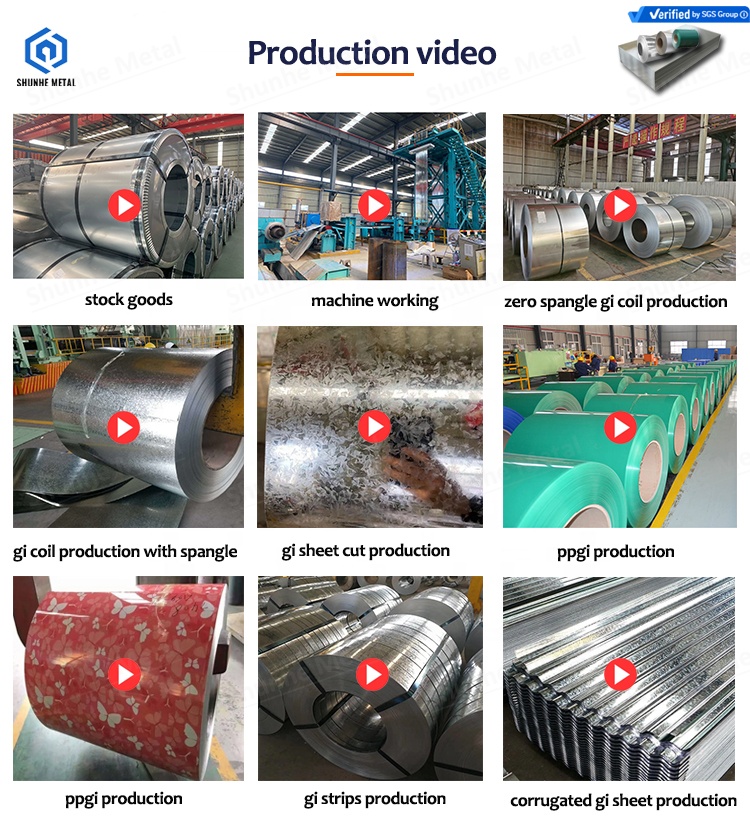

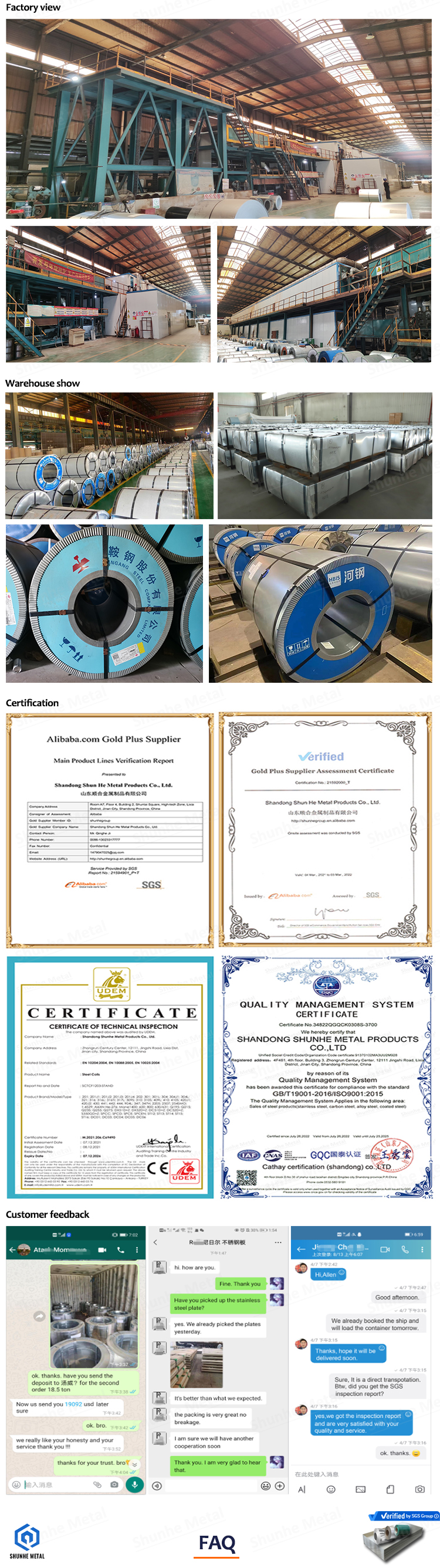

With an annual output of 150,000 tons of galvanized steel production line, the most advancedAmerican GBNB and German Siemens electronic control system.Thickness from 0.14 mm to 1.5 mm, width from 900 mm to 1250 mm, zinc coating 30 - 275 g/m2, both passivated and oiledimplement. In addition, the company introduced a slitting machine, which can meet the different needs of customersWidth requirements. and two roll forming machines for the production of corrugated roof panels andTrapezoidal corrugated board.

















Shandong Shunhe Metal Products Co., Ltd. It is a company integrating industry and trade. our warehouseThe stainless steel warehouse is located in Wuxi City, Jiangsu Province, and the galvanized or galvanized steel warehouse is located inBinzhou City, Shandong ProvinceThe sales department is located in Jinan City, Shandong Province. Our main productsIs stainless steel sheet/sheet/coil/pipe/strip, galvanizedor galvalume steel plate/coil/strip/pipe,ppgi or ppgl,Ripple gi/gl orppgi ppgl Sheet, hot-rolled coil.Currently our products are sold at least in Uzbekistan, Russia, Korea, Philippines, Vietnam, Malaysia, Indonesia, United Arab Emirates, Serbia, Greece,There are 20-25 majors in Kenya, Canada, the United States, Mexico, etc.Sales staff who can process your order quicklyHelp you professionally solve international trade problems. Samples can be provided for free before mass production, we alsoAccept third-party inspection. Our management has more than 10 years of experienceIn the steel industry, if you areLook for steel products of Rizhao Steel, Shougang, Angang and other famous brands, we can also supply for you.Welcome to visit us, win-win cooperation!

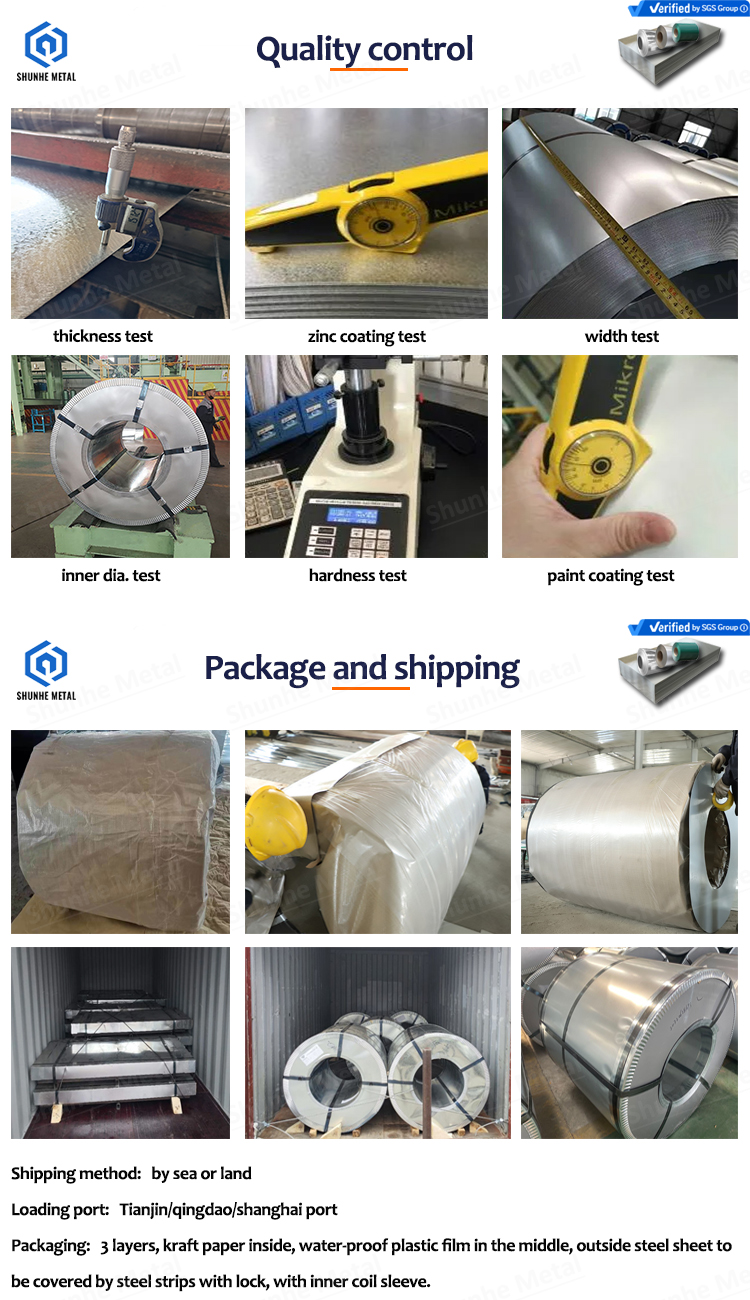

Q: How about your product quality?
We can provide original factory test certificate, QC will check or test width, thickness, color,

Galvanizing, surface treatment, etc. according to the factory management system. The third party can inspect the goods according to customer requirements.



Q: Once you find that the product received by the customer does not match the product or the contract, what will you do?
We will compensate customers for all losses without hesitation.



Q: How long is your delivery time?
It generally takes 10 days if the goods are in stock, and 25 days if the goods need to be customized.



Q: What's your payment terms?
Generally it is 30% advance payment, 70% balance against copy of B/L, or 100% L/C at sight.
