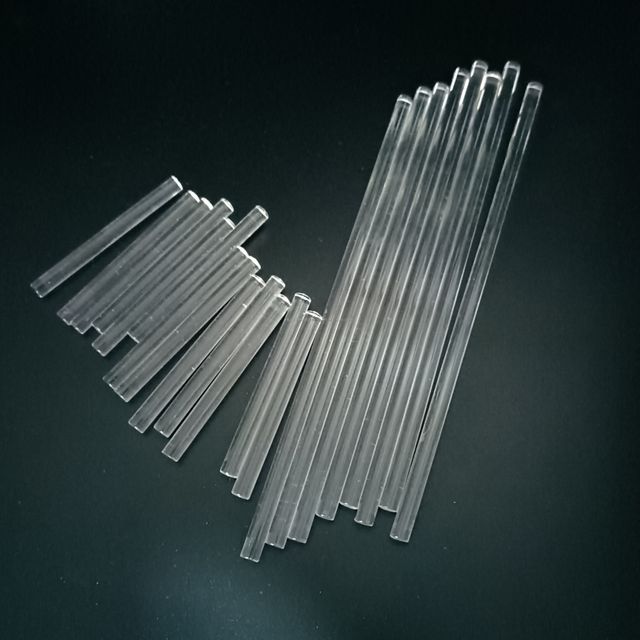

High Purity Cylindrical Clear Crystal Quartz Rod Custom Size Quartz Glass Rod
-
$10.00 / 1 - 99 pieces
$8.00 / 100 - 999 pieces
$5.00 / 1000 - 9999 pieces
$1.00 / >=10000 pieces - 1 piece
- Lianyungang Southeast Quartz Products Co., Ltd.
- Jiangsu, China
- Ms Karen Sun
Product Detail
Supply capacity: | 100000pcs crystal quartz rod per month | Package preview: | |
Processing services: | Bending, welding, punching, decoiling, cutting, forming | Silica composition: | 99.993% |
Transmittance: | 93% | application: | optical application |
product name: | Crystal Quartz Rod | port: | Shanghai |
size: | custom size | model: | Crystal Quartz Rod |
Origin: | Jiangsu, China | color: | clear and transparent |
type: | Transparent Quartz Rod | Packaging Details: | Carton + wooden box |
Processing: | accept | Operating temperature: | 1100 |
brand: | southeast | Softening Point: | 1680 degrees |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Material: | 99.99% Pure Quartz |
MOQ: | 1 | Outer diameter: | 1.50-80mm |
Ellipticity: | 0.1 | pack: | wooden box |
density: | 2.2 g/cm3 |
Product Description
product performance
Material properties of transparent quartz glass:
high durability
good light transmittance
high heat resistance
Good electrical stability
high corrosion resistance
good thermal conductivity
low coefficient of thermal expansion
Clean and environmentally friendly
Good electrical insulation properties
good light transmittance
high heat resistance
Good electrical stability
high corrosion resistance
good thermal conductivity
low coefficient of thermal expansion
Clean and environmentally friendly
Good electrical insulation properties
mechanical behavior | standard value |
density | 2.2 g/cm3 |
Compressive strength | 100Mpa |
Young's modulus | 7200Mpa |
modulus of rigidity | 3100Mpa |
Moh's hardness | 5.5~6.5 |
conversion point | 1280°C |
Softening Point | 1780°C |
Annealing point | 1250°C |
Specific heat (20~350℃) | 670J/kg.℃ |
Thermal conductivity (20℃) | 1.4W/m.℃ |
Refractive index | 1.4585 |
heat treatment temperature | 1750~2050℃ |
short-term use temperature | 1300°C |
Long-term use temperature | 1100°C |
Material | Silica (Natural Quartz) |
surface | no bubbles, no process |
tension | 1270℃ Fused Silica Glass Brick |
parts per million | Controlled 10/20/100 PPM |
thickness | 0.5mm~40mm |
VIEW MORE
