Guangmin EDM wire cutting machine 0.1mm 0.18mm 0.2mm 0.3mm pure molybdenum wire

Product Detail

surface:polishingOrigin:Jiangsu, China
Supply capacity:100000 pieces per monthtensile strength:≥2000N/mm2
model:0.1/0.18/0.2/0.3MMbrand:JDC
Length Tolerance:0~(+0.06)length:1200~2000 meters
Material:Tungsten carbide WC+Coproduct name:0.18 mm molybdenum wire
aspect:custom madeMo:≥99.5%
application:Wire cuttingpayment terms:L/C, Western Union, D/A, T/T, MoneyGram
Diameter Tolerance:±2%
Product Description
product information
Product name: Wholesale 0.18mm EDM molybdenum wire
Standard: ASTM B387
Material: Molybdenum
Purity: 99.95%
Density: >10.2g/cc
application:
Molybdenum wire is resistant to high temperature and corrosion, and is used as heating material for high-temperature resistance furnaces, heating elements, automobiles, aerospace, and wire cutting machines; molybdenum wire has good electrical conductivity, and can also be used for electronic tube sockets, filament holders for incandescent lamps, and halogen lamps , Discharge tube sealing material, lead wire, tungsten mandrel, grid, etc. Molybdenum wire also has some other common uses, such as cathodes, spraying materials.
Specification:
Our molybdenum wire is produced by drawing molybdenum rods to various diameters after pass rolling and swaging to about 3mm. The advantages of our molybdenum wire are good stability, good tensile strength, high cutting precision and low elongation. Our factory can provide various molybdenum wires with diameters between 0.18~3.0mm, and we can also provide customized products according to your requirements. We supply 2,000 to 3,000 kg of pure molybdenum wire products per month. Standard availability is described below. Other dimensions and tolerances are available.
Molybdenum wire type
diameter (inches)
tolerance
Molybdenum wire for EDM
0.007"~0.01"
±3% weight
Spray molybdenum wire
1/16"~1/8"
±1%~±3%wt
Molybdenum wire
0.002"~0.08"
±3% weight
Molybdenum wire (clean)
0.006"~0.06"
±3% weight
Dimensions and Tolerances:
Wire diameter is usually expressed in inches or mils (thousandths of an inch). For fine wire from 0.001 inch to 0.020 inch, wire dimensions are measured in weight per unit length. That is, the weight of a 200mm long wire is expressed in mg. Standard diameter tolerance is ±3% of weight measurement. For mandrel applications, the tolerance is typically ±1%.
tensile strength:
The tensile strength of molybdenum wire is usually expressed in grams per milligram of weight for a length of 200 mm (or)
g/mg/200 mm. Normal values ​​range from 40 to 60 grams. Generally, as the tensile strength increases, the straightness of the wire decreases.
Straightness:
Straightness of wire is measured by cutting a 10-inch length of wire and placing it on a flat, clean surface. The maximum deviation from a straight line along its length is a quantitative measure of its straightness. In general, as straightness increases, tensile strength decreases.
Characteristics of cleaned molybdenum wire:
Name
Specific attributes
application
Electrolytic cleaning molybdenum wire
The aquadag layer can be removed electrolytically.
Tungsten coil mandrel
Molybdenum wire cleaned in a hydrogen atmosphere
The aquadag layer can be removed in a hydrogen atmosphere.
Stands for making various light bulbs

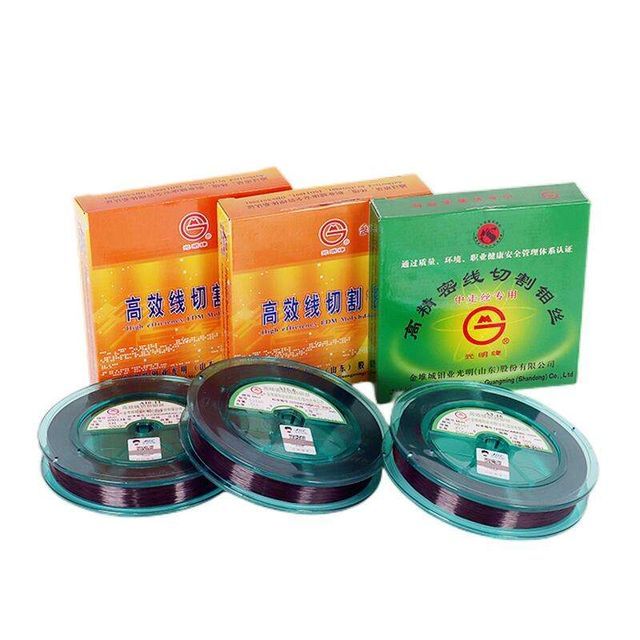

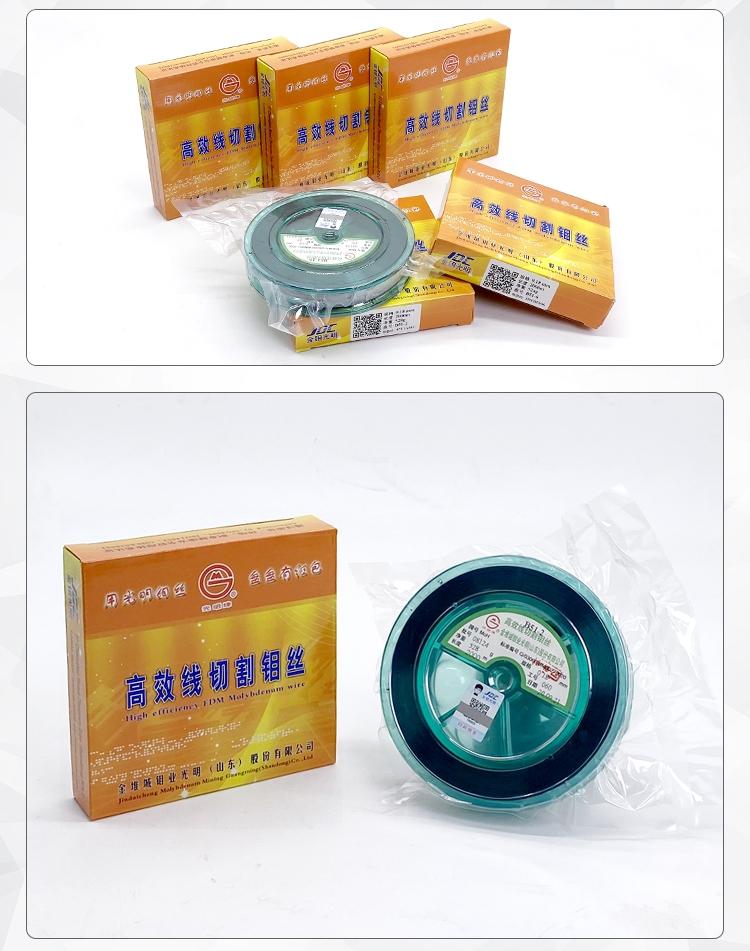

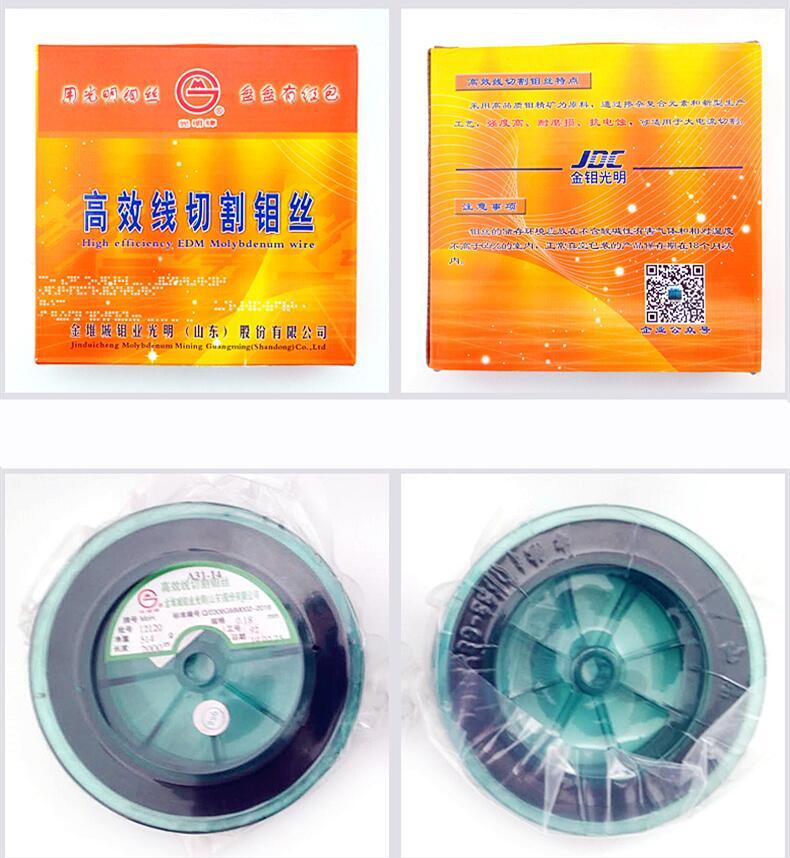

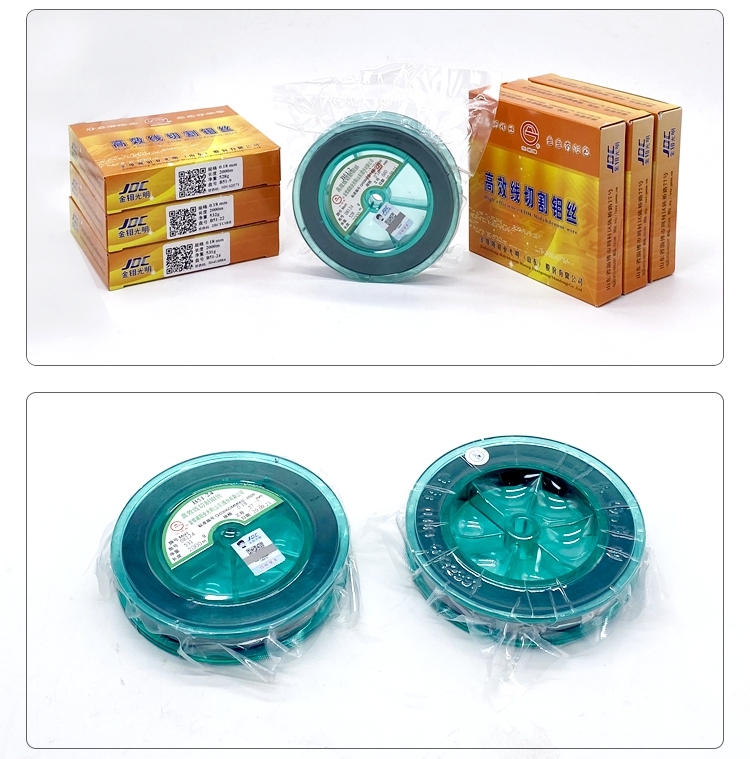

product display
