Polycarbonate Resin Price Makrolon PC 2807 Transparent Injection Grade Car Lamp Auto Parts PC Granules Resin Granules

Product Detail

delivery time:7-15 daysPackage preview:
payment terms:L/C, Western Union, D/P, D/A, T/Tapplication:Lamp auto parts

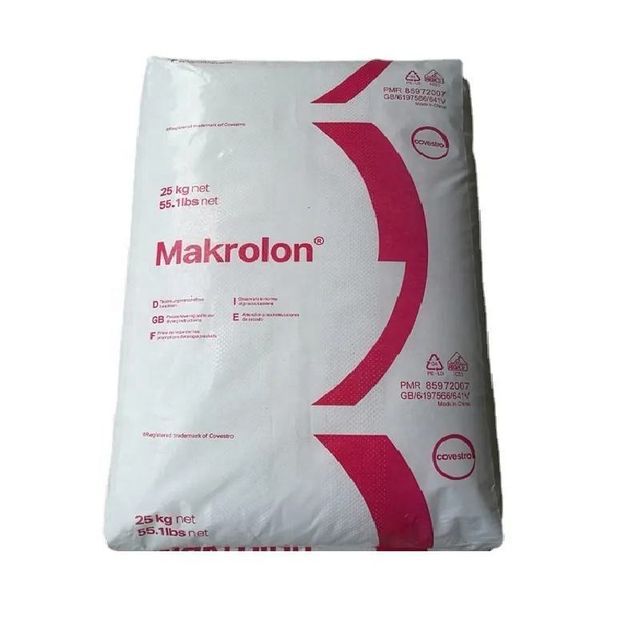

grade:Injection gradePackage:25kg/bag
brand:HongkeMOQ:1 kg
port:Tianjin Port, Qingdao Port, Shanghai Port, Ningbo PortMaterial:PC plastic raw material granules
color:clear and transparentsample:free of charge
model:Computer 2805, Computer 2807Supply capacity:1000 bags per day
Origin:Henan, Chinatype:Transparent effects
Product Description
PC particle characteristics:
Polycarbonate (PC) is a polymer containing carbonate groups in its molecular chain. According to the structure of ester groups, it can be divided into aliphatic, aromatic, aliphatic, aromatic and other types. Due to the low mechanical properties of aliphatic and aromatic polycarbonates, their application in the field of engineering plastics is limited. At present, only aromatic polycarbonate has been produced industrially. Due to the special structure of polycarbonate, it has become the fastest-growing general-purpose engineering plastic among the five engineering plastics. characteristic. PC has the characteristics of high transparency, high impact resistance, high hardness, high creep resistance, good dimensional stability, good low temperature and heat resistance, flame retardant, easy processing, and good sound insulation.

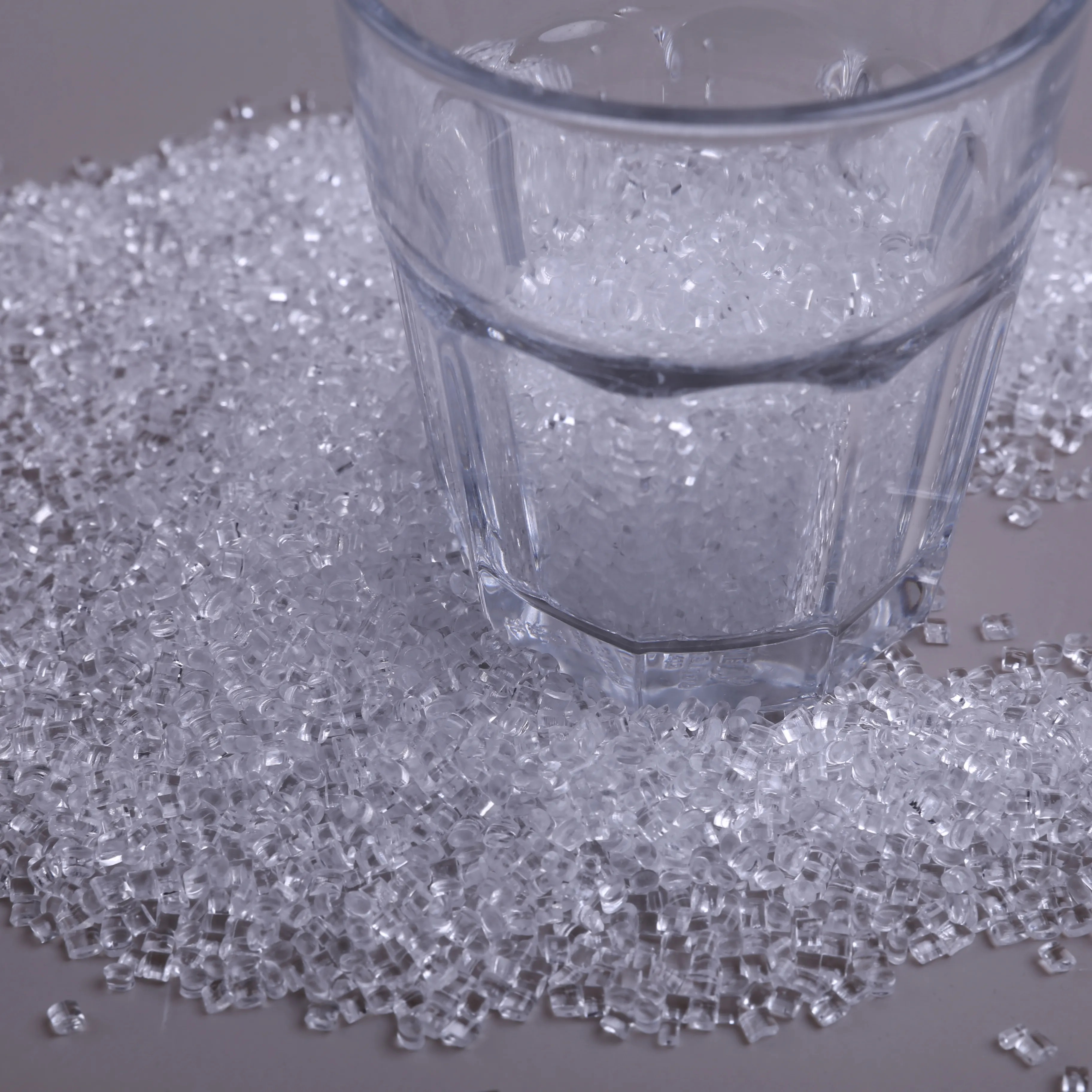

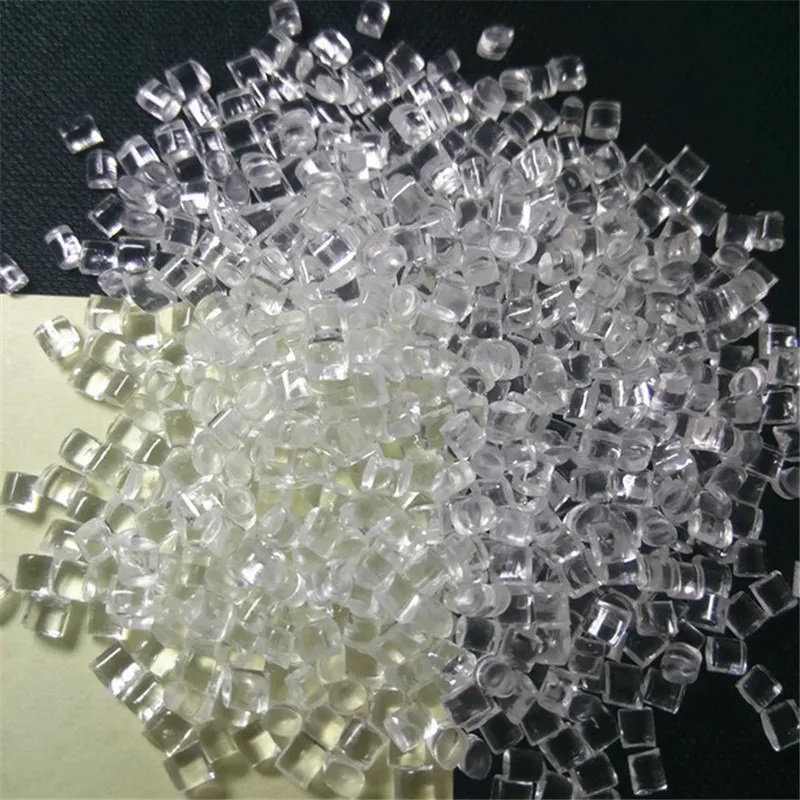

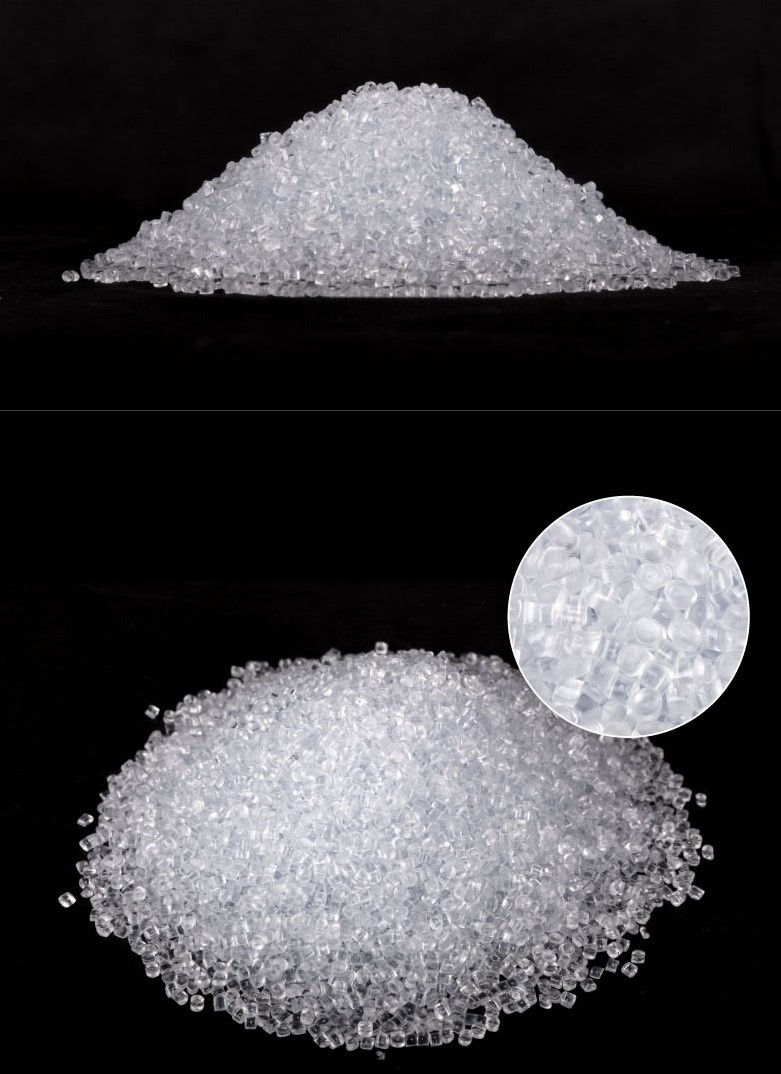

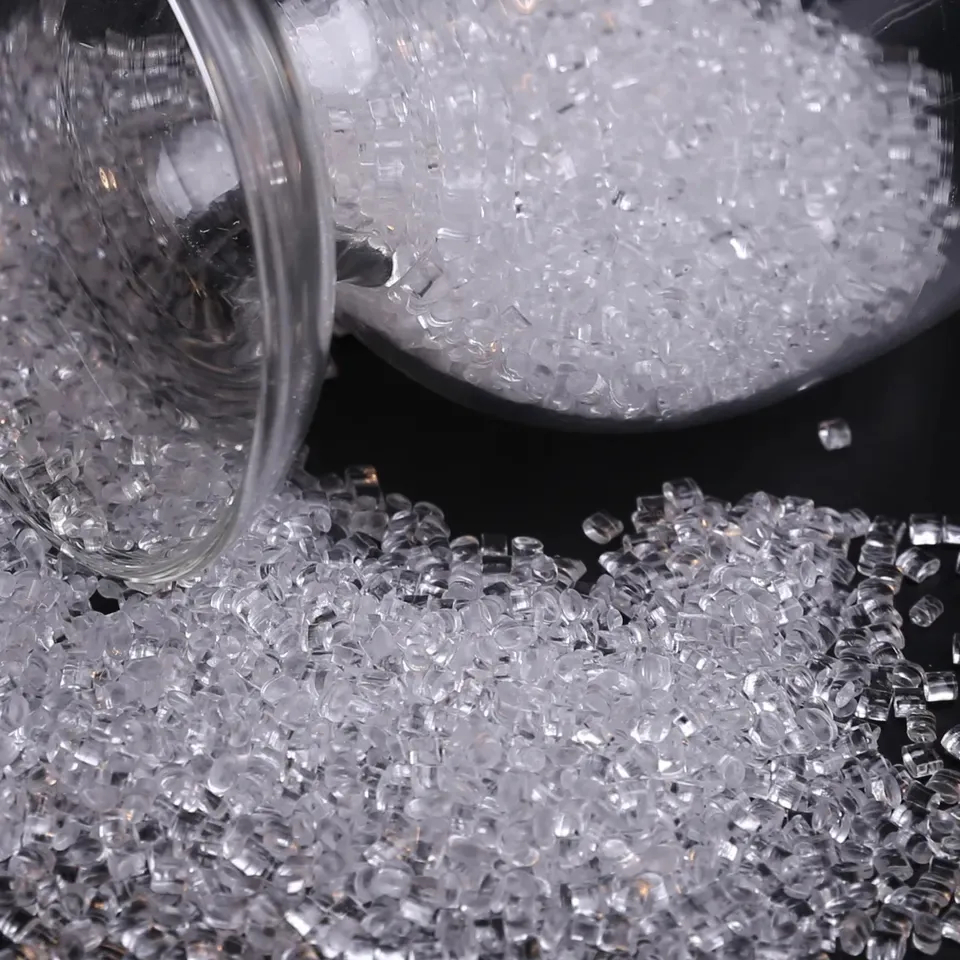

detailed drawing

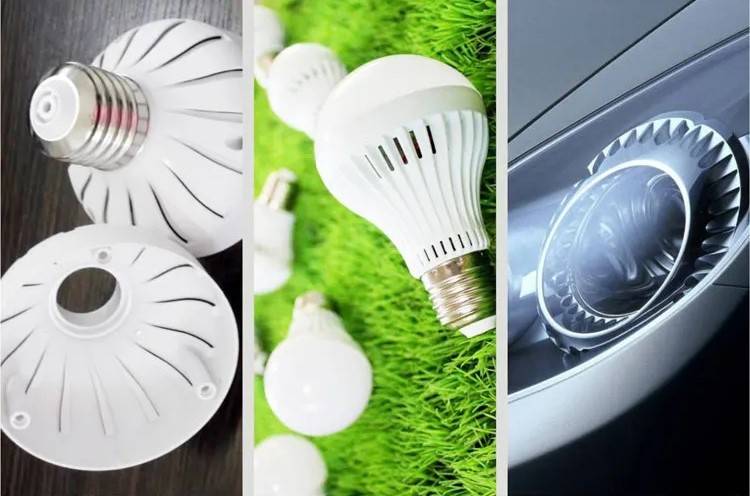

scope of application

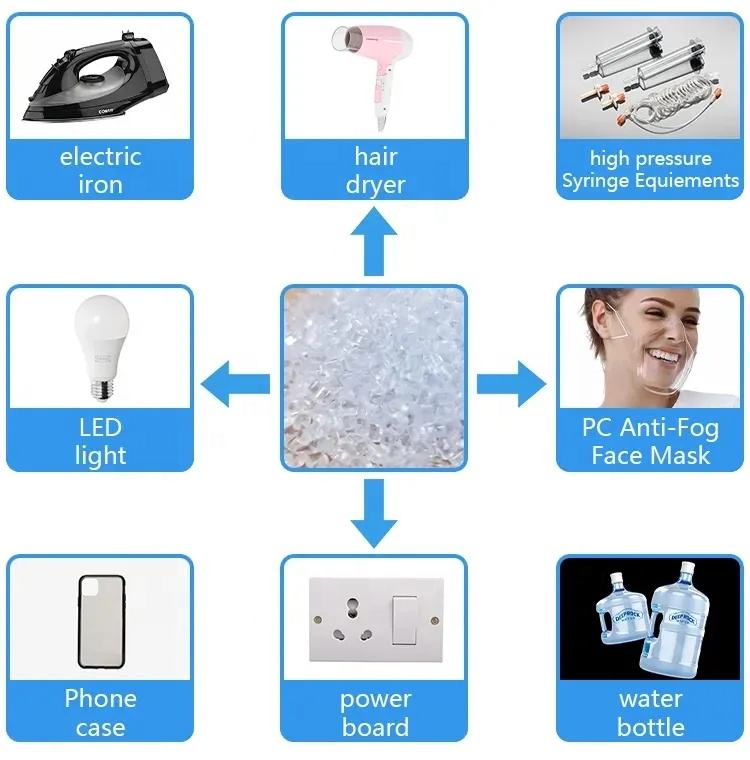

Applications
1. PC is made into large bulb cover, protective glass, and left and right eyepiece tubes of optical instruments. In addition, it uses transparent materials in the plane.
2. PC has good insulation, and can be made into insulating connectors, coil frames, tube holders, insulating sleeves, telephone shells and parts, and battery shells for miner's lamps. It is also used in the manufacture of precision parts for communication equipment such as CDROMs, telephones, computers, video recorders, telephone switches, and signal relays.
3. PC film is used in capacitors, insulating foreskins, tape recorders, and color video tapes. ETC
4. PC can be made into caps, tubes, bottles and dental instruments, drug containers and surgical instruments. It can even be used as artificial organs such as artificial kidneys and artificial lungs.
5. PC can be made into double-walled hollow rods and greenhouse glass. For the textile industry, PC is suitable for making bobbins and textile machine bearings. For everyday items, PC is a good material for making tableware, toys and models.
Physical property value condition
Density/Specific Gravity
1.20 g/cm3
23°C
ASTM D792
Melt mass flow rate, MFR
22 g/10 min
300℃, 1.2kg
ASTMD1238
Rockwell hardness, M scale
77
ASTM D785
Conditional Standards for Mechanical Property Values
Tensile Strength, Yield
61.6 MPa
6 mm/min
ASTM D638
Tensile elongation, break
110%
6 mm/min
ASTM D638
Bending strength
1.3mm/mm
ASTM D790
Notched Izod Impact
820 J/m
23°C 3.2mm
ASTM D256
Thermal performance value condition standard
Load deflection temperature, annealed
144°C
0.45 MPa 132 °C x 8 hours
ASTM D648
Flammability rating
V-2
0.38mm
UL94
UL94
Handling Property Value Conditions
drying temperature
120°C
drying time
4 hours
High Amp Arc Ignition, HAI
Programmable Logic Controller 0
UL746
High Voltage Arc Tracking Rate, HVTR
80.0-150mm/min
UL746
High Voltage Arc Tracking Rate, HVTR
Programmable controller 3
UL746
Hot Wire Ignition, HWI
30-60 seconds
UL746
Hot Wire Ignition, HWI
Programmable controller 2
thermal performance
value condition
HDT, not annealed
135°C
1.8MPa
ASTM D648
RTI Electronics
125°C
UL746
RTI import and export
115°C
UL746
RTI Strength
125°C
UL746
Flame rating
V-0
Handling Property Value Conditions
drying temperature
121°C
drying time
3.0 - 4.0 hours
