High quality 316 stainless steel angle steel price kg stainless steel angle steel

Product Detail

Processing services:Bending, welding, punching, decoiling, cutting, bending, cuttingbill:by actual weight
technology:hot rolledMaterial:Angle / Angle
grade:Q195-Q420 series, carbon fiberWhether alloy:Unalloyed
brand:AngangOrigin:Shandong Province, China
Supply capacity:50,000 tons per monthlength:6m-12m according to your request
model:Angle steelPackage preview:
product name:Hot rolled angle steelstandard:ASTM
application:architecturesurface:Low Carbon Steel Ordinary
delivery time:15-21 daysCertification:ISO9001
usage:building materials building materialstype:range
tolerant:±1%,±1%port:Tianjin
payment terms:L/C, T/TPackaging Details:Standard seaworthy export package or according to customer requirements.
Stainless steel angle steel/structure etc. Ss400-ss540 series black angle steel
Product parameters
product
Angle steel
grade
Q235B, Q345B, Q420B/C, Q460C, SS400/SS540, S235JR/S235J0/S235J2,
S275JR/S275J0/S275J2,S355JR/S355J0/S355J2
Specification
20*20--200*200mm
length
6m, 12m, large quantity can be customized
technology
hot rolled
application
Widely used in various building structures and engineering structures, such as beams, bridges, transmission towers, lifting
Transportation machinery, ships, industrial furnaces, reaction towers, container frames, etc.
payment terms
L/C, T/T or Western Union
thing
chemical composition%
Mechanical behavior
steel
C%
manganese%
%
phosphorus%
silicon%
Yield point
MPa
tensile strength
MPa
Elongation%
Q195
0.06-0.12
0.25-0.50
< 0.050
< 0.050
≤0.30
> 195
315-430
≥33
Q235
0.09-0.15
0.25-0.55
< 0.045
< 0.045
≤0.30
> 235
375-500
≥26
Q345
≤0.20
≤0.17
≤0.04
≤0.04
≤0.50
> 345
470-630
≥20

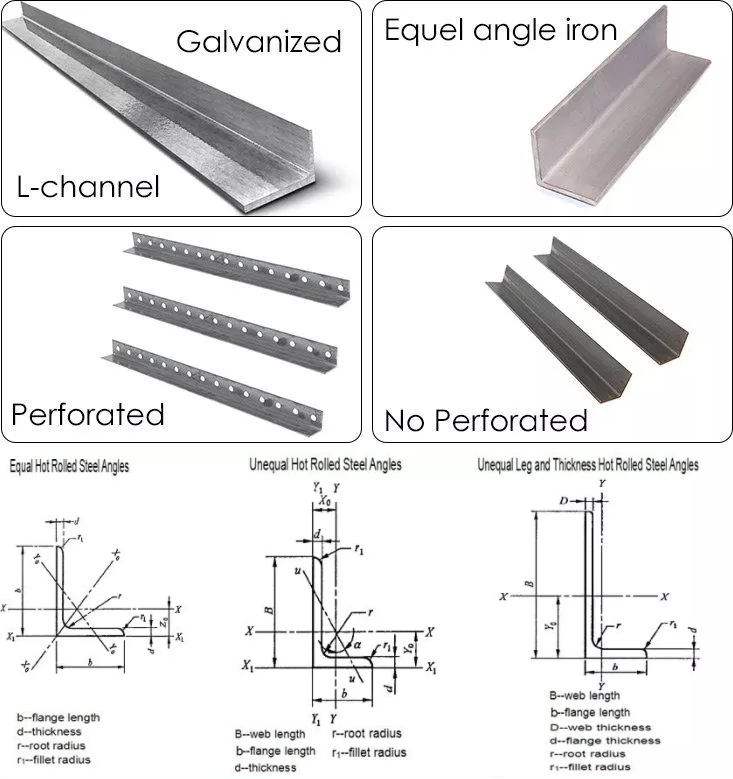

Angle steel, commonly known as angle steel in the industry, is a long strip of steel with right angles on both sides. The material is usually ordinary carbon structural steel and low alloy steel. Classification of angle steel: It is usually divided according to the different specifications of the two sides of the angle steel, and can be divided into equilateral angle steel and unequal angle steel. 1. Equilateral angle steel, angle steel with the same length on both sides. 2. Angle steel with unequal sides and angle steel with different side lengths. The unequal angle steel is also divided into unequal side and equal thickness angle steel and unequal side and unequal thickness angle steel according to the thickness of both sides.
The characteristics of angle steel

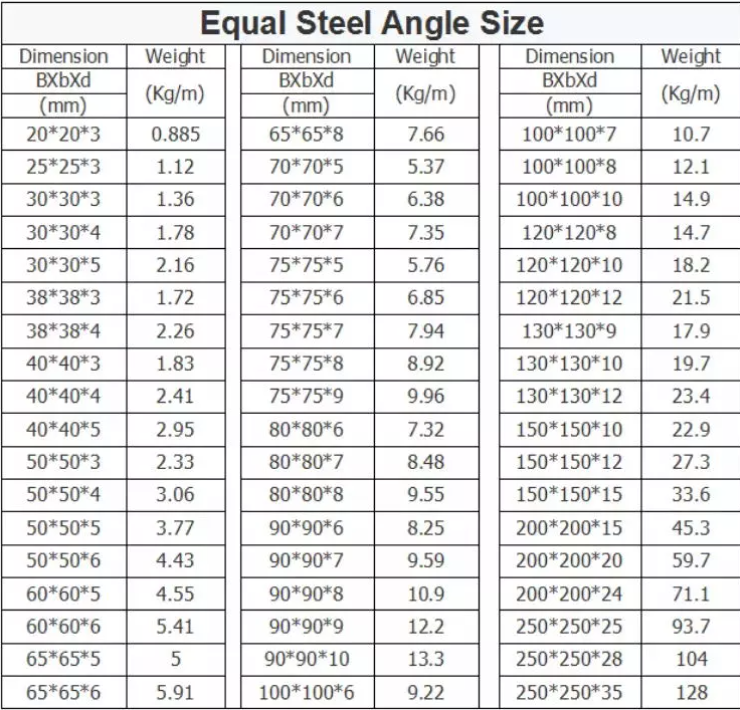

1. The corner structure makes it have good support strength. 2. Under the same support strength, the angle steel is lighter in weight, less consumables, and cost saving. 3. The construction is more flexible and takes up less space. Due to the high cost performance of angle steel, it is widely used in housing construction, bridges, tunnels, iron towers, ships, brackets, steel structures and other fields to support or fix structures. Angle steel specifications and models: usually expressed as "side length * side length * side thickness", for example, "50*36*3" means unequal angle steel with side lengths of 50mm and 36mm and thickness of 3mm. There are many specifications and models of equilateral angle steel, which can be selected according to the different needs of the project. Equilateral angle steel with a side length of 50mm and 63mm is mostly used. The formula for calculating the theoretical weight of angle steel: meter weight (kg) = (side length mm + side length - side thickness) * side thickness mm * 0.00785. Such as 63*63*5 angle steel, meter weight=(63+63-5)*5*0.00785=4.749kg

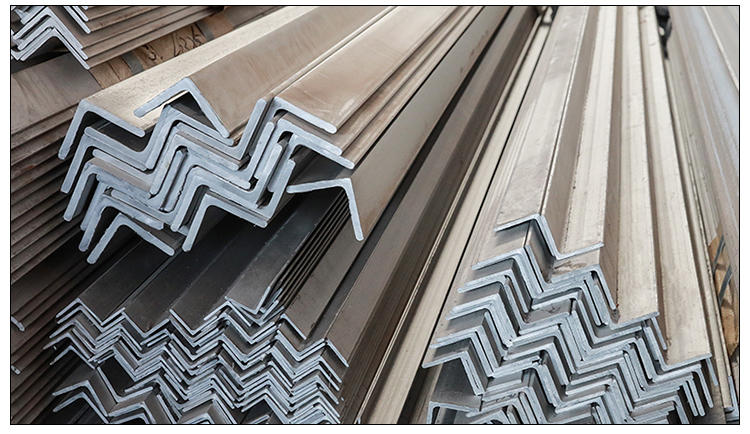

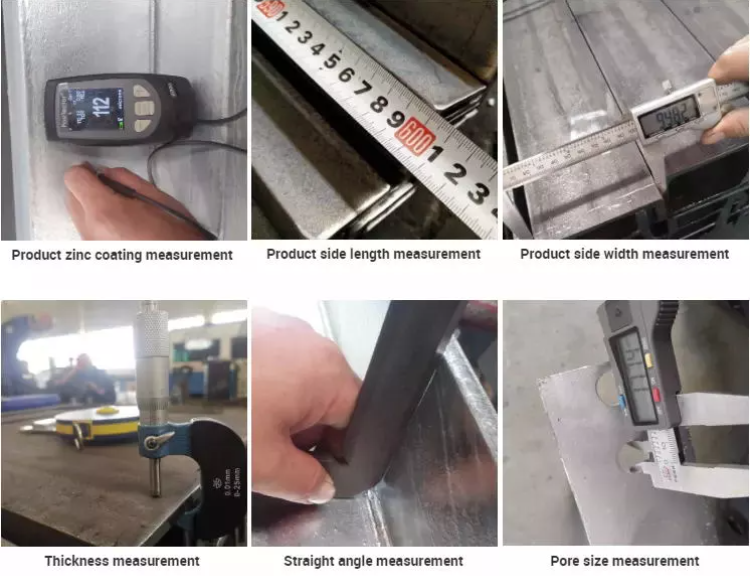

detailed picture

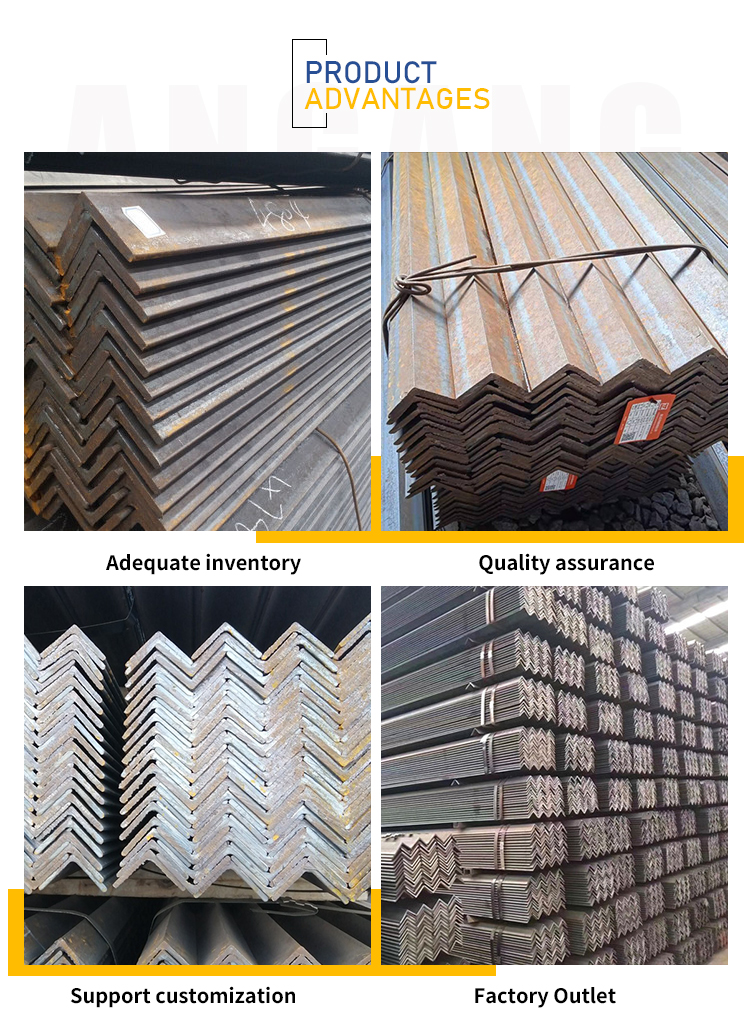

Our advantage
application:
