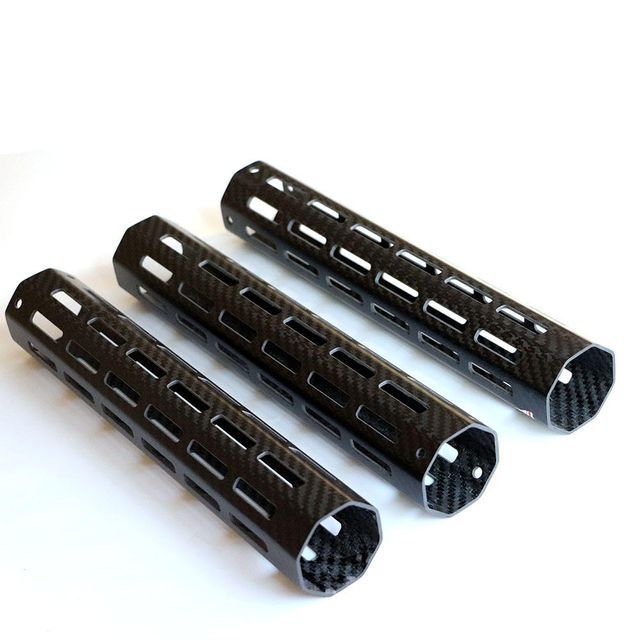

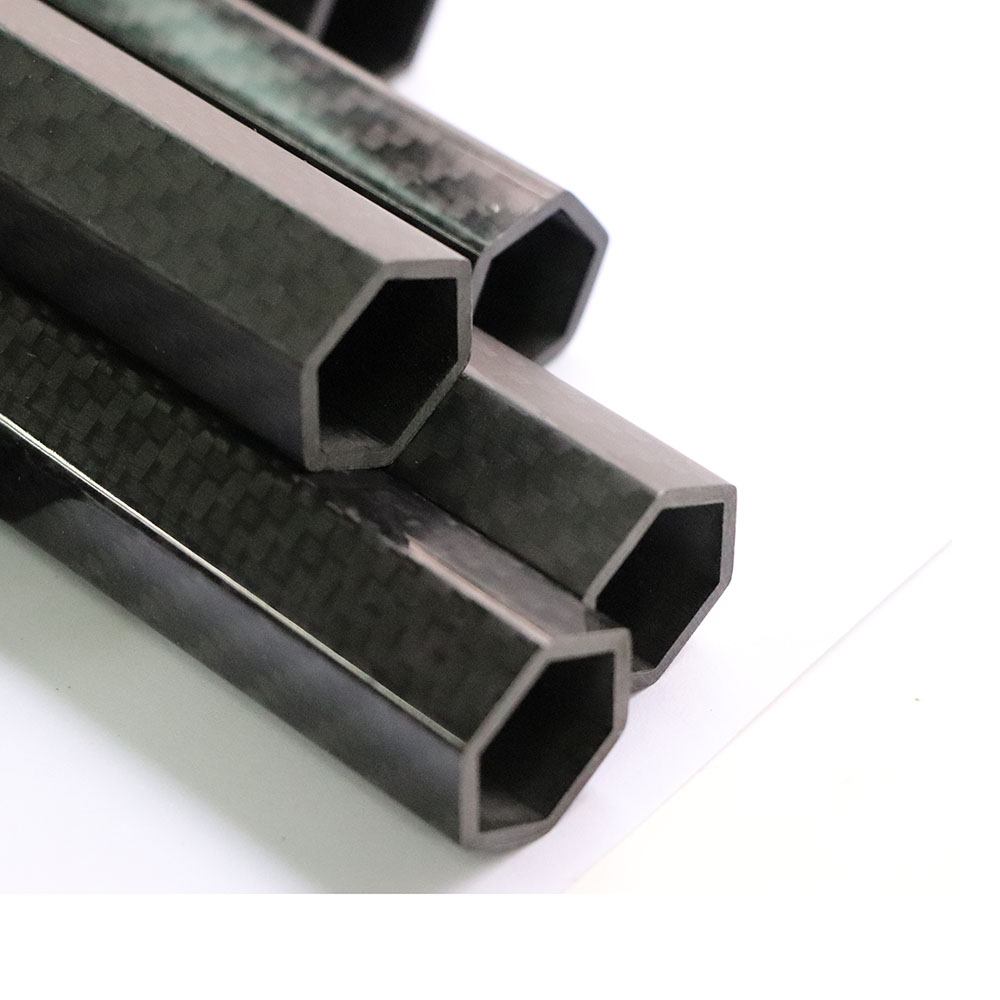

Octagonal Carbon Fiber Tube 3K Twill Matte Carbon Fiber Octagonal Tube

Product Detail

Volatile:Nocolor:Black
port:Shenzhen Hong Kongtechnology:winding
C content (%):100%Weave:3K twill/3K plain
surface:glossy/matte/50% glossythickness:1mm/1.5mm/2mm/2.5mm/3mm/or customized
Packaging Details:Usually by carton, sometimes by pallet or according to customer's requirement.size:customer made
application:otherbrand:Juli Technology
Ash content (%):001%Nitrogen content (%):0.6% max
S content (%):0.15%shape:carbon fiber tube
Product Category:carbon fiberSupply capacity:500 pieces per week
model:JuliOrigin:Guangdong, China
Material:Epoxy resin + carbon fiberproduct name:carbon fiber tube
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade AssuranceOperating temperature:200 degrees
H content (%):0.001%aspect:consumer demand
Product Description
High Quality Lightweight 100% 3k Gloss Twill Custom Size Carbon Fiber Tube 2000mm
Technical Data Sheet
Manufacturing method:
Round carbon fiber tube - coiled
Custom Shaped Carbon Fiber Tubes - Through Compression Molding Process
structure
Washington University
U= Unoriented prepreg
W= Woven Prepreg
raw material:
carbon fiber, epoxy resin
Diameter Range Outer Diameter
OD 6 mm to 300 mm
wall thickness
From 0.5mm to 20mm
length:
From 0.05m to 3.5m
color:
Black or any color of RAL;
Surface treatment:
matte and glossy
water absorption
< 1,5 w-%
density
1.5 g/cm3
fiber type
HS Carbon
HM Carbon
stiff
90-100 barometric pressure
120-180
Bending strength
>600MPa
>500 MPa
tensile strength
>650MPa
>550MPa
density
>1.5 g/cm3
>1.5 g/cm3

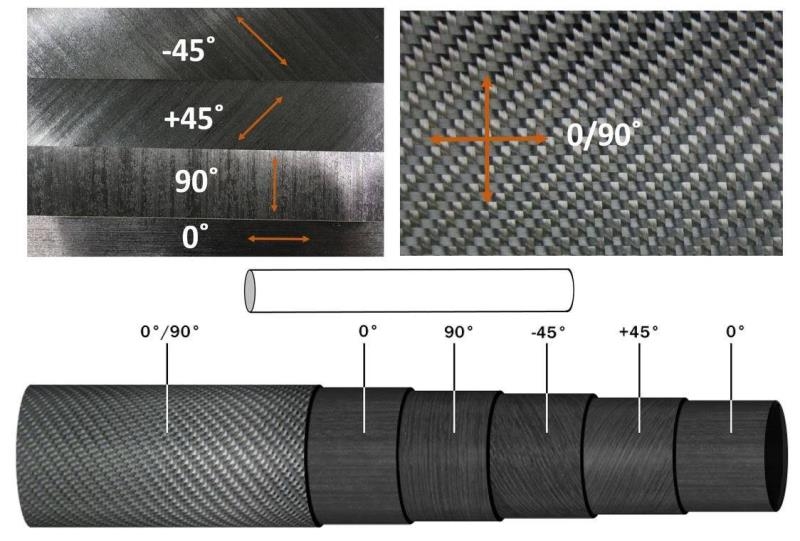

Structure of our carbon fiber tubes
The first three fiber orientations
0° direction
If the part is only loaded in one direction, it is ideal to have all fibers oriented in that direction. Pultruded rods and tubes are examples of parts that contain only 0° fibers
90° direction
As mentioned, 90° plies are often added to the tube to make it more resistant to buckling and crushing. High concentrations of 90° or "annular" layers can also be found in pressure vessels
+/- 45° orientation
The 45° layer has different uses depending on the application. You will almost always see +45° next to -45° layers. This is to keep the laminate "balanced" and avoid strong twisting when loaded.
Juli Composite Technology Round Carbon Fiber Tube Regular Size
serial number#
aspect
Weight/m
Material
Material category
Juli Technology #01
Ø 6mm x 4mm x 1 meter
23.55 g/m









3K carbon fiber + UD carbon fiber










T800
Juli Technology #02
Ø 8 mm x 6 mm x 1 m
32.97 g/m
Juli Technology #03
Ø 10mm x 8mm x 1m
42.39 g/m
Juli Technology #04
Ø 12mm x 10mm x 1m
51.81 g/m
Juli Technology #05
Ø 14mm x 12mm x 1m
61.23 g/m
Juli Technology #06
Ø 16mm x 14mm x 1 meter
70.65 g/m
Juli Technology #07
Ø 18mm x 16mm x 1 meter
80.07 g/m
Juli Technology #10
Ø20mm x 18mm x 1 meter
89.49 g/m
Juli Technology #11
Ø22mm x 20mm x 1 meter
98.91 g/m
Juli Technology #12
Ø25mm x 23mm x 1 meter
113.04 g/m
Juli Technology #13
Ø30mm x 27mm x 1 meter
201.35 g/m
Juli Technology #14
Ø30mm x 26mm x 1 meter
263.76 g/m
Juli Technology #15
Ø50mm x 46mm x 1 meter
452.16 g/m
Juli Technology #15
Ø51mm x 47mm x 1 meter
461.58/m
The maximum length we can make is 3.5 meters per piece and the largest tube we can make is 300mm OD

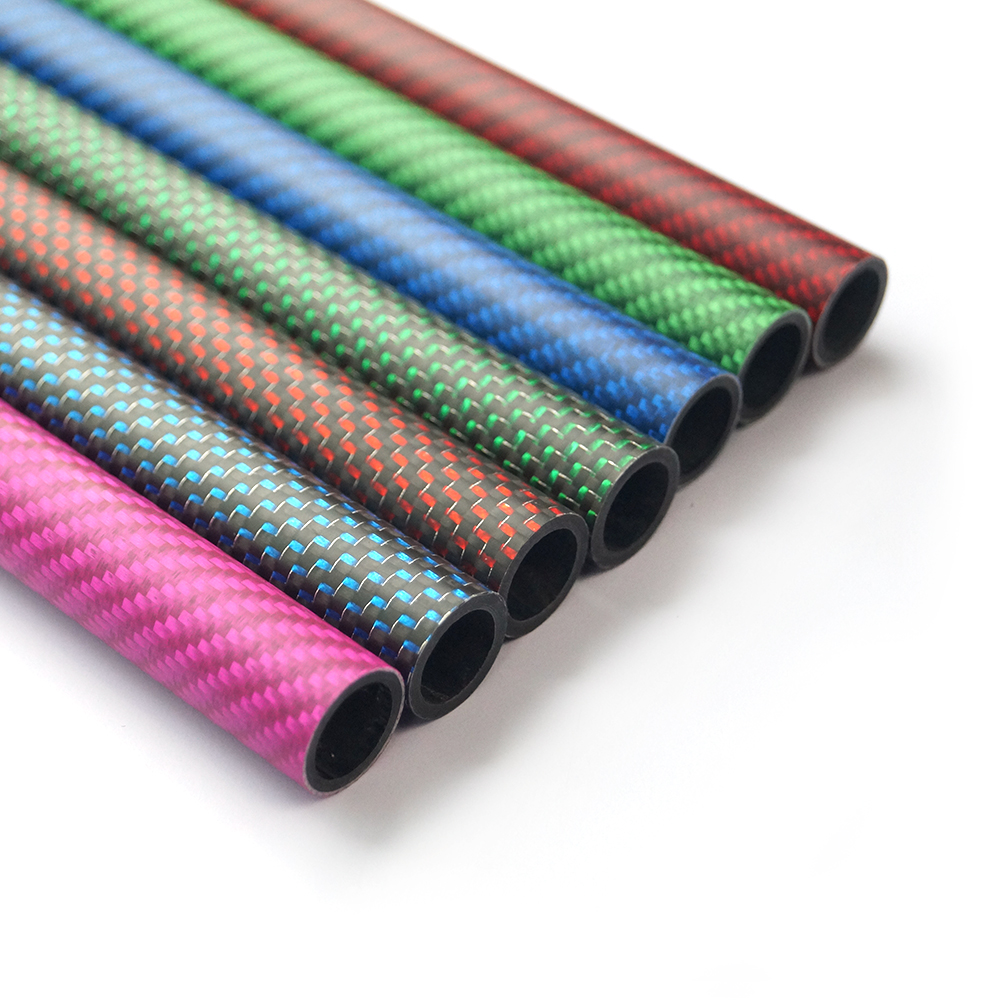

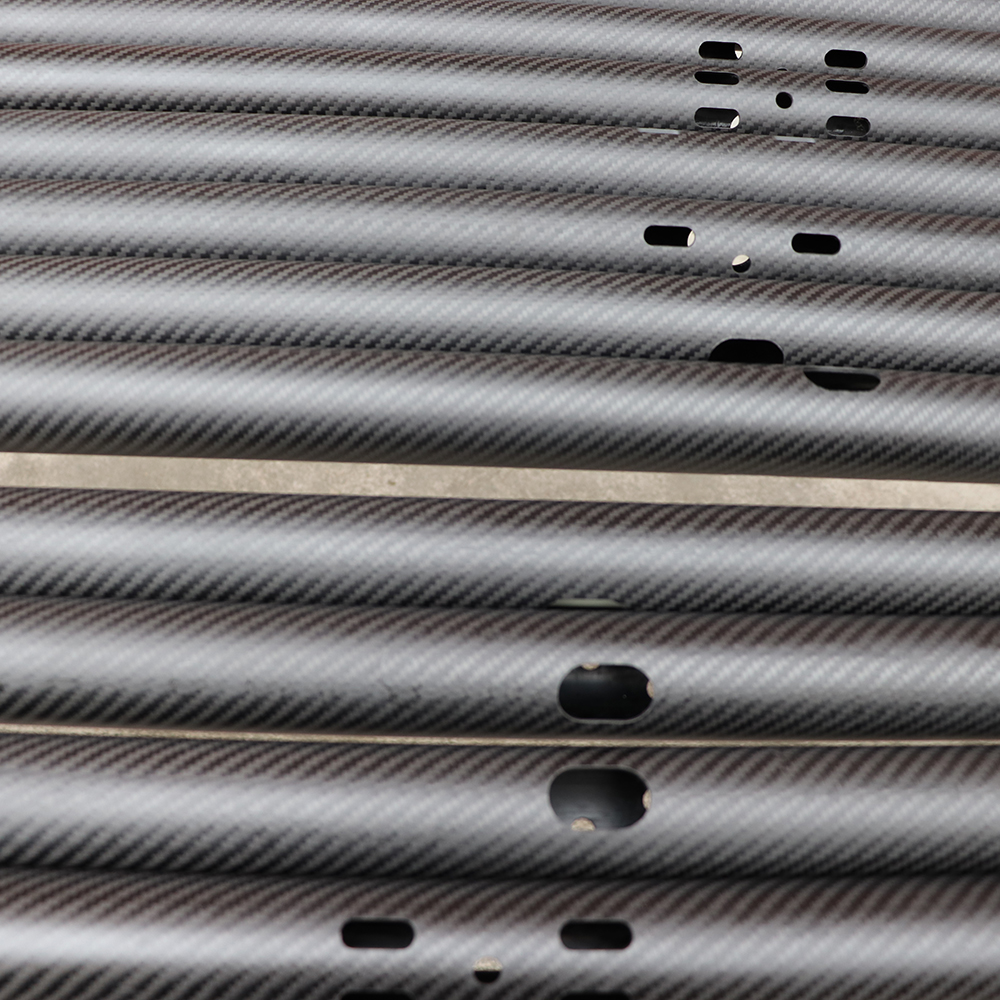

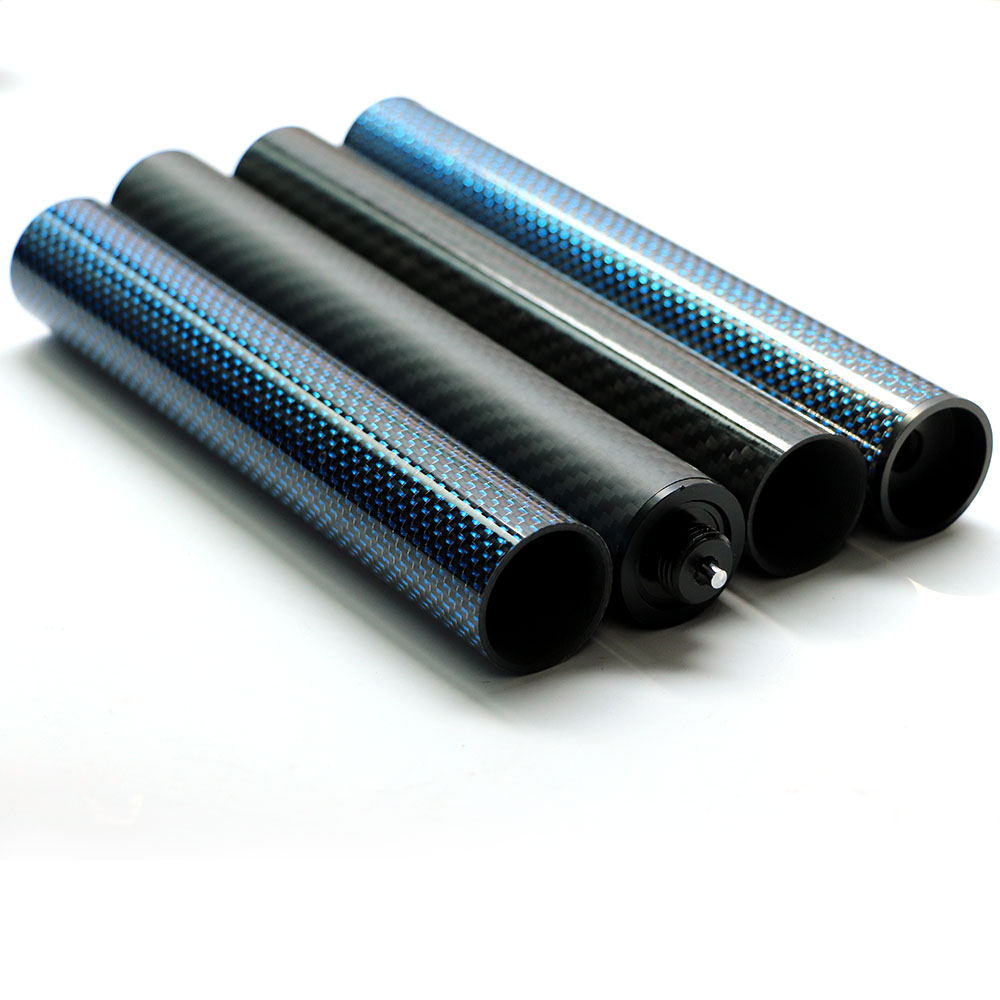

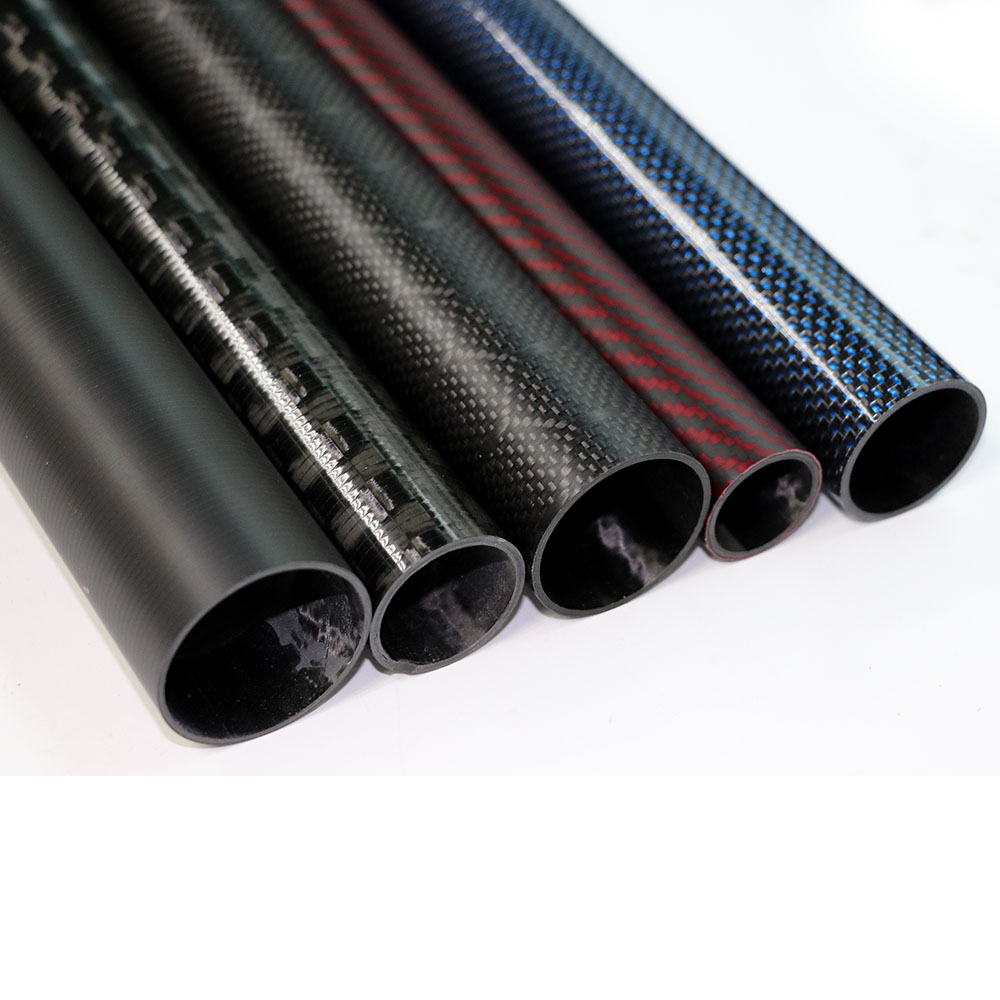

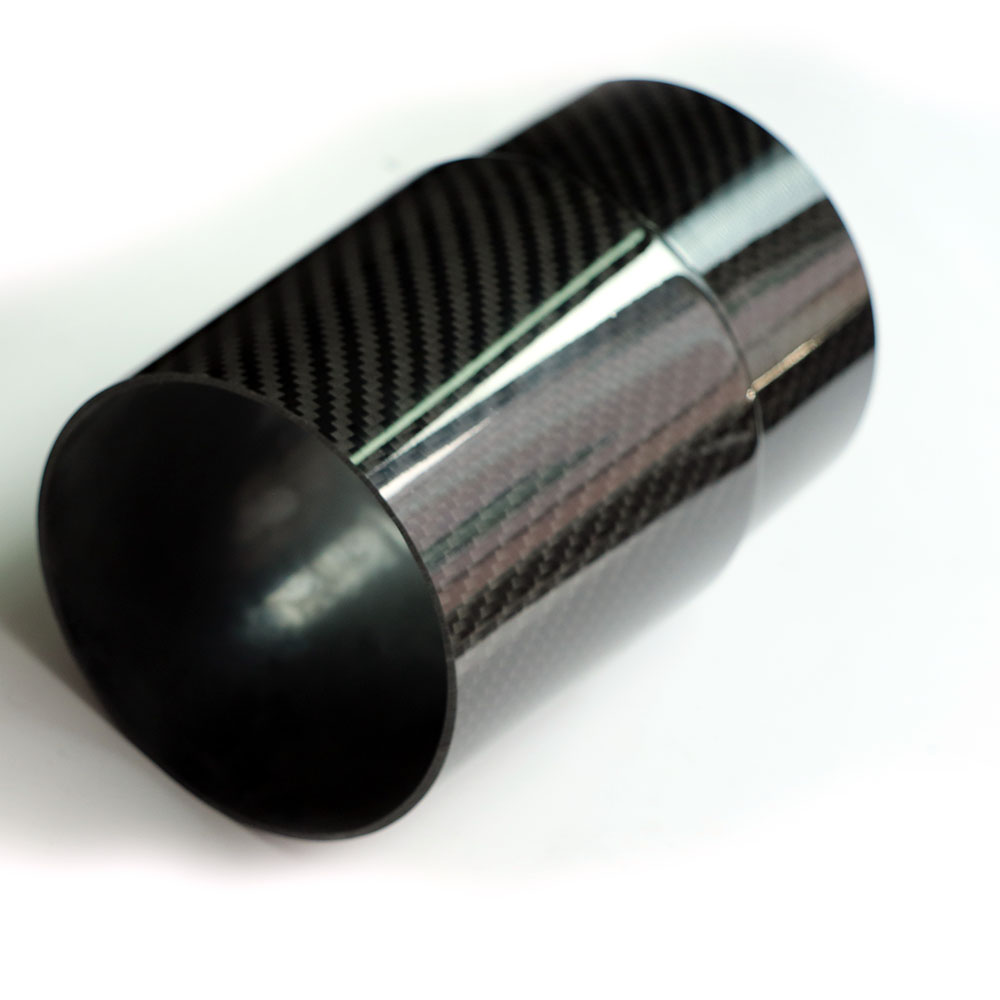

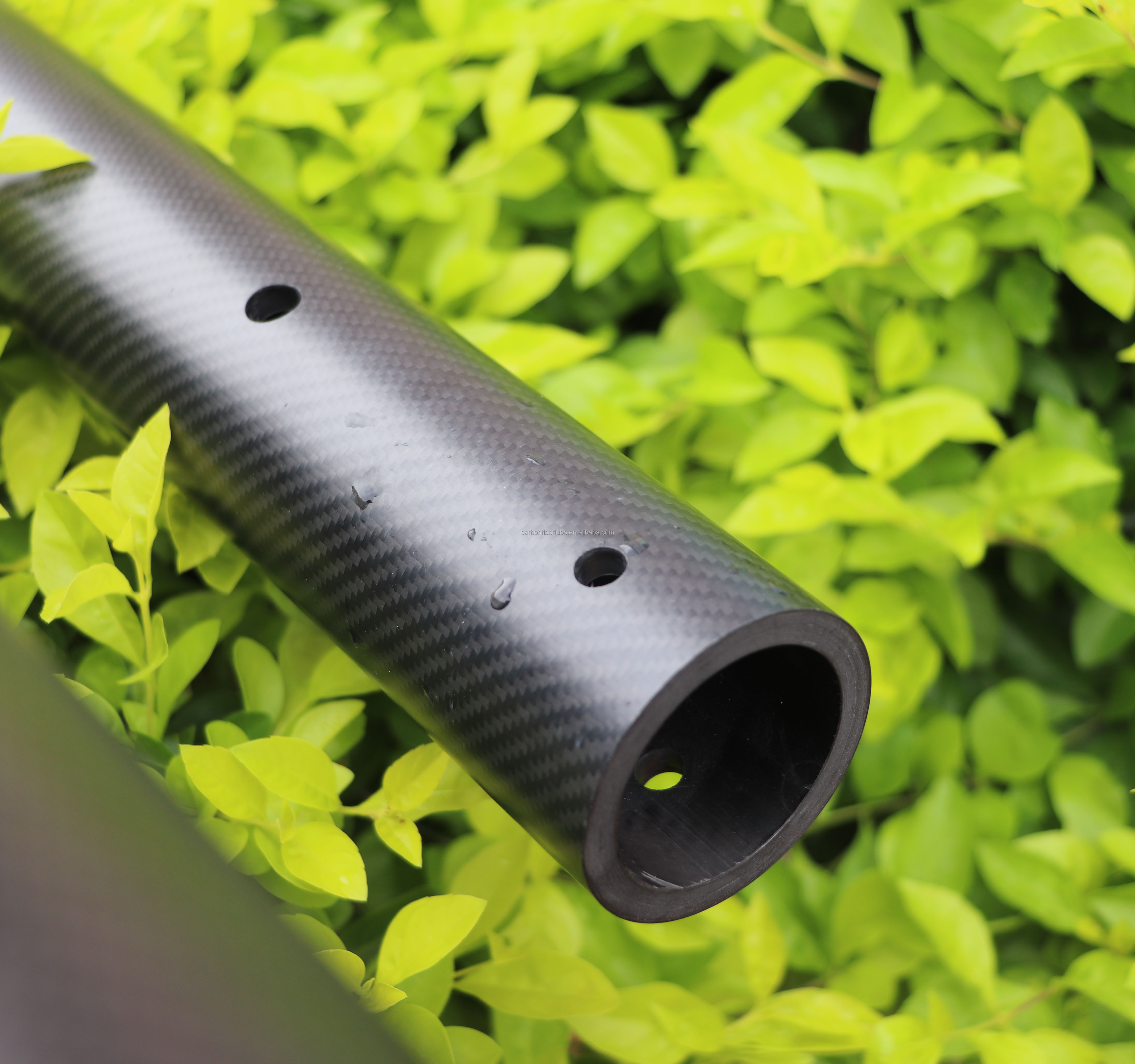

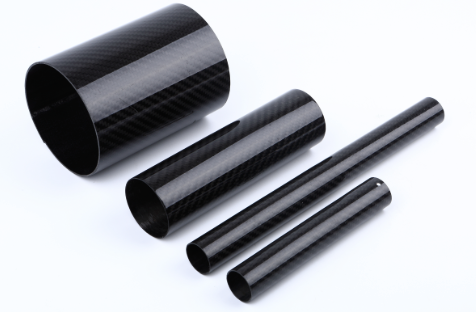

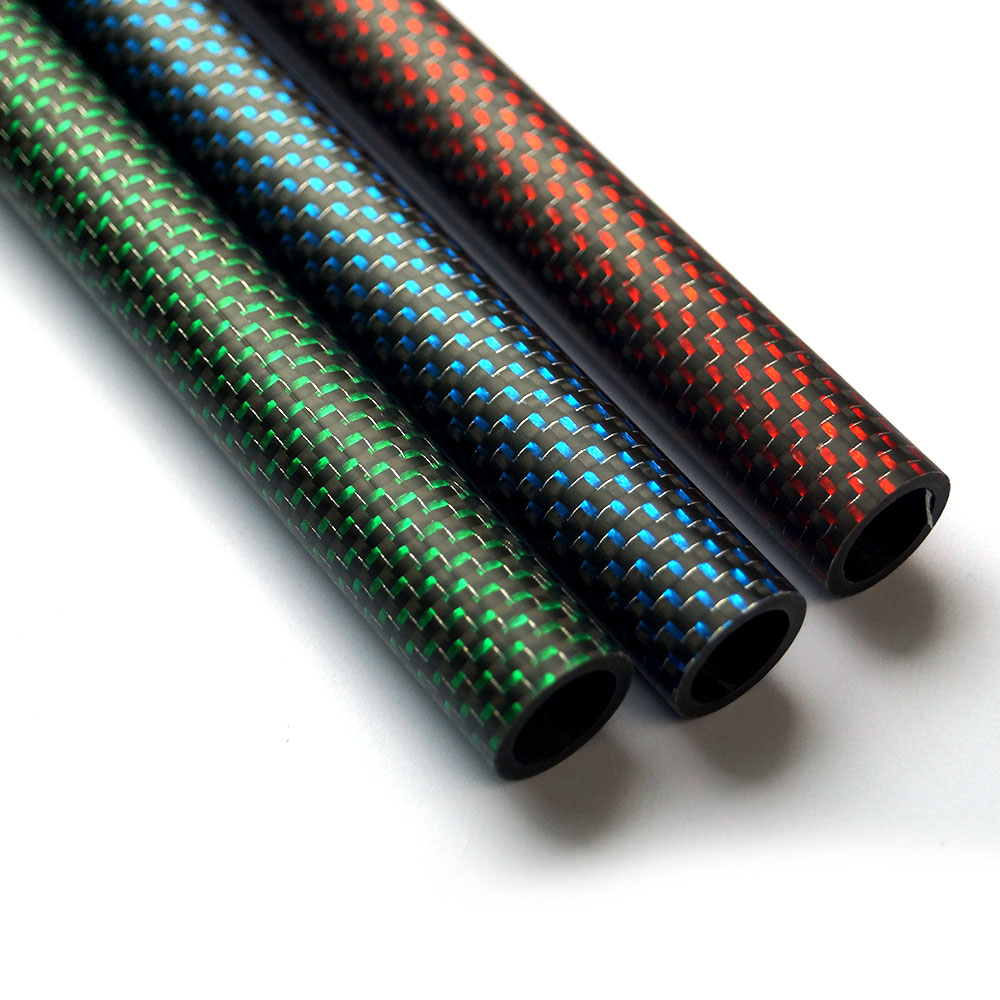

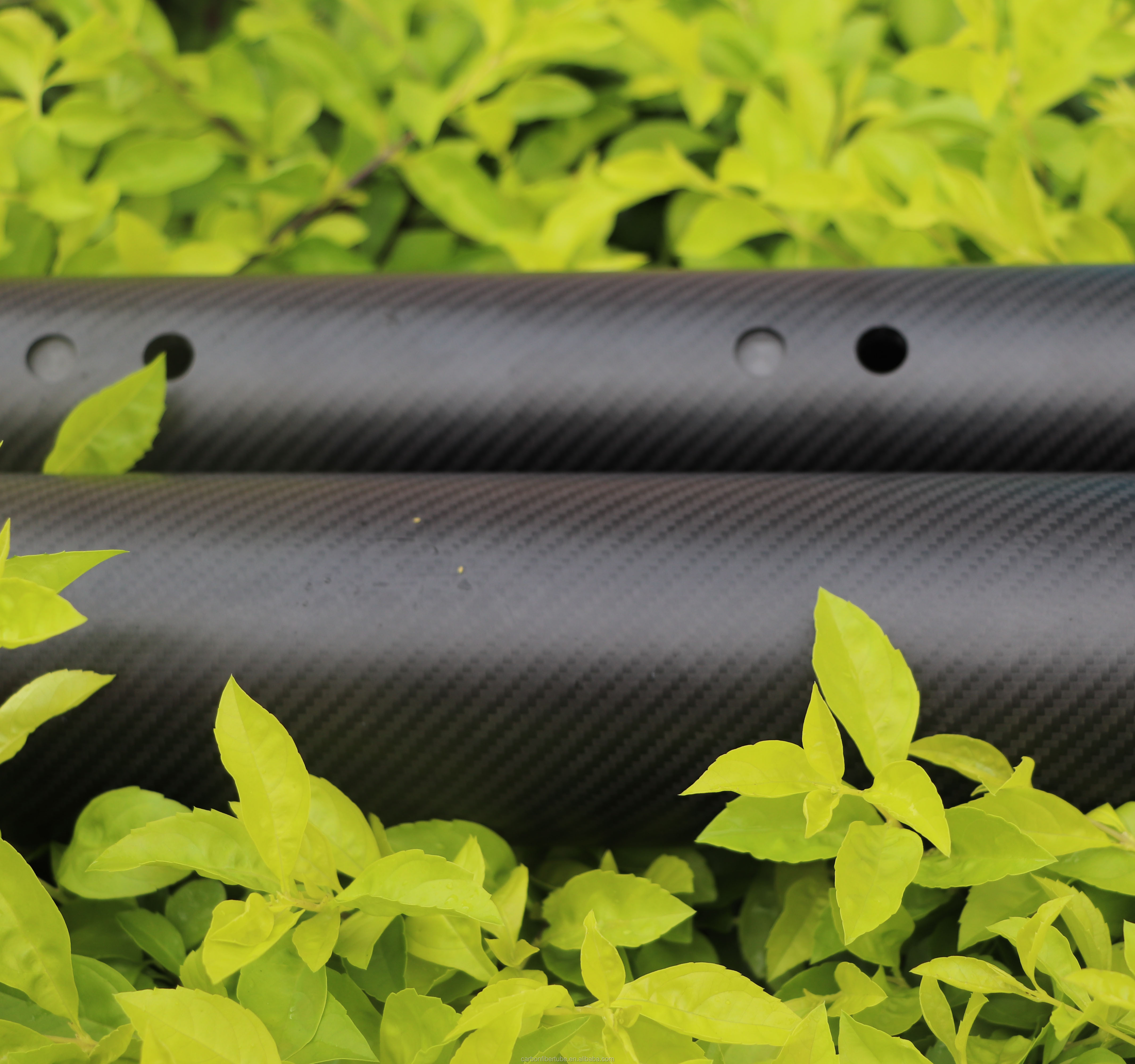

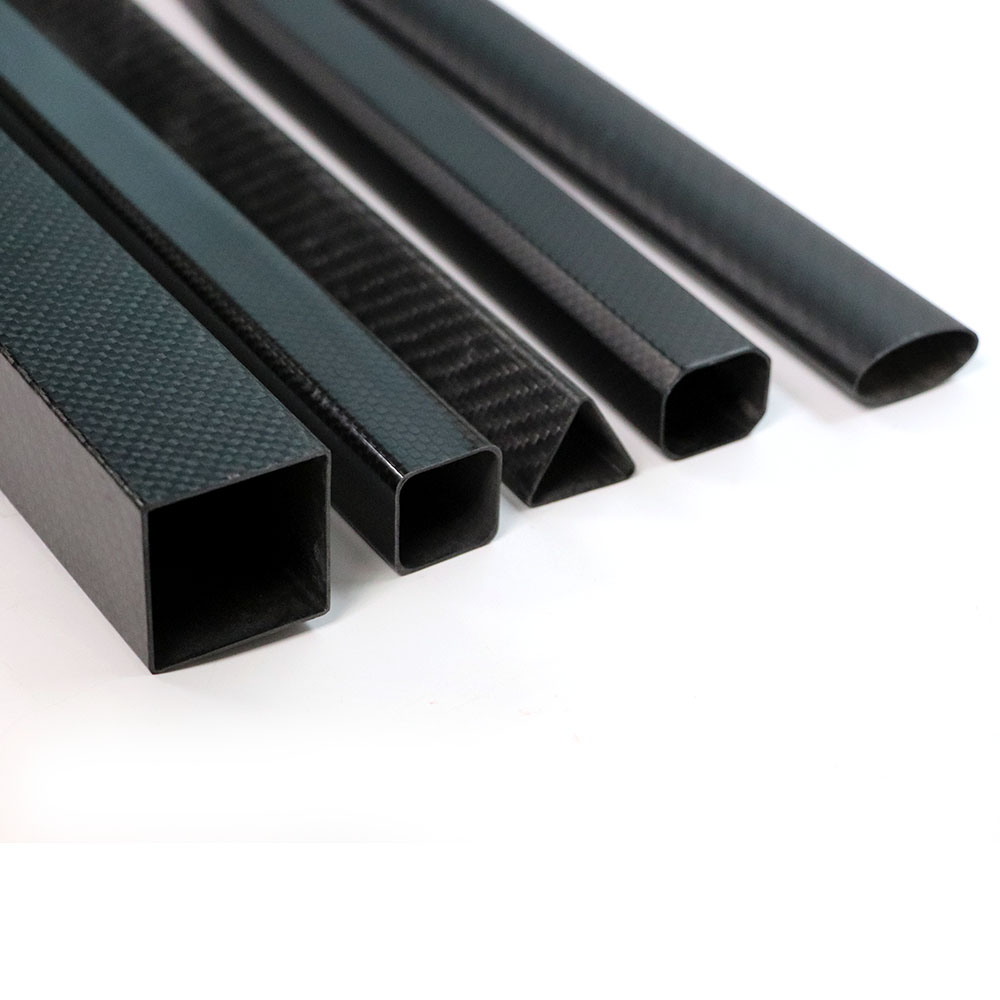

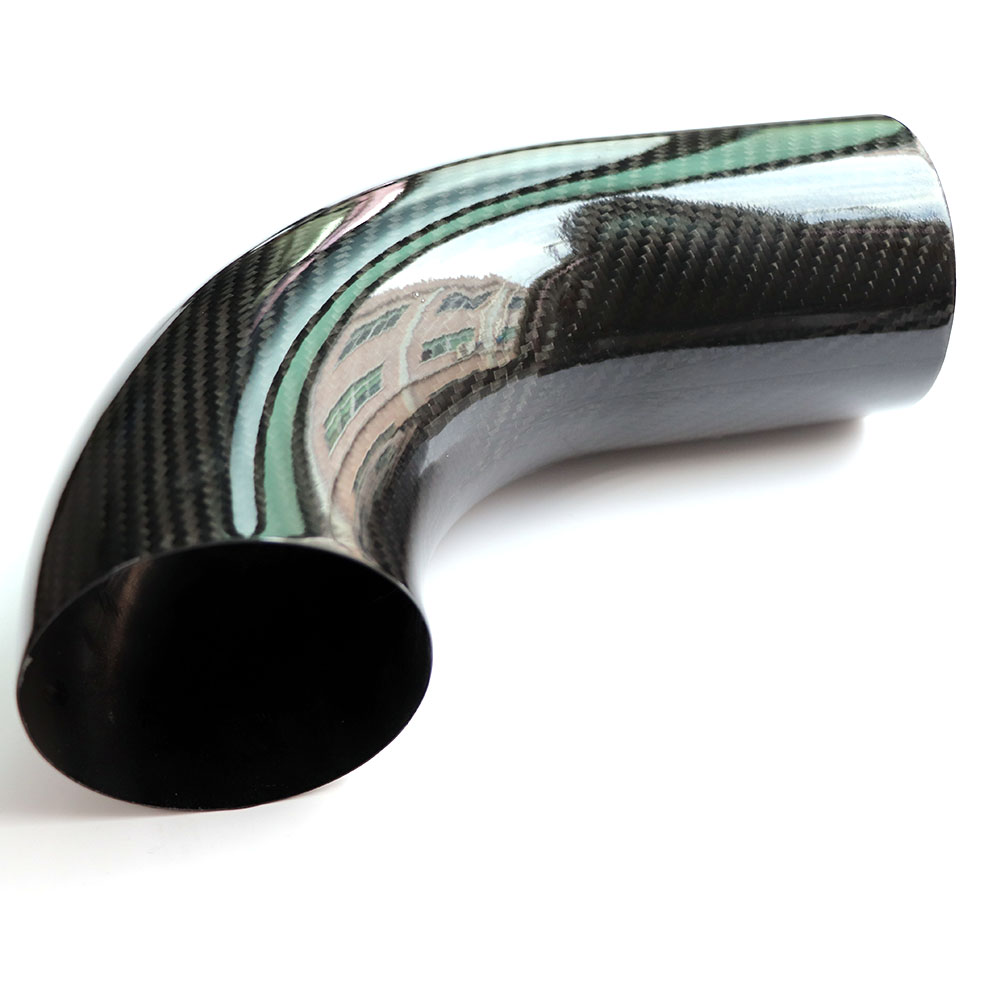

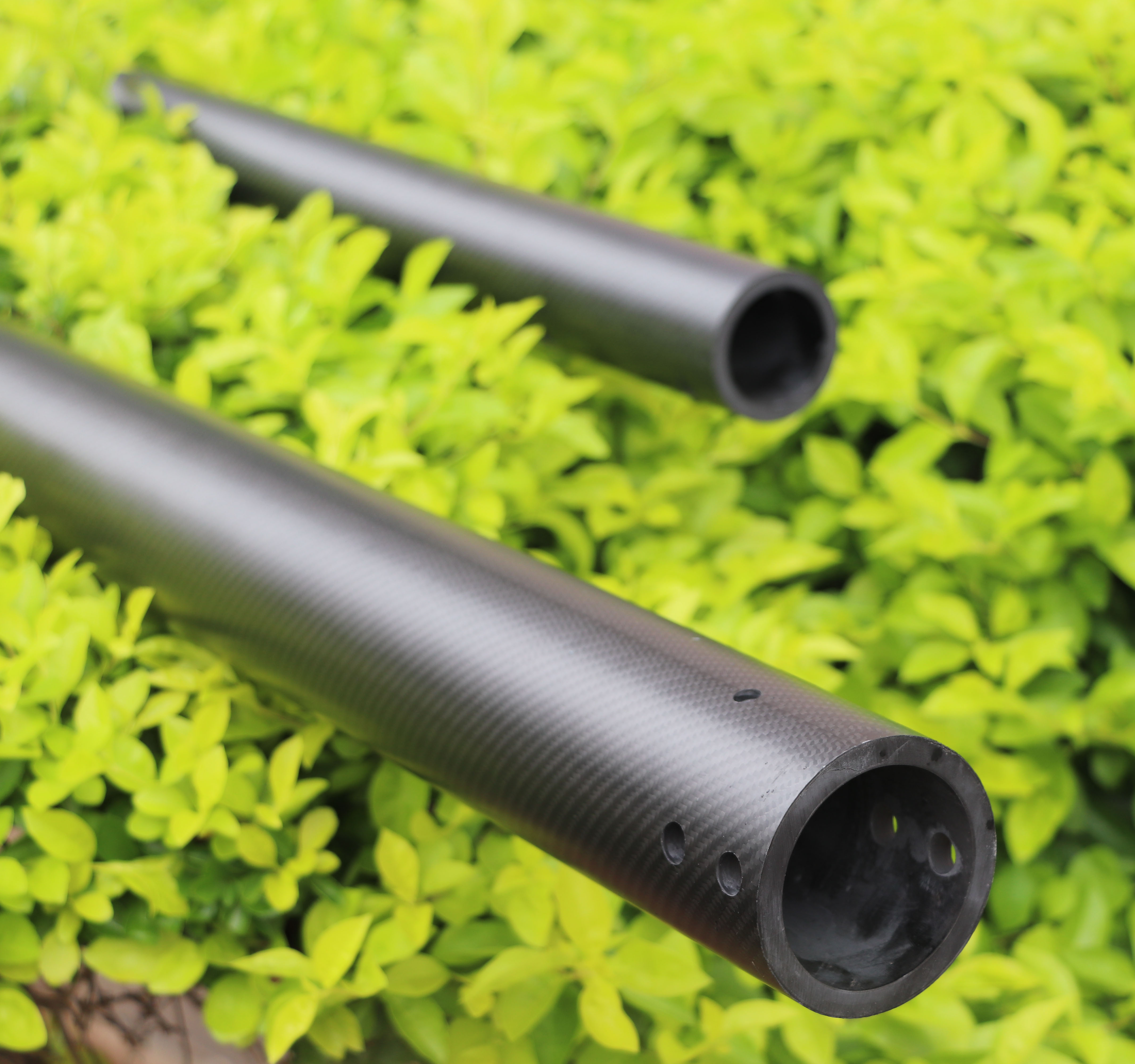

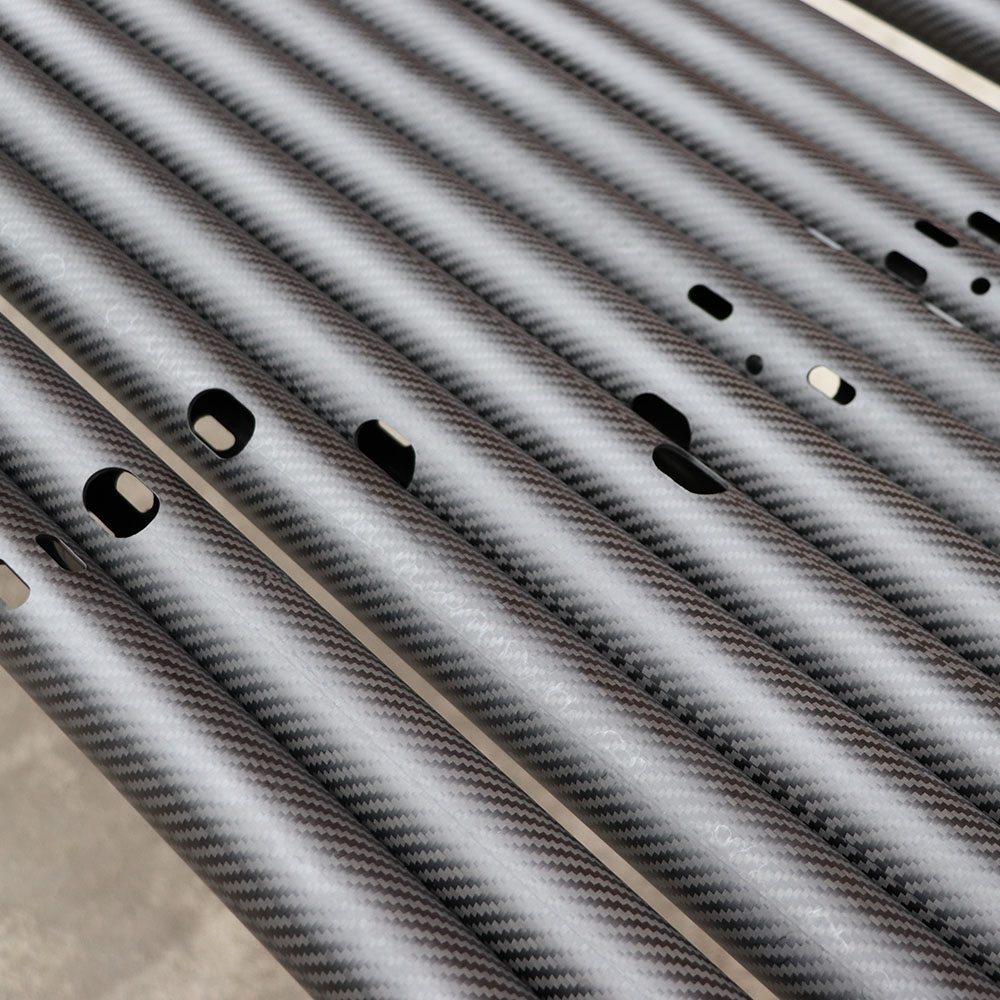

sample image
contact us
If you have any questions about carbon fiber tubes, please contact the service personnel on the information below.
contact person:
curtis wu
e-mail:
[email protected] sales2@carbon Fiber360.com
phone number:
+86 13652464970
Whatsapp:
+86 13652464970
WeChat:
ag13652464970
Skype:
China.frp2
