submarine cable protection tube

Product Detail

hardness:230color:Black
Supply capacity:800 tons per monthport:Qingdao
Packaging Details:Plywood boxesmodel:DN40-400
application:Submarine Cable/Submarine Optical Cablepayment terms:L/C, T/T
Origin:Shandong Province, ChinaMaterial:Ductile Iron
Yield strength (≥MPa):400 MPabrand:vortex
shape:roundtype:hinged
standard:ISO 1083length:500mm/pc
pull:400 MPausage:cable protection
painting:asphalt paintingPipe wall thickness:9-12mm



Product Description

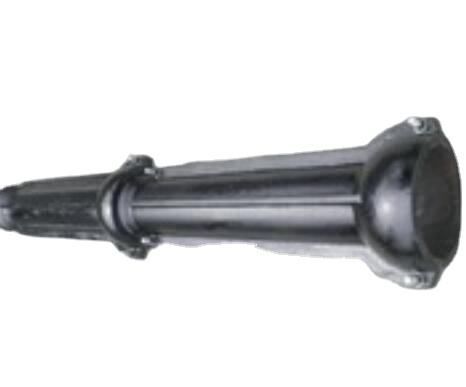

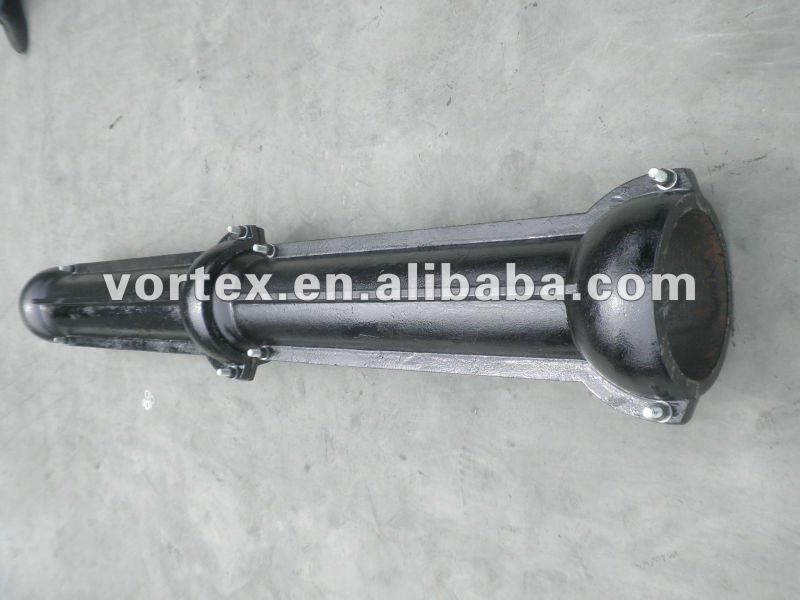

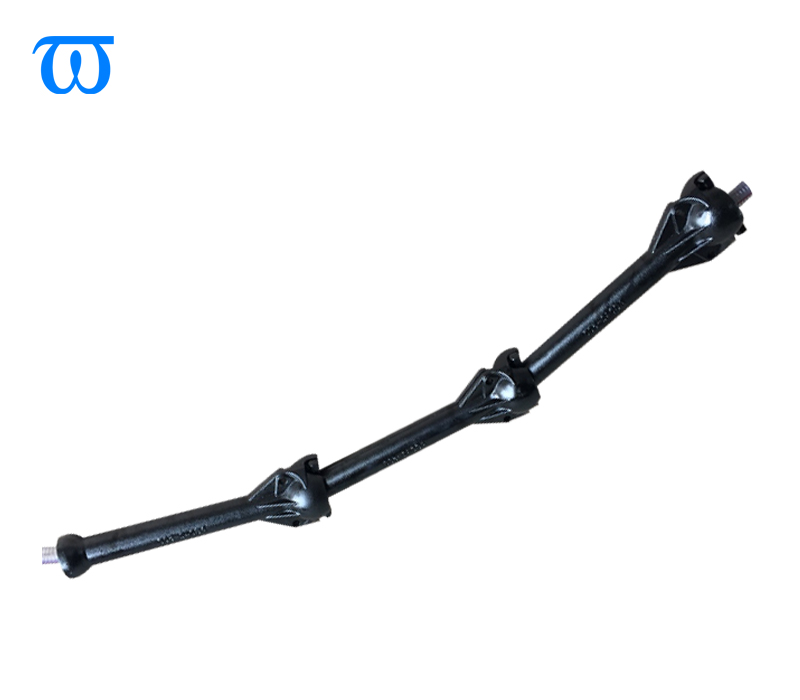

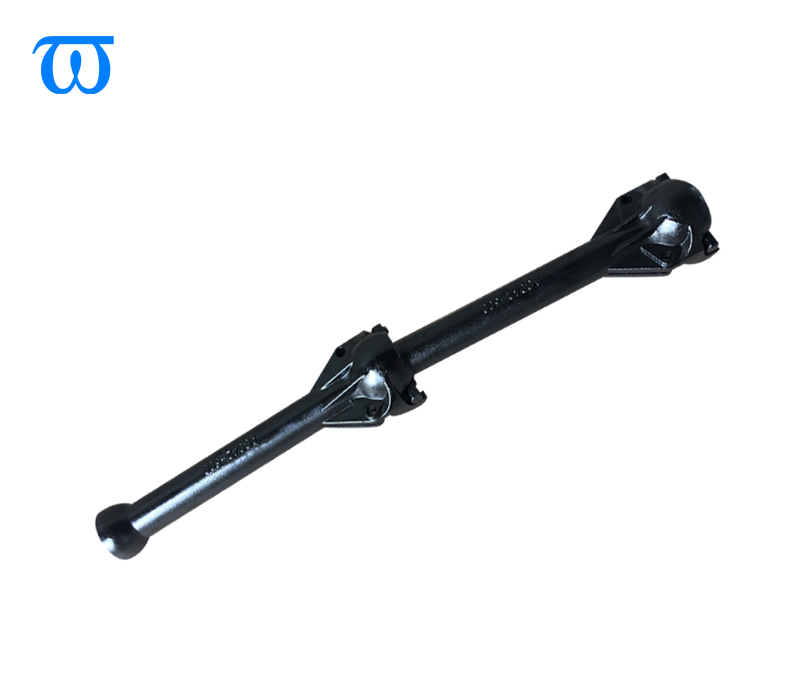

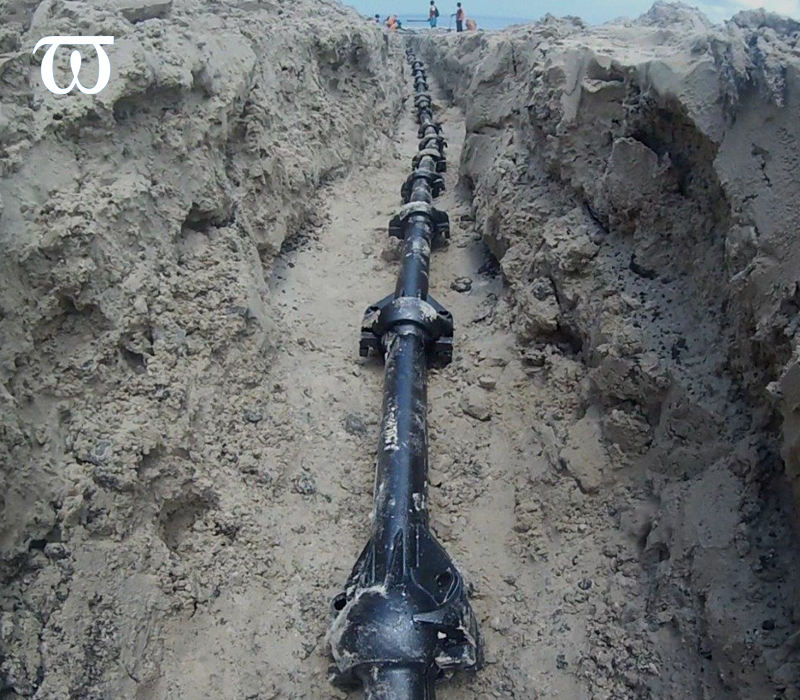

In shallow water where burial is impossible, the cable harness will be protected by using ductile iron hinged pipes. The total order package covers the design and supply of the hinged piping, as well as a fully compliant repair kit for possible future remedial work.

Our protection systems fully tested and proven products offer: Robust and reliable locking mechanisms, flex limitation, impact strength and direct assembly on board.



size mm thickness Length mm Cable diameter mm Weight/m
AC040-500 40 9 500 35 13.7
AC055-500 55 9 500 47 16.4
AC076-500 76 9 500 66 23.9
AC100-500 100 9 500 88 31.0
AC120-500 120 9 500 108 37.4
AC127-500 127 10 500 115 45
AC140-500 140 10 500 127 46.2
AC160-455 160 10 Chapter 455 145 60.0
AC180-500 180 10 500 160 61.8
AC200-440 200 10 Chapter 440 180 70.0
AC210-500 210 10 500 192 72.2
AC230-500 230 10 500 210 77.4
AC260-500 260 10 500 240 90.6
AC280-500 280 10 500 260 93.6



Packaging and Shipping



Container transportation, pallet packaging, size 110*110*110



our service

Good product quality, good service, good after-sales service
