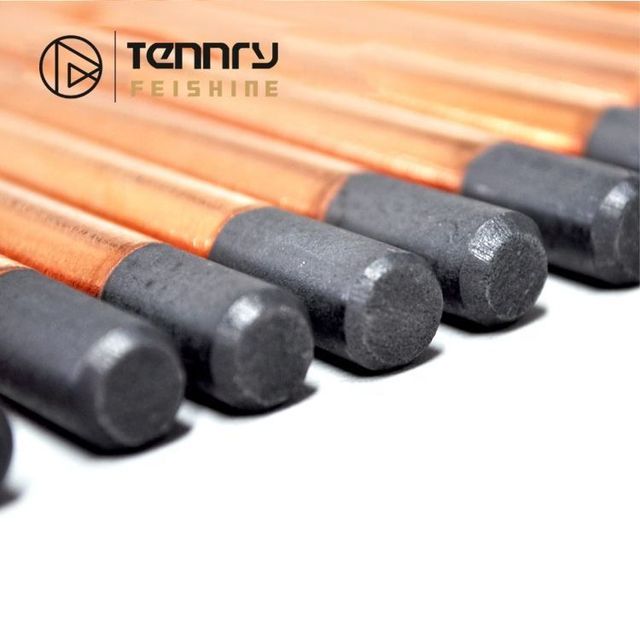

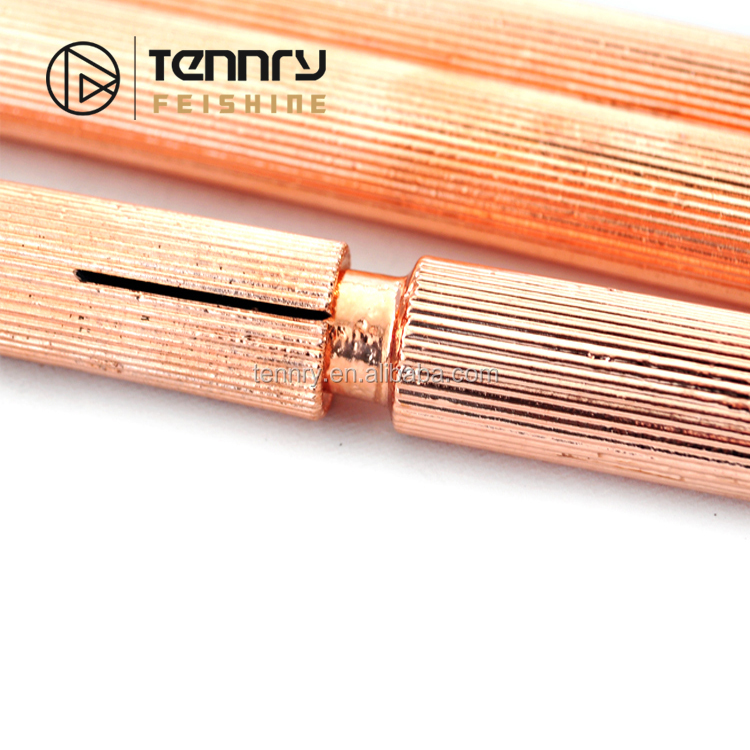

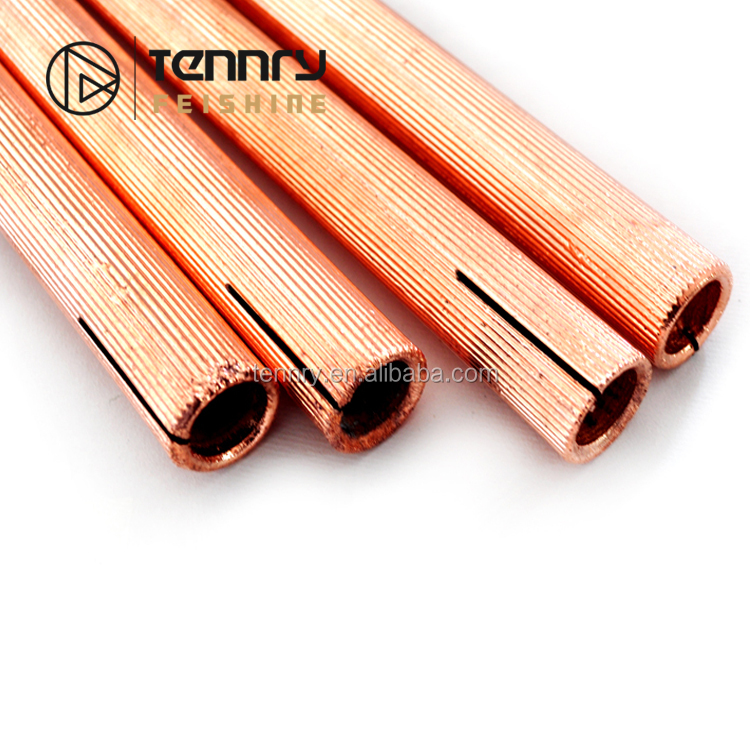

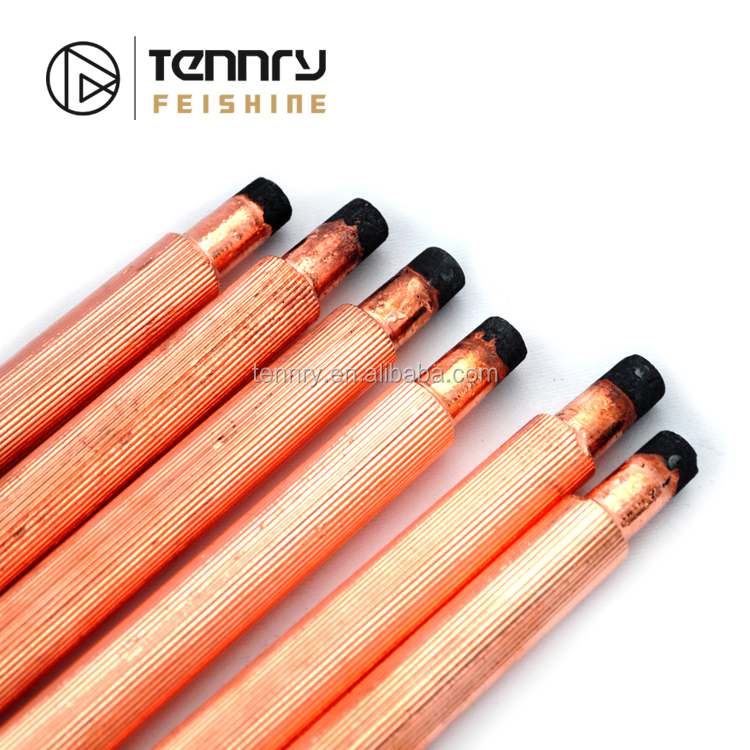

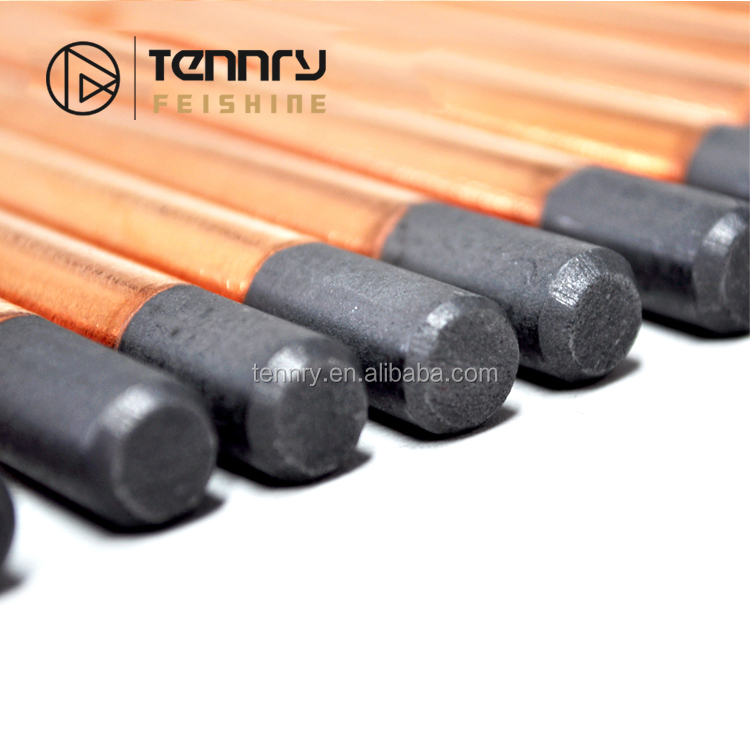

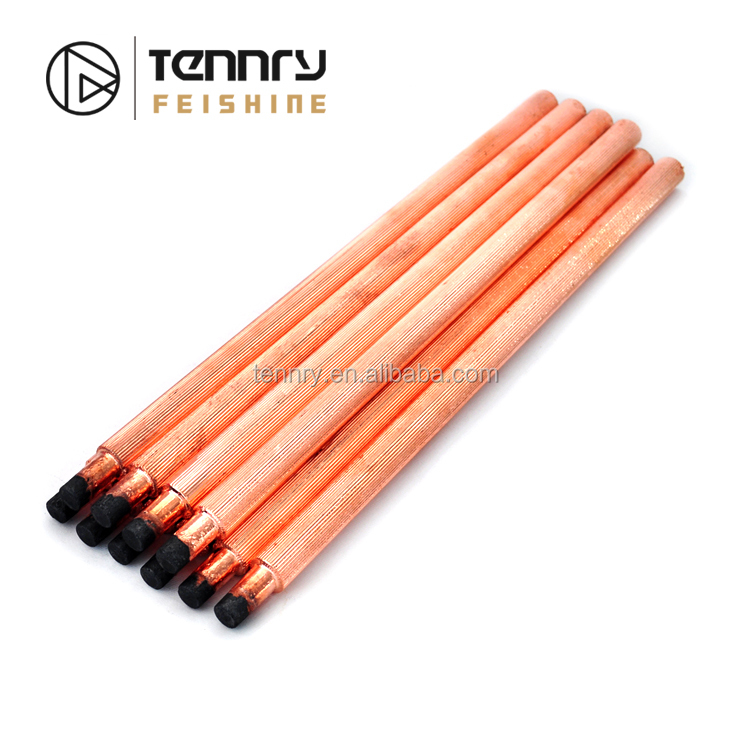

Copper-coated Gouging Graphite Electrode Electrode

Copper-coated gouged graphite electrodes for identifying solder defects

We can manufacture high-quality products according to customers' requirements or drawings

Specification

1. Density: ≥1.6g/m3

2. Specific resistance: ≤13μΩm

3. Compressive strength: ≥32Mpa

4. Bending strength: ≥15Mpa

5. Thermal expansion: ≤3.00

6. Ash content: ≤0.30%

7. Particle size: 0.2-2.0mm

8. Size: Diameter 6mm, 8mm, 10mm Length 305mm, 350mm, 530mm or as your request.

feature
1. Compared with using wind shovel or wheel, it has high efficiency, low noise and reduces labor intensity.
2. Compared with plasma arc gouging, obtaining compressed air is simple and easy, and the cost is low.

application
1. Create welding.
2. Removal, cutting and trimming of solder defects.
3. Groove shape "U"
4. Removal of weld defects.
5. Grooving, especially the butt groove.

We manufacture gouged carbon electrodes according to customer requirements.

The normal length is 305,355.430, please feel free to let us know if you are interested. Other sizes can be manufactured upon request.

warn:

• Electrodes must be kept dry. Wet electrodes can peel or chip and are dangerous. If the electrodes become wet, bake them at 300°F for 10 hours before use.

Physical and chemical indicators:

Round Gouging Carbon Rod:

Gouging Rods - Used for cutting, welding, removing defects, punching holes, welding inspection and removing past weldments.
