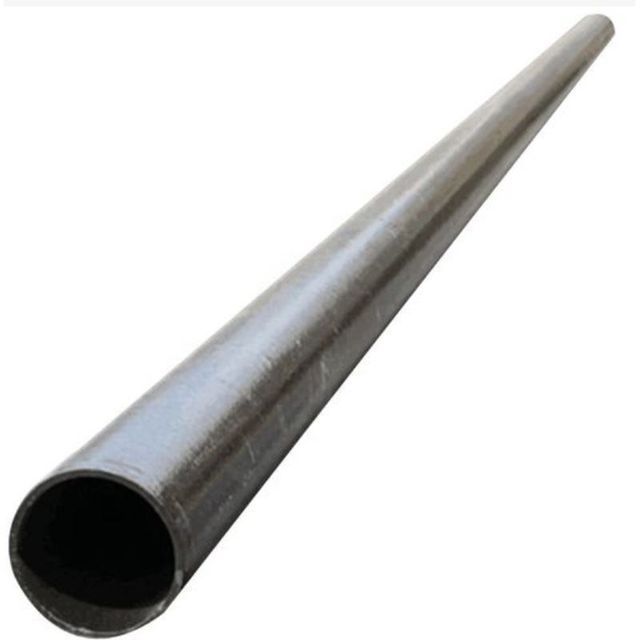

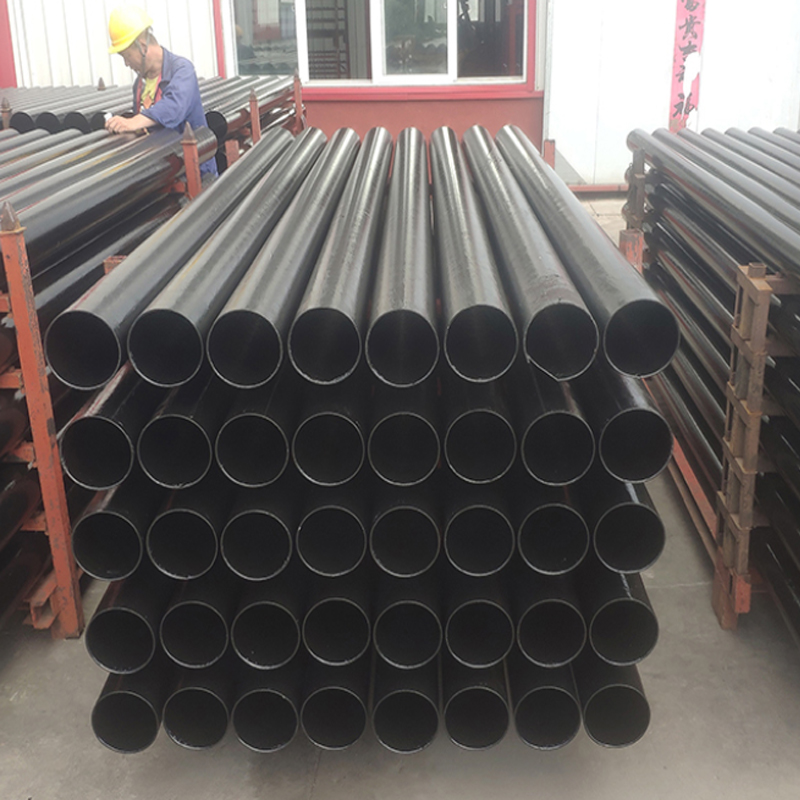

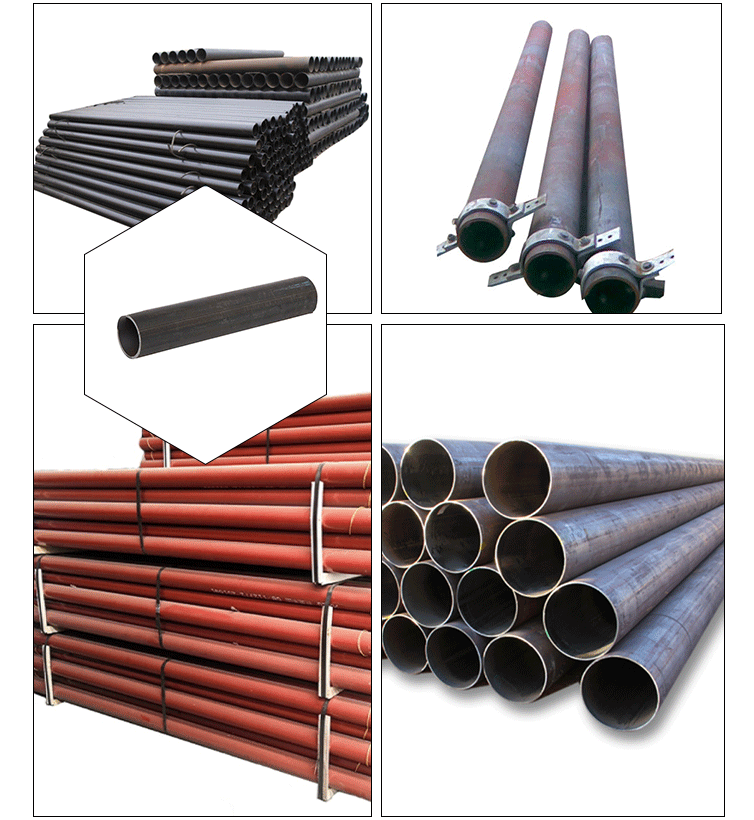

Flexible cast iron drainage pipe for drainage
-
$0.57 / 20000 - 199999 kilograms
$0.55 / 200000 - 1999999 kilograms
$0.52 / >=2000000 kilograms - 20000 kilograms
- Shandong Lu Steel Co., Ltd.
- Shandong, China
- Ms Lu Steel
Product Detail
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Inner coating: | Mortar cement lining |
| hardness: | ≤230HB | Supply capacity: | 25000 tons/month |
| Outer coating: | Zinc + bitumen coating | brand: | Lugang |
| pull: | 420 million MPa | standard: | ISO/JIS/AS/EN/ASTM |
| shape: | round after round | port: | Tianjin Port Qingdao Port Shanghai Port |
| Connector Type: | self-restraining joints | Material: | cast iron, cast iron |
| type: | seamless | Certification: | ISO9001:2000 |
| Surface treatment: | Anti-corrosion coating | Packaging Details: | 1. Standard export packaging (waterproof paper + plastic film + steel plate + steel strip) 2. According to your requirements |
| place of origin; place of origin: | Shandong China | color: | Black |
| Packaging Preview: | standard: | ISO/JIS/AS/EN/ASTM | |
| length: | 3M or upon request | Tube Wall Thickness: | K7/K8/K9/C40/C30/C25 |
| Yield (≥ MPa): | over 300 MPa | application: | Plumbing, water supply, drainage, sewage treatment |
| Key words: | Flexible cast iron drain pipe | Processing service: | Welding, bending, punching, uncoiling, cutting |
| model: | C-10 |
Material | cast iron | ||||||
Scope of application | Sewer/Sewerage/Drainage for urban or outdoor new and improved civil or industrial buildings | ||||||
Model | TYPE-A/TYPE-BDN50MM-DN300MM(50MM-300MM) | ||||||
surface | External bituminous coating, or as required. | ||||||
Features | Flexible cast iron drains are easy to repair and replace. High utilization rate of pipes and material saving. can | ||||||
Simultaneous construction. Often used for drainage outside buildings. Shock resistance and sealing Performance is very good. | |||||||
ASTM A74-SV Cast Iron Drain Pipe | ||||||||||||
size inches | Faucet size | Straight pipe size | ||||||||||
Internal dimension(mm) | Depth (mm) | Dimensions (mm) | Internal dimension(mm) | Thickness(mm) | ||||||||
Nominal diameter | minute | |||||||||||
2" | 74.68±1.52 | 63.5±1.52 | 58.42±2.29 | 49.78±2.29 | 4.32 | 3.56 | ||||||
3'' | 100.06+2.29-1.52 | 69.85±1.52 | 83.82±2.29 | 75.16±1.52 | 4.32 | 3.56 | ||||||
4'' | 125.48+2.29-1.52 | 76.2±1.52 | 109.22±2.29 | 100.08±2.29 | 4.57 | 3.81 | ||||||
5'' | 150.88+2.29-1.52 | 76.2±1.52 | 134.62±2.29 | 125.48±2.29 | 4.57 | 3.81 | ||||||
6'' | 176.28+2.29-1.52 | 76.2±1.52 | 160.02±2.29 | 150.88±2.29 | 4.57 | 3.81 | ||||||
8'' | 234.95±3.3 | 88.9±3.3 | 212.85±3.3 | 201.68±3.3 | 5.84 | 4.32 | ||||||
10'' | 289.05±3.3 | 88.9±3.3 | 266.7±3.3 | 252.48±3.3 | 6.86 | 5.59 | ||||||
12'' | 342.09±3.3 | 107.95±4.83 | 317.5±4.83 | 303.28±4.83 | 6.86 | 5.59 | ||||||
15'' | 430.53±3.3 | 107.95±4.83 | 403.38±4.83 | 385.06±4.83 | 9.14 | 7.62 | ||||||

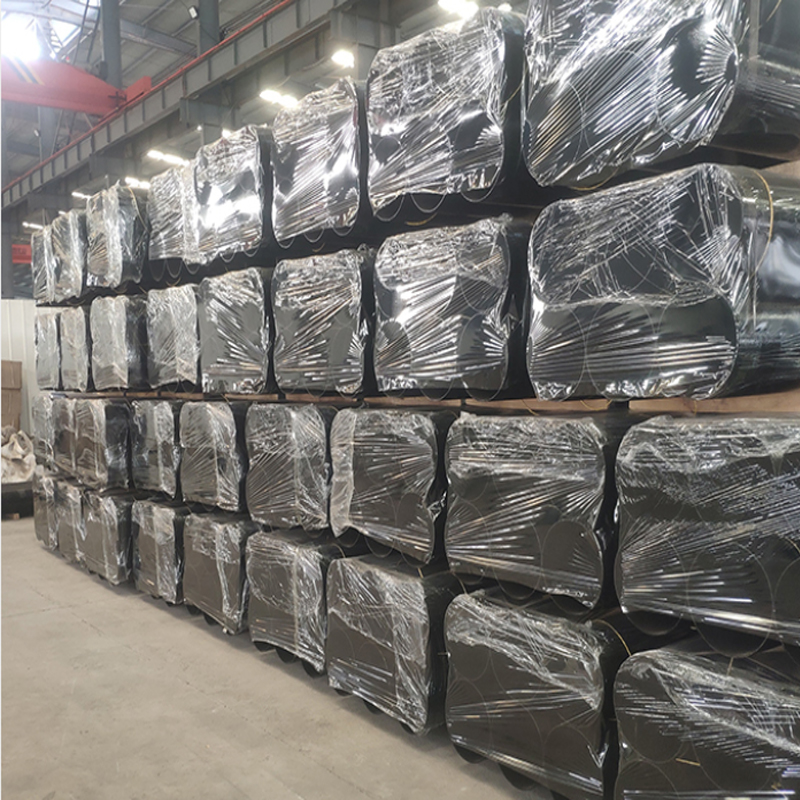

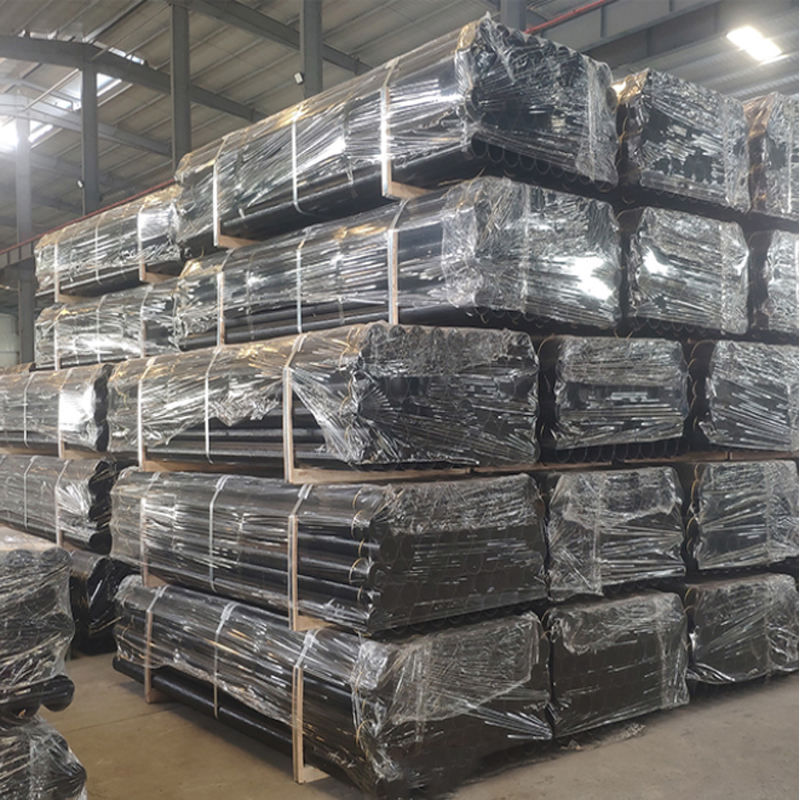

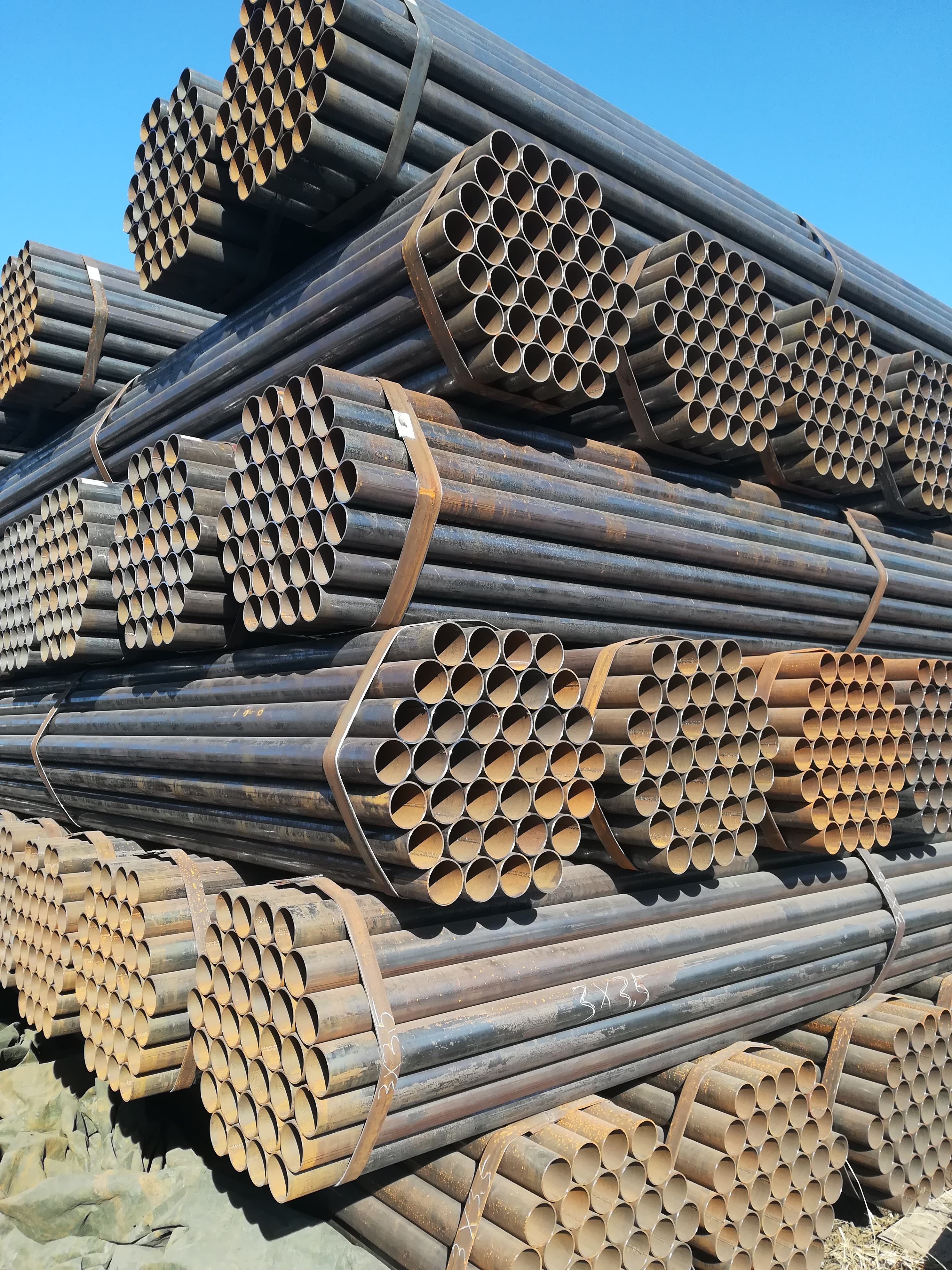

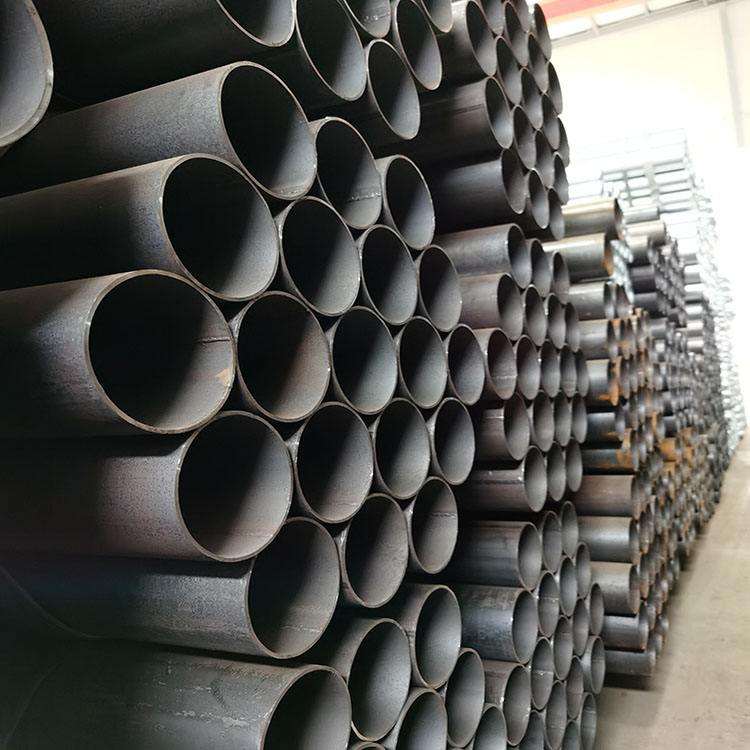

-------- Packing and stock --------
Shandong Lugang Group Co., Ltd. is located on the top of Wushen Mountain in Mount Tai, China. We have won a good reputation with leading technology and excellent quality. As the main supplier of stainless steel, carbon steel and other raw materials, we have established long-term and stable cooperative relations with some well-known companies at home and abroad.
We use the strongest packing material and your shipment will be intact.
