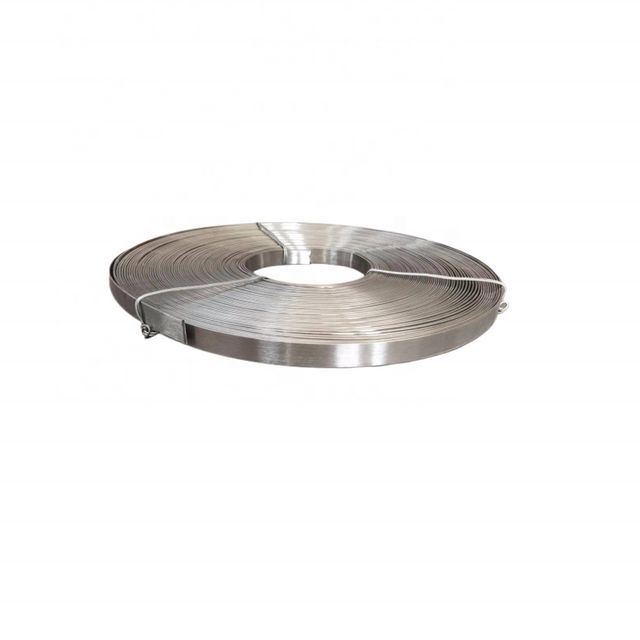

Flat nickel-chromium alloy 2080 electric resistance Ni80 belt
- $32.00 /kilogram
- 1 kilogram
- Jiangsu Chunhai Heating Alloy Manufacturing Co., Ltd.
- Jiangsu, China
- Ms Ai Ying Zhang
Product Detail
| standard: | National standard | Origin: | Jiangsu, China |
| brand: | spring sea | Packaging Details: | Plastic bag + wooden box |
| Material: | Nichrome | hardness: | soft |
| width: | 25mm | Skin Pass: | Yes |
| technology: | cold rolled | Surface treatment: | Non-oiled, ordinary oiled |
| port: | Shanghai | delivery time: | 15-21 days |
| surface: | bright | MOQ: | 1 volume |
| edge: | slit edge | Steel grade: | Cr20Ni80 |
| Certificate: | ISO9001 | To oil or not to oil: | lightly oiled |
| tolerant: | ±5% | thickness: | 2mm |
| Package preview: | Processing services: | welding | |
| Package: | plastic bag | Supply capacity: | 30 tons per month |
| payment terms: | wire transfer | grade: | Cr20Ni80 |
| application: | washing machine, heating | surface color: | bright |
| Surface finish: | polished |
Product Description
grade | Cr20Ni80 |
size | Thickness: 0.05-3mm Width: 4-250mm |
surface | bright cut |
weight | 5-200kg/roll, according to the number of customers |
Resistivity | 1.09±0.05μΩ.m |
Hardness (HV) | 180-220 high pressure |
elongation | ≥20% |
Product parameters
grade | maximum temperature | Resistivity | hardness | tensile strength | elongation |
0Cr13Al4 | 1050°C | 1.25±0.05μΩ.m | 180-210 high pressure | ≥550N/mm2 | ≥16 |
0Cr15Al5 | 1100°C | 1.3±0.05μΩ.m | 180-210 high pressure | ≥550N/mm2 | ≥16 |
0Cr21Al6Nb | 1300°C | 1.42±0.05μΩ.m | 200-240 high pressure | 750N/mm2 | ≥12 |
Cr20Ni80 | 1200℃ | 1.09±0.05μΩ.m | 180-220 high pressure | 750N/mm2 | ≥20 |
Cr15Ni60 | 1150°C | 1.12±0.05μΩ.m | 175-210HV | 750N/mm2 | ≥20 |
Cr20Ni35 | 1100°C | 1.04±0.05μΩ.m | 180-220 high pressure | 750N/mm2 | ≥20 |
Cr25Ni20 | 1100°C | 0.86±0.05μΩ.m | 180-220 high pressure | 750N/mm2 | ≥20 |
grade | chemical composition% | ||||||||||||||||
C | phosphorus | S | manganese | silicon | chromium | you | aluminum | iron | |||||||||
≤ | |||||||||||||||||
0Cr15Al5 | 0.04 | 0.02 | 0.01 | 0.3 | ≤0.5 | 13-14 days | <1 | 4.8-5.0 | balance | ||||||||
0Cr21Al6Nb | 0.05 | 0.025 | 0.02 | 0.5 | ≤0.6 | 21-23 | ≤0.6 | 5-7 | balance | ||||||||
0Cr13Al4 | 0.04 | 0.02 | 0.01 | 0.3 | ≤0.5 | 13-14 days | <1 | 4.8-5.0 | balance | ||||||||
Cr20Ni80 | 0.08 | 0.02 | 0.015 | 0.6 | 0.75-1.6 | 20-23 days | balance | <0.5 | ≤1.0 | ||||||||
Cr15Ni60 | 0.08 | 0.02 | 0.015 | 0.6 | 0.75-1.6 | 15-18 days | 55-61 | <0.5 | balance | ||||||||
Cr20Ni35 | 0.08 | 0.02 | 0.015 | 1.0 | 1-3 | 18-21 days | 34-37 | - | balance | ||||||||
Cr25Ni20 (310S) | 0.08 | 0.045 | 0.03 | 2.0 | 0.4-0.6 | 24-26 | 19-22 | - | balance | ||||||||
