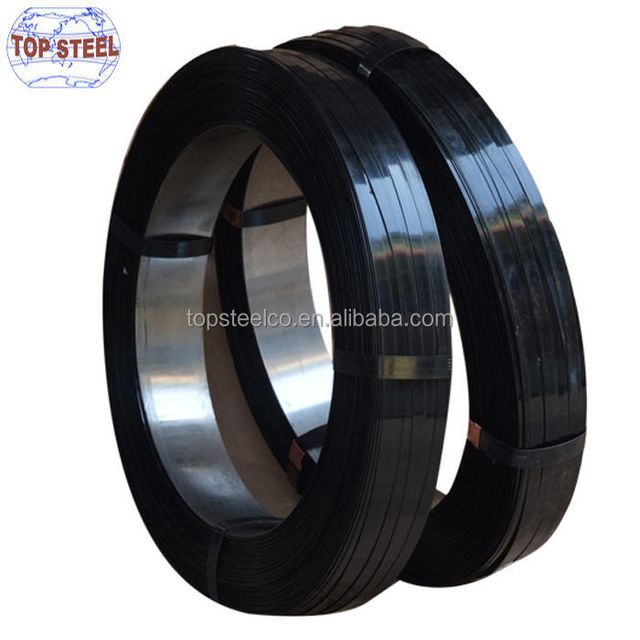

Q235 steel belt 3/4 painted black steel belt metal strapping

  • $750.00 / 5 - 24 pieces
    $740.00 / 25 - 49 pieces
    $720.00 / 50 - 99 pieces
    $690.00 / >=100 pieces
  • 5 pieces
  • Weihai Topsteel Co., Ltd.
  • Shandong, China
  • Mr Andy Song

Product Detail

thickness:0.8mm-3mmhardness:soft
port:Qingdao, Tianjin, Shanghai, etc.standard:Ace
Package preview:type:steel coil
Material:Q235 Q345payment terms:L/C, Western Union, T/T
grade:Q235 Q345Packaging Details:Standard export seaworthy packaging or according to customer requirements.
brand:top steelproduct name:Q235 steel strap 3/4 painted black steel strap
To oil or not to oil:not oiledSkin Pass:Yes
Supply capacity:Annual output of 24,000 tons and monthly output of 2,000 tonstolerant:±1%
Coil No.:508/610 mmwidth:8mm-32mm, 9.5mm, 12.7mm, 19mm, 32mm
Certificate:ISO9001Surface treatment:Black, blue, gray, bright, green, yellow, etc.
Processing services:Bending, welding, decoiling, cutting, punchingdelivery time:within 7 days
Origin:Shandong Province, ChinaSurface treatment:Prepainted, oil-free
application:Package

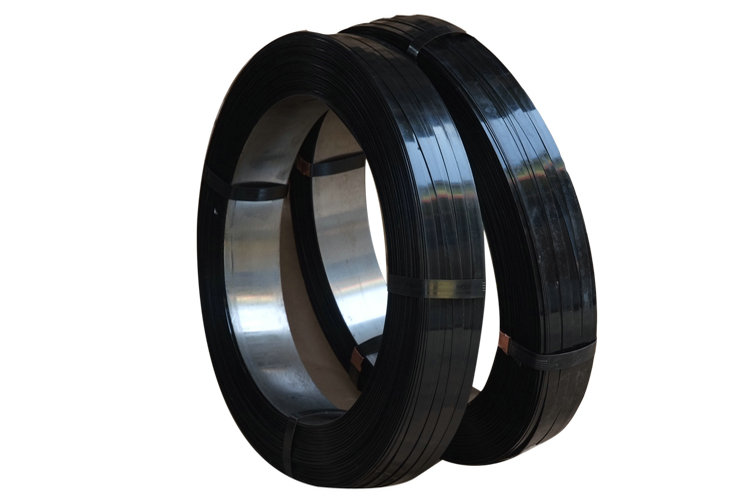

Q235 steel strap 3/4 painted black steel strap

Product Description
1).Product introduction


Material: Q235, Q345, B235, etc. Special grades can be negotiated with customers.
Surface treatment: black, blue, gray, yellow, green and bright surface treatment.
Size: thickness 0.3mm-1.2mm, width 8-32mm.
Packing: standard export seaworthy packing or according to customer requirements.



2) Mechanical capacity:
Q235 breaking strain σb≥78-90Kg/mm2 (780-900Mpa), EL: 3%-5%.
Q345 breaking strain σb≥90-100Kg/mm2 (900-1000Mpa), EL: 5%-10%.
B235 breaking strain σb≥100-110Kg/mm2 (1000-1100Mpa), EL: 5%-10%.

3) The normal dimensions are as follows:

BWG28×3/8″, 1/2″, 5/8″(0.36mm×9.5mm, 12.7mm, 16mm)
BWG27×3/8″,1/2″,5/8″(0.40mm×9.5mm,12.7mm,16mm)
BWG26×1/2″, 5/8″, 3/4″(0.45mm×12.7mm, 16mm, 19mm)
BWG25×1/2″, 5/8″, 3/4″(0.50mm×12.7mm, 16mm, 19mm)
BWG24×1/2″, 5/8″, 3/4″(0.55mm×12.7mm, 16mm, 19mm)
BWG23×1/2″, 5/8″, 3/4″(0.60mm×12.7mm, 16mm, 19mm)
BWG22×3/4″, 1″, 5/4″(0.70mm×19mm, 25.4mm, 32mm)
BWG21×3/4″, 1″, 5/4″(0.80mm×19mm, 25.4mm, 32mm)
BWG20×3/4″, 1″, 5/4″(0.90mm×19mm, 25.4mm, 32mm)
BWG19×3/4″, 1″, 5/4″(1.0mm×19mm, 25.4mm, 32mm)

Stock size: 0.36*12.7mm 0.36*16mm 0.5*12.7mm 0.5*16mm 0.5*19mm 0.6*16mm
0.6*19mm 0.7*19mm 0.8*19mm 0.8*32mm 0.9*19mm 0.9*32mm
Uses: carbon structural steel or high-quality carbon structural steel. This product is suitable for
Suitable for wood, paper, glass, stone, steel, welded pipe, etc. as bundled packaging.
Packing belt classification:Steel packing belt, black steel belt, blue steel belt, paint
steel belt. We can produce according to customers' color requirements, such as green, yellow, gray, brown, etc.
4) Product picture

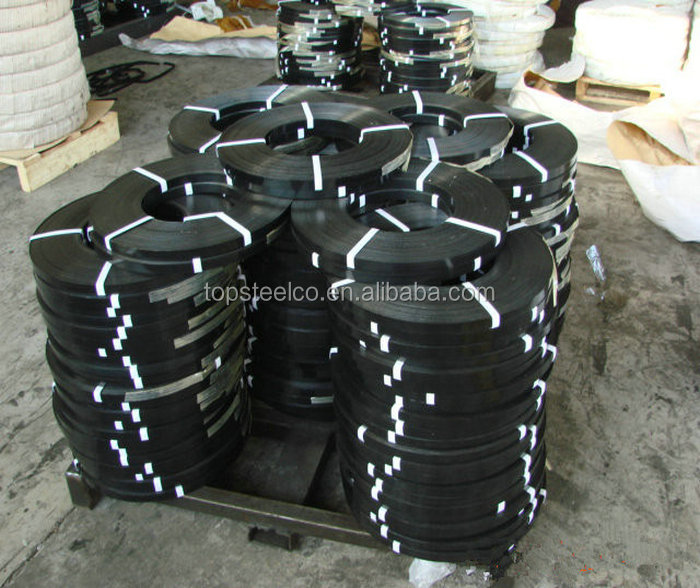

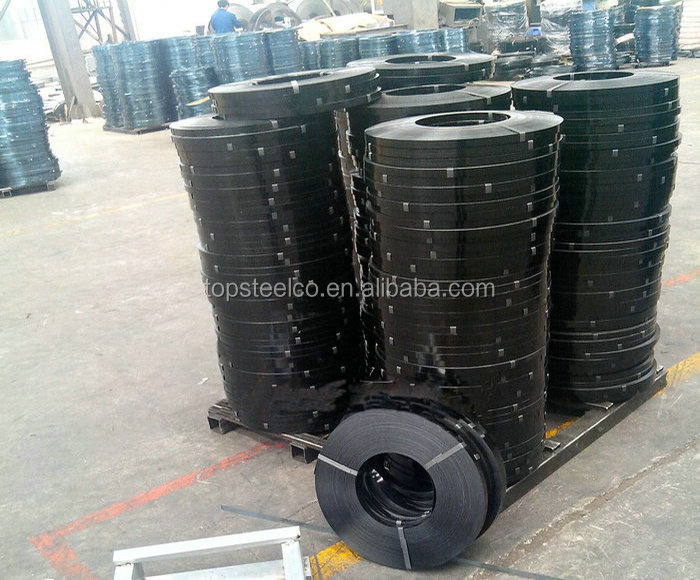

black steel belt

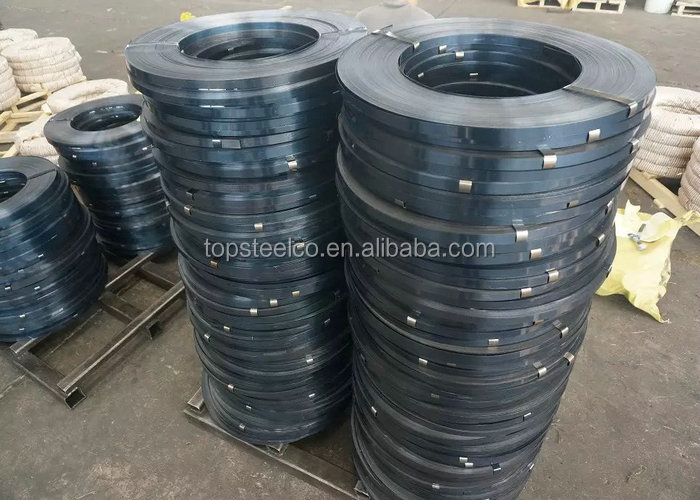

          blue steel belt
             White steel belt

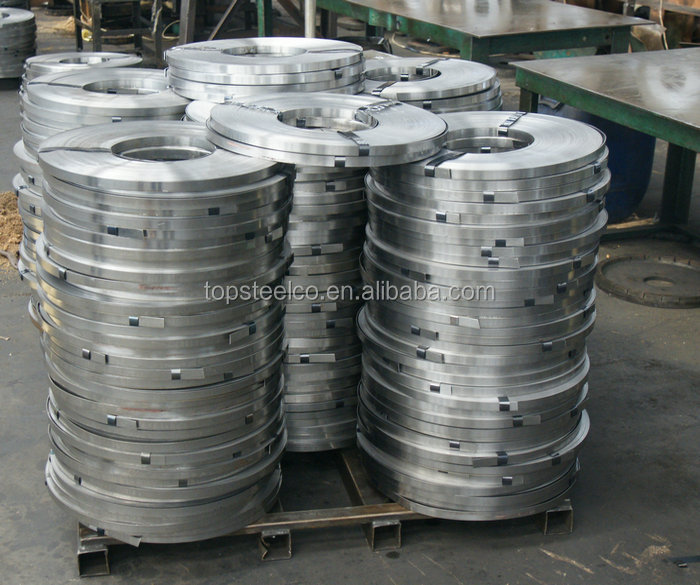

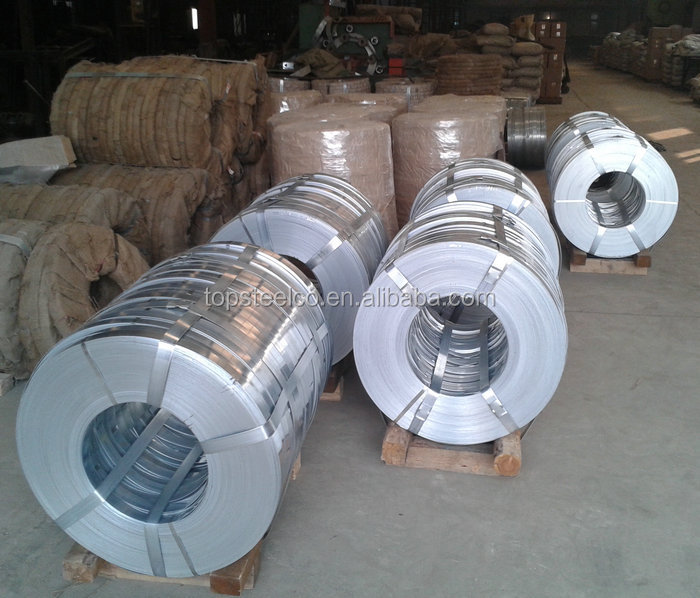

                Galvanized steel strip

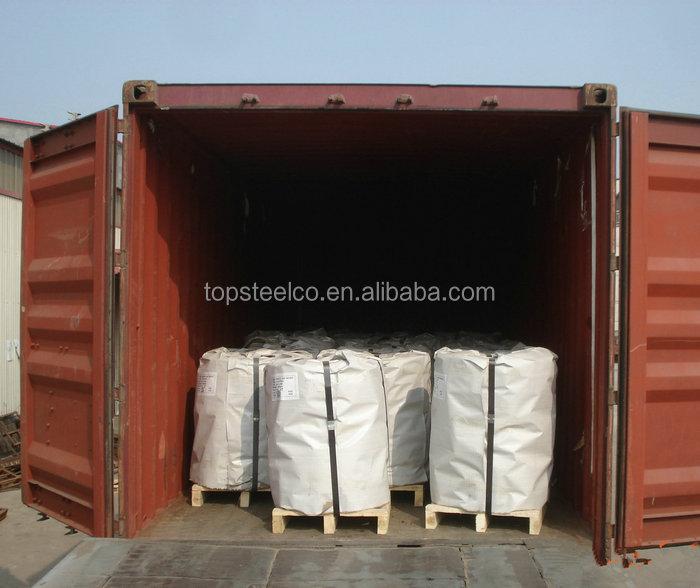

Packaging and Shipping

We provide standard export seaworthy packaging or according to customer's requirements.



Q235 steel strap 3/4 painted black steel strap

our service

Weihai Top Steel Co., Ltd. always provides high quality, favorable price, timely delivery and professional service.

We are a company integrating production, sales, warehousing and export. Our products have been exported to more than 40 countries and regions such as America, Australia, Europe, Middle East, Southeast Asia and Africa.

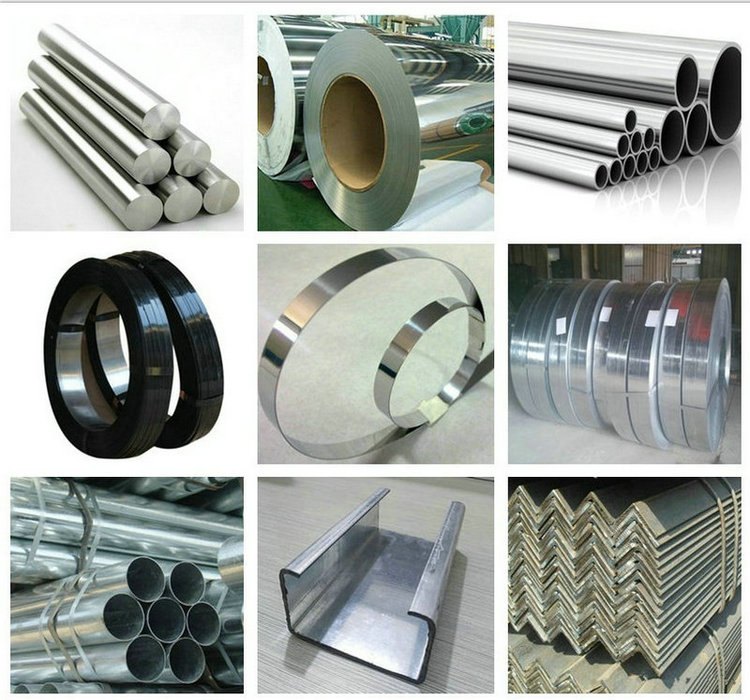

Our main products: stainless steel and carbon steel coil/strip/steel, seamless/welded pipe (round pipe, square pipe, rectangular)/angle steel/round steel/flat steel/H-beam/I-beam/copper channel, etc.

For more steel products, please visit our official website: www.topsteelco.com

Our advantage:

1) More than 10 years of experience in exporting various steel products makes us very professional!
2) There is a strict quality control system from material selection to processing!
3) Competitive price and shortest delivery time!
