Sintered porous ceramic foam filter 10ppi 20ppi 30ppi 40ppi 50ppi 60ppi

Product Detail

Packaging Details:Carton to pallet or wooden case or according to customer's requirement.Hole density:10-60 Producer Index
port:any port in Chinausage:for molten metal filtration
brand:Elettemodel:ELT-CFF
application:refractoryOrigin:Guangxi, China
type:ceramic platesize:custom size
Material:Alumina, silicon carbide, zirconia, magnesiapayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
color:white, gray black, yellowSupply capacity:500000 pieces per month
Processing services:formingPorosity:80-90%
shape:round, square or irregular shape
Product Description

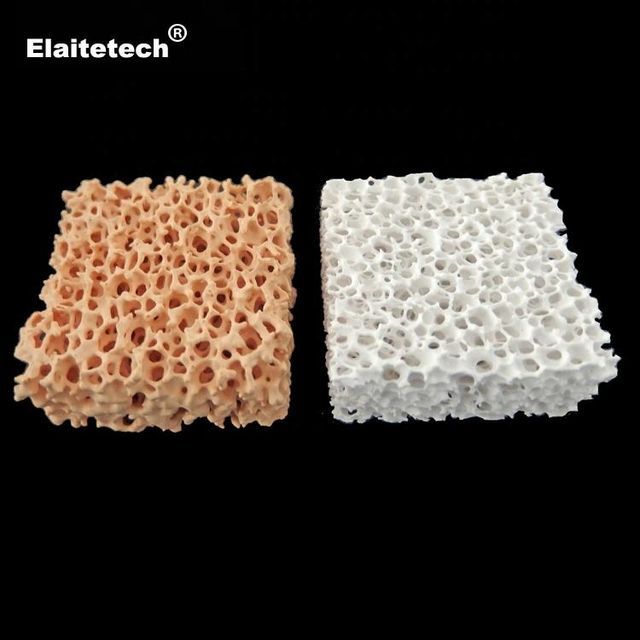

We are a professional supplier of cast filters in China, and ceramic foam filters are the most effective filtration system at present with a unique three-dimensional channel structure. Our filtration systems help customers remove inclusions, reduce turbulence and provide fast and consistent flow, resulting in improved casting quality, lower defect rates and lower casting costs. They are widely used in aluminum, copper, iron and steel casting applications.
Our ceramic foam filters feature light weight, high mechanical strength, large specific surface area, high porosity, excellent thermal shock resistance, chemical corrosion resistance and high temperature stability in molten metals. It can not only filter residues, but also especially absorb tiny impurities of 1-10μm.
Our ceramic foam filters are not only used in high-temperature molten metal filtration, but also in high-temperature gas dust purification, sound insulation, biological enzyme carriers in pharmaceutical preparations, catalyst carrier substrates, solid heat exchange, and advanced chemical filling, etc. .
We can provide ceramic foam filters of various materials, such as silicon carbide ceramic foam filters, zirconia ceramic foam filters, magnesium oxide ceramic foam filters, and alumina ceramic foam filters. Produces square, rectangular and round filters at 10 PPI and 60 PPI (pores per inch).

Product advantages

1. Purify the molten metal.
2. Simplify the gating system.
3. Improve the metallographic structure of castings.
4. Reduce impurities in castings.
5. Improve the qualified rate of castings.
6. Reduce re-oxidation defects inside the casting.
7. Reduce the surface defects of castings after machining.

Applications

We have developed four types of ceramic foam filters: alumina ceramic foam filter, silicon carbide ceramic foam filter, zirconia ceramic foam filter and magnesia ceramic foam filter.

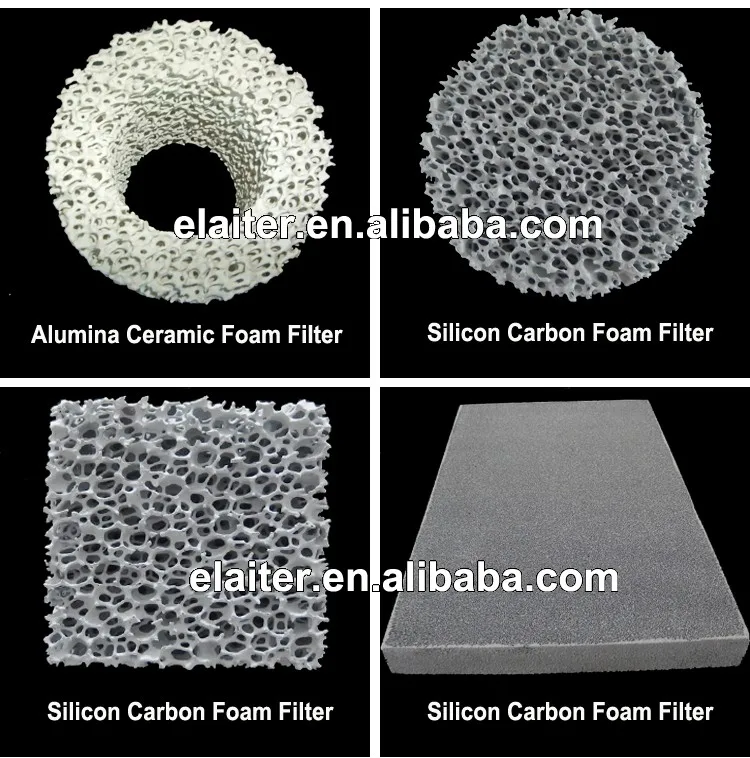

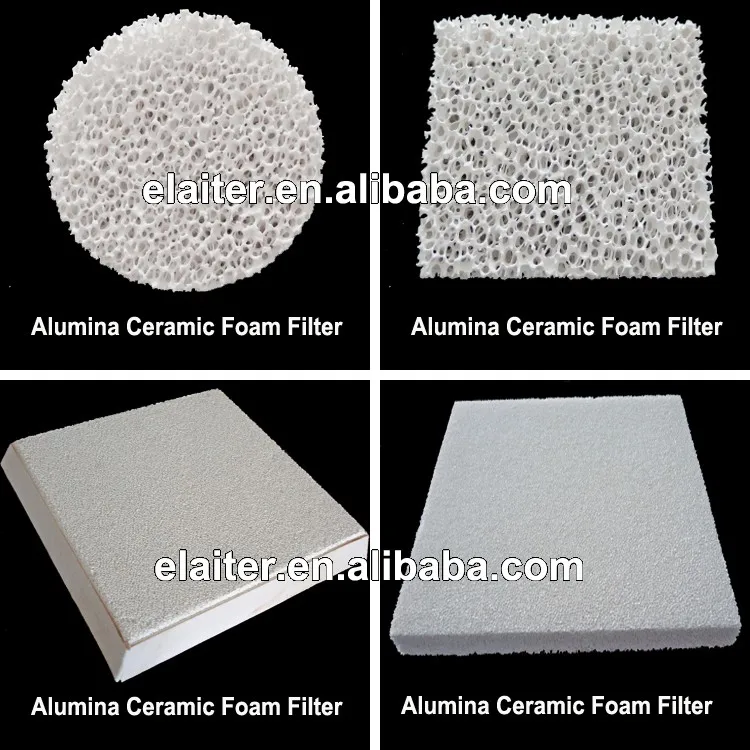

aluminum2oxygen3Ceramic Foam Filter

It is suitable for purging and filtering of molten aluminum, aluminum alloy and other non-ferrous casting solutions.



Silicon carbide based ceramic foam filter

It is suitable for purging and filtering solution of molten iron and alloys, ductile iron castings, gray iron castings and malleable castings, bronze castings, etc.

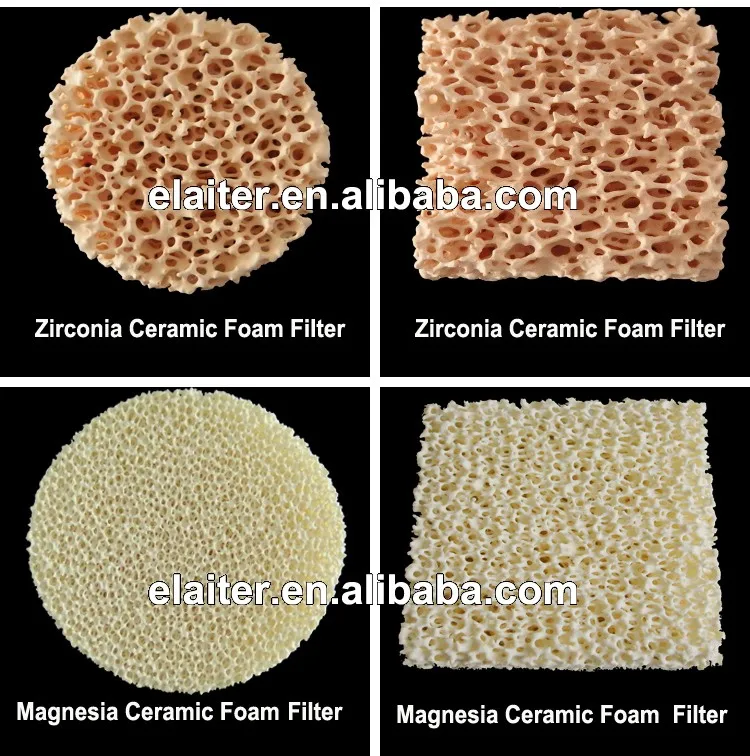

Zirconia2Ceramic Foam Filter

It is suitable for purging and filtering of molten carbon steel, steel alloy and stainless steel castings.



Magnesium Oxide Based Ceramic Foam Filter

It is suitable for purging and filtering of magnesium and magnesium alloy casting liquid.

Product Series

project

Aluminum oxide

CFF

Silicon carbide CFF

Zirconia CFF

Magnesia CFF

main ingredient

aluminum2oxygen3

Silicon carbide

Zirconia2

magnesium oxide

Chemical

work(%)

aluminum2oxygen3

≥80

≤25

≤15

-

Silicon carbide

≤5

≥70

≤5

-

Zirconia2

-

-

≥70

-

other

≤15

≤5

≤10

-

color

white

Gray-black

yellow

yellow

Bulk density (g/cm33)

0.35-0.55

0.45-0.65

1-1.5

0.5-0.7

Bending strength (Mpa)

0.6

0.8

0.8-1.0

0.6

Compressive strength (Mpa)

≥0.8

≥1.0

≥1.5

≥0.8

Thermal conductivity (W/m·K)

0.20

0.45

0.30

0.20

Heat shrinkage rate (%)

<0.3

<0.3

<0.3

<0.3

Maximum working temperature (°C)

≤1200

≤1500

≤1700

≤1100

Porosity(%)

80-90

80-90

80-90

80-90

Thermal Shock Resistance (1100-20°C)

>6 times

>6 times

>6 times

>6 times

Pore ​​Size (pore size per inch)

10-60

10-60

10-60

10-60

application

non-ferrous metals,

Aluminum and its alloy casting

Casting of copper and its alloys, iron and its alloys

Steel and its alloy casting

Magnesium and its alloy casting

Available Sizes and Shapes

length Width

40-584 mm

(1.5″-23″)

40-584 mm

(1.5″-23″)

40-300 mm

(1.5″-12″)

40-300mm

(1.5″-12″)

diameter

40-584 mm

(1.5″-23″)

40-584 mm

(1.5″-23″)

40-300 mm

(1.5″-12″)

40-300mm

(1.5″-12″)

thickness

≤50.8mm

(≤2″)

≤50.8mm

(≤2″)

≤50.8 mm (≤2 inches)

≤50.8mm

(≤2″)

Custom size and shape available (round, square or irregular)

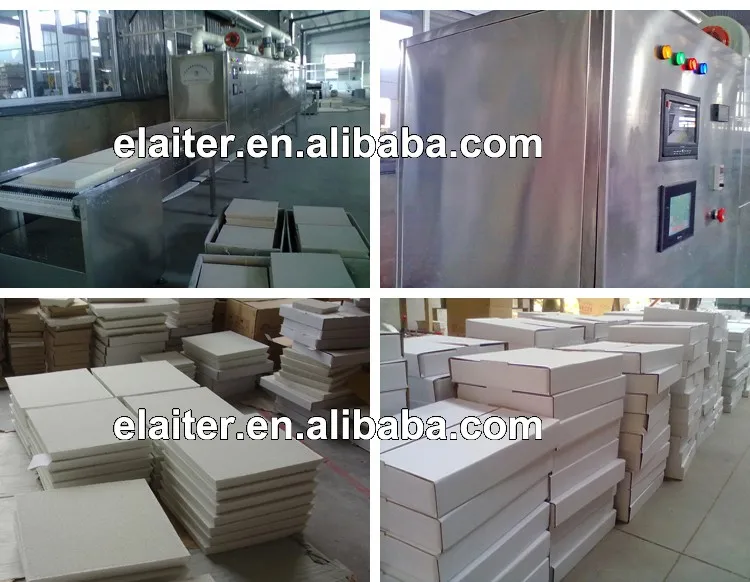

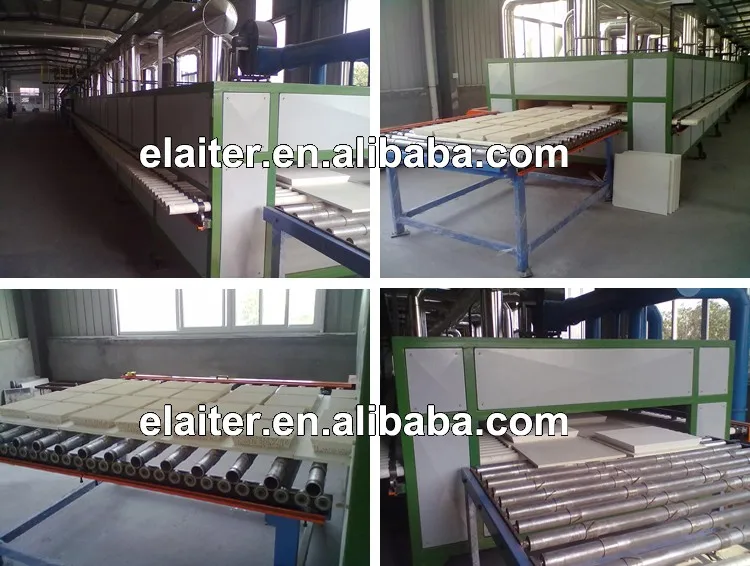

production on spot



Packaging and Shipping



contact us
