High Strength Refractory Cast Porous Alumina Foam Ceramic Filter

Product Detail

color:whiteProcessing services:Bending, welding, cutting, punching, decoiling, forming
brand:holy springPackage preview:
Model:FCF-1Zpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Supply capacity:50000000 pieces per yearOrigin:Shandong Province, China
Certificate:ISO9001Material:Zirconia Ceramics, Zirconia Ceramics

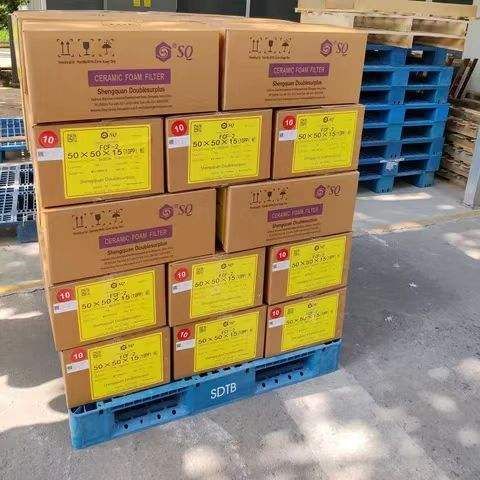

MOQ:1 tonPackaging Details:Carton or wooden box with pallet inside (according to customer's requirement)
type:ceramic partsproduct name:Cast foam ceramic filter
pack:Professional Packagemodel:FCF-1Z Zirconia Foam Ceramic Filter
application:Industrial Ceramicsport:Qingdao
filter
Liquid metal filtration technology is an effective means to improve the surface and internal quality of castings. Filters have been widely used in auto parts, aerospace, machine tools, hydraulic parts, pump valves, wind power and other industries. SQ Group has the world's largest cast filter production base, producing and exporting various filters to more than 40 countries and regions.
FCF-1Z Zirconia Foam Ceramic Filter
Features:
Excellent high temperature performance, the working temperature can reach 1750°C;
High strength at room temperature, less fragments;
Stable quality, high porosity, good filtering effect;


Specification:
index
Compressive strength (MPa)
Working temperature w (°C)
Application Range/Features
Model
FCF-1Z
≥1.5
1700
Stainless steel or cobalt-based or nickel-based superalloy castings
FCF-1ZH
≥1.5
1700
Low alloy steel, carbon steel and large steel castings
FCF-1ZR
≥2.5
1750
Steel castings with special requirements
normal size:
square
50*50*22
60*60*22
70*70*22
75*75*25
100*100*25
125*125*25
150*150*30
175*175*35
200*200*35
250*250*40
round
Φ50*22
Φ60*22
Φ70*22
Φ75*25
Φ100*25
Φ125*30
Φ150*30
Φ200*35
Φ250*40
Φ300*40
Instructions for use:
1. Selection of filter pore size
Medium and large steel castings use 10 and 15ppi, and smaller castings with higher requirements can choose smaller hole diameters.

2. Filtration rate
* Carbon steel and low alloy steel 1.0-2.7 kg/cm2
* Stainless steel 1.0-4.0 kg/cm2
Filtration rate is affected by casting type, location, pouring temperature and pouring height. Please contact our engineers for specific usage methods.

3.size selection
Diameter/side length 40-70mm, thickness 15-22mm
Diameter/side length 75-100mm, thickness 22-25mm
Diameter/side length 125-150mm, thickness 25-30mm
Diameter/side length 175-225mm, thickness 30-35mm
Diameter/side length 250-300mm, thickness 35-40mm
Jinan Shengquan Group Co., Ltd.;limited companySQ for short, was established in 1979 and is located in Zhangqiu Chemical Industrial Park, Jinan. The 1,200-acre facility has a diverse and highly skilled workforce of approximately 2,000 people. SQ is in the leading position in China's industry in all aspects. Production capacity, technology, product quality, turnover, profits and taxes, management capabilities, etc.

SQ has successfully ranked among the top five manufacturers of foundry auxiliary materials in the world. True to SQ's motto - the best is not enough - the SQ Group has emphasized the importance of high quality products throughout its 30 year history. SQ occupies 1/3 of the industry's market share, and its sales network covers Europe, Southeast Asia and 40 countries around the world. We have a good reputation in this industry. People say..."If you want to buy resin, go to China and the best resin...you can get it in Jinan SQ". SQ continues to achieve strong growth through strong partnerships with clients large and small around the world. Customers are our main strength. We strive to build deep and lasting relationships with our clients who trust and rely on us to help them achieve long-term success.
