DIN2391scm Precision Seamless Steel Pipe/Automotive Pipe/Steel Pipe

Product Detail

standard:ASTM, ANSI A213M-2001, DIN, DIN 2391, DIN 17175, DIN EN 10305, GB, GB/T 8163-1999, GB/T 8162-1999, GB/T 3639-2000, GB/T8162, Gb/t8163, GB/T3639, JIS, JIS G3445-2006Origin:Jiangsu, China
Steel pipe length:Customer requirements for steel pipesCertification:ISO9001:2008
Steel pipe allowable deviation:+/-0.03mmSteel pipe tensile strength:346~630 (MPa)
Outer diameter:3 - 80 mmapplication:fluid tube
Supply capacity:800 tons of DIN2391scm precision seamless steel pipe/automobile pipe/steel per monthport:Shanghai
thickness:0.5 - 8mmSurface treatment:Steel pipe polished, galvanized
Steel pipe yield strength:≥355 (MPa)payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram, Steel Tube PayPal
Steel pipe process:Cold drawn, cold rolledSecondary or not:non-secondary
Steel pipe material:Steel pipe DIN 2391Steel pipe shape:round steel pipe
technology:cold drawnSteel pipe color:steel pipe strip
Special tubing:thick wall tubePackage preview:
Whether alloy:UnalloyedPackaging Details:1. Steel pipe waterproof paper package 2. Steel pipe steel bar linen 3. Steel pipe cap 4. Steel pipe wooden box
grade:10#-45#,10#,20#,45#,16mn,16mn,A53-A369,A213,Cr-Mo alloy,35CRMO4,30CrMo,Q195-Q345,Q235,Q345,Q195,ST35-ST52,ST37, ST52, ST45, ST35, ST37.4Steel pipe product name:DIN2391scm precision seamless steel pipe/automobile pipe/steel pipe
Section shape:round

DIN2391scm precision seamless steel pipe/automobile pipe/steel pipe

German standard:

product name

manager

standard

Specification range (mm)

steel grade

Cold drawn seamless

Precision tube

DIN2391

Φ3~80×0.5~8

ST35, ST37.4, ST44,

ST45, ST52

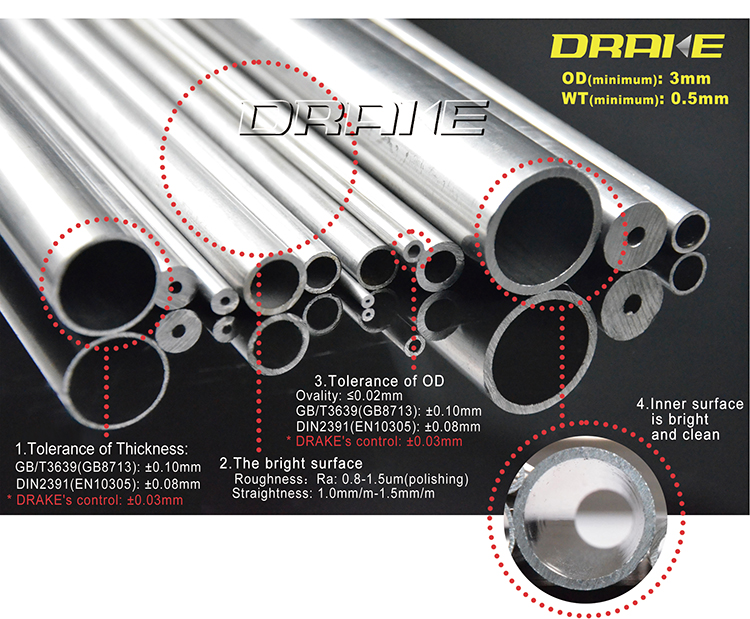

Steel pipe tolerance table:

Name

Range (mm)

DIN series (mm)

outer diameter

3-30

±0.08

31-40

±0.15

41-50

±0.20

51-60

±0.25

wall thickness

0.5-8

±10%



Mechanical behavior:

standard

steel grade

Mechanical behavior

GBK(+A)

NBK(+N)

to stretch

strength

(Rmmpa)

elongation

speed

(A5%)

to stretch

strength

(Rmmpa)

yield

strength

(Rempa)

elongation

speed

(A5%)

DIN 2391

St. 35

≥315

≥25

346-478

≥235

≥25

St. 37

≥315

≥25

346-478

≥235

≥25

St. 37.4

≥315

≥25

346-478

≥235

≥25

St. 45

≥390

≥21

440-570

≥255

≥21

St. 44

≥390

≥21

440-570

≥255

≥21

St. 52

≥490

≥22

490-630

≥355

≥22



Other specifications:

end shape

Beveled end, flat end, disappear or add plastic caps to protect both ends according to customer's requirements

Require

surface

treat

Oiling, galvanizing, phosphating, etc.

technology

Cold drawn and rolled

application

1. Automobile and mechanical pipes

2. Petroleum cracking pipe

3. High pressure boiler tube

4. Low and medium pressure fluid delivery pipelines

5. Fertilizer equipment pipeline

6. Heat exchanger tubes

deliver goods

situation

1. Lower back (+C)

No heat treatment is required after the last cold forming.

2. BKW (+LC)

After the last heat treatment, a light finishing process (cold drawing)

3. BKS (+SR)

After the final cold forming process, the tubes are stress relieved annealed.

4. GBK (+A)

After the final cold forming process, the tubes are annealed in a controlled atmosphere.

5. NBK (+N)

After the final cold forming process, the tube is annealed above the upper part

The transition point in a controlled atmosphere.

pack

1. Bundled packaging.

2. According to customer requirements, flat end or disappear.

3. Wrap with waterproof paper.

4. There are several steel strips on the burlap.

5. Packed in a heavy-duty three-wall box.
