High Quality ASTM B338 Gr2 Titanium Flat Tubes 2017 Hot Sale Thin Wall Discharge Multi-function Titanium Tube Gr5 Yz-ti-tube

Product Detail

the inside diameter of:2.5~150mmgrade:Group 1, Group 2, Group 3, Group 5, Group 7, Group 9, Group 12
shape:roundlength:≤6000mm
Key words:Titanium Gr2 tubesurface:Polishing/pickling
Package preview:Key words:Pure seamless titanium tube
product name:2017 hot selling thin wall exhaust multifunctional titanium pipe Gr5Processing:extrusion
Processing services:Bending, welding, cuttingCertificate:ISO9001:2008
technology:seamless, seamlessMaterial:5 sets
Outer diameter:3mm - 114mmpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
port:ShanghaiSupply capacity:5000kg per month
color:silver whitePackaging details:1. Wooden box 2. Can be provided according to customer requirements.
application:Petroleum, chemical industry, salt, medicinePlace of origin:Shaanxi, China
Chamber wall thickness:0.4-10mmmodel:Titanium tube
brand:Tianbostandard:ASTM, JIS, DIN, AISI, GB
type:Round titanium tube
Product Description

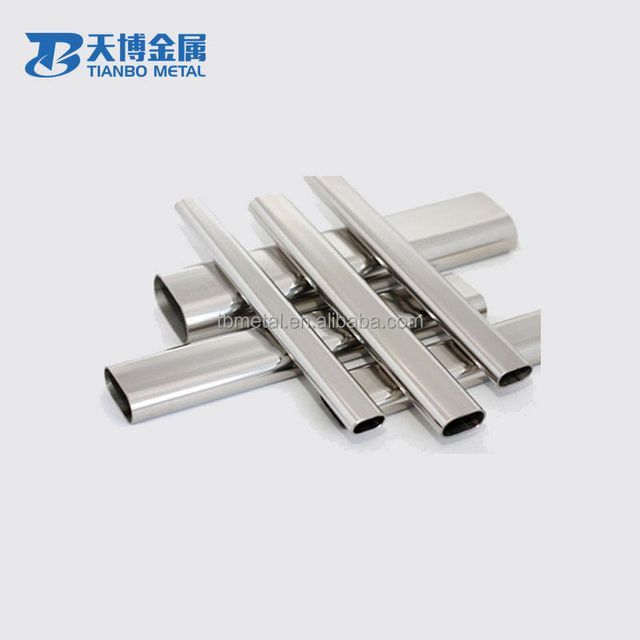

High quality ASTM B338 Gr2 titanium flat tube

Titanium tube introduction:

Titanium tubes are light in weight, high in strength and have excellent mechanical properties. Widely used in tube and tube heat exchangers, coil heat exchangers, coil heat exchangers, condensers,

Evaporator and pipes. At present, many nuclear power industries use titanium tubes as standard tubes.



thing Titanium tube/Titanium tube
standard ASTM B338, ASTM B337, ASTM B861
Material Group 1, Group 2, Group 3, Group 5, Group 7, Group 9, Group 12
size Outer diameter: 3mm - 114mm
Weight: 0.4-10mm
Length: ≤6000mm, or as required
pack Standard export packaging, suitable for air and sea shipment, wooden box or as required
application Due to its excellent corrosion resistance, titanium materials are widely used in
Petroleum, chemical industry, salt making, medicine, metallurgy, electronics, aviation, aerospace, shipbuilding



Chemical requirements:

  nitrogen C H iron oxygen aluminum V Pa titanium
First group 0.03 0.08 0.015 0.2 0.18       Barr
2 teams 0.03 0.08 0.015 0.3 0.25       Barr
5 sets 0.05 0.08 0.015 0.4 0.2 5.5~6.75 3.5~4.5   Barr
9 groups 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0   Barr
Grade 12 0.03 0.08 0.015 0.3 0.25       Barr
Stretch requirements:

grade Tensile strength (minimum) Yield strength (minimum) Elongation(%)
Kersey MPa Kersey MPa
Group 1 35 240 20 138 twenty four
Group 2 50 Chapter 345 40 275 20
5 sets 130 895 120 828 10
9 groups 90 620 70 Chapter 438 15
12 groups 70 Chapter 438 50 Chapter 345 18



standard



1) ASTM B338: Titanium and titanium alloy tubes for condensers and heat exchangers

2) ASTM B337: Titanium and titanium alloy seamless and welded pipes

3) ASTM B861: Titanium and titanium alloy seamless pipes

4) ASTM B862: Titanium and titanium alloy welded pipes
